2-post lift SPOA3TM-5-EH1

3.5 t, electrohydraulic, manual operation, 3-sectional support arms in front x 4, asymmetrical, total height 3865 mm

MPN: SPOA3TM-5-EH1
GTIN (EAN): 4057612493337
Category:
Tags:

Share on:

Description

The electro-hydraulic 2-post lifts of the SPO-series convince by an outstanding pick-up area. The control system is available in a manual and an electric version, as well as different column heights.

  • SPOA3TM-5 offers a flexible pick-up range from SMART to large vans (e.g. VW T6 long) due to its asymmetrical design
  • SPO series – the best-selling lift in the world
  • Maximum security with the Rotary 3PSS concept

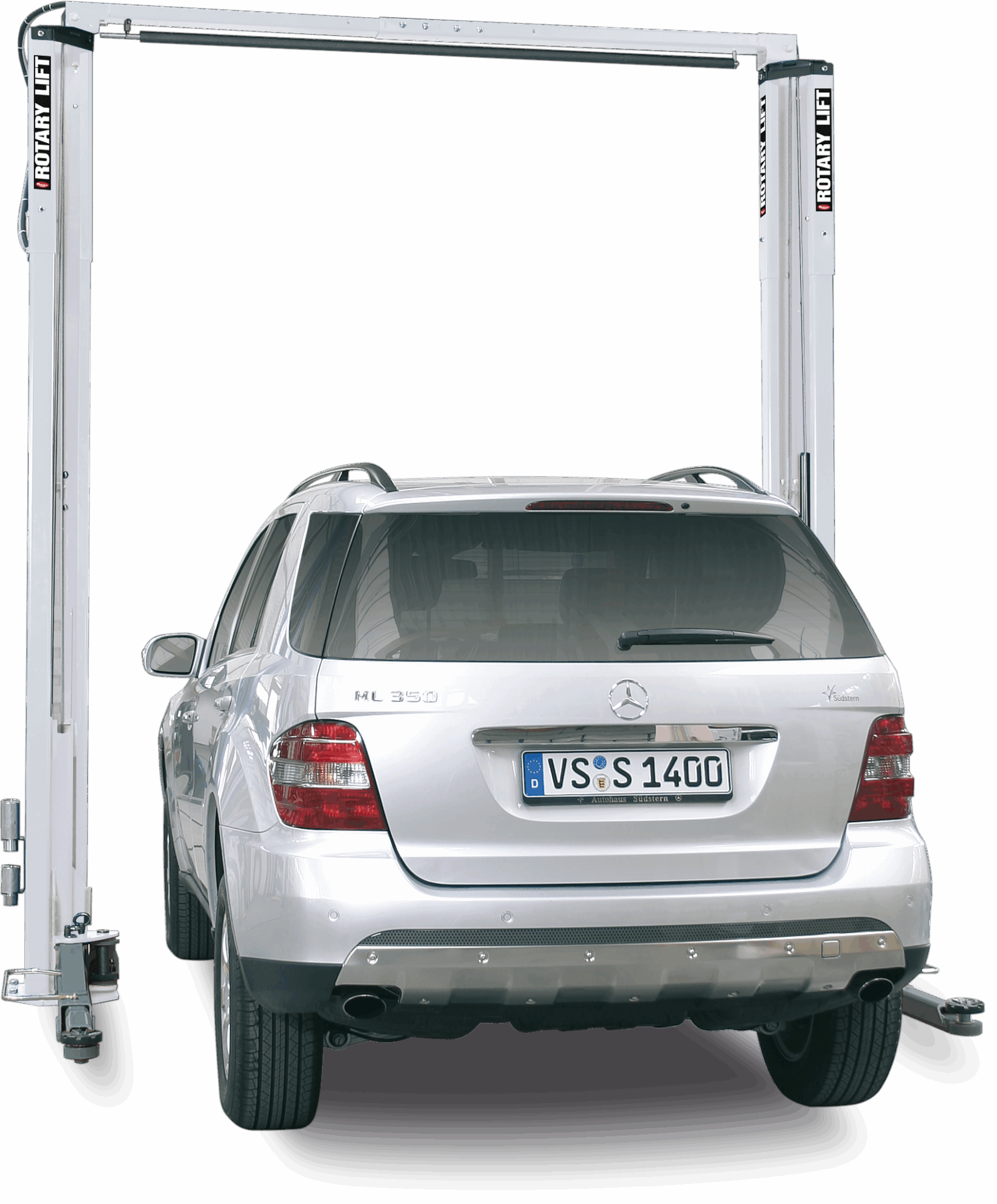

  • Pick-up range up to VW T6 long
  • 3PSS Concept (3 Phase Security System) includes:
    • Mechanical safety latches integrated on both sides with automatic actuation
    • Load-free synchronization pulleys secure the load during the lifting and lowering process
    • Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts

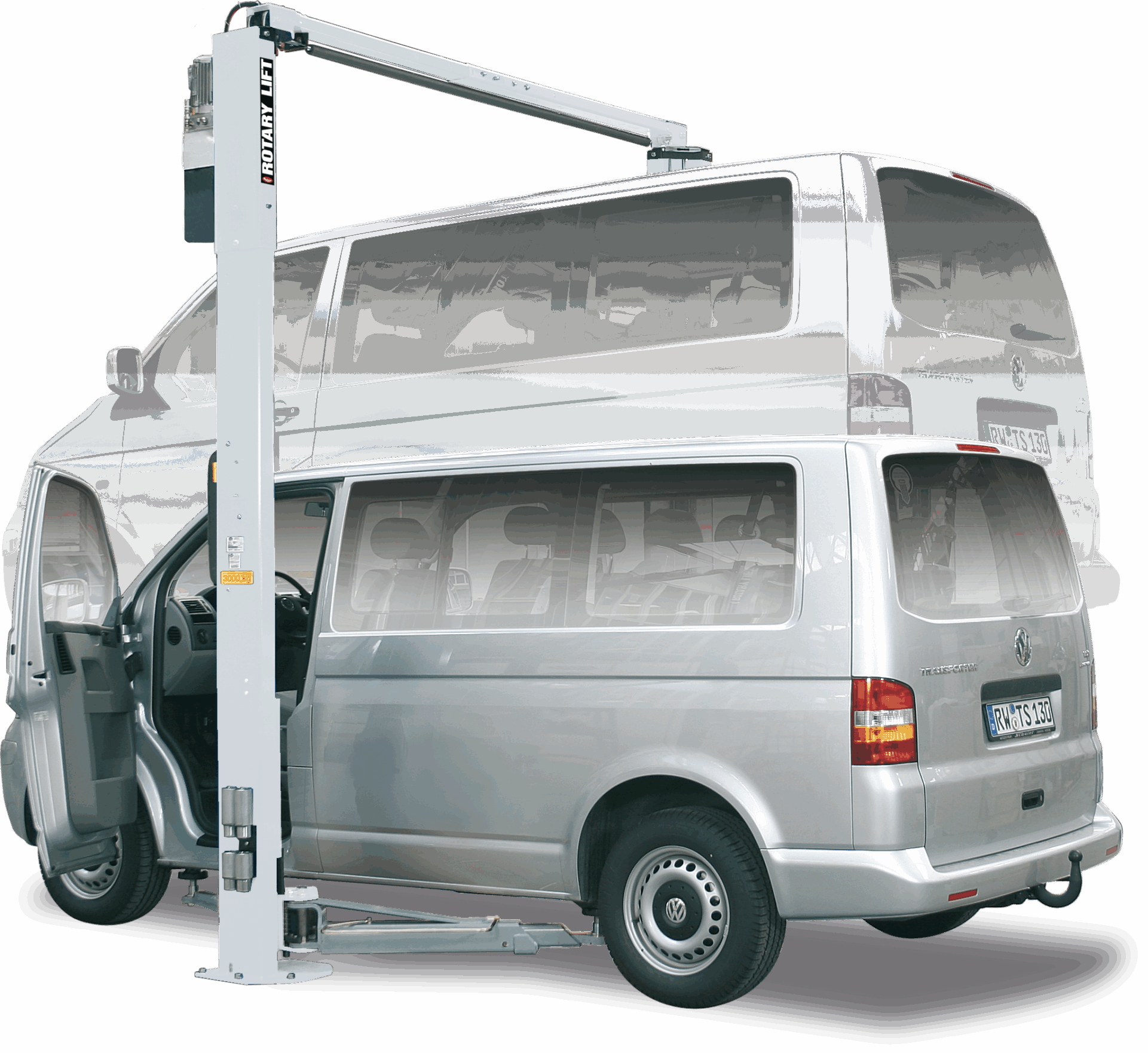

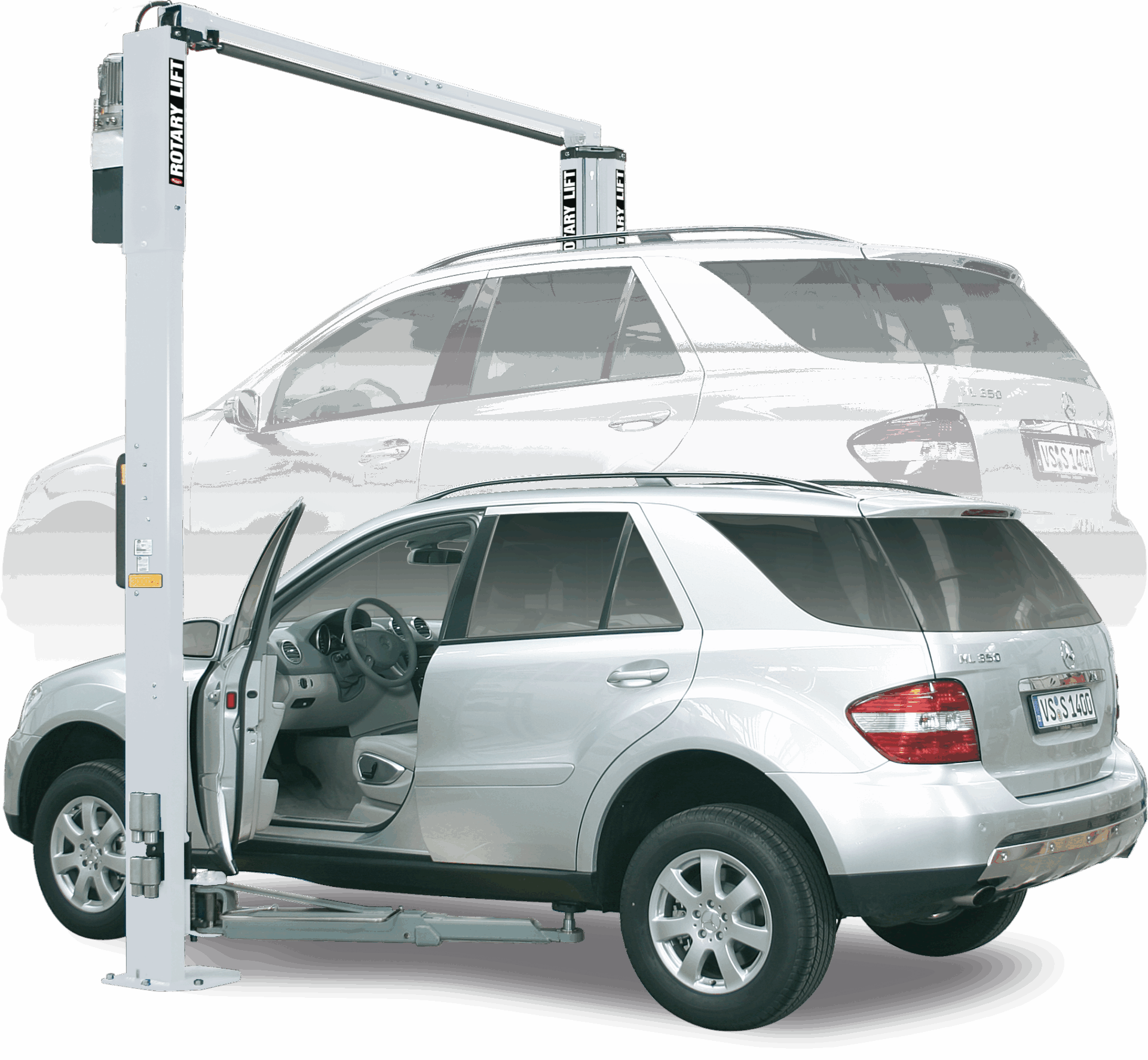

  • The asymmetrical posts and support arm design allows for optimum door clearance.
  • The maximum drive-through width with minimum external dimensions and the construction without a base frame ensure problem-free access to the lifting platform.
  • The rotary plates are pluggable and can be extended or replaced reliably and cost-effectively with attachments.
  • For a plus in ergonomics and economy, the 2nd control panel (for SPOA 3 TS) may be selected. One control unit is equipped with a 220 V connection (fused with 16 ampere for electric hand tools) and the second with compressed air preparation.
  • The upper safety switch-off effectively protects vehicles with a higher overall height from damage during lifting.
  • The electro-hydraulic design with only one unit ensures energy-saving operation with fast lifting and lowering times.
  • Flanged to the upper part of the lifting column, the unit is protected from external influences and allows more freedom of movement.
  • Rotary Hydraulic stands for maximum service-friendliness with minimum operating costs

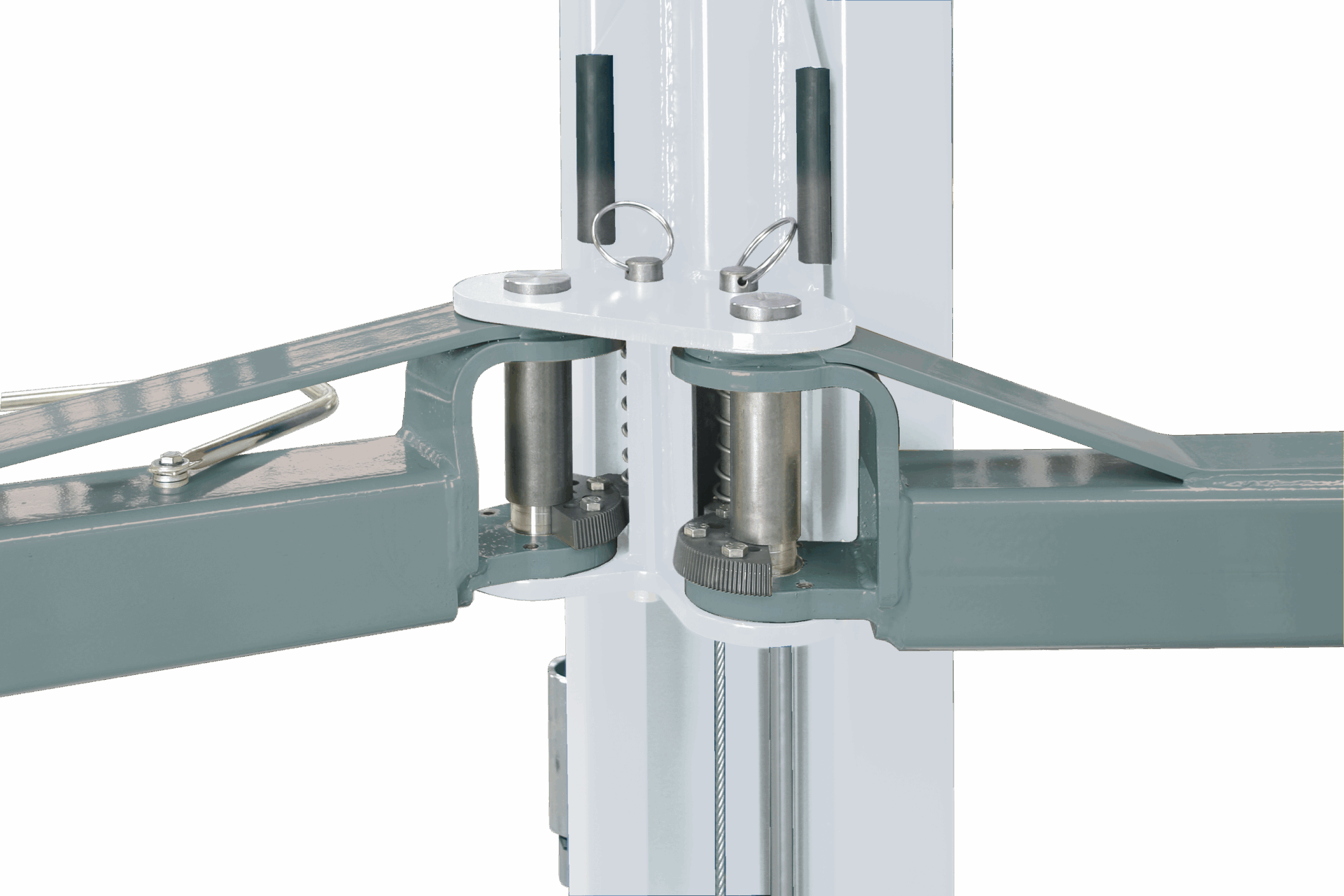

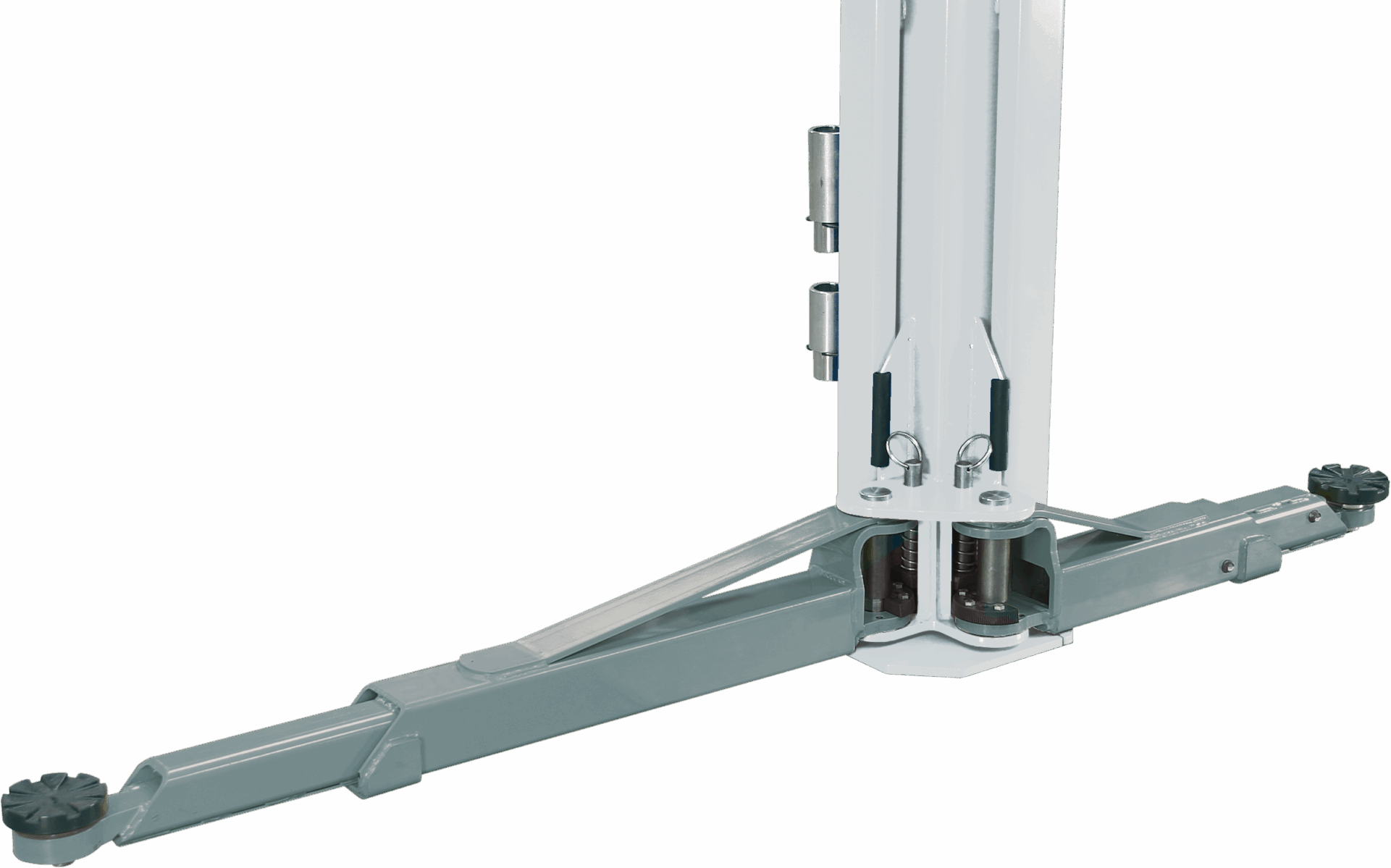

  • The support arms are automatically locked when lifting. Once the platform is completely lowered, this locking device is released automatically. The particularly fine grid and a manual unlocking function extend the ease of operation.

Media

Similar Products

Accessories

Tech Data

Features2-post lift SPOA3TM-5-EH12-post lift SPOA3TM-5-EH12-post lift SPOA3TS-5-EH12-post lift SPOA3TS-5-EH1
Number of columns22
Mode of driveelectrohydraulicelectrohydraulic
Controlmanuallyelectric
Type of installationfloor mountedfloor mounted
Rated load capacity3500kg3500kg
Max. lifting height1957mm1957mm
Lifting time30s30s
Min. plate height94mm94mm
Max. plate heigh154mm154mm
Clear span between2560mm2560mm
Clear span between (out)3000mm3000mm
Drive-through width2336mm2336mm
Switchoff level3760mm3760mm
Required ceiling height3925mm3925mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms3-fold3-fold
Telescopic rear arms2-fold2-fold
Min. front arm length550mm550mm
Max. front arm length1106mm1106mm
Min. rear arm length876mm876mm
Max. rear arm length1472mm1472mm
Driving power4,0kW4,0kW
Electrical connection400 V | 50 Hz400 V | 50 Hz
Height3865mm3865mm
