Body shop lift RAV.KBI28.199942

2.8 t, electrohydraulic, with wheel-lifting platforms, inground

MPN: RAV.KBI28.199942
GTIN (EAN): 5063084199942
Category:
Tags:

Share on:

dashicons-media-document

Description

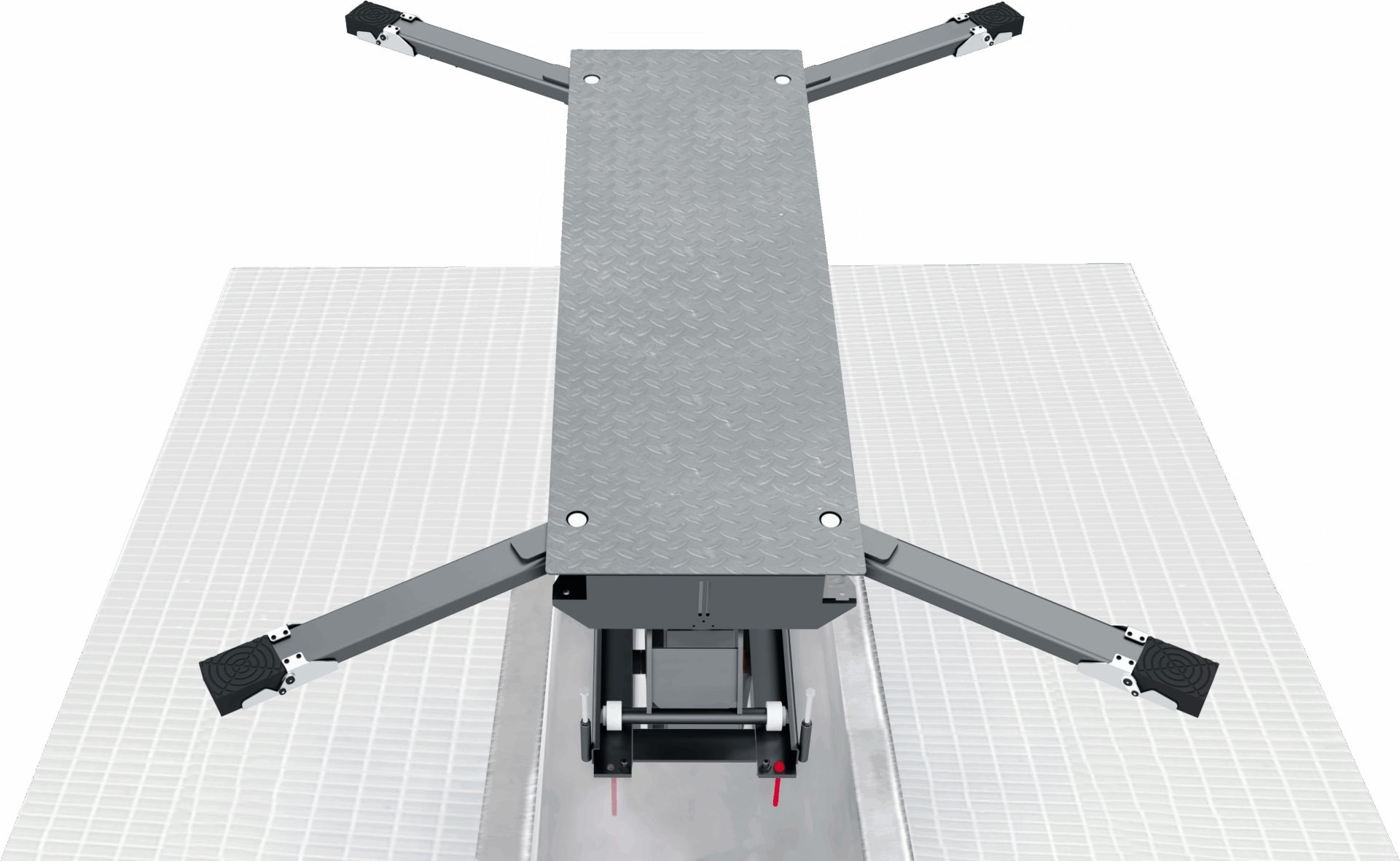

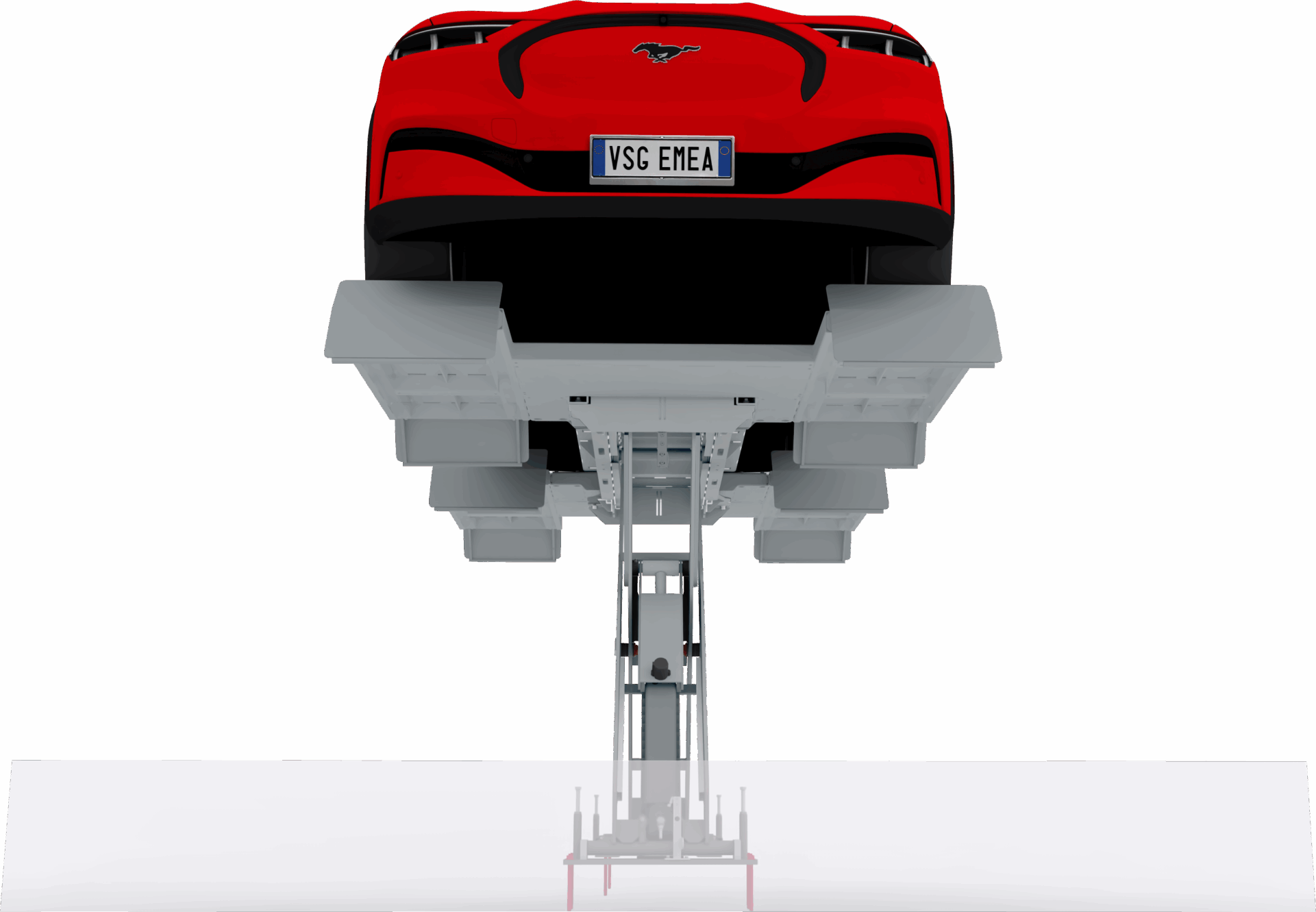

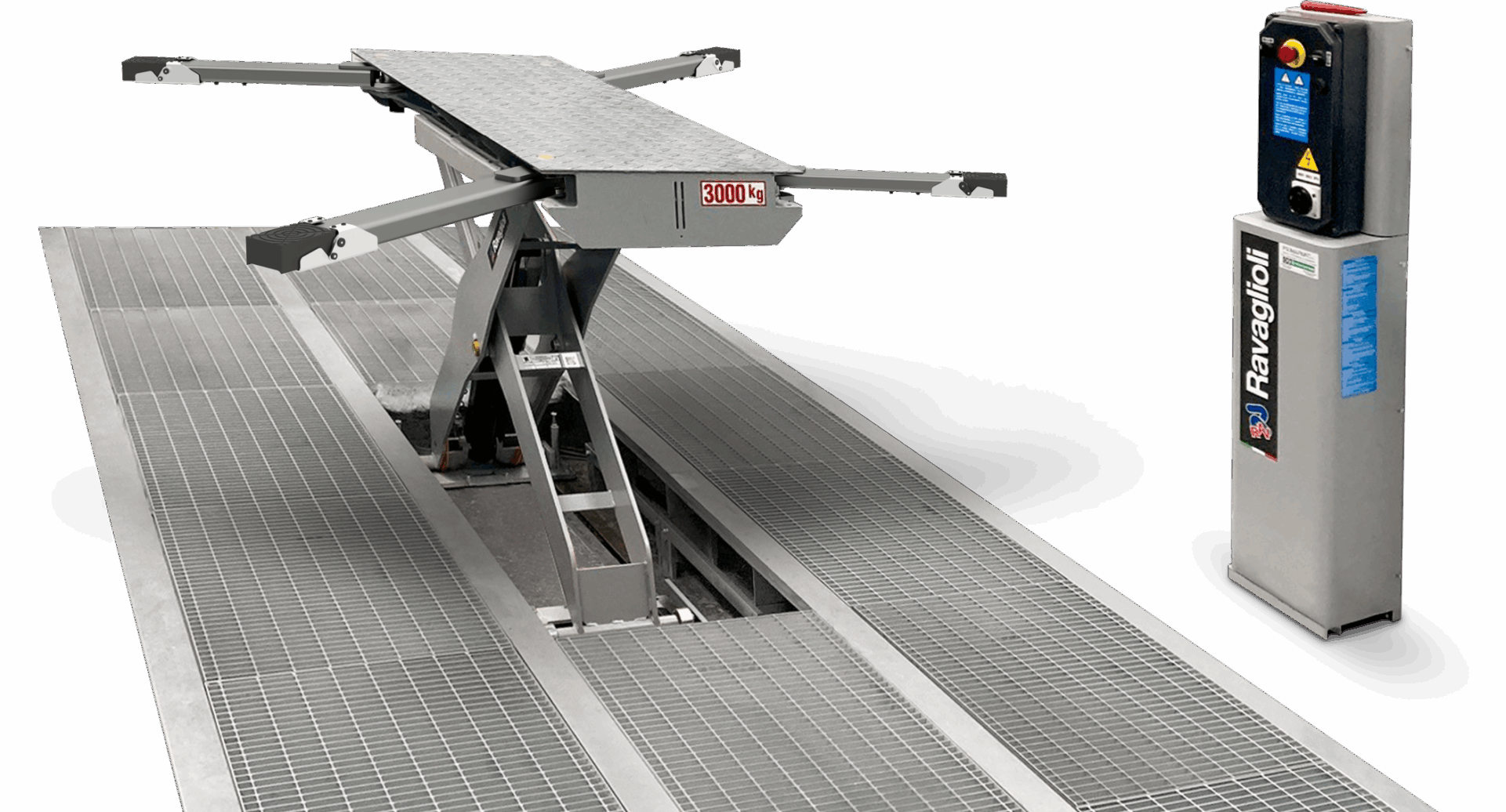

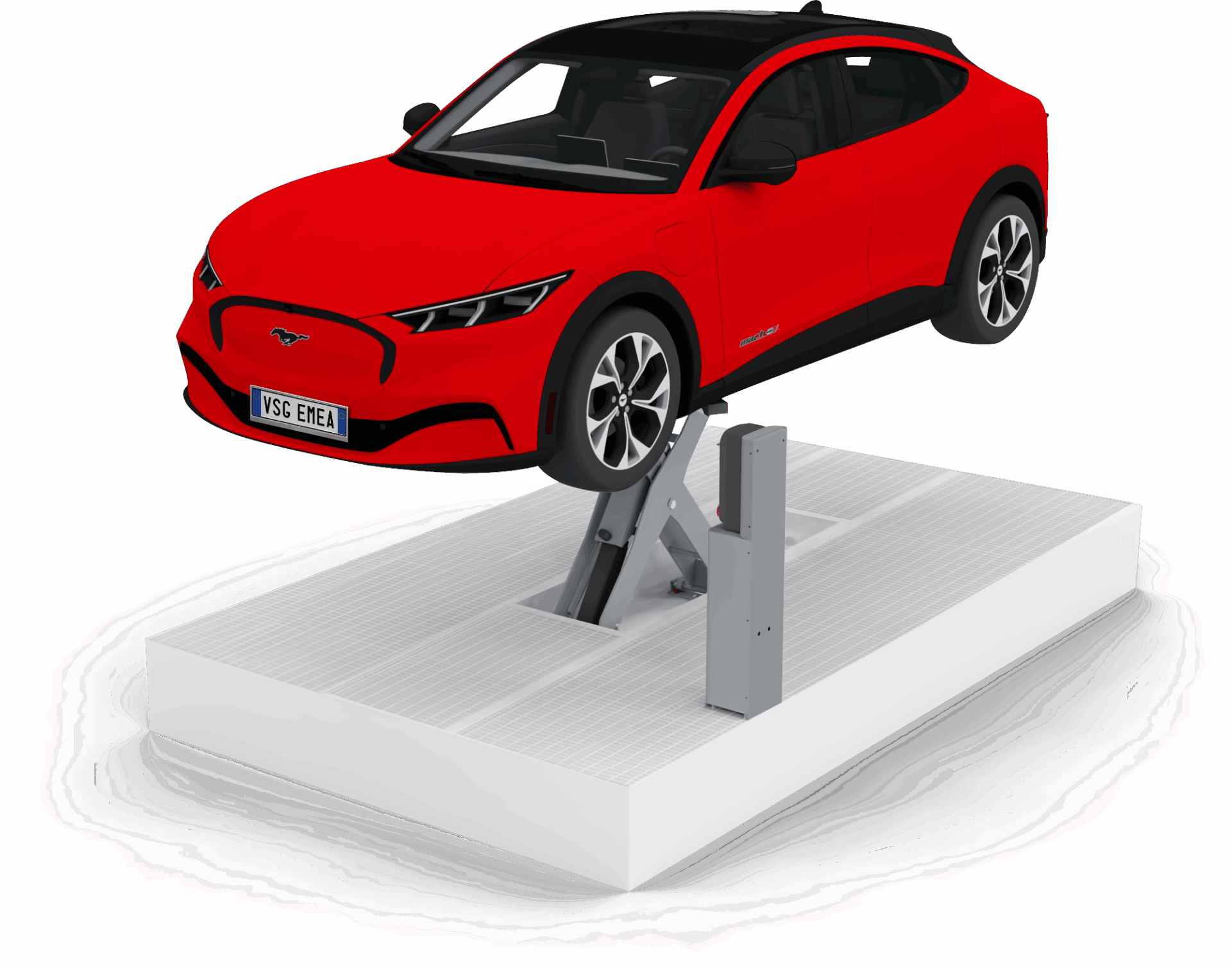

Scissor lift ideal for installation in both paint booth grids and preparation areas, and flush-mounted for traditional floors. Its ergonomic design allows you to easily reach the pick-up points of the vehicles, eliminating all obstacles surrounding the vehicle, in this way making every operation on the chassis easier.

  • Wide range of loadability: suitable for every type of vehicle
  • Quick to use: pad built into the arm that reduces the number of operations necessary for lifting the vehicle

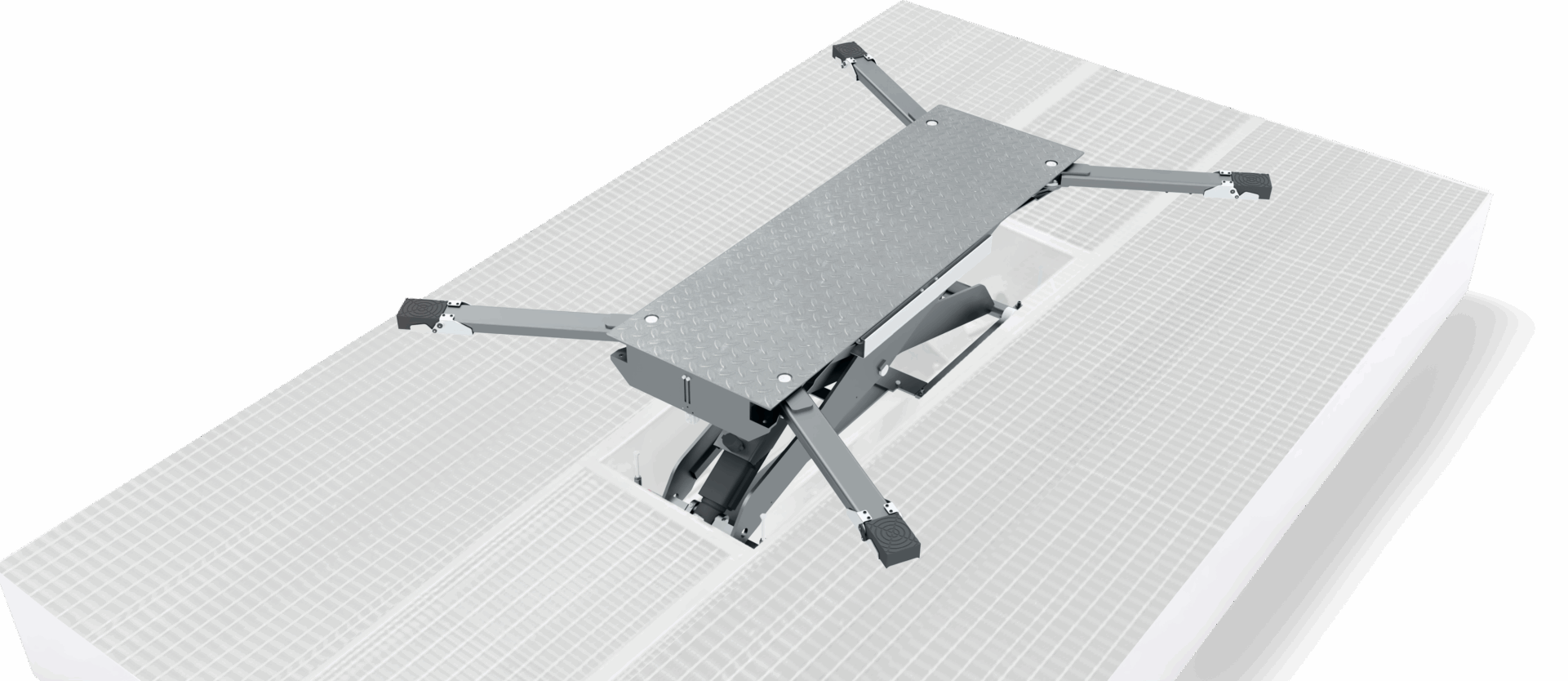

  • Flexible installation: simple and fast installation with minimum interventions, even when there are grids

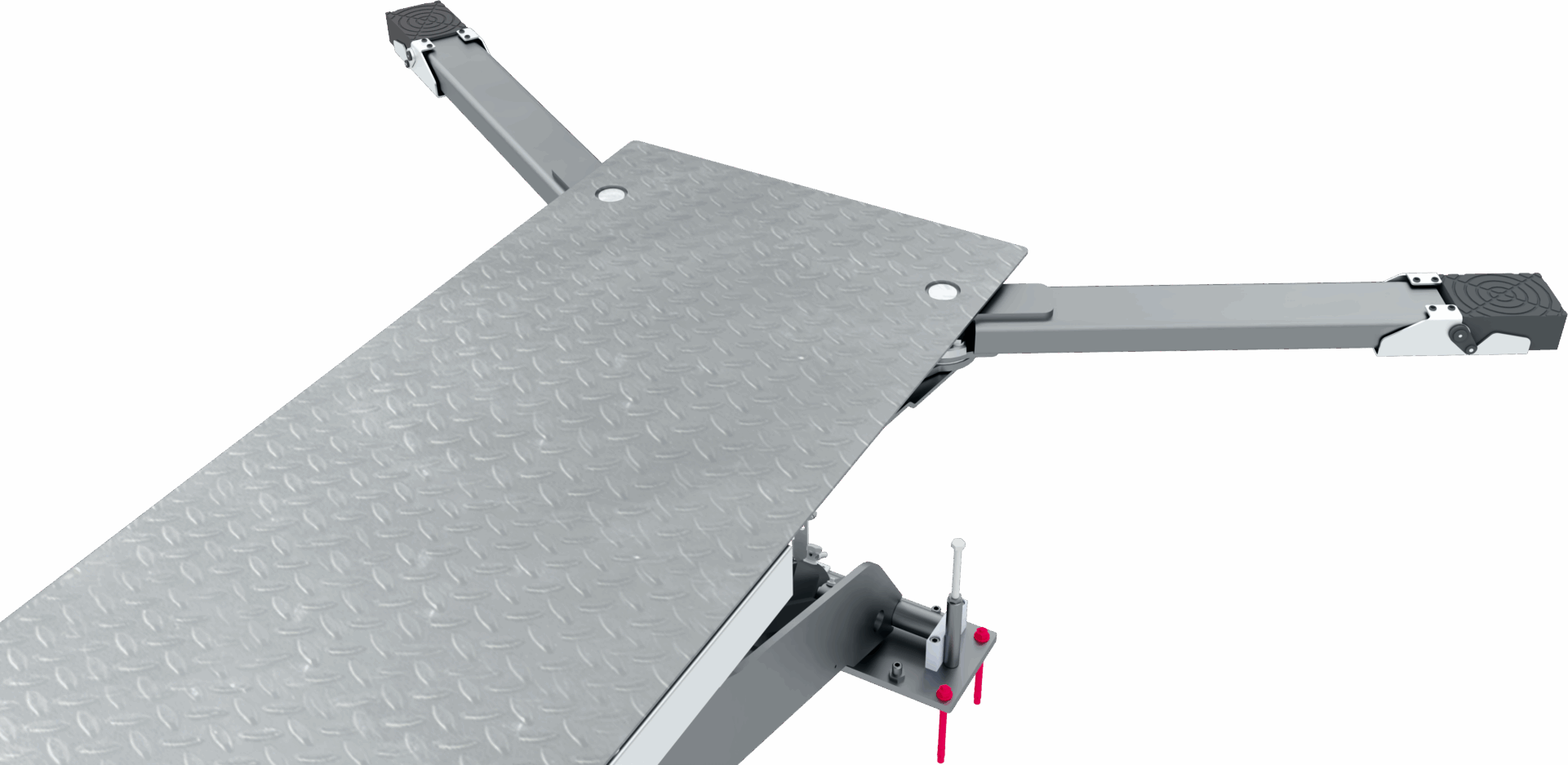

  • The geometry of the arms was designed for lifting the entire fleet of cars on the road, from microcars to long wheel base sedan.

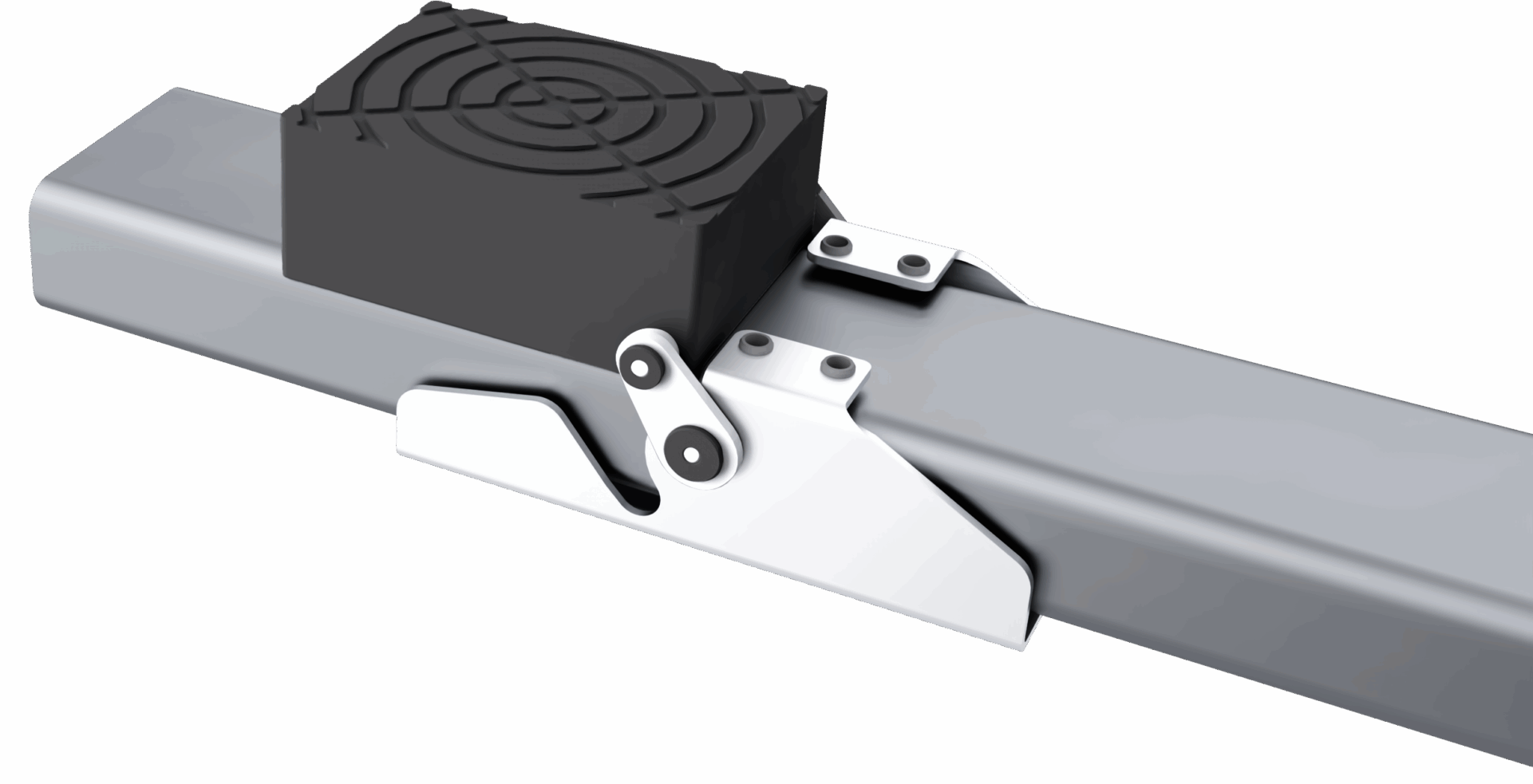

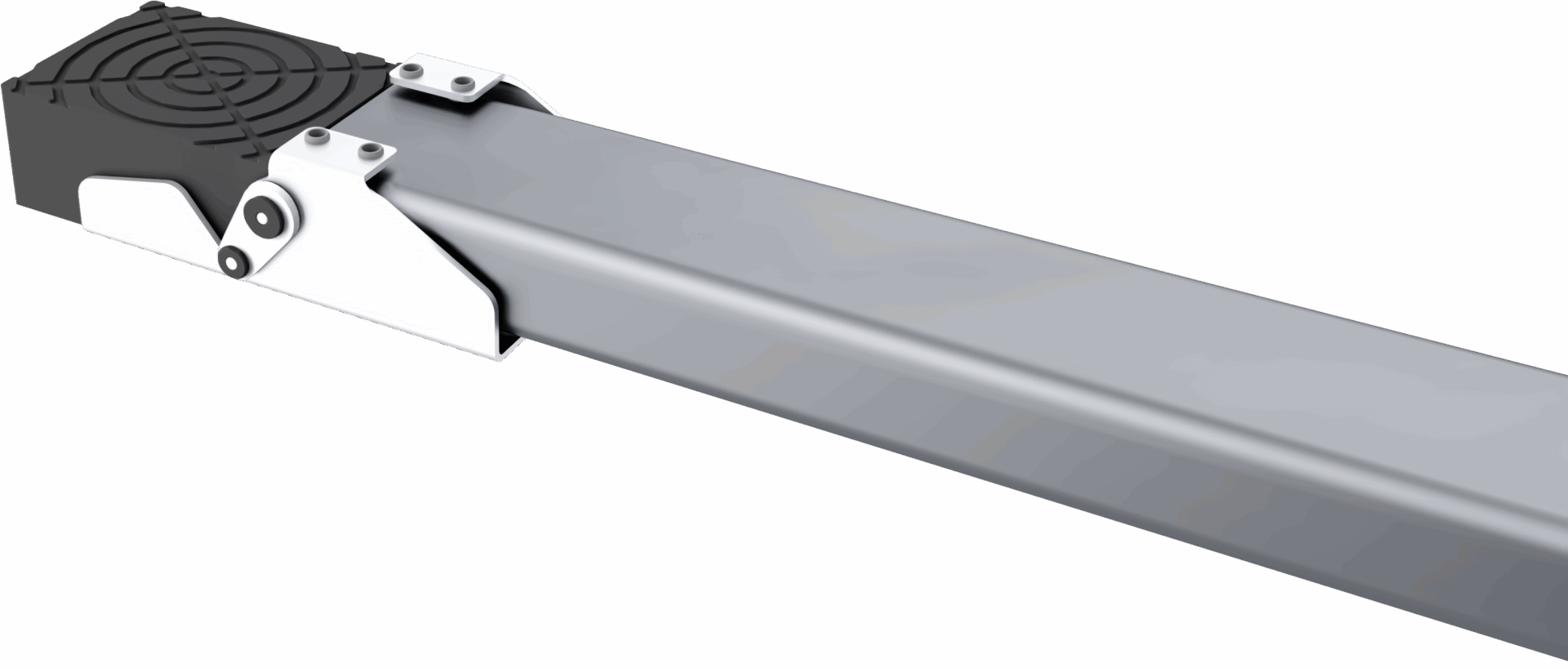

  • Pad always on: The arms have a built-in pad so they can always remain on the lift, even in the rest position. The lift is ready-to-use without requiring the operator to perform any other work.
  • The lift can be installed without any additional shim in grids 270 to 370 mm deep.
  • Changing the standard intake grille is unnecessary. All you have to do is remove the grids for a 2000 x 700 mm surface area.
  • Configurations available: A wide range of configurations is available to satisfy all types of work cycle in the body shop.
  • The vehicle is parked directly on the platforms without having to worry about positioning the pads next to the pick-up points of the vehicle.
  • Maximum ergonomics for all types of cars
  • Elevated lifting height for working standing straight
  • The safety of the operations is guaranteed by the automatic arm locking system and the mechanical safety on the cylinder. (Patent pending)

Media

Similar Products

Accessories

Tech Data

FeaturesBody shop lift RAV.KBI28.199942Body shop lift RAV.KBI28.199942Body shop lift RAV.KBI30.199782Body shop lift RAV.KBI30.199782Body shop lift RAV.KBI30.199812Body shop lift RAV.KBI30.199812Body shop lift RAV.KBI30.199850Body shop lift RAV.KBI30.199850Body shop lift RAV.KBI30.199904Body shop lift RAV.KBI30.199904Body shop lift RAV.KBI30.199973Body shop lift RAV.KBI30.199973Body shop lift RAV.KBI30.199997Body shop lift RAV.KBI30.199997
Scissor lift designLow-rise scissorsLow-rise scissorsLow-rise scissorsLow-rise scissorsLow-rise scissorsLow-rise scissorsLow-rise scissors
Mode of driveelectrohydraulichydropneumaticelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mounted
Rated load capacity2800kg3000kg3000kg3000kg3000kg3000kg3000kg
Max. lifting height1325mm1623mm1623mm1623mm1623mm1623mm1623mm
Max. lifing height at floor level1325mm1353mm1353mm1353mm1353mm1353mm1353mm
Lifting time40s150s40s40s40s40s40s
Lifting time loaded40s170s40s40s40s40s40s
Lowering time35s90s35s35s35s35s35s
Lowering time loaded50s60s50s50s50s50s50s
Play detectornot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Surface coatingPowder coatedPowder coatedPowder coatedPowder coatedPowder coatedPowder coatedPowder coated
Wheel alignmentnot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Length of platforms1950mm1950mm1950mm1950mm1950mm1950mm1950mm
Width of platforms650mm650mm650mm650mm650mm650mm650mm
Wheel free liftnot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Driving power2,6kW2,6kW2,6kW2,6kW2,6kW2,6kW2,6kW
Power supply400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz
Air supply7 – 8bar7 – 8bar7 – 8bar7 – 8bar7 – 8bar7 – 8bar7 – 8bar
Max. air supply8bar8bar8bar8bar8bar8bar8bar
Length4120mm1950mm1950mm1950mm1950mm1950mm1950mm
Width1940mm650mm650mm650mm650mm650mm650mm
Installation depth270 – 370mm270 – 370mm270 – 370mm270 – 370mm270 – 370mm270 – 370mm270 – 370mm
