Tyre changer G1001.24ELX

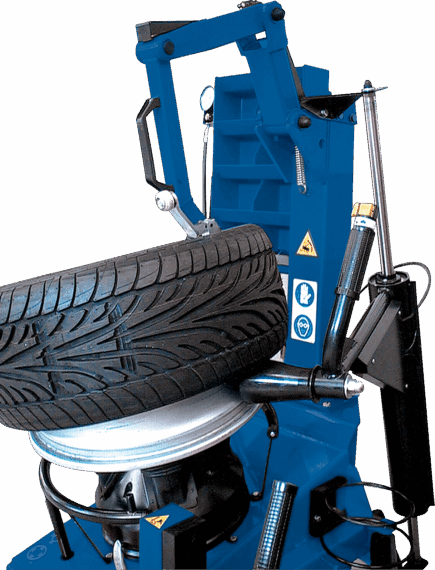

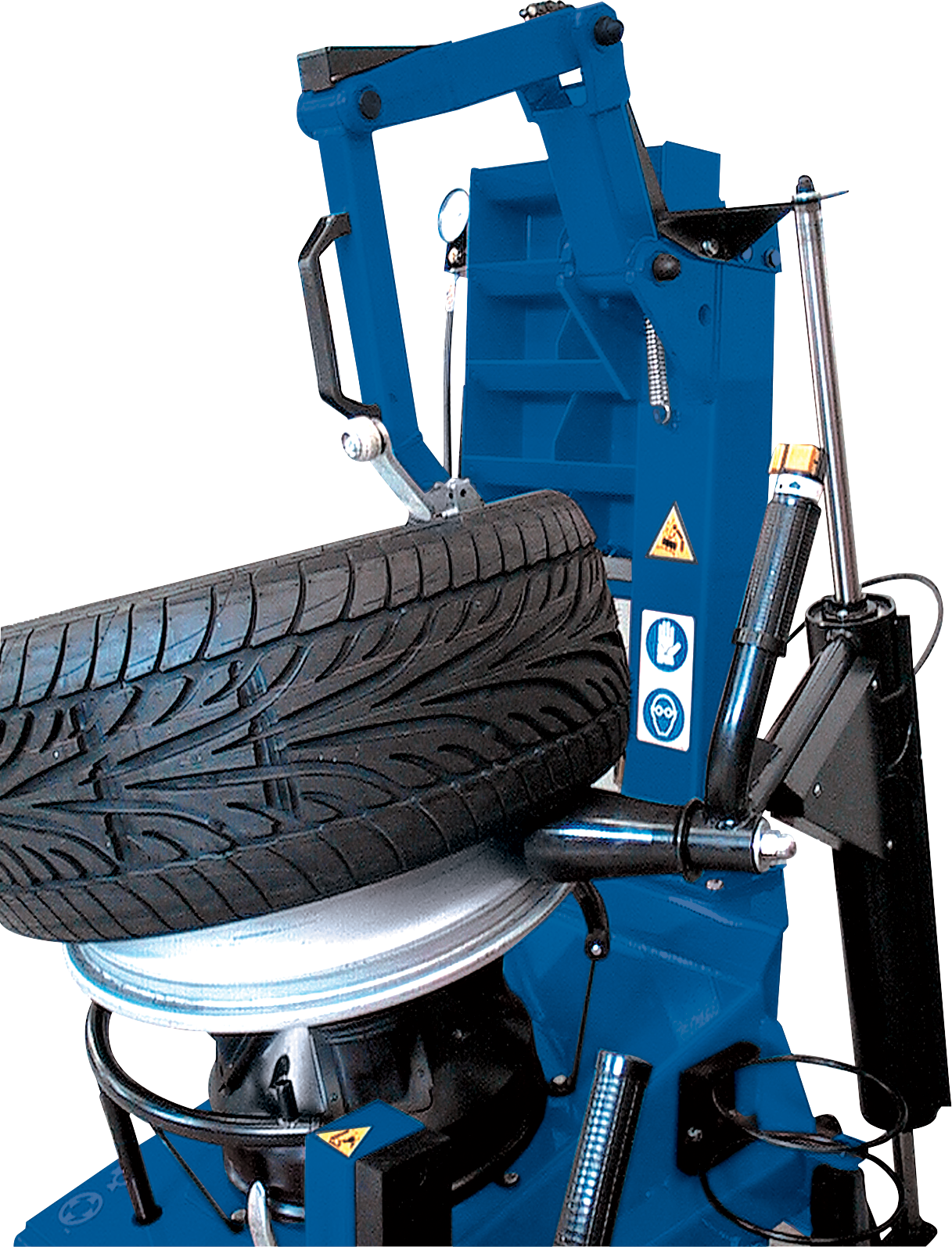

Tyre changer G1001 24ELX DI 01

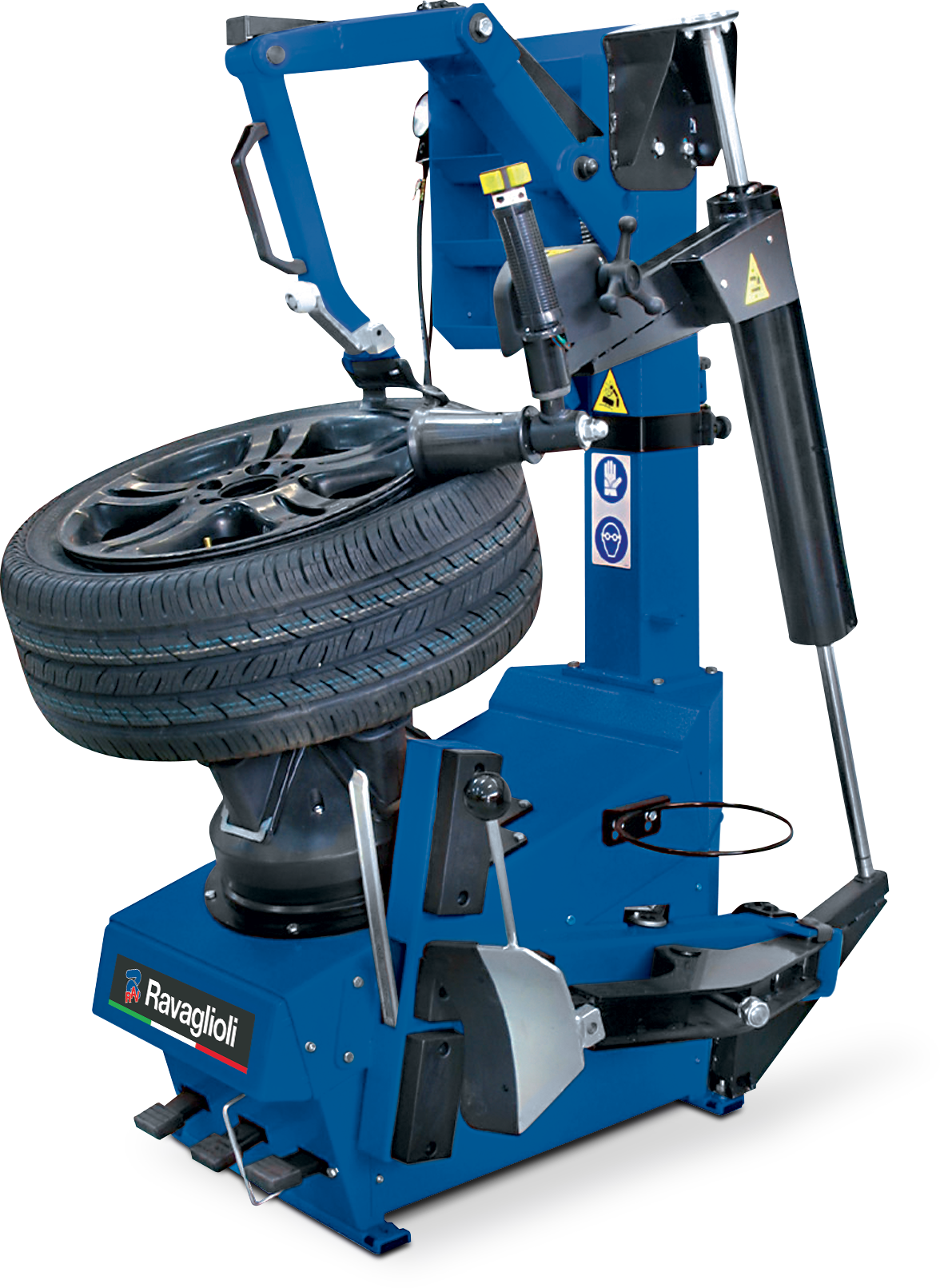

Tyre changer G1001.24ELX

Mounting head and mounting lever, automatic, self-centering tulip chuck, max. speed 15 rpm, passenger car, rim diameter 12 – 24″, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G1001.200815
GTIN (EAN): 5063084200815
Category:
Tags: ,
Request Information

Share on:

dashicons-media-document

Description

Easy and fast, this tyre changer allows to work with no risk also on alloy rims thanks to tulip clamping and plastic tool.

  • Easy Demounting
  • Special Plastic Tool: Its exclusive mounting head (synthetic material) can run closer to the rim than any steel head, reducing stress on beads on low profile tyres
  • Exclusive “TULIP″ wheel clamping system: It eliminates steel-jaws clamping, which could damage the surface of sophisticated wheels
  • Center Lock
  • The device makes mounting of low profile tyres fast and easy

Media

Similar Products

Accessories

Delivery

FeaturesTyre changer G1001.24ELXTyre changer G1001.24ELXTyre changer G7641D.24PLUSTyre changer G7641D.24PLUSTyre changer G7641ID.24Tyre changer G7641ID.24Tyre changer G7641D.24Tyre changer G7641D.24Tyre changer G1065.NTyre changer G1065.N
Mounting head designwith tire leverwith tire leverwith tire leverwith tire leverwith tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveable
Mounting column designrigidtiltabletiltabletiltablerigid
Colour5005RAL5005RAL5005RAL5005RAL5005RAL
TeqLinknot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possible
Clamping device designcentralClamping plateClamping plateClamping platecentral
Min. clamping capacity10″10″10″10″12″
Max. clamping capacity24″26,5″26,5″26,5″24″
Max. rim width15″15″15″15″15″
Min. rim diameter12″10″10″10″12″
Max. rim diameter24″26,5″26,5″26,5″24″
Tire type passenger carRun-FlatUltra-High-PerformanceUltra-High-PerformanceUltra-High-PerformanceRun-Flat
Max. wheel width381mm381mm381mm381mm381mm
Max. wheel diameter1200mm1092mm1050mm1092mm1143mm
Automatic bead-breaking movementNoNoNoNoNo
Bead breaker force30kN10,7kN10,7kN10,7kN10,7kN
Number of mounting speeds11111
Rotation speed15rpm16rpm16rpm16rpm15rpm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW
Driving power0,75kW0,75kW0,75kW0,75kW0,75kW
Electrical connection200/265 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz
Phases11111
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow
Width1003mm1533mm1533mm1533mm1540mm
Weight208kg330kg253kg238kg307kg
Depth1186mm1520mm1520mm1520mm900mm
Height1606mm2091mm2091mm2091mm1980mm
