Tyre changer NAV51.15

Mounting head and mounting lever, fully automatic movement of the tool arm, 2 speeds (max. 8 rpm), cable console unit, truck, rim diameter 11 – 43″ (56″ with extension set), max wheel width 1500 mm | Red (RAL 3002)

MPN: ROT.N5115.201829
GTIN (EAN): 5063084201829
Category:
Tags:

Share on:

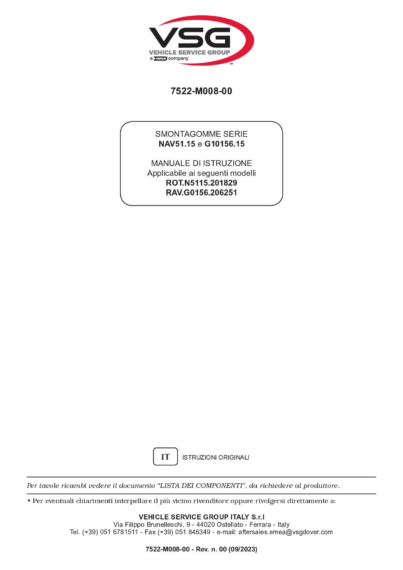

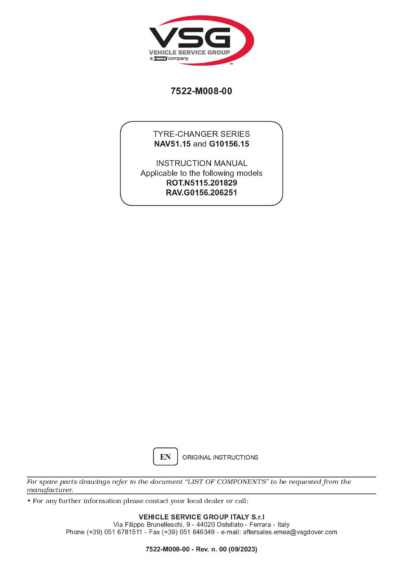

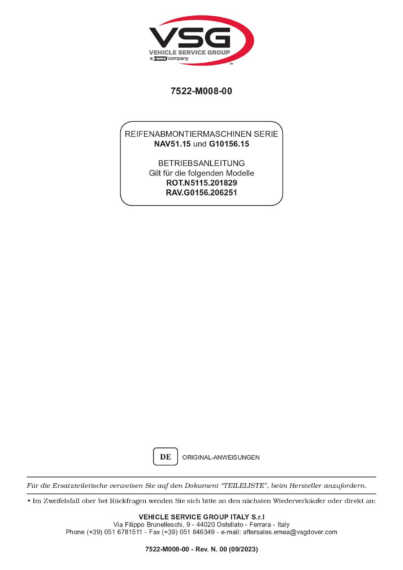

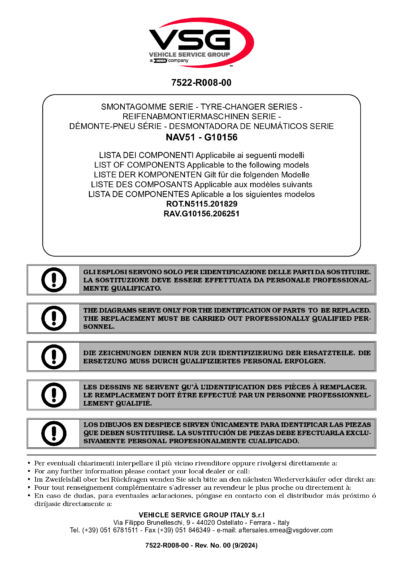

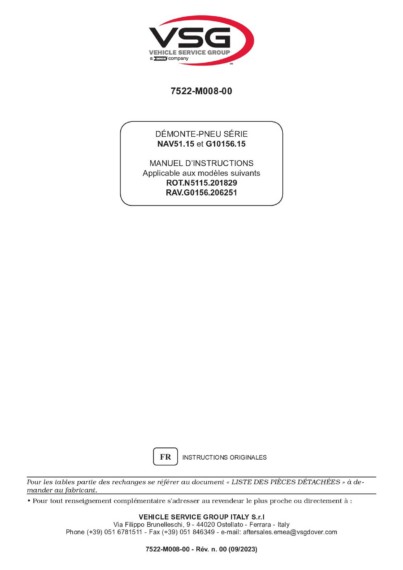

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer NAV51.15Tyre changer NAV51.15Tyre changer NAV51.15Tyre changer NAV51.15Tyre changer NAV73.17Tyre changer NAV73.17
Mounting head designwith tire leverwith tire leverwith tire lever
Mounting arm designmoveablemoveablemoveable
Mounting column designrigidrigidrigid
Colour3002RAL7016RAL3002RAL
TeqLinknot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possible
Clamping device designcentralcentralcentral
Min. clamping capacity11″11″11″
Max. clamping capacity43″43″50″
Max. rim width59″59″69″
Min. rim diameter11″11″11″
Max. rim diameter43″43″50″
Tire type truckStandardStandardStandard
Max. wheel width1500mm1500mm1750mm
Max. wheel diameter2550mm2550mm2700mm
Max. wheel weight2300kg2300kg3000kg
Automatic bead-breaking movementNoNoNo
Bead breaker force34kN34kN42kN
Rotation speed4 / 8rpm4 / 8rpm4 / 8rpm
Max. torque5300Nm5300Nm6000Nm
Chuck motor rating1,3 / 1,85kW1,3 / 1,85kW1,2 / 2,2kW
Driving power2,5kW2,5kW1,85 / 2,5kW
Power supply400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz
Phases333
Fuse protection10A slow-blow10A slow-blow12A slow-blow
Width2810mm2810mm3170mm
Depth2150mm2150mm2080mm
Height1260mm1260mm1390mm
Weight1178kg1178kg1700kg
