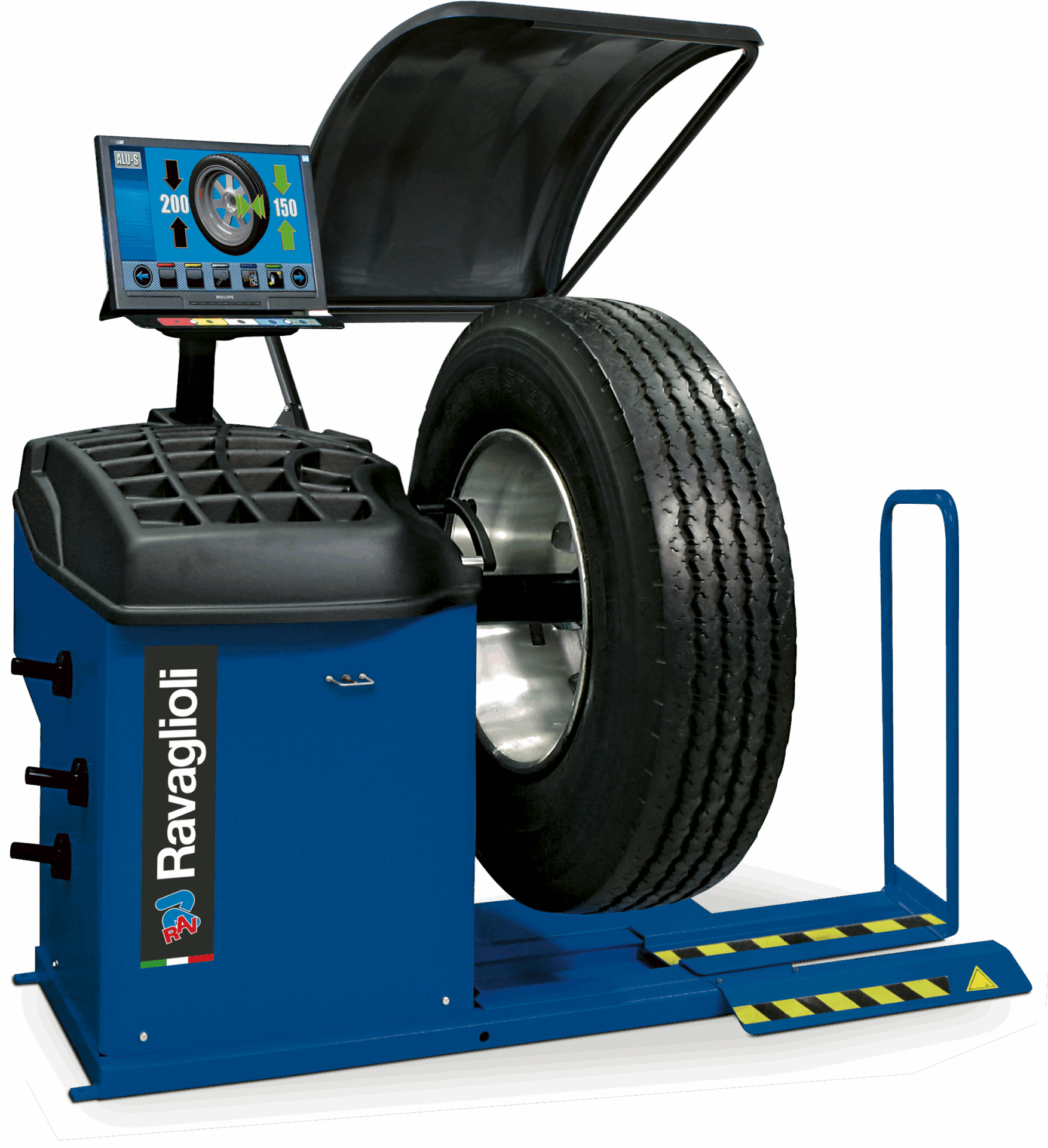

22″ full HD LCD monitor, industrial PC, automatic cycle, cones for trucks (Ø 202 – 221 mm, 281 mm), with adapter and handwheel nut, wheel lift 200 kg, truck, rim diameter 10 – 26″ (manually adjustable up to 30″)
Quick balancing: automatic start when the cover is lowered and automatic stop in the external unbalanced position. An electro-pneumatic brake holds the wheel in position. Automatic rotation to the internal unbalance position.
Interactive LCD Display, passenger car, rim diameter 10 – 26″, RAL 5005
Backlit LCD graphic display (132 x 40 mm), automatic cycle, cones for trucks (Ø 202 – 221 mm, 281 mm),…
3D, 22″ LCD monitor, passenger car, rim diameter 10 – 26″, max. wheel capacity 43, RAL 5005
3D, 22″ LCD monitor, passenger car, rim diameter 10 – 26″, max. wheel capacity 43, RAL 5005
Included with all truck balancers (Not P)
Inclusive spacer
Ø 202 – 221 mm / 281 mm | 1 set / 2 pieces
Stand flange for truck rims having 6 holes – 3 x 170, 186, 205, 222, 245 mm
Stand flange for truck rims having 8 holes – 4 x 275, 285 mm
Stand flange for truck rims having 10 holes – 5x 225, 286, 335 mm
Universal flange with stands
Requiring GAR266T
Quick locking nut for wheel balancers for commercial vehicles | basics accessoires for locking
Inclusive protection cup | Ø 44 – 112 mm | 1 set / 3 pieces
Enabling connection feature
For off-road vehicles | Ø 95 – 132 mm
For wheel balancers | 1 set / 5 pieces
For motorcycles | with shaft, Ø 14 mm, and accessories | GAR181A1 required
Complete with shaft, 2 cones, 6 spacers, centering nut and2 bushes | GAR181N or GAR354 required
Centering bush for BMW | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR1
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bushes | option for universal flange GAR181N or GAR191N
Option for universal flange GAR181N or GAR191N | 1 set / 6 pieces
| Features |  Wheel balancer GTL4.140RC | Electronic wheel balancer with microprocessor G2.124NR | Wheel balancer GTL2.120NRC | Electronic wheel balancer with microprocessor G3.150S | Electronic wheel balancer with microprocessor G3.150 |
|---|---|---|---|---|---|
| Wheel data recording | semi-automatic | semi-automatic | manually | semi-automatic | semi-automatic |
| Tread depth measurement | not possible | not possible | not possible | not possible | not possible |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Measuring speed | < 100rpm | < 100rpm | < 100rpm | < 100rpm | < 100rpm |
| Measuring speed truck | 80rpm | — | 80rpm | — | — |
| Measuring time | 6s | 6s | 6s | 6s | 6s |
| Balancing accuracy +/- | 1g | 1g | 1g | 1g | 1g |
| Balancing accuracy truck +/- | 10g | — | 10g | — | — |
| Display | LCD | LCD | LCD, backlit | LCD | LCD |
| Min. rim width | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ |
| Max. rim width | 20″ | 22″ | 20″ | 22″ | 22″ |
| Rim diameter min. | 10″ | 10″ | 10″ | 10″ | 10″ |
| Rim diameter max. | 30″ | 26″ | 30″ | 26″ | 26″ |
| Max. wheel diameter | 1300mm | 1020mm | 1300mm | 1090mm | 1090mm |
| Wheel weight max. | 200kg | 70kg | 200kg | 70kg | 70kg |
| Power supply | 230 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz |
| Phases | 1 | 1 | 1 | 1 | 1 |
| Width | 2070mm | 1212mm | 1920mm | 1256mm | 1211mm |
| Depth | 1130mm | 1110mm | 1100mm | 953mm | 898mm |
| Height | 1890mm | 1700mm | 1800mm | 1695mm | 1695mm |
| Weight | 220kg | 125kg | 175kg | 145kg | 140kg |
