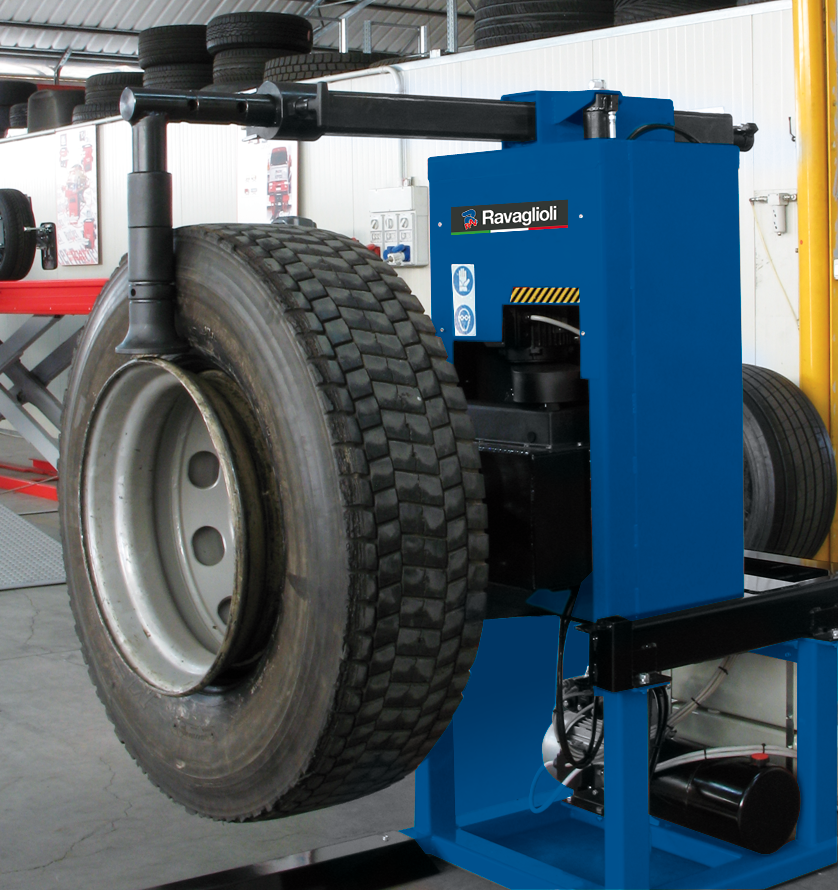

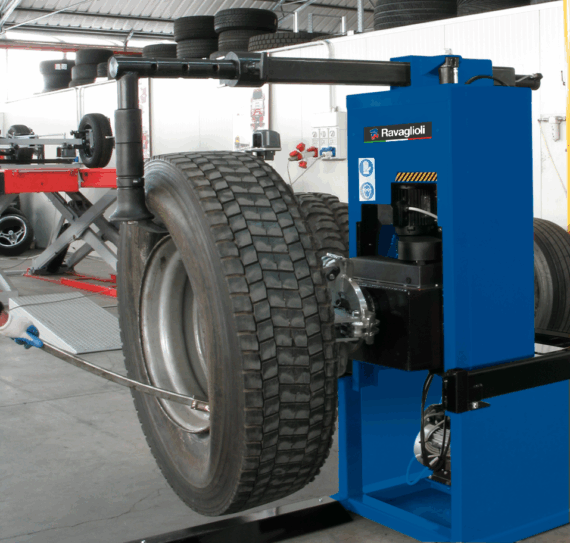

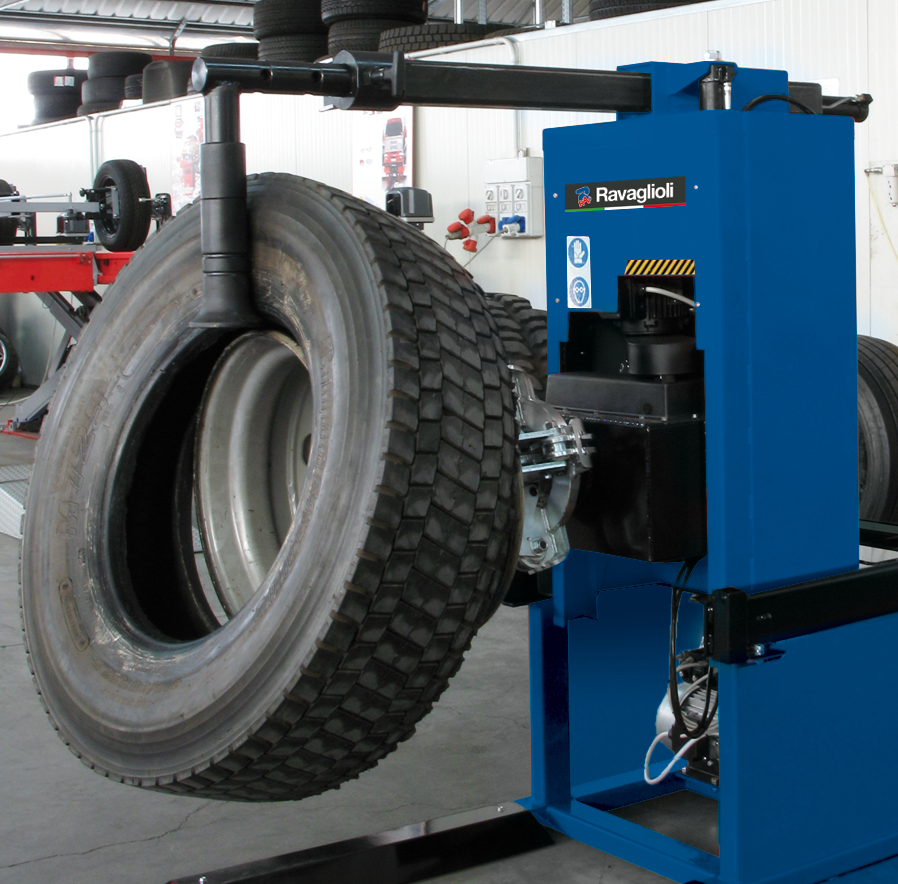

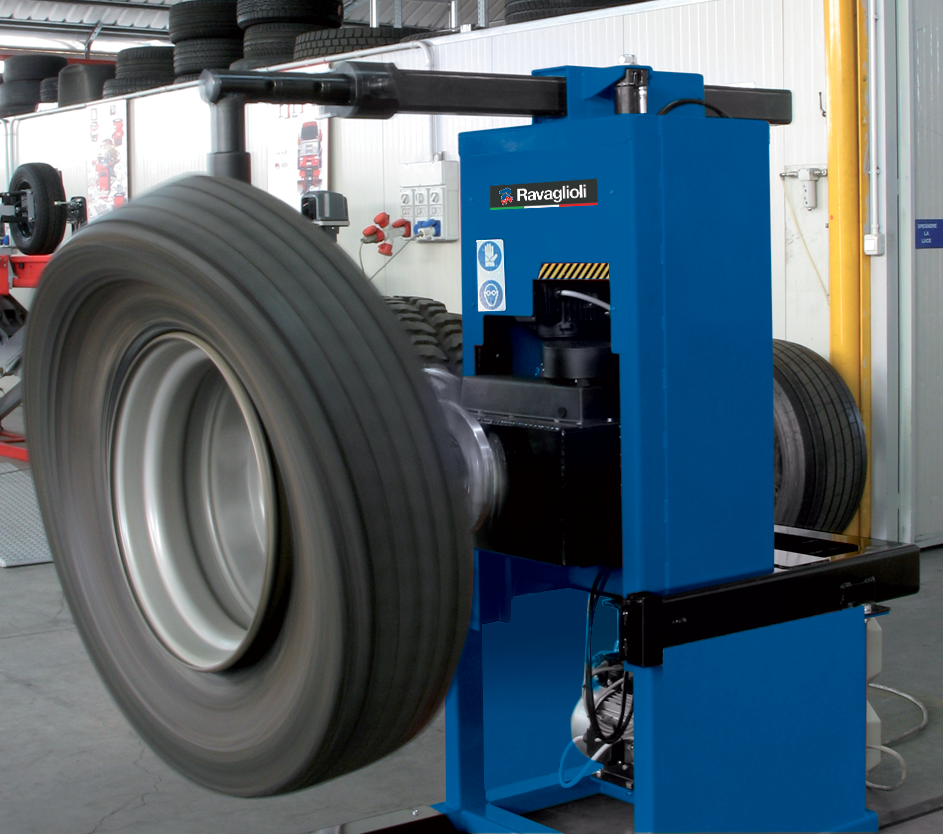

Mobile tyre changer for installation in vans, max. speed 8 rpm, cable hydraulic console unit, truck, rim diameter 11 – 27″, max. rim width 950 mm

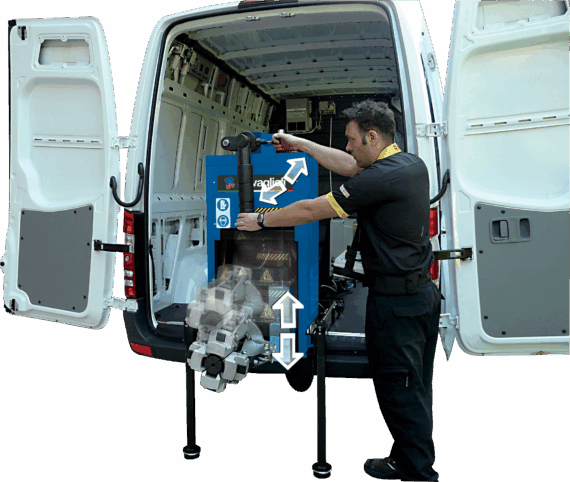

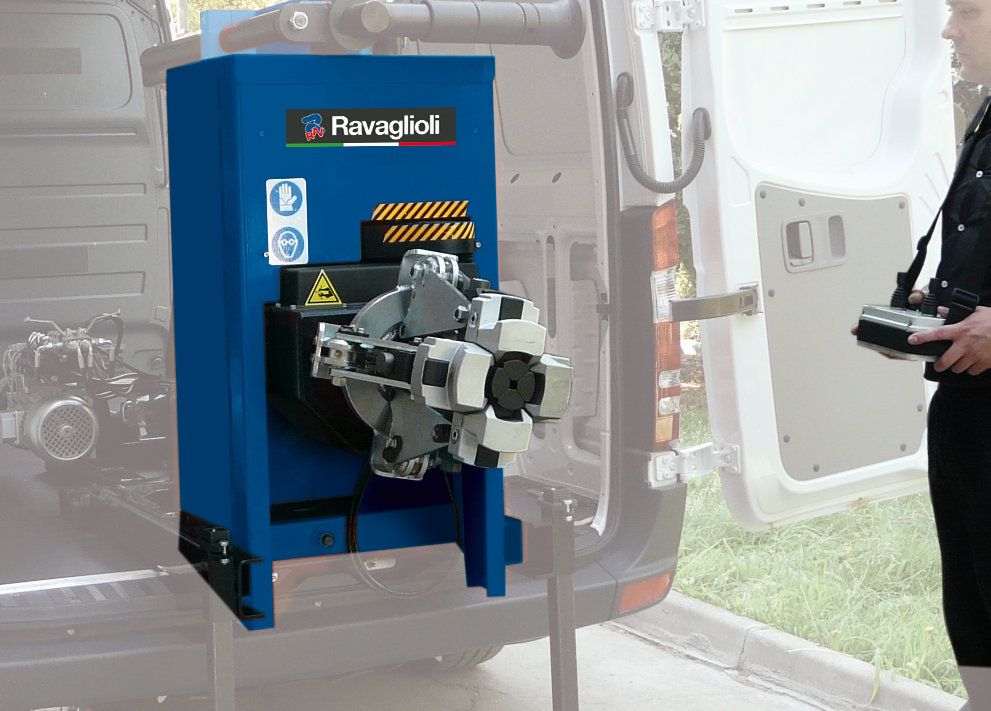

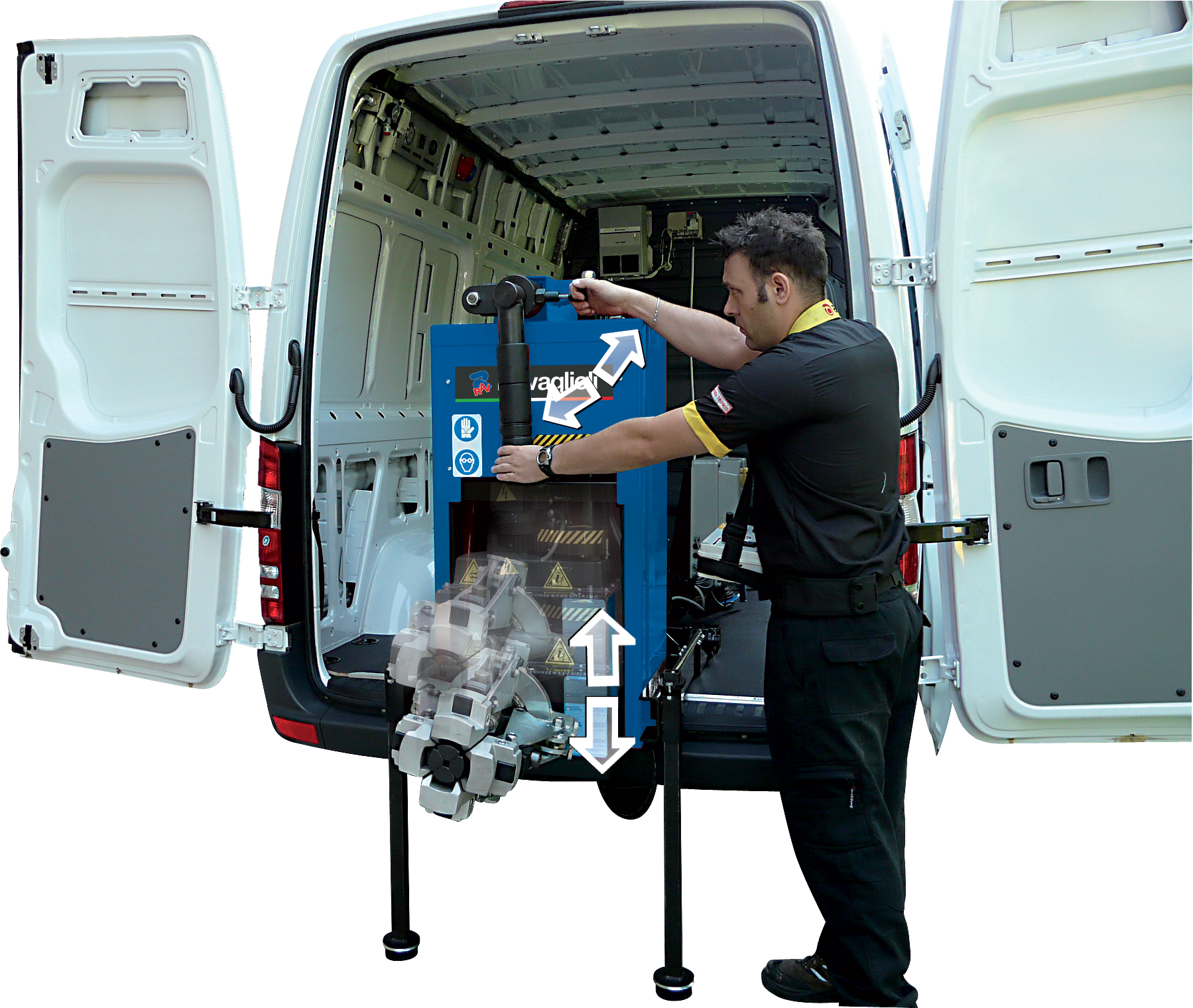

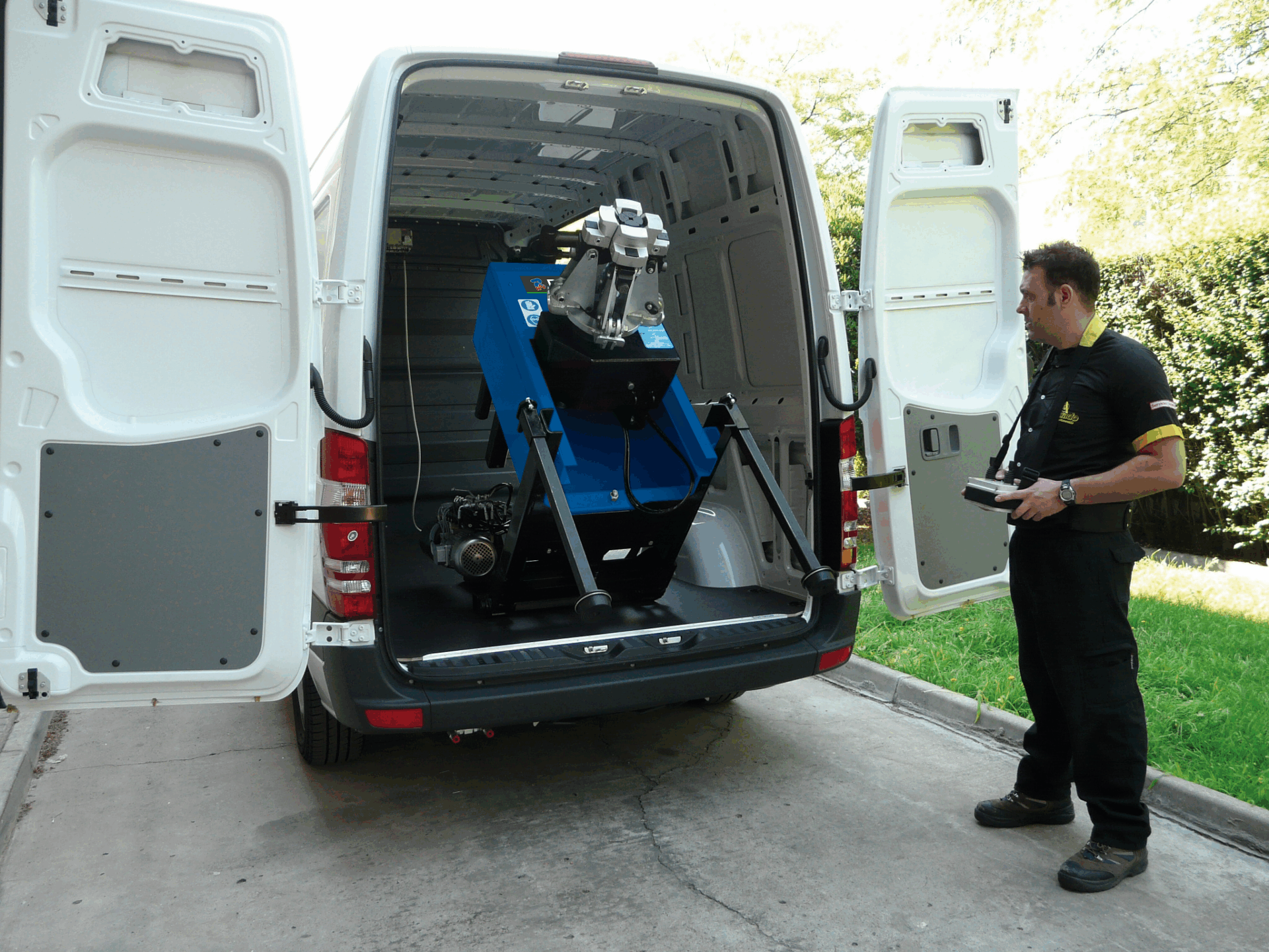

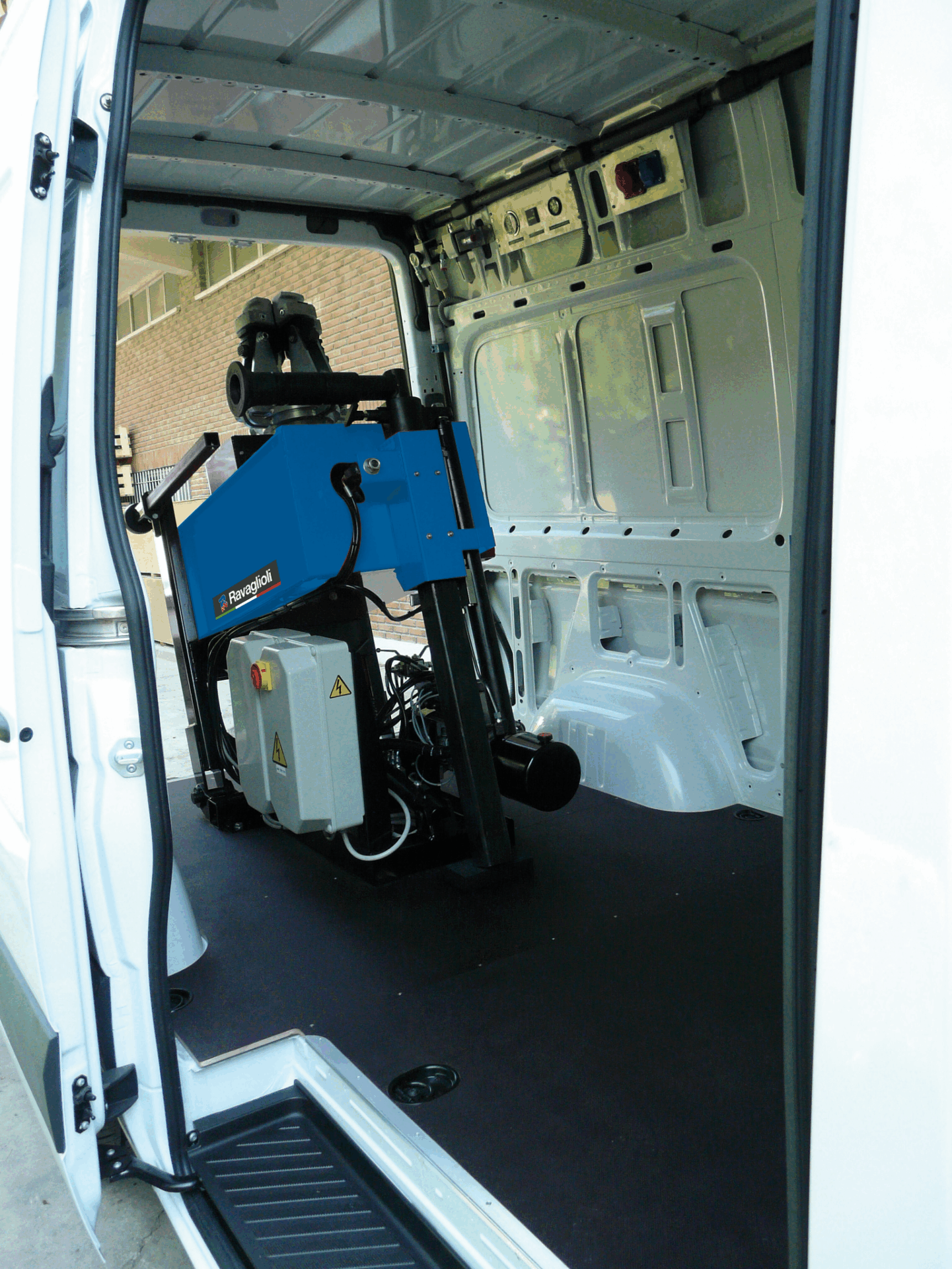

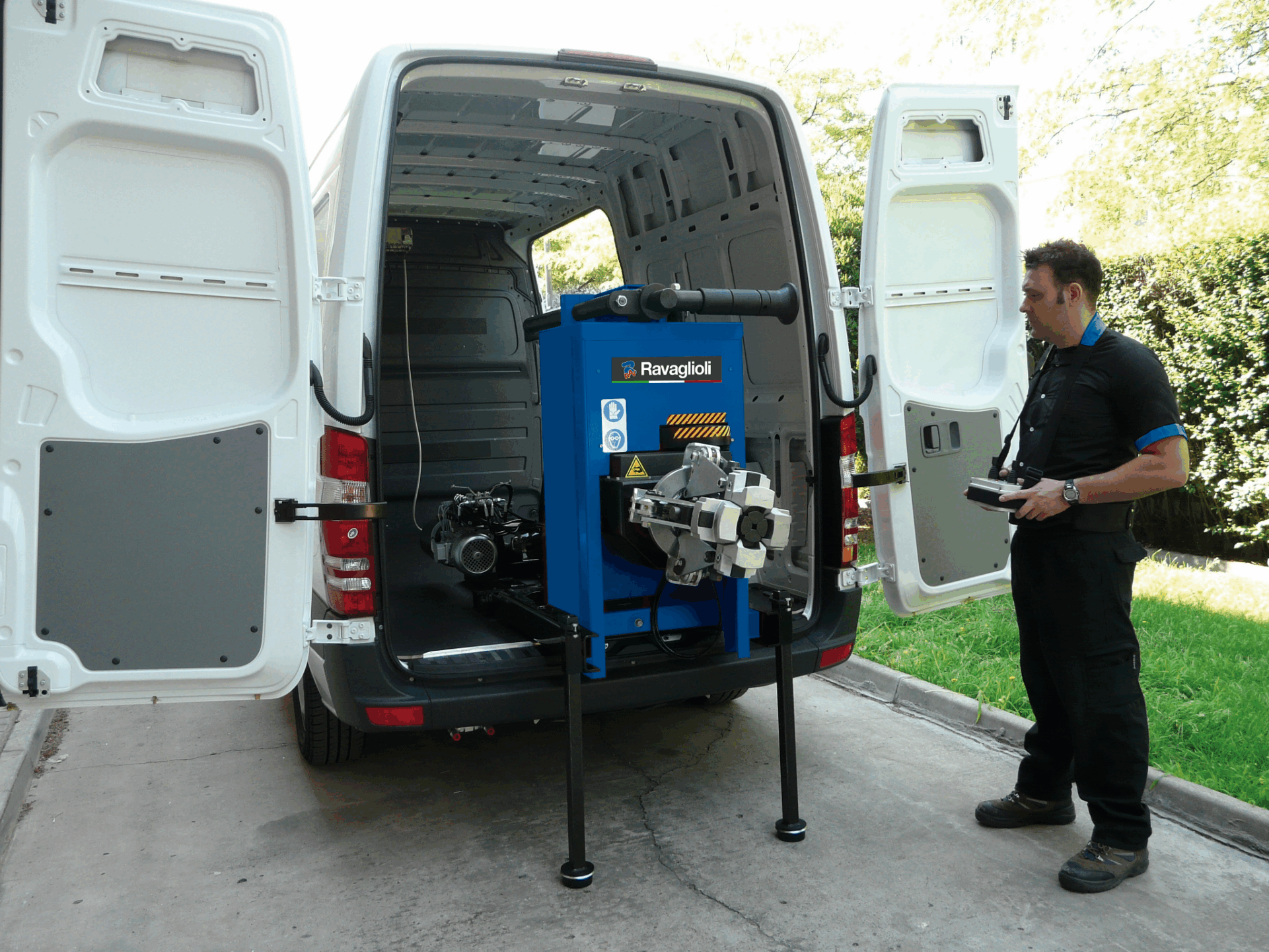

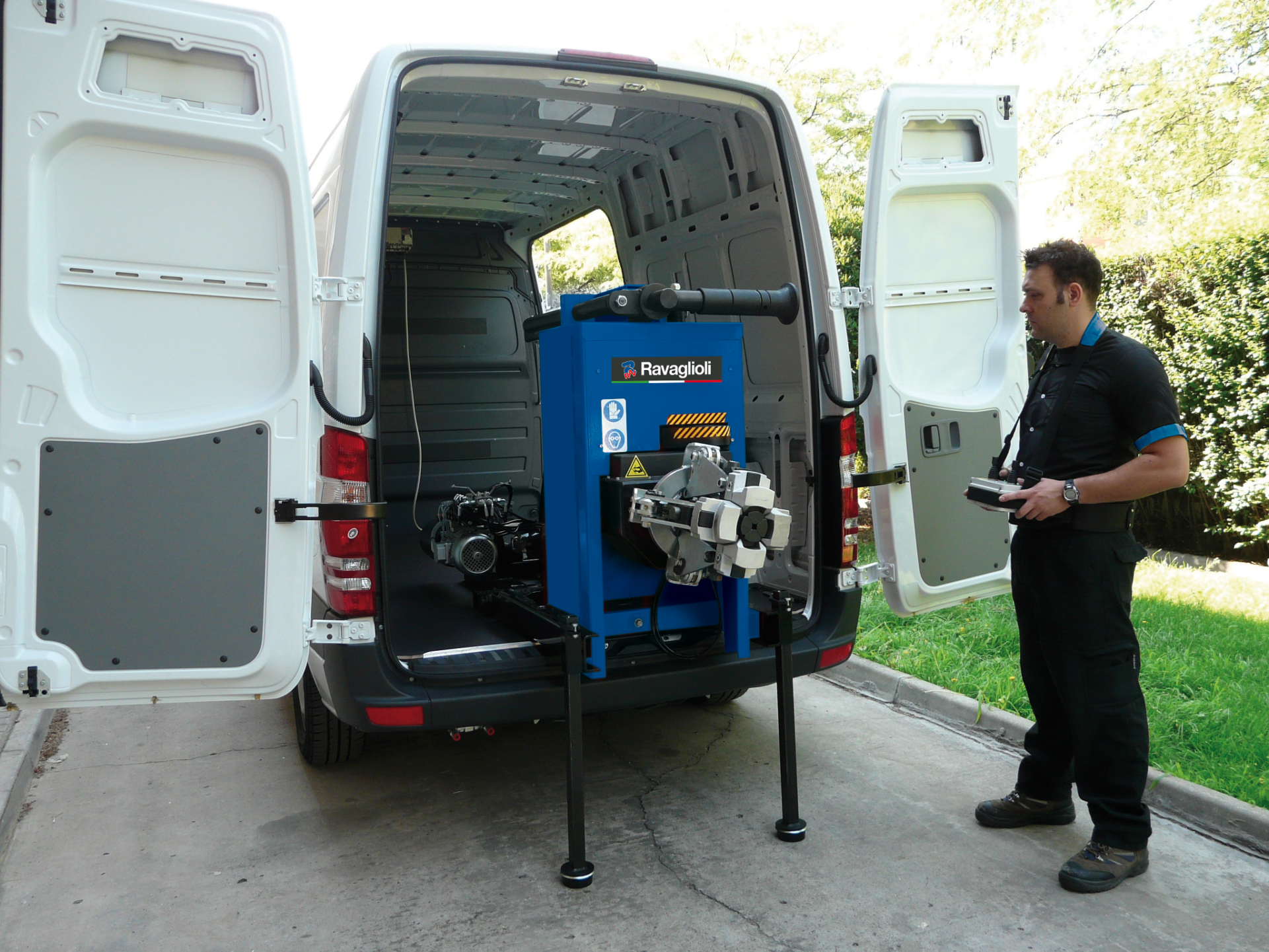

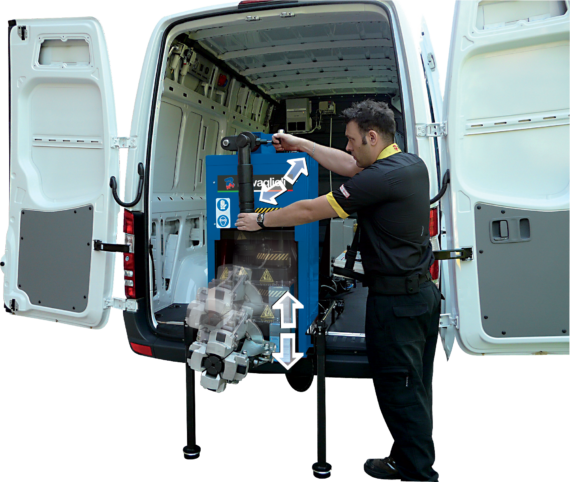

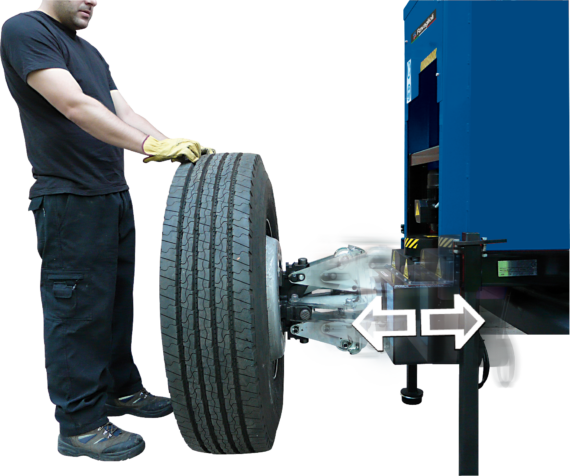

Retractable truck tyre changer suitable for closed vans. Ideal for road-side tyre service, it is suitable for both truck and also for agricultural tyres.
| Mounting head design | Automatic |
|---|---|
| Mounting arm design | Moveable |
| Mounting column design | Rigid |
| TeqLink | Not possible |
| Workshop-Net | Not possible |

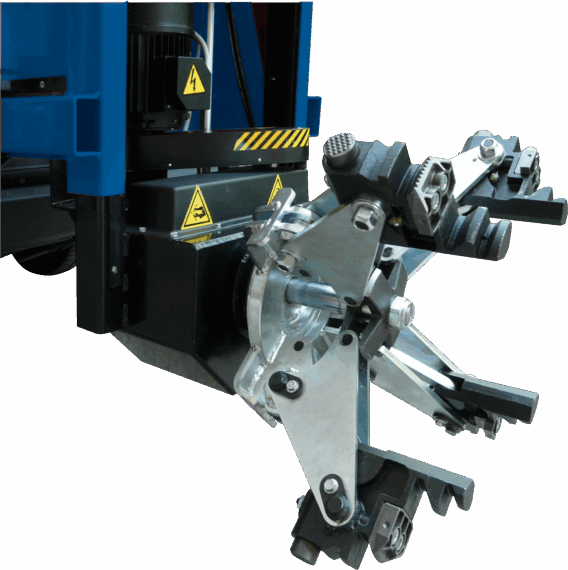

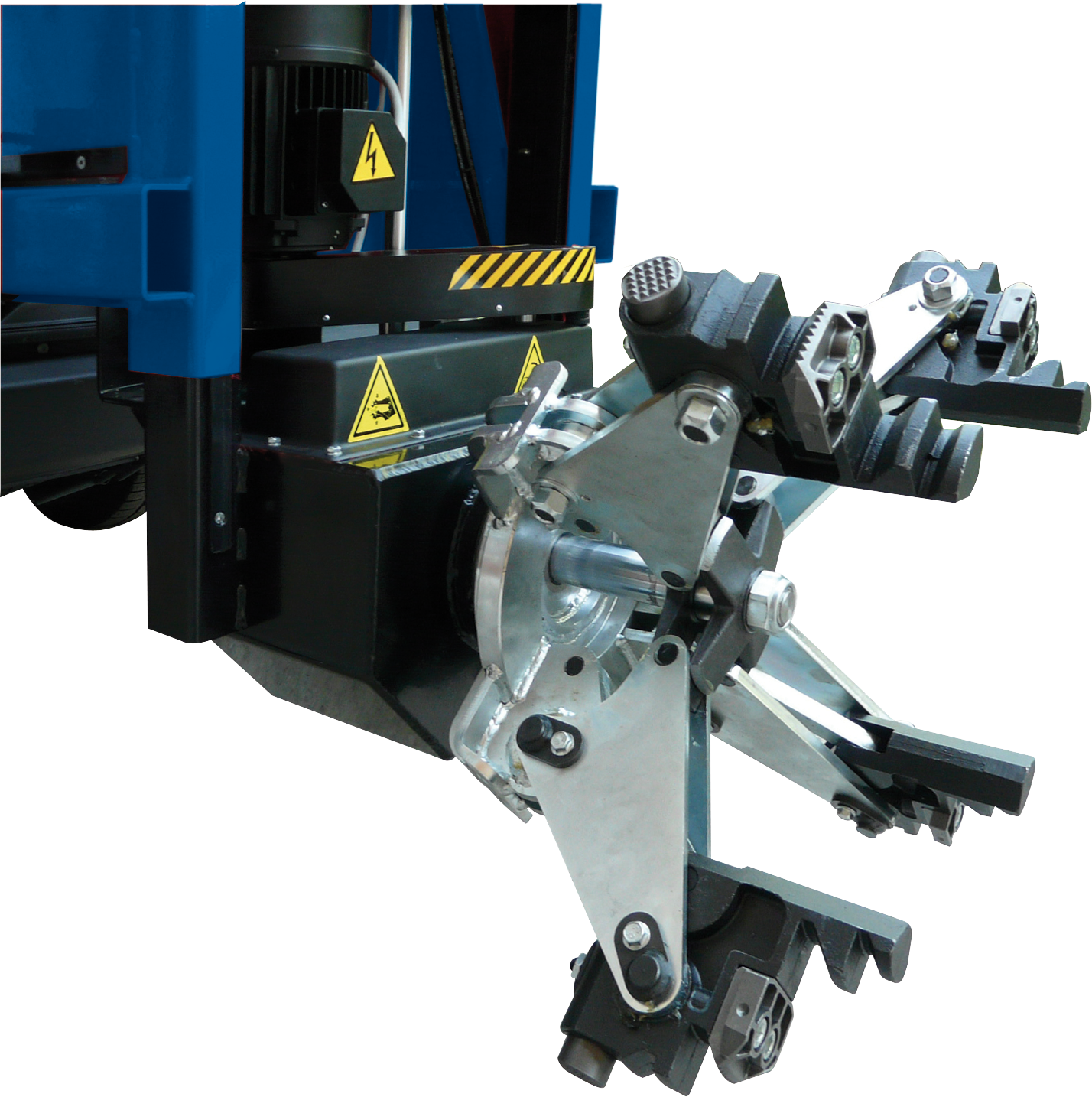

| Clamping device design | central |
| Min. clamping capacity | 11" |
| Max. clamping capacity | 27" |
| Max. rim width | 37" |
| Min. rim diameter | 11" |
| Max. rim diameter | 27" |
| Tire type truck | Standard |
| Max. wheel width | 950mm |
| Max. wheel diameter | 1300mm |
| Max. wheel weight | 1200kg |
| Automatic bead-breaking movement | Yes |
| Bead breaker force | 16kN |
| Number of mounting speeds | 1 |
| Rotation speed | 8rpm |
| Max. torque | 2200Nm |
| Chuck motor rating | 1,5kW |
| Driving power | 2,2kW |
| Electrical connection | 400 V, 50 Hz |
| Phases | 3 |
| Fuse protection | 16A slow-blow |
| Max. air supply | 130 |
| Width | 890mm |
| Depth | 2235mm |
| Height | 1715mm |
| Country of Origin, customs | IT |
