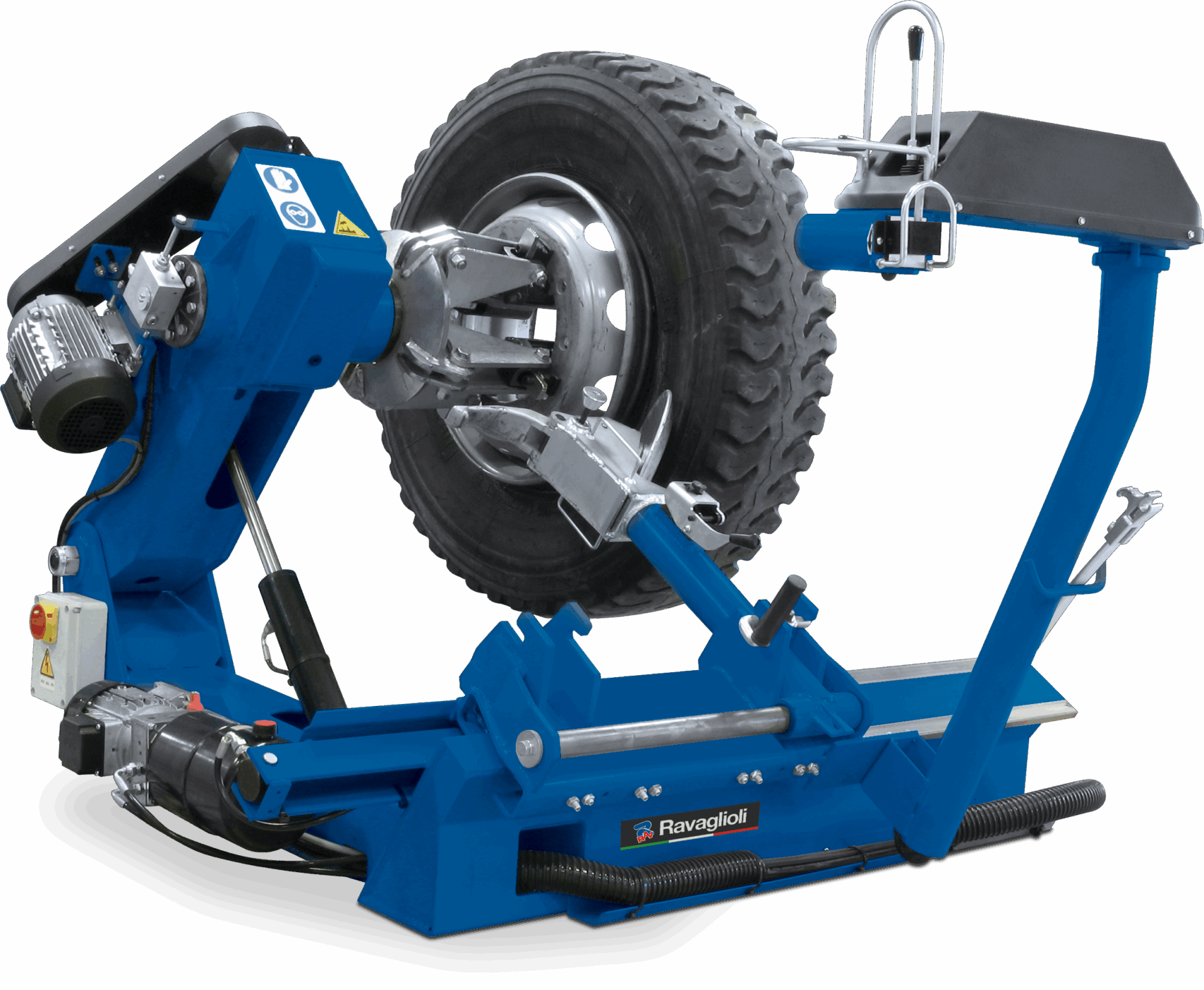

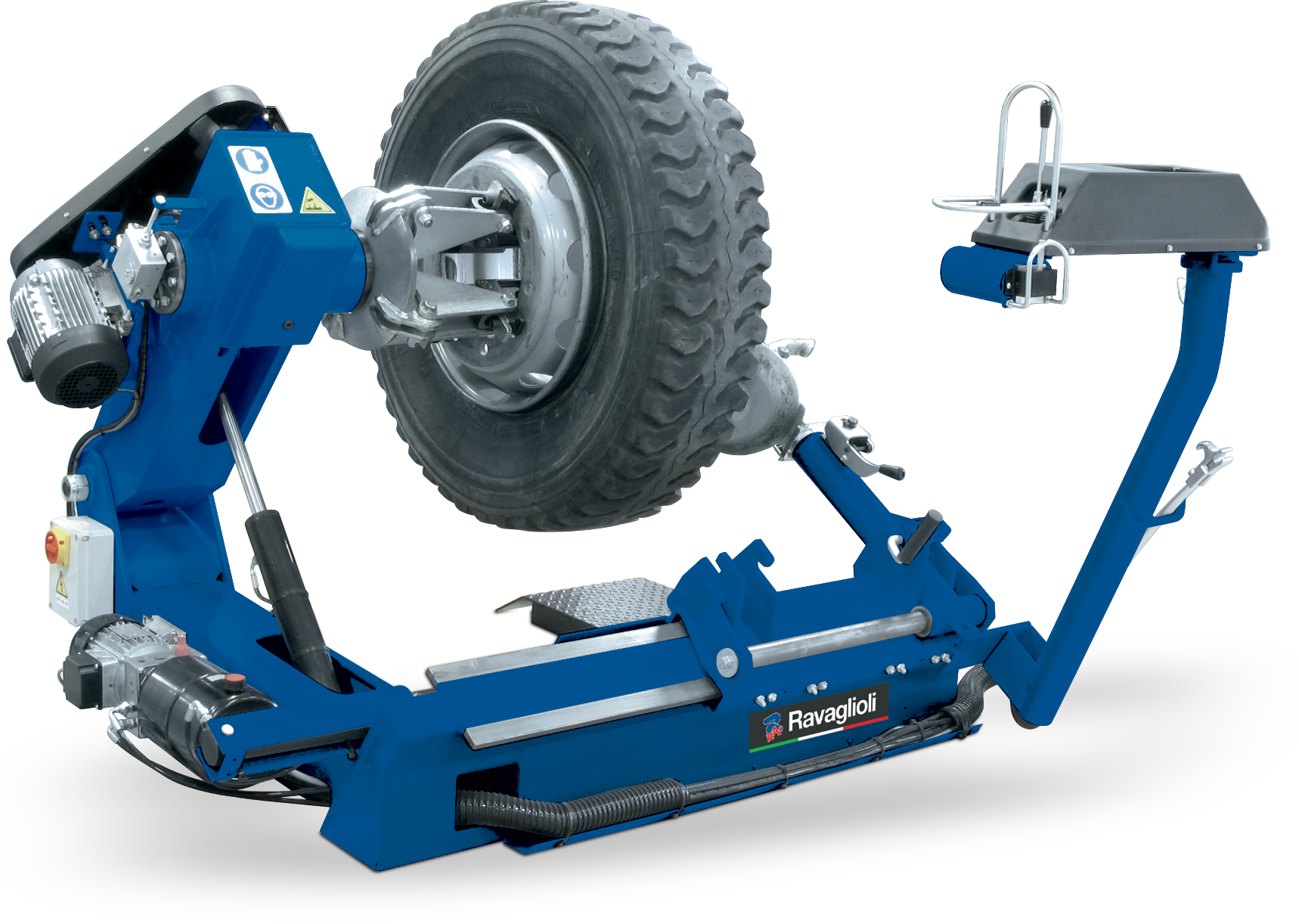

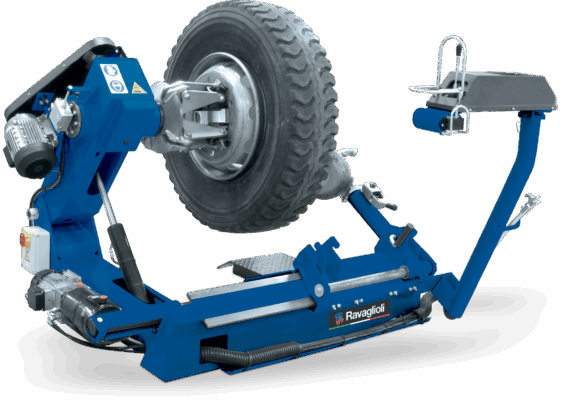

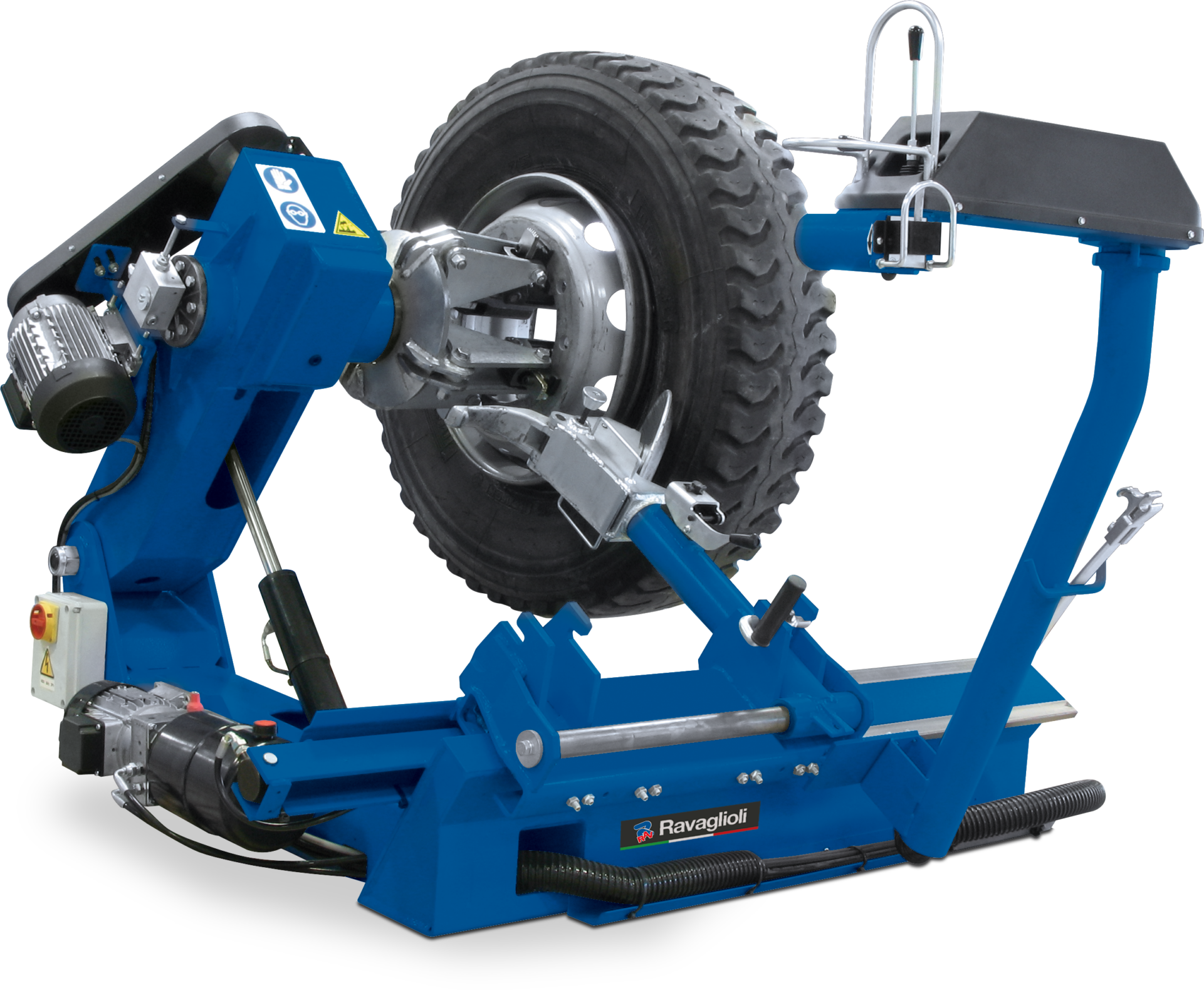

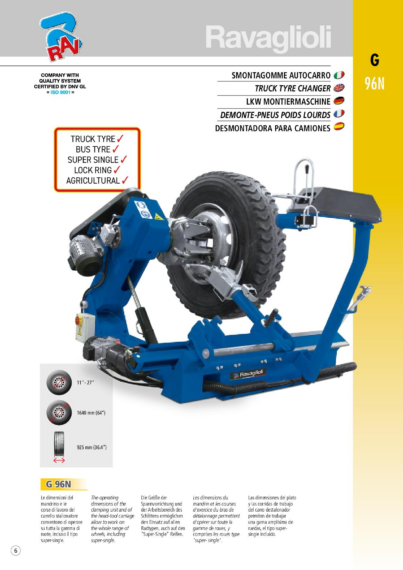

Universal, Quick-Fit system mounting tool, max. speed 8 rpm, hydraulic operating unit, truck, rim diameter 11 – 27″, max. rim width 925 mm
The operating dimensions of the clamping unit and of the head-tool carriage allow working on the whole range of wheels, including super-single.
| Mounting head design | Automatic |
|---|---|
| Mounting arm design | Swiveling |
| Mounting column design | Rigid |
| TeqLink | Not possible |
| Workshop-Net | Not possible |

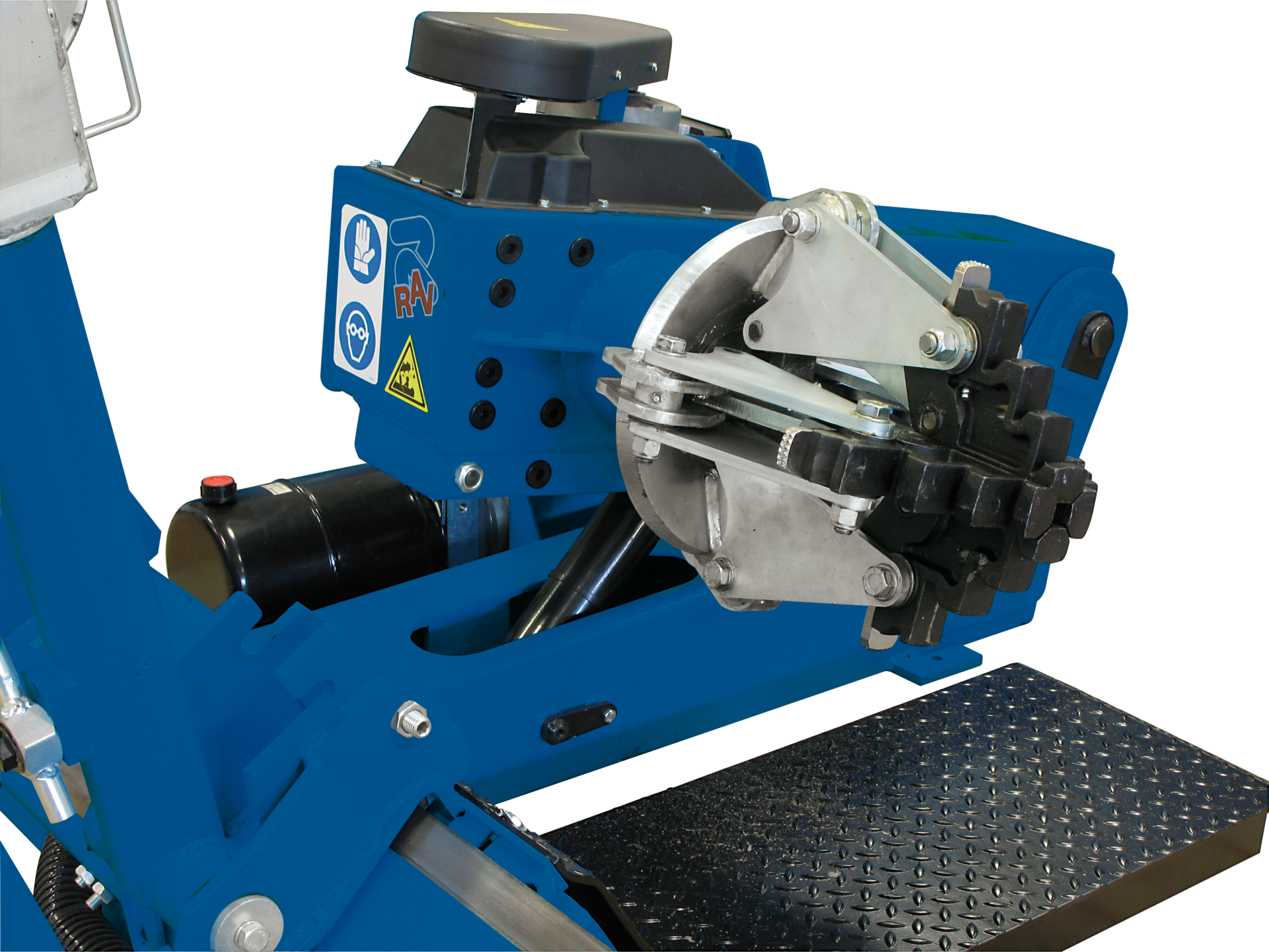

| Clamping device design | central |
| Min. clamping capacity | 11" |
| Max. clamping capacity | 27" |
| Max. rim width | 36,4" |
| Min. rim diameter | 11" |
| Max. rim diameter | 27" |
| Tire type truck | All types |
| Max. wheel width | 925mm |
| Max. wheel diameter | 1640mm |
| Max. wheel weight | 1500kg |
| Automatic bead-breaking movement | Yes |
| Bead breaker force | 18kN |
| Number of mounting speeds | 1 |
| Rotation speed | 8rpm |
| Max. torque | 3000Nm |
| Chuck motor rating | 0,75kW |
| Driving power | 2,2kW |
| Electrical connection | 230/400 V, 50 Hz |
| Phases | 3 |
| Fuse protection | 16A slow-blow |
| Width | 1620mm |
| Depth | 1860mm |
| Height | 1360mm |
| Country of Origin, customs | IT |
