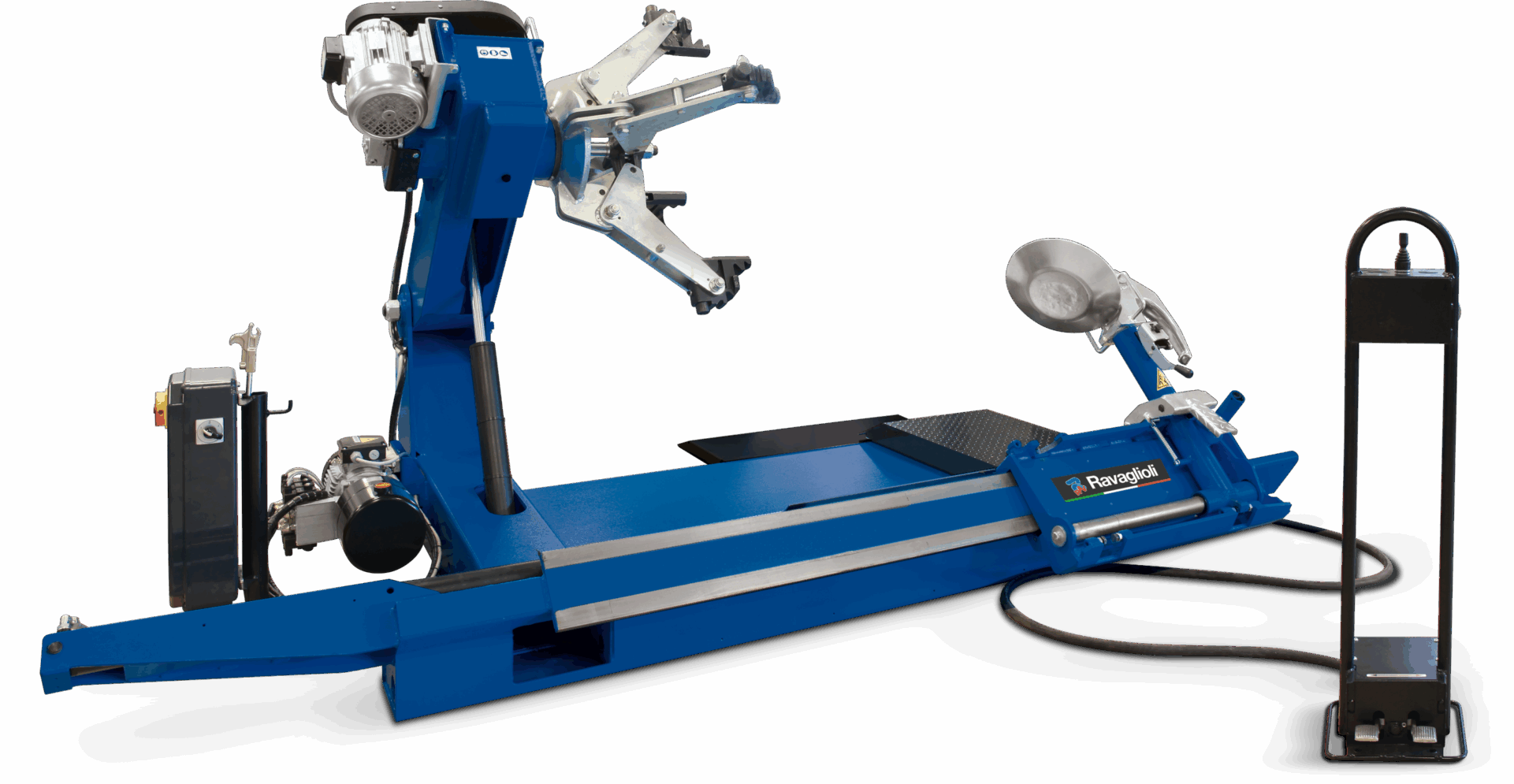

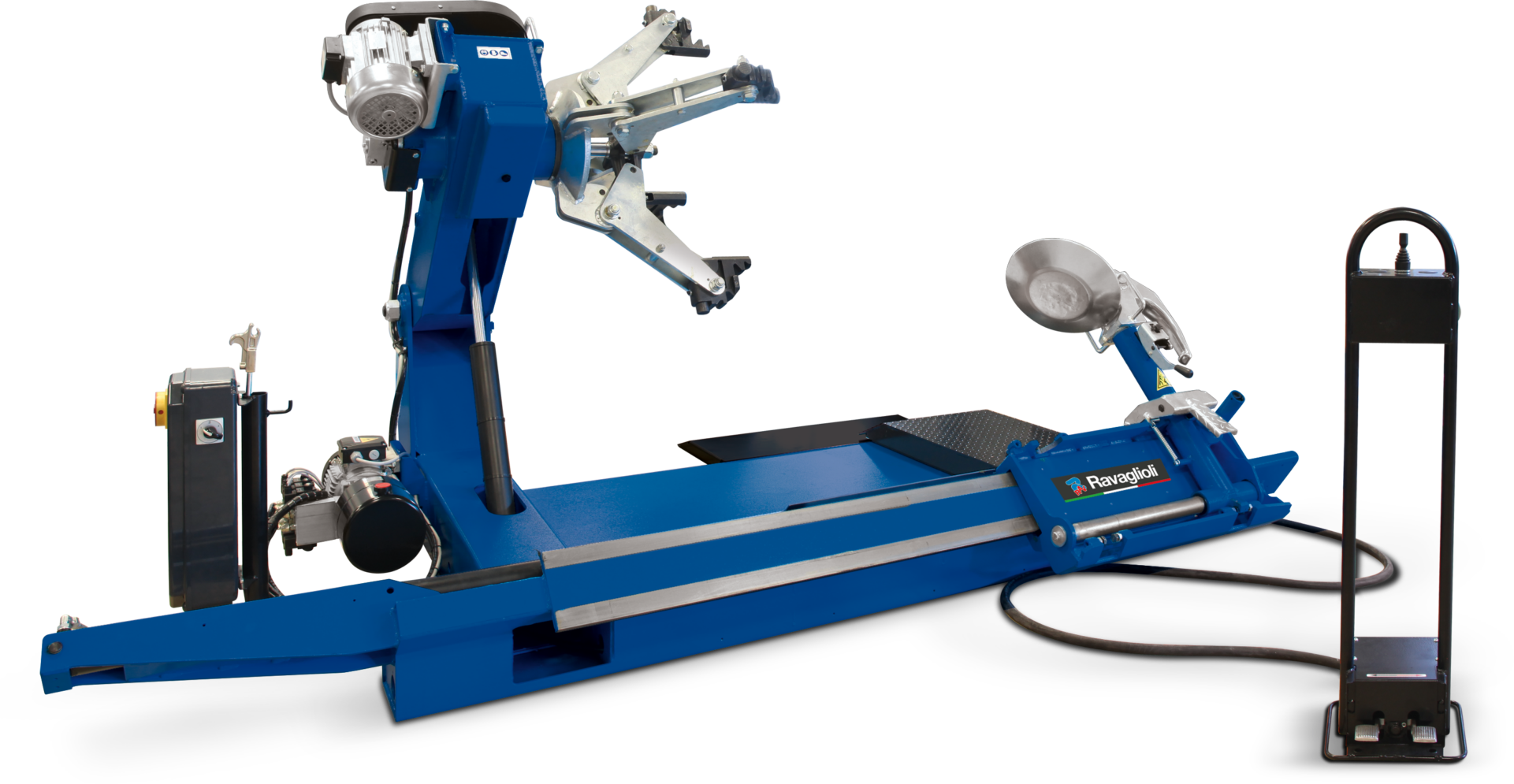

Universal, leverless, cable console unit, max. speed 10 rpm, truck, clamping capacity 11 – 34″ (56″ with extension set), max. rim width 51″ (max. wheel width 1300 mm)
Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles.
Universal, leverless, hydraulic operating unit, max. speed 10 rpm, truck, clamping capacity 11 – 34″ (56″ with extension set), max.…
Universal, cable console unit, 2 speeds (max. 8 rpm), truck, clamping capacity 11 – 43″ (56″ with extension set), max.…
Universal, hydraulic operating unit, 2 speeds (max. 8 rpm), truck, clamping capacity 11 – 43″ (56″ with extension set), max.…
Universal, Quick-Fit system mounting tool, hydraulic operating unit, max. speed 8 rpm, truck, clamping capacity 11 – 27″, max. rim…
Protection for alloy rims
Short, patented
For wheel assembly machines
1 set / 4 pieces
Adapters to increase clamping capacity | 1 set / 4 pieces
With increased adherence
| Features |  Tyre changer G9156.13EI | Tyre changer G9156.11N | Electrohydraulic tyre changer G9256.15 | Electrohydraulic tyre changer G10156.15 | Tyre changer G96N |
|---|---|---|---|---|---|
| Mounting head design | without tire lever | without tire lever | automatic | automatic | automatic |
| Mounting arm design | moveable | moveable | swiveling | swiveling | swiveling |
| Mounting column design | rigid | rigid | rigid | rigid | rigid |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | central | central | central | central | central |
| Min. clamping capacity | 11″ | 11″ | 11″ | 11″ | 11″ |
| Max. clamping capacity | 43″ | 43″ | 43″ | 43″ | 27″ |
| Max. rim width | 51″ | 43″ | 59″ | 59″ | 36,4″ |
| Tire type truck | all types | all types | all types | all types | all types |
| Wheel width max. | 1300mm | 1100mm | 1500mm | 1500mm | 925mm |
| Max. wheel diameter | 2300mm | 2300mm | 2360mm | 2550mm | 1640mm |
| Wheel weight max. | 1700kg | 1700kg | 1400kg | 2300kg | 1500kg |
| Automatic bead-breaking movement | Yes | Yes | Yes | Yes | Yes |
| Bead breaker force | 26kN | 26kN | 32kN | 34kN | 18kN |
| Number of mounting speeds | 3 | 3 | 2 | 2 | 1 |
| Rotation speed | 1 / 5 / 10rpm | 1 / 5 / 10rpm | 4 / 8rpm | 4 / 8rpm | 8rpm |
| Max. torque | 4000Nm | 4000Nm | 5300Nm | 5300Nm | 3000Nm |
| Power inverter motor | 1,5kW | 1,5kW | — | — | — |
| Driving power | 1,1kW | 1,1kW | 1,3 / 1,85kW | 1,35 / 1,85kW | 2,2kW |
| Power supply | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 230/400 V | 50 Hz |
| Phases | 3 | 3 | 3 | 3 | 3 |
| Fuse protection | 9,8A slow-blow | 9,8A slow-blow | 12,5A slow-blow | 13A slow-blow | 16A slow-blow |
| Width | 1845mm | 2080mm | 2010mm | 2805mm | 1620mm |
| Depth | 2745mm | 2650mm | 2715mm | 2145mm | 1860mm |
| Height | 1035mm | 1350mm | 1330mm | 1595mm | 1360mm |
| Weight | 820kg | 740kg | 1150kg | 1020kg | 454kg |
