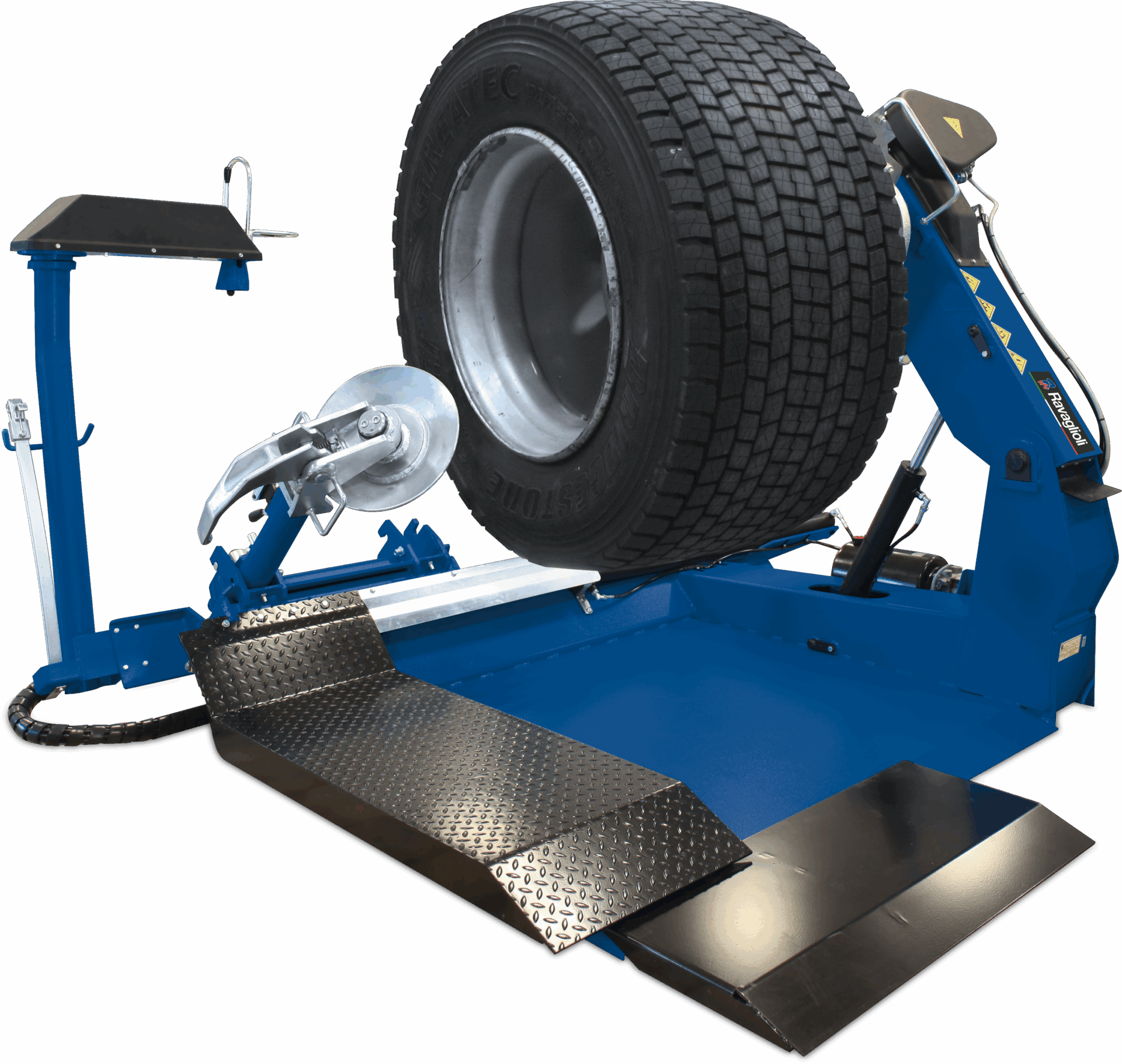

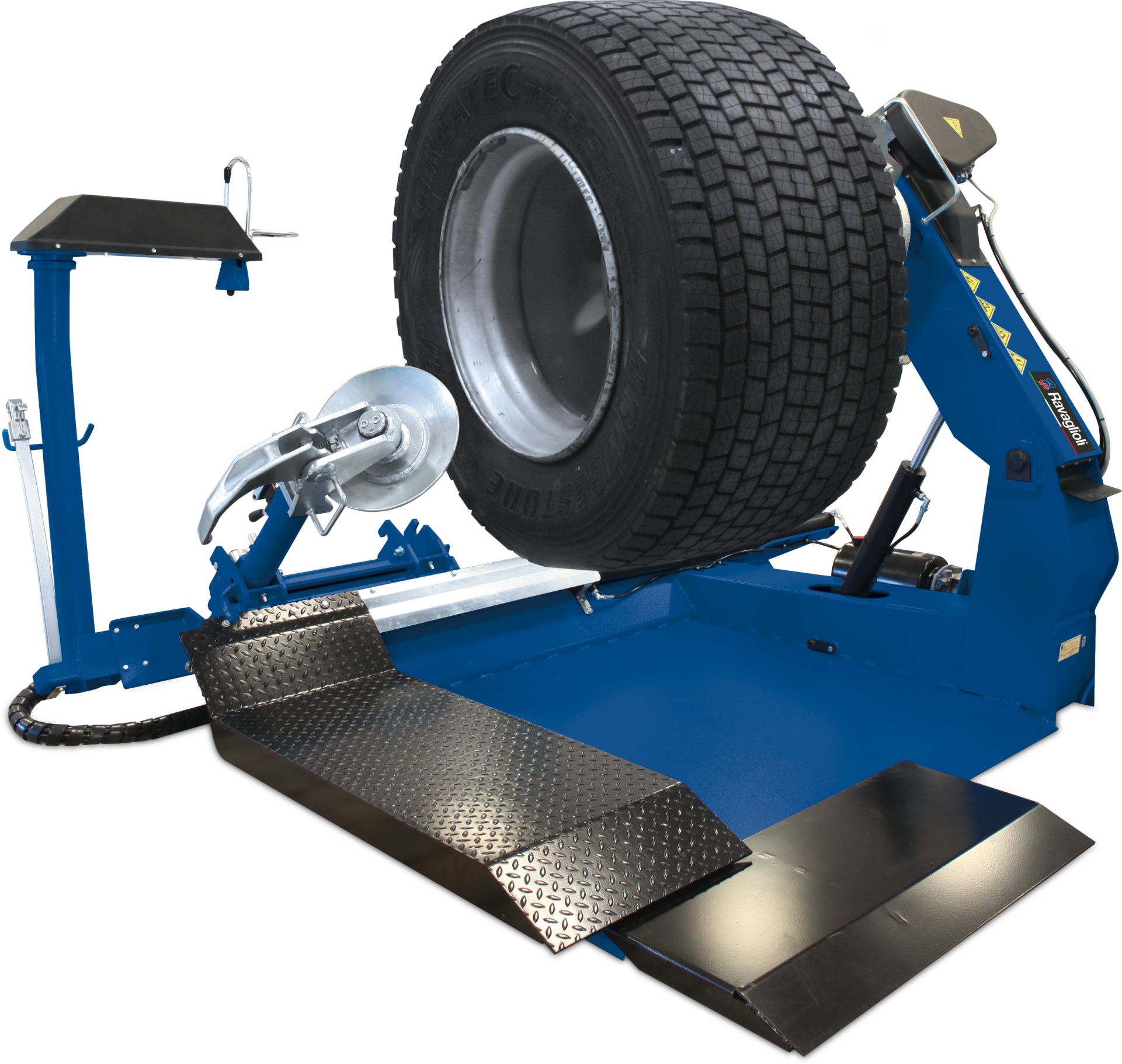

Tyre changer G9156.11N

Universal, leverless, max. speed 10 rpm, hydraulic operating unit, truck, rim diameter 11 – 43″ (56″ with extension set), max. rim width 1100 mm

Category:
Tags: , , ,
Request Information

Share on:

dashicons-media-document

Description

Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles.

  • Manual tool rotation with quick unlocking device
  • Ideal also for many 19″ and 22,5″ truck wheels
  • Double speed for chucking table rotation
  • Clamping capacity 11 – 43″ (56″ with extension set)
  • Controls with lever type hydraulic distributors

Additional information

Mounting head design

Without tire lever
Mounting arm design

Moveable
Mounting column design

Rigid
TeqLink

Not possible
Workshop-Net

Not possible
Clamping device design

central
Min. clamping capacity

11"
Max. clamping capacity

43"
Max. rim width

43"
Min. rim diameter

11"
Max. rim diameter

43"
Tire type truck

All types
Max. wheel width

1100mm
Max. wheel diameter

2300mm
Max. wheel weight

1700kg
Automatic bead-breaking movement

Yes
Bead breaker force

26kN
Number of mounting speeds

3
Rotation speed

1 / 5 / 10rpm
Max. torque

4000Nm
Power inverter motor

1,5kW
Driving power

1,1kW
Electrical connection

400 V, 50 Hz
Phases

3
Fuse protection

9,8A slow-blow
Width

2080mm
Depth

2650mm
Height

1350mm
Country of Origin, customs

IT
