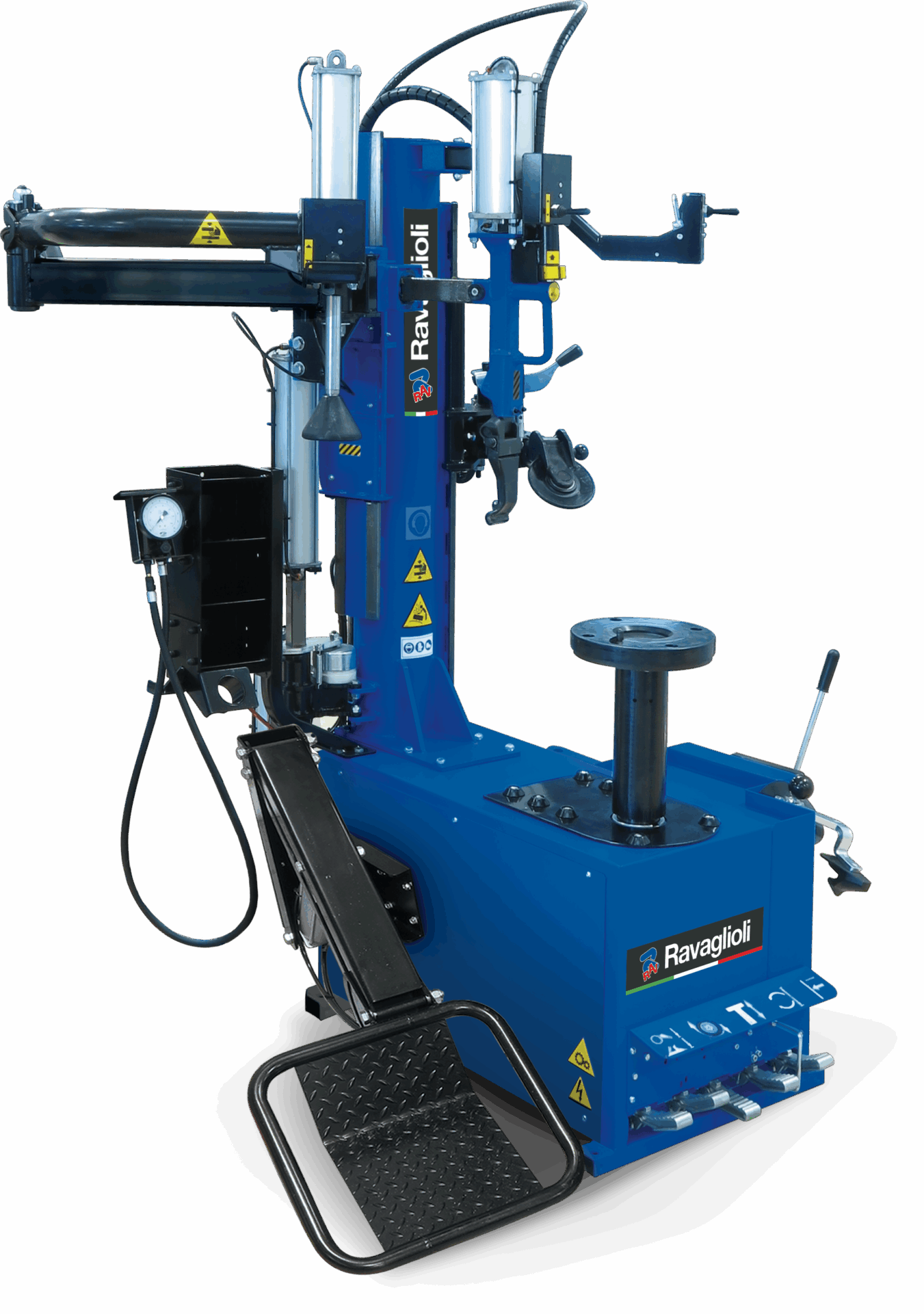

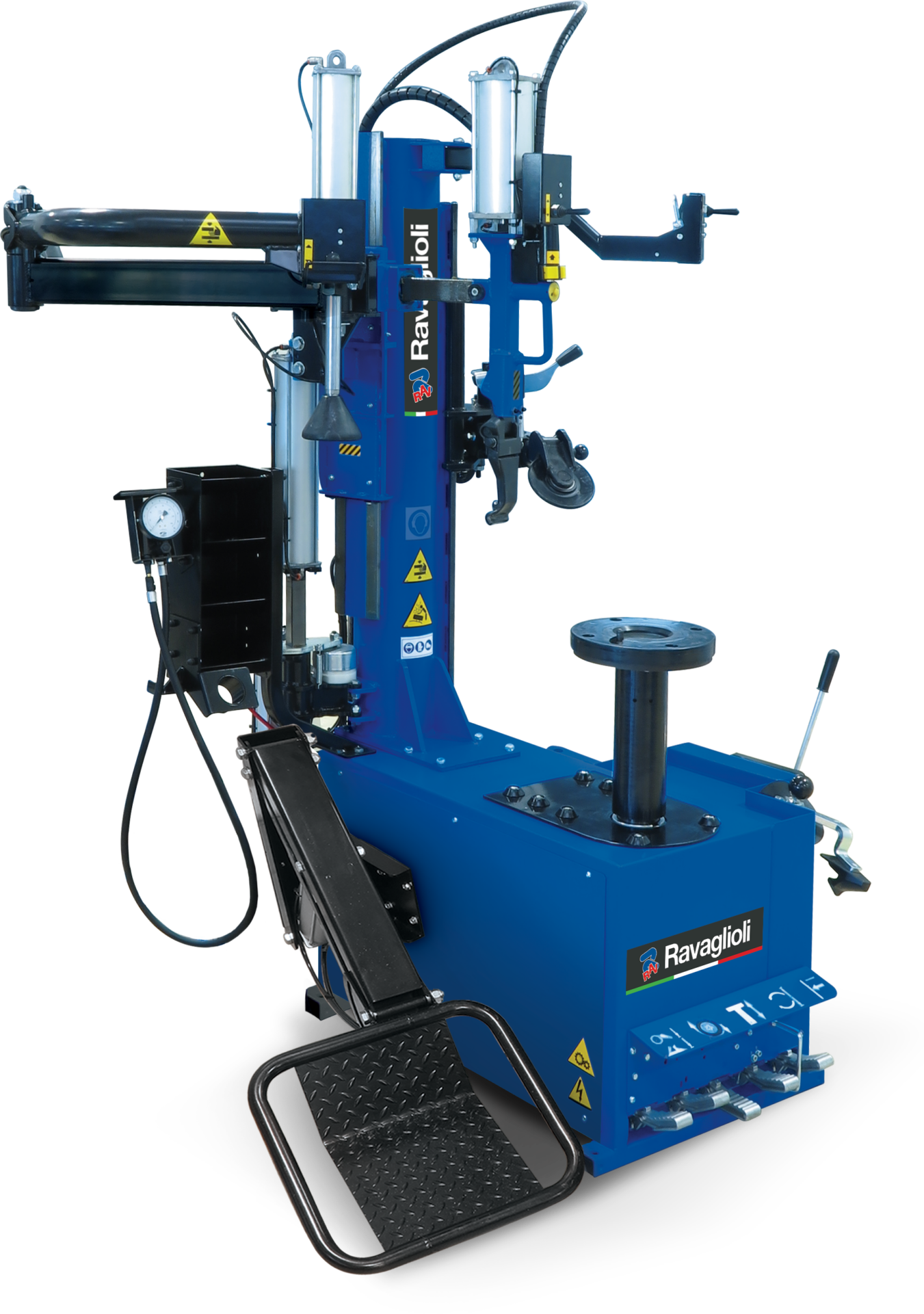

Tyre changer G8945ITD.26S

Tyre changer G8945ITD.26S

Leverless, incl. inflation device, max. speed 15 rpm, passenger car, clamping capacity 10 – 26″, max. rim width 15″ (max. wheel width 381 mm) | chuck with central clamping – suitable also for reverse wheels | for all tyre types with max. wheel diameter 45″ (1143 mm)

MPN: RAV.G8945.206077
GTIN (EAN): 5063084206077
Category:
Tags: , , ,
Request Information

Share on:

dashicons-media-document

Description

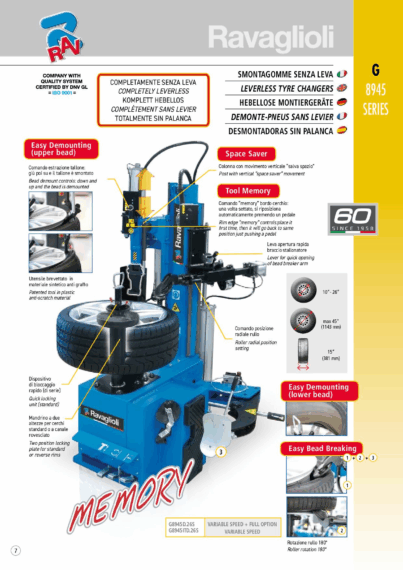

Completely leverless tyre changer

  • Easy Demounting (upper bead): Patented tool in plastic anti-scratch material
  • Bead demount controls: down and up and the bead is demounted
  • Space Saver: Post with vertical “space saver” movement
  • Tool Memory – Rim edge “memory” controls: place it first time, then it will go back to same position just pushing a pedal
  • Lever for quick opening of bead breaker arm
  • Patented tool in plastic anti-scratch material
  • Lever for quick opening of bead breaker arm
  • Roller radial position setting
  • Quick locking unit (standard)
  • Two position locking plate for standard or reverse rims
  • Easy Bead Breaking: Roller rotation 180

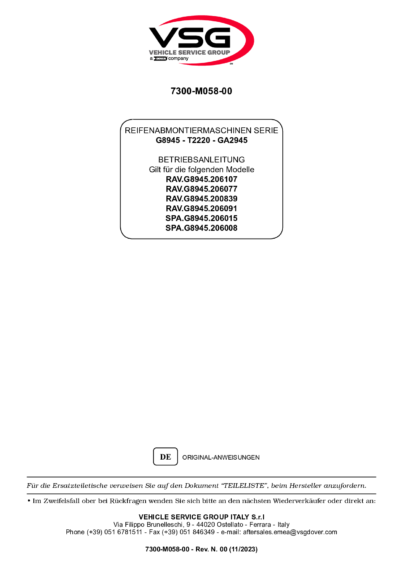

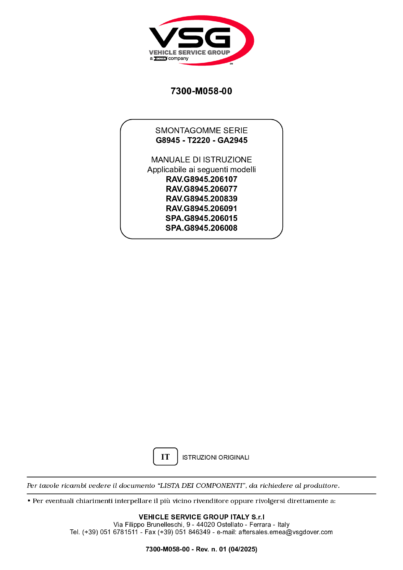

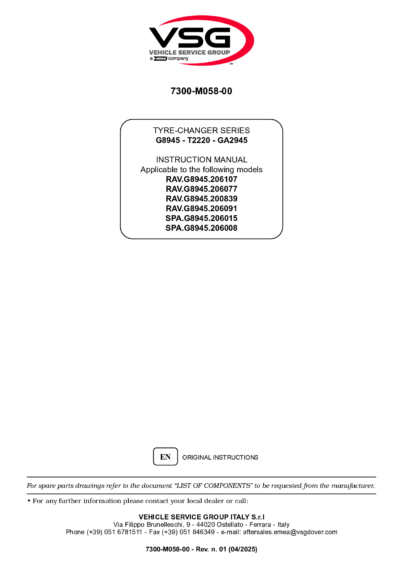

Media

Similar Products

Accessories

Tech Data

FeaturesTyre changer G8945ITD.26STyre changer G8945ITD.26STyre changer G1250.30PLUSITTyre changer G1250.30PLUSITTyre changer G1190.30ITTyre changer G1190.30ITTyre changer G1250.30PLUSTyre changer G1250.30PLUSTyre changer G8645ID.26PLUSTyre changer G8645ID.26PLUSTyre changer G8945D.26STyre changer G8945D.26S
Mounting head designwithout tire leverwithout tire leverwithout tire leverwithout tire leverwithout tire leverwithout tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designrigidrigidrigidrigidtiltablerigid
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possible
asanetworknot possible———not possiblenot possible
Clamping device designcentralcentralcentralcentralClamping platecentral
Min. clamping capacity10″10″10″10″10″10″
Max. clamping capacity26″30″30″30″28,5″26″
Max. rim width15″15″15″15″17″15″
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Wheel width max.381mm———431mm381mm
Max. wheel diameter1143mm1194mm1194mm1194mm1143mm1143mm
Wheel weight max.80kg———80kg80kg
Automatic bead-breaking movementYesYesNoYesNoYes
Number of mounting speeds1———11
Rotation speed15rpm0 – 15rpm0 – 15rpm0 – 15rpm16rpm15rpm
Max. torque1200Nm—1200Nm—1200Nm1200Nm
Power inverter motor0,75kW1,5kW1,5kW1,5kW1,5kW0,75kW
Driving power1,5kW—0,75kW—0,75kW1,5kW
Power supply220 – 240 V | 50 – 60 Hz230 V | 50 – 60 Hz230 V | 50 – 60 Hz230 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz
Phases311113
Air flow8bar———8bar8bar
Max. air supply10bar10bar10bar10bar10bar10bar
Width1420mm1760mm1415mm1400mm1663mm1420mm
Depth1737mm2100mm1560mm2100mm1999mm1737mm
Height2269mm2090mm2090mm2090mm2063mm2269mm
Weight370kg470kg402kg460kg360kg370kg
