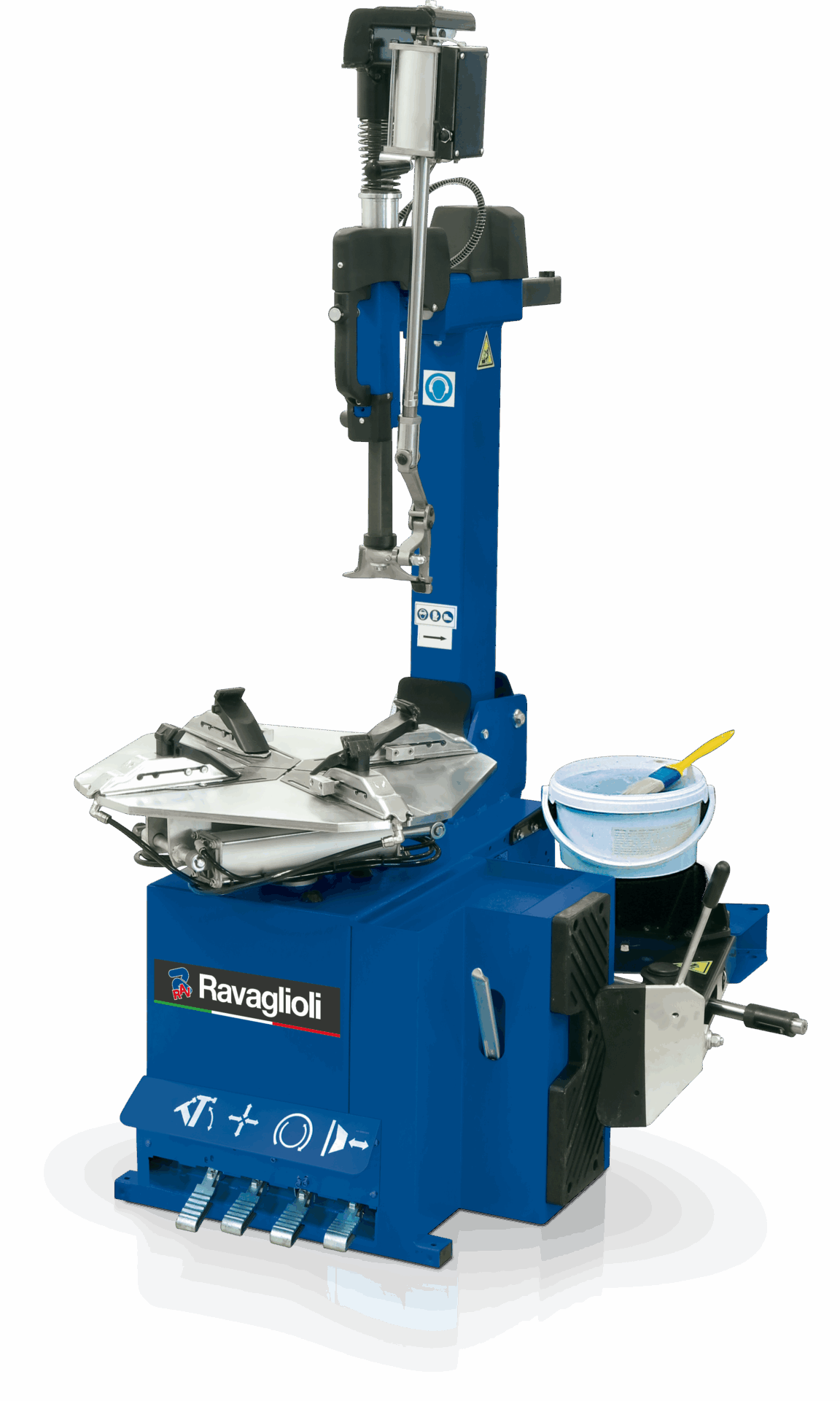

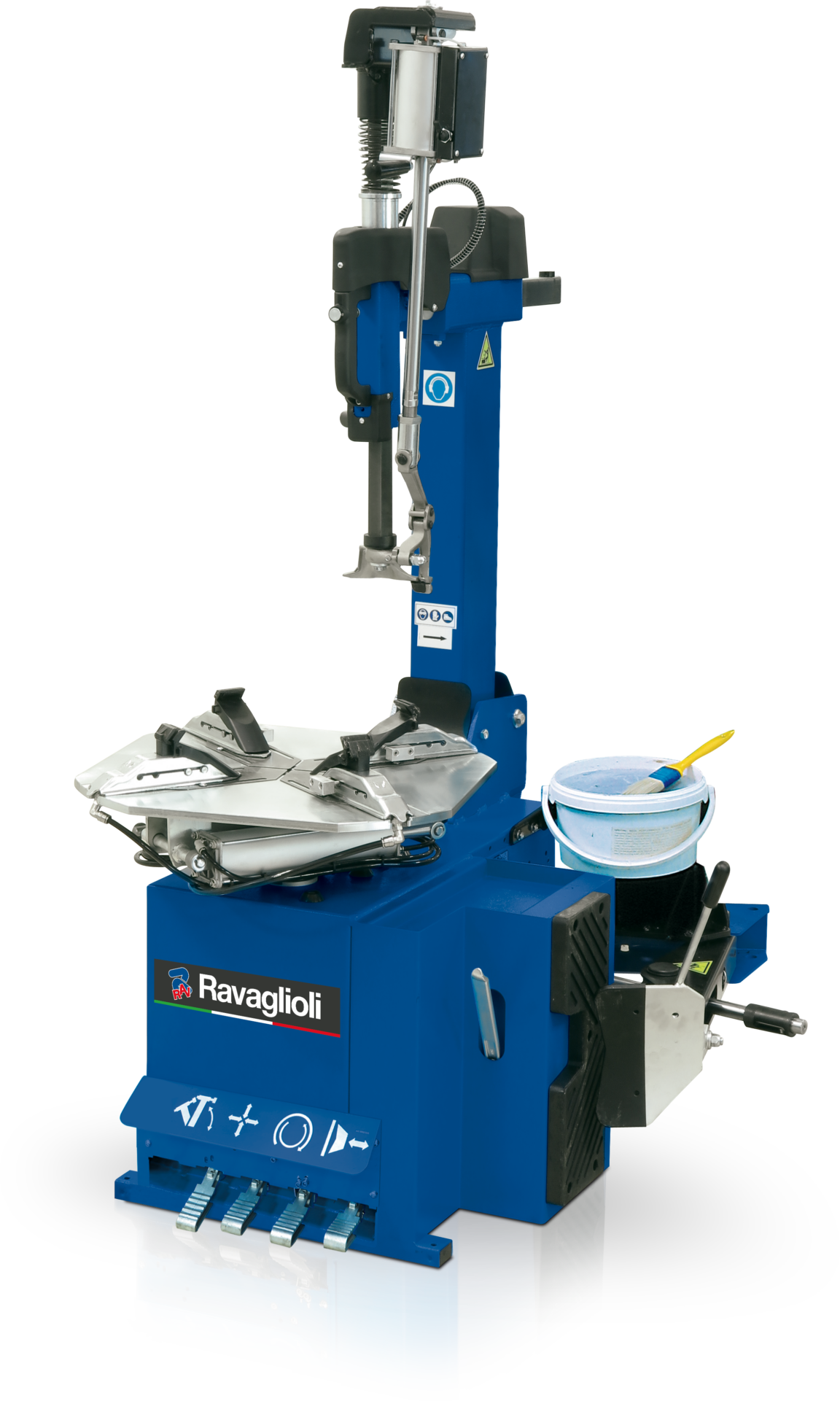

Tyre changer G8645ID.26PLUS

Leverless, max. speed 16 rpm, passenger car, rim diameter 10 – 28,5″, max. rim width 431 mm | Blue (RAL 5005)

Description

Model with tubeless tyre inflation system. The device is activated by a single pedal command with two positions.

  • Patented lever-freetool: Fits between the tyre and rim and takes hold of the bead, gradually lifting it without the aid of bead-lifter levers.
  • The exclusive SLIVO working movement allows to catch the lower bead with no use of the PLUS device.
  • The frame is large and reinforced, to grant the utmost rigidity to the structure and chucking table. The gear box is installed between two steel plates, to avoid flexion during operation.
  • Bead breaker
    • The bead breaker opening can be adjusted to work with extreme rapidity
    • Galvanised cylinder with double operation
  • Self-centering chuck
    • Two-way rotation
    • High torque
    • High clamping force (two pistons)

Additional information

Mounting head design

Without tire lever

Mounting arm design

Moveable

Mounting column design

Tiltable

Colour

5005RAL

Workshop-Net

Not possible

Clamping device design

Clamping plate

Min. clamping capacity

10"

Max. clamping capacity

24"

Min. inner clamping range

12"

Max. inner clamping range

28,5"

Min. outer clamping range

10"

Max. outer clamping range

24"

Max. rim width

17"

Min. rim diameter

10"

Max. rim diameter

28,5"

Tire type passenger car

Run-Flat

Max. wheel width

431mm

Max. wheel diameter

1143mm

Max. wheel weight

80kg

Min. working range of the mounting head

8"

Max. working range of the mounting head

32"

Automatic bead-breaking movement

No

Bead breaker force

11,9kN

Number of mounting speeds

1

Rotation speed

16rpm

Max. torque

1200Nm

Power inverter motor

1,5kW

Driving power

0,75kW

Electrical connection

200 – 240 V, 50 – 60 Hz

Phases

1

Fuse protection

16A slow-blow

Air supply

8bar

Max. air supply

10bar

Width

1663mm

Depth

1999mm

Height

2063mm

Country of Origin, customs

IT
