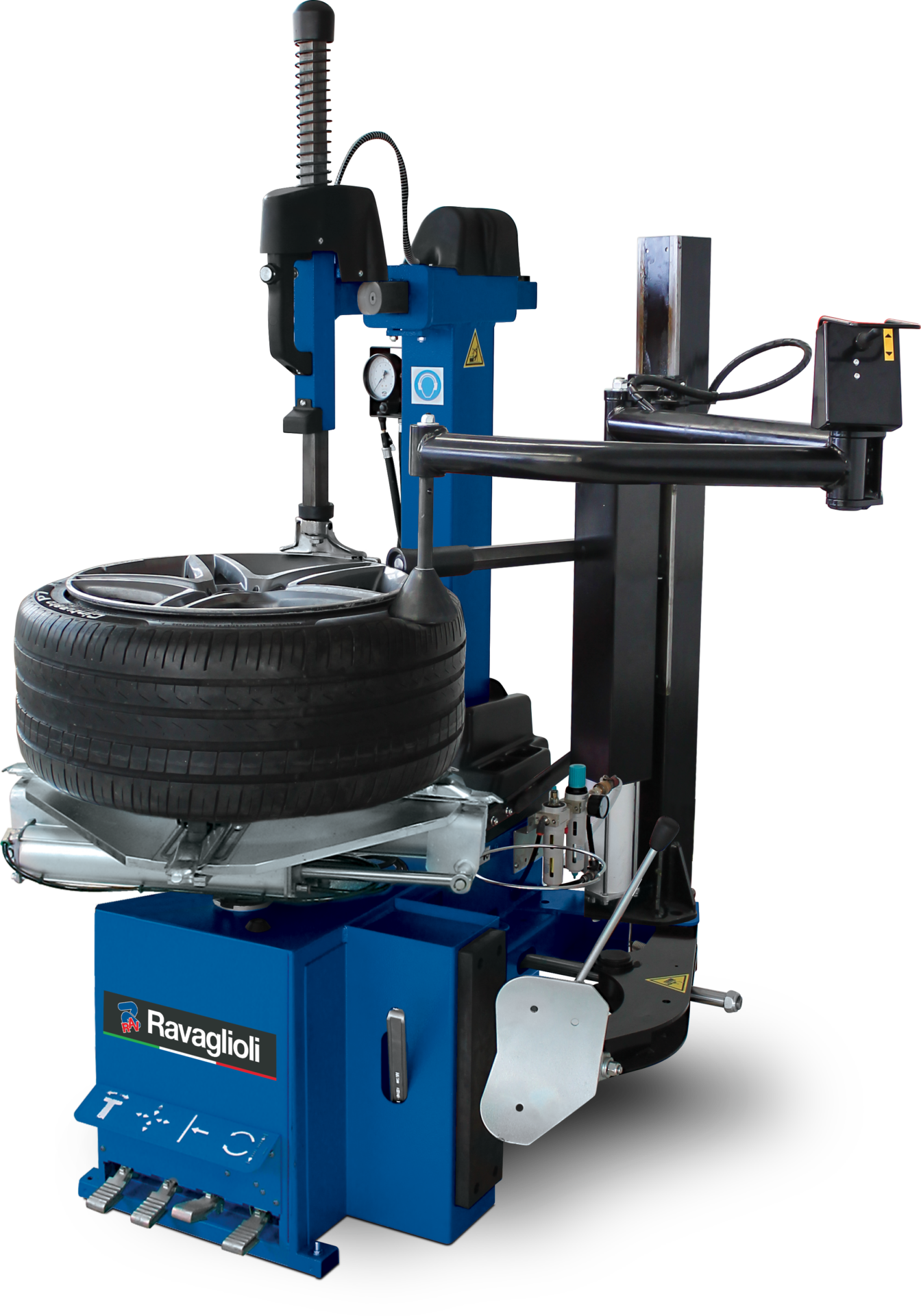

Mounting head and mounting lever, automatic, max. speed 16 rpm, passenger car, chucking table with double adjustable clamp position, rim diameter 10 – 26.5″, new reinforced frame, max. rim width 381 mm | Blue (RAL 5005)
PLUS Version
| Mounting head design | With tire lever |
|---|---|
| Mounting arm design | Moveable |
| Mounting column design | Tiltable |
| Colour | 5005RAL |
| TeqLink | Not possible |
| Workshop-Net | Not possible |
| Clamping device design | Clamping plate |
| Min. clamping capacity | 10" |
| Max. clamping capacity | 26,5" |
| Min. inner clamping range | 12" |
| Max. inner clamping range | 26,5" |
| Min. outer clamping range | 10" |
| Max. outer clamping range | 24" |
| Max. rim width | 15" |
| Min. rim diameter | 10" |
| Max. rim diameter | 26,5" |
| Tire type passenger car | Ultra-High-Performance |
| Max. wheel width | 381mm |
| Max. wheel diameter | 1092mm |
| Max. wheel weight | 80kg |
| Min. working range of the mounting head | 8" |
| Max. working range of the mounting head | 24" |
| Automatic bead-breaking movement | No |
| Bead breaker force | 10,7kN |
| Number of mounting speeds | 1 |
| Rotation speed | 16rpm |
| Max. torque | 1200Nm |
| Power inverter motor | 1,5kW |
| Driving power | 0,75kW |
| Electrical connection | 200 – 240 V, 50 – 60 Hz |
| Phases | 1 |
| Fuse protection | 16A slow-blow |
| Air supply | 8bar |
| Max. air supply | 10bar |
| Width | 1533mm |
| Depth | 1520mm |
| Height | 2091mm |
| Weight | 330kg |
| Country of Origin, customs | IT |
