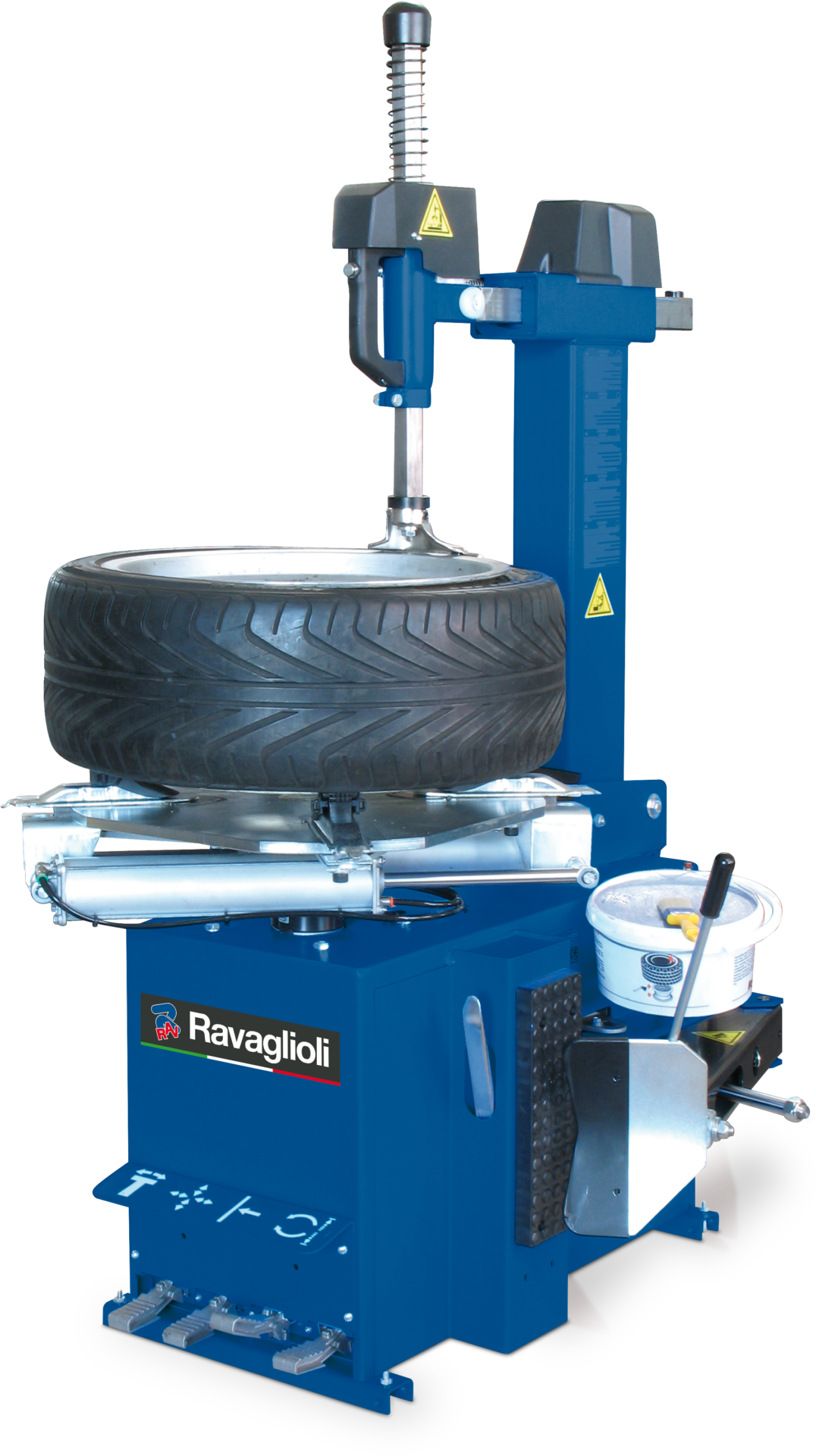

Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue (RAL 5005)
| Mounting head design | Automatic |
|---|---|
| Mounting arm design | Moveable |
| Mounting column design | Tiltable |
| Colour | 5005RAL |
| TeqLink | Not possible |
| Workshop-Net | Not possible |
| Clamping device design | Clamping plate |
| Min. clamping capacity | 10" |
| Max. clamping capacity | 24,5" |
| Min. inner clamping range | 12" |
| Max. inner clamping range | 24,5" |
| Min. outer clamping range | 10" |
| Max. outer clamping range | 22" |
| Max. rim width | 14" |
| Min. rim diameter | 10" |
| Max. rim diameter | 24,5" |
| Tire type passenger car | Run-Flat |
| Max. wheel width | 381mm |
| Max. wheel diameter | 1050mm |
| Max. wheel weight | 80kg |
| Min. working range of the mounting head | 8" |
| Max. working range of the mounting head | 24" |
| Automatic bead-breaking movement | No |
| Bead breaker force | 10,7kN |
| Number of mounting speeds | 2 |
| Rotation speed | 6,5 / 13rpm |
| Max. torque | 1200Nm |
| Power inverter motor | 1,5kW |
| Driving power | 0,8 / 1,1kW |
| Electrical connection | 400 V, 50 Hz |
| Phases | 3 |
| Fuse protection | 16A slow-blow |
| Air supply | 8bar |
| Max. air supply | 10bar |
| Width | 1304mm |
| Depth | 1449mm |
| Height | 1950mm |
| Weight | 214kg |
| Country of Origin, customs | IT |
