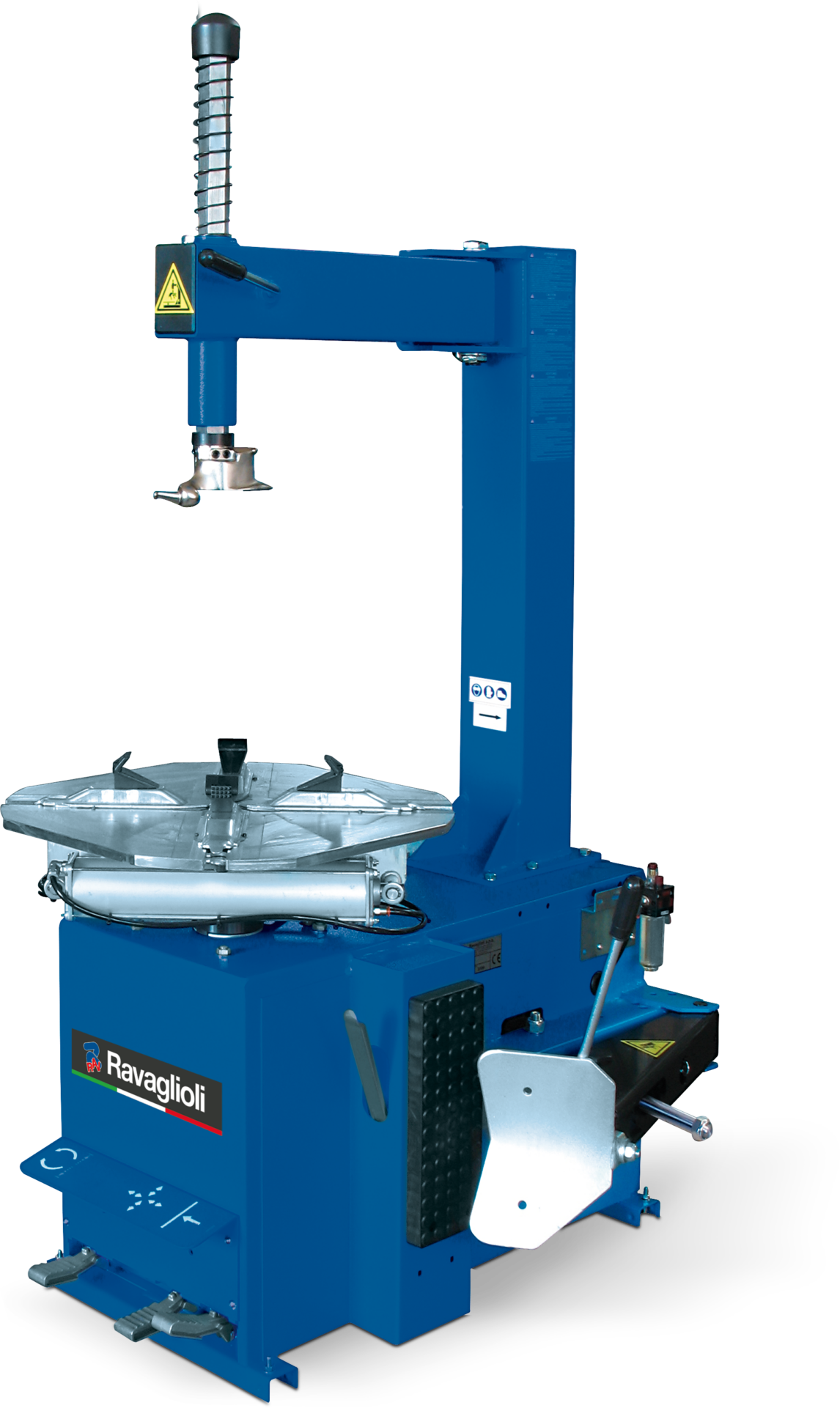

Semiautomatic, Swing series, max. speed 7.3 rpm, passenger car, rim diameter 10 – 22.5″ (chucking table 20″), max. rim width 305 mm | Blue (RAL 5005)
| Mounting head design | Semi-automatic |
|---|---|
| Mounting arm design | Swiveling |
| Mounting column design | Rigid |
| Colour | 5005RAL |
| TeqLink | Not possible |
| Workshop-Net | Not possible |
| Clamping device design | Clamping plate |
| Min. clamping capacity | 10" |
| Max. clamping capacity | 20" |
| Min. inner clamping range | 12" |
| Max. inner clamping range | 22,5" |
| Min. outer clamping range | 10" |
| Max. outer clamping range | 20" |
| Max. rim width | 12" |
| Min. rim diameter | 10" |
| Max. rim diameter | 22,5" |
| Tire type passenger car | Run-Flat |
| Max. wheel width | 305mm |
| Max. wheel diameter | 1030mm |
| Max. wheel weight | 80kg |
| Min. working range of the mounting head | 8" |
| Max. working range of the mounting head | 24" |
| Automatic bead-breaking movement | No |
| Bead breaker force | 10,7kN |
| Number of mounting speeds | 1 |
| Rotation speed | 7,3rpm |
| Max. torque | 1200Nm |
| Power inverter motor | 1,5kW |
| Driving power | 0,55kW |
| Electrical connection | 400 V, 50 Hz |
| Phases | 3 |
| Fuse protection | 16A slow-blow |
| Air supply | 8bar |
| Max. air supply | 10bar |
| Width | 1272mm |
| Depth | 1073mm |
| Height | 1834mm |
| Country of Origin, customs | IT |
