Description
- Tilting vertical arm
- Operating arm with pneumatic locking
- Air operated bead breaker
- Oversized body
- Extractable pedal unit
- Equipped with:
- Tyre inflator
- Clamps protection package
- Tool protection
- Bead lever
- Plastic brush
loading

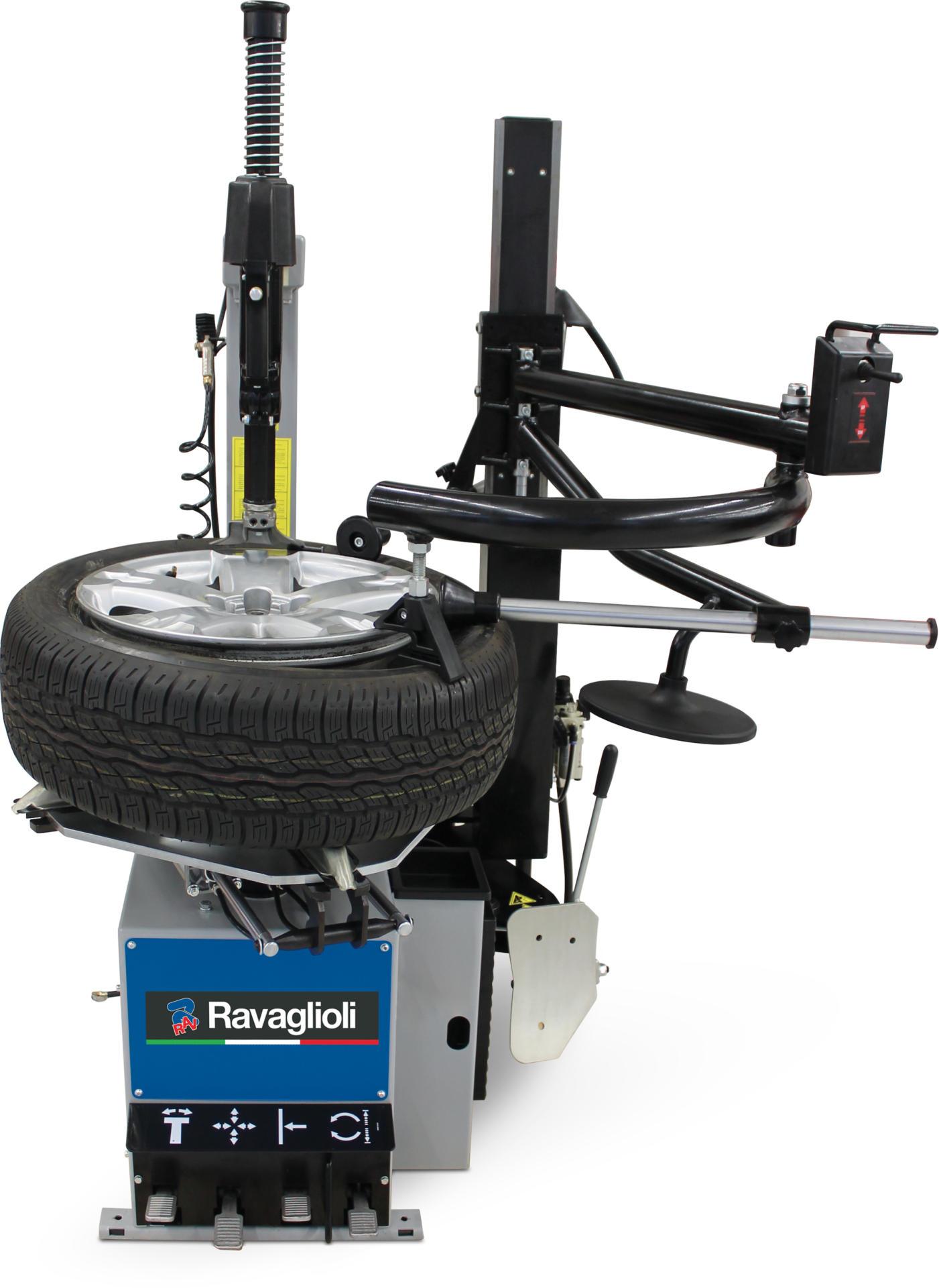

Tyre changer G5440.22M
Mounting head and mounting lever, semiautomatic, incl. tire inflator, max. speed 7/14 rpm, passenger car, rim diameter 10 – 24″, max. rim width 330 mm | Blue (RAL 5005)
Share on:
dashicons-media-documentAdditional information
| Mounting head design | Semi-automatic |
|---|---|
| Mounting arm design | Moveable |
| Mounting column design | Tiltable |
| Colour | 5005RAL |
| TeqLink | Not possible |
| Workshop-Net | Not possible |
| Clamping device design | Clamping plate |
| Min. clamping capacity | 10" |
| Max. clamping capacity | 24" |
| Max. rim width | 13" |
| Min. rim diameter | 10" |
| Max. rim diameter | 24" |
| Tire type passenger car | Run-Flat |
| Max. wheel width | 330mm |
| Max. wheel diameter | 1000mm |
| Automatic bead-breaking movement | No |
| Bead breaker force | 12kN |
| Number of mounting speeds | 1 |
| Rotation speed | 7 / 14rpm |
| Max. torque | 1200Nm |
| Driving power | 0,75kW |
| Electrical connection | 230 V, 50 Hz |
| Phases | 1 |
| Air supply | 8bar |
| Max. air supply | 10bar |
| Width | 1110mm |
| Depth | 1650mm |
| Height | 1850mm |
| Weight | 233kg |
| Country of Origin, customs | CN |
