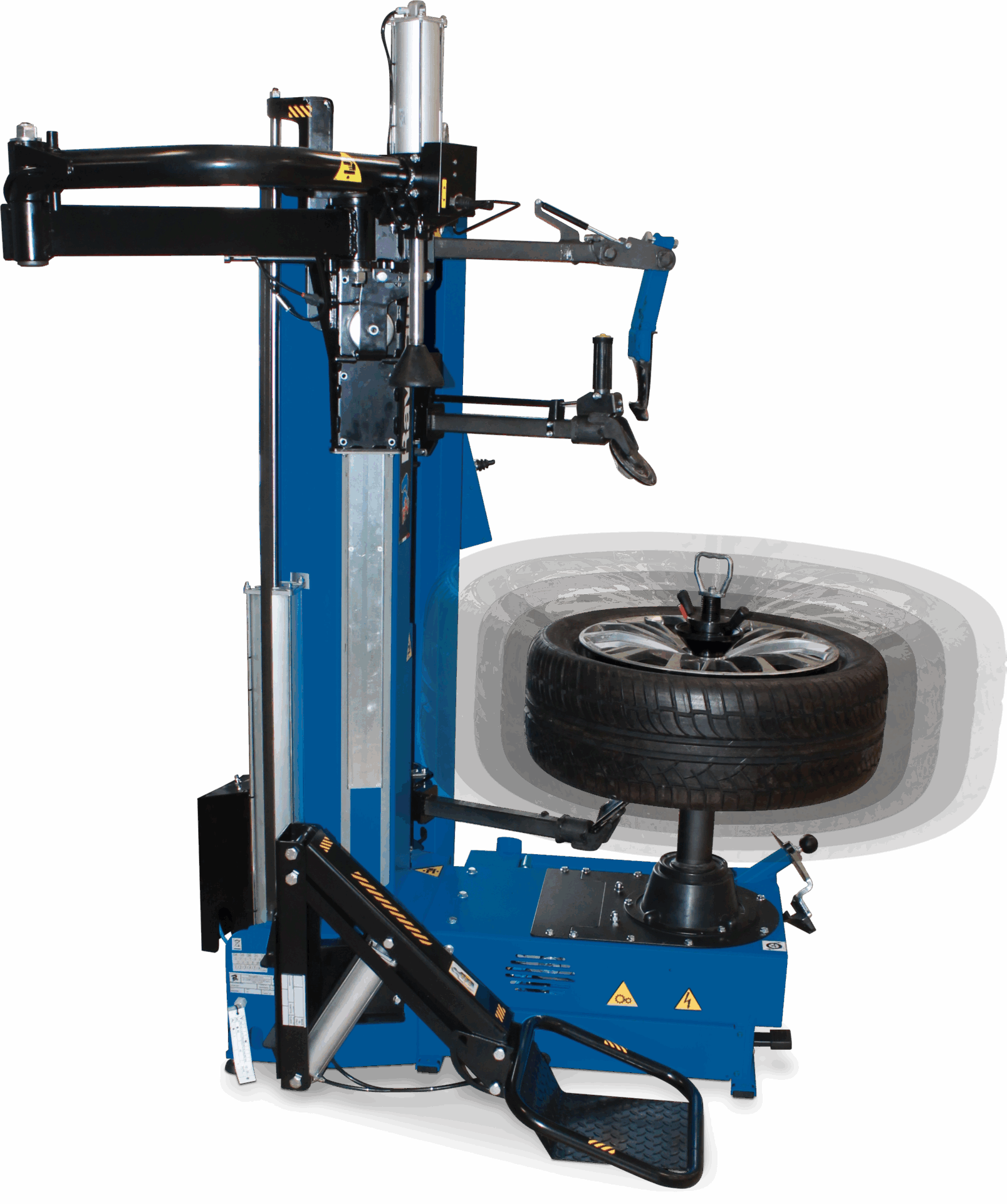

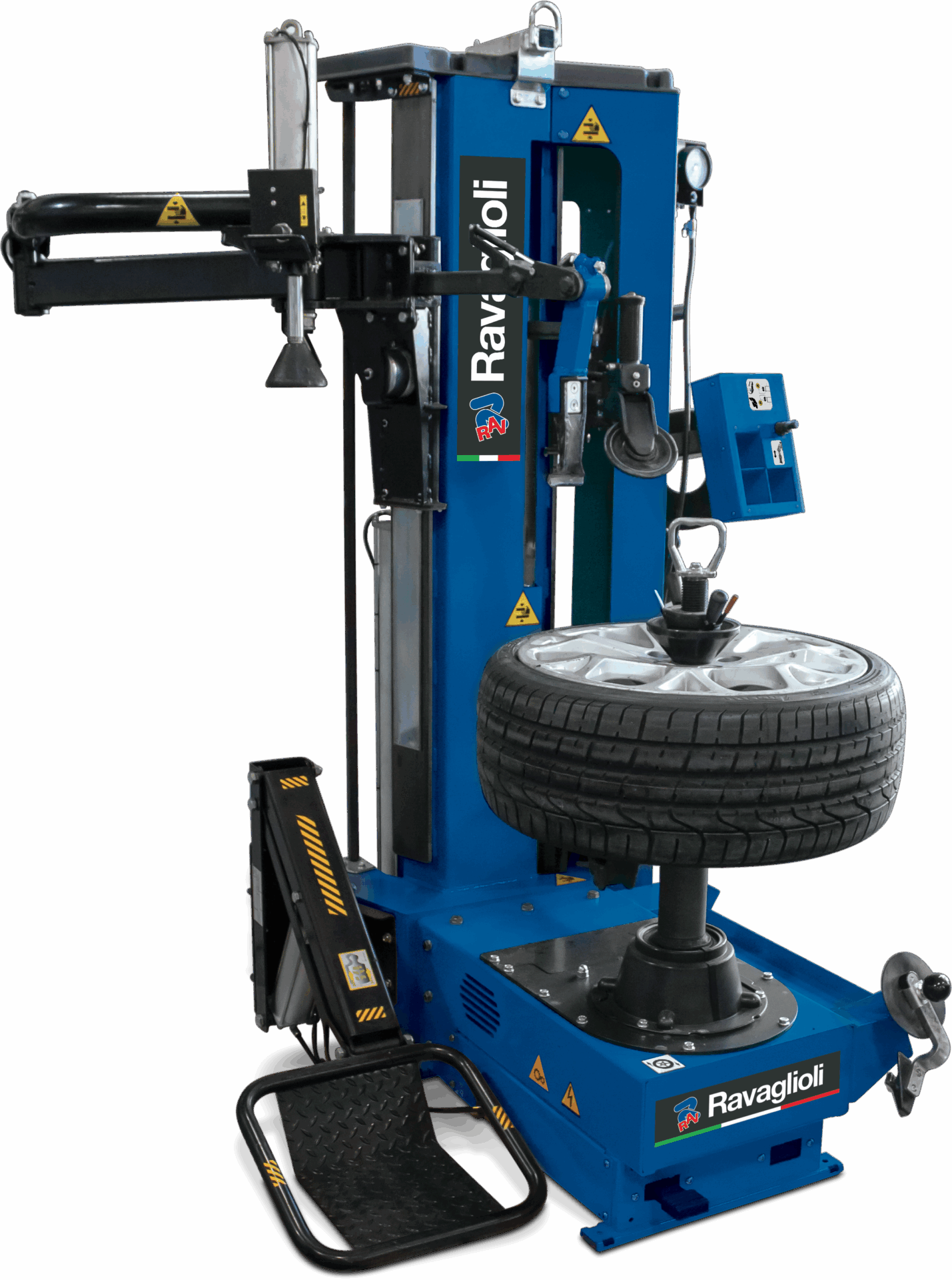

Tyre changer G1190.30

Leverless, incl. pneumatic bead depressor pusher and pneumatic wheel lift, passenger car, rim diameter 10 – 30″, max. rim width 15″ | wdk certified

MPN: RAV.G1190.200853
GTIN (EAN): 5063084200853
Category:
Tags:

Share on:

dashicons-media-document

Description

The Easisest Way to Work Tyres

Tyre changer equipped with an innovative leverless tool (patented) that allows to work quickly and effortlessly even on new-concept and ultralow profile tyres, Run-Flat. The compact design makes it suitable also for those workshops with limited space.

  • Space saver: compact design without any cables on the back of the column

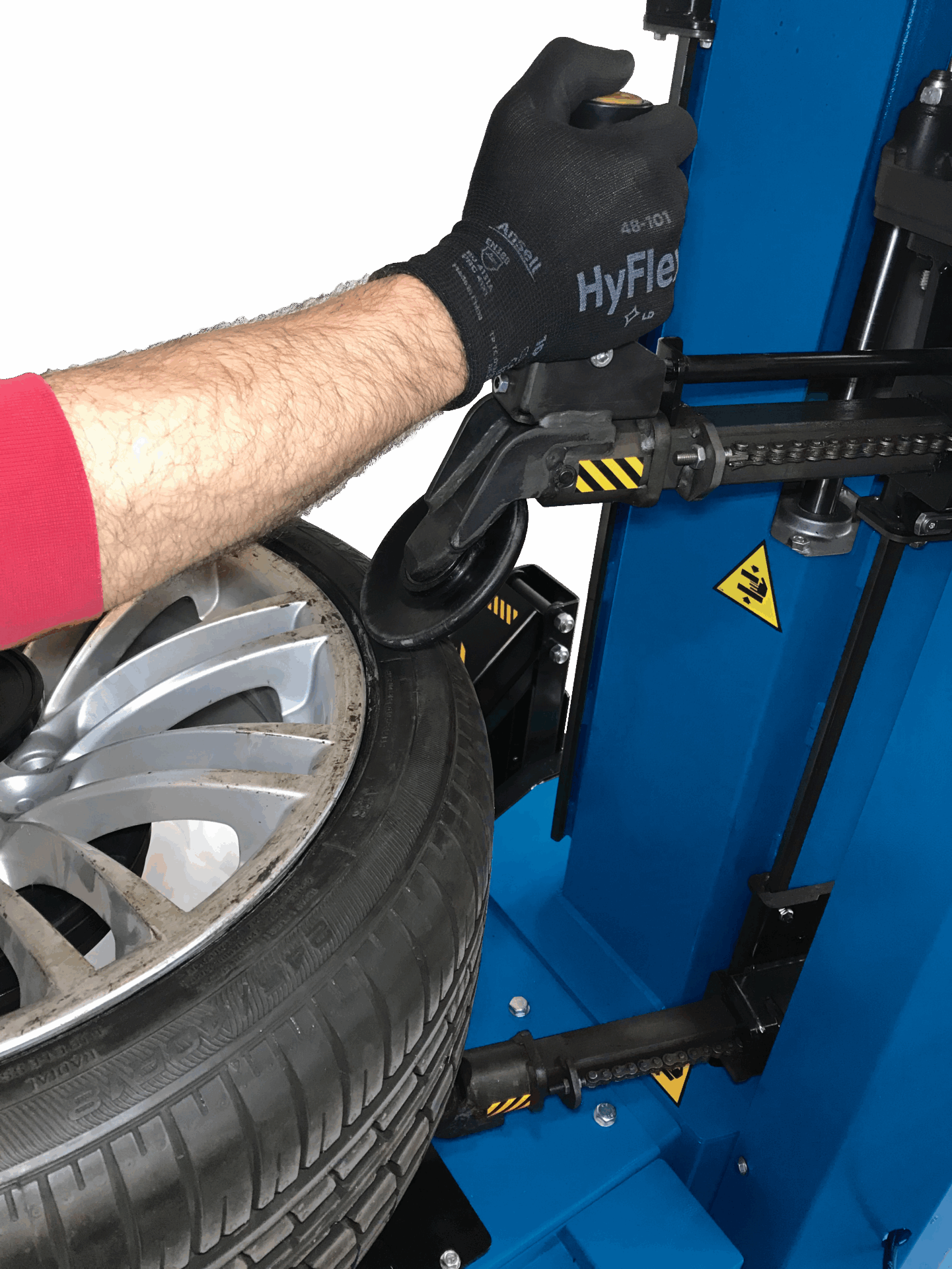

  • Effort saver: power assisted arms with light and precise horizontal adjustment
  • Time saver: three cylinders for an independent and fast movement of the arms
  • The wheel rotation can be controlled as desired by the operator throught inverter motor with speed limiter to protect the tyre from excessive forces (0 – 15 rpm).

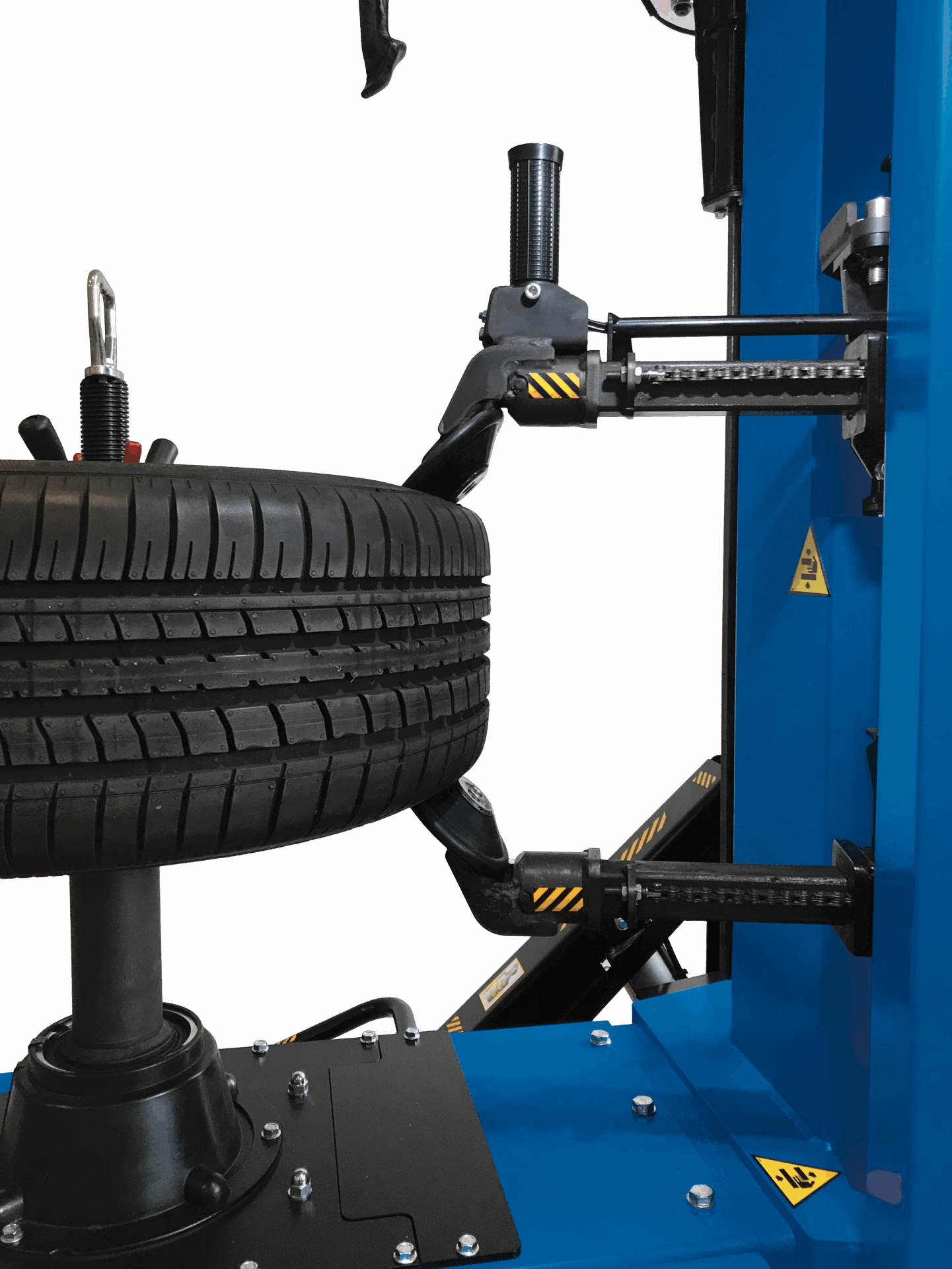

  • Double bead breaking disks/rollers: The tyre bead is breaked quickly and safely by two opposed and synchronized disks.
  • High capacity: The center post locking with floating plate (patented), suitable also for reverse rims, offers a self-locking mechanism that reduces the effort of the operator.

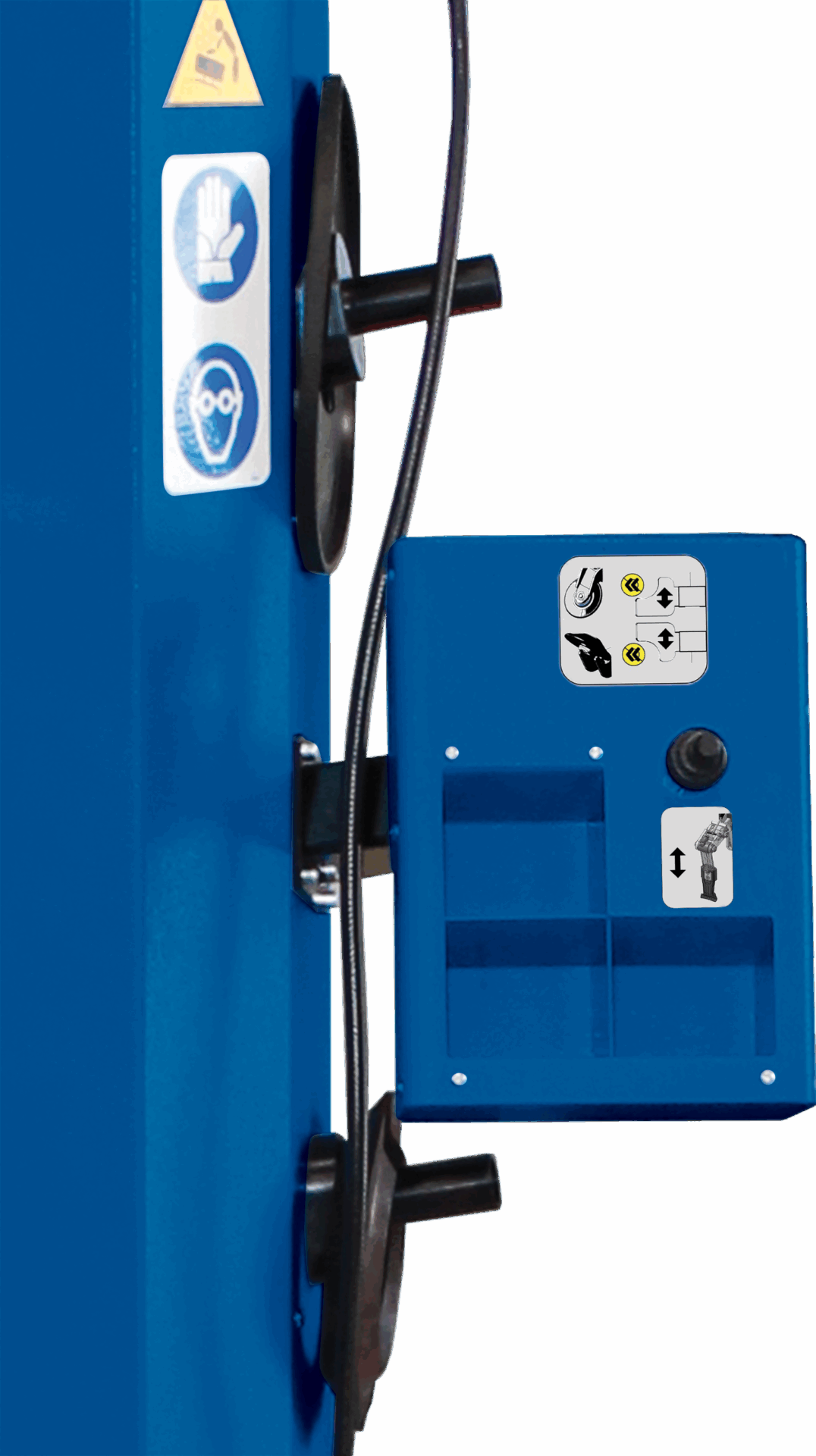

  • The operator’s learning process is simplified thanks to the use of an user-friendly console to operate rollers and tools.

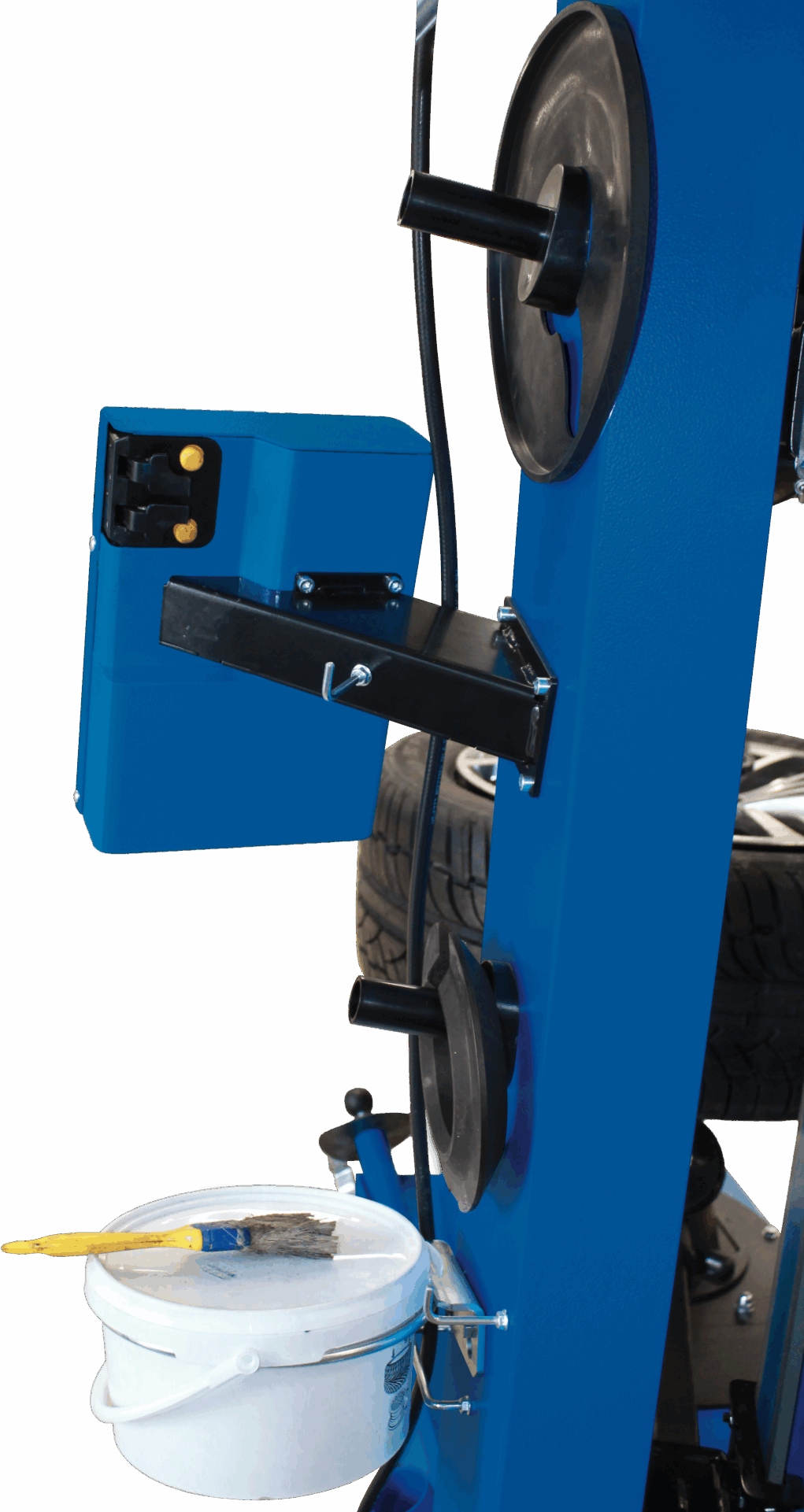

  • The buttons on the back allows not to move the look of the operator from the tyre.

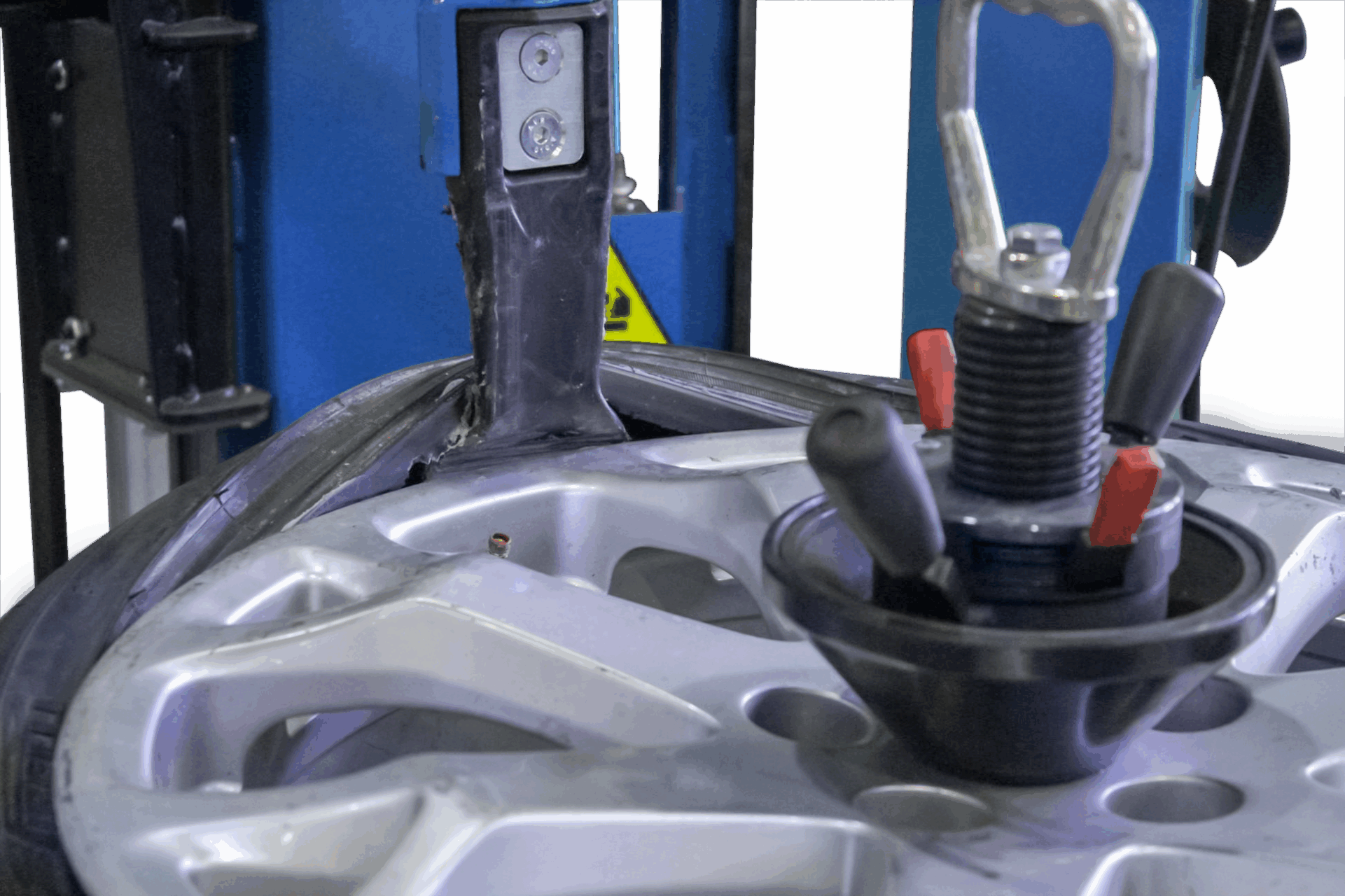

  • Upper mounting head of nonscratching material for damagefree work on the rims near the edge (zero stress effect).
  • Disk indent system for correct and safe bead breaking without damaging the tyre side wall and the pressure sensor.
  • The positioning of the three arms is synchronized with lube free roller chain system.
  • Equipped with a pneumatic bead pusher
  • Quick-clamping lock for rims
  • Quick pedal operated inflation with gauge and fast inflating valve
  • Servo-assisted horizontal arms adjustment

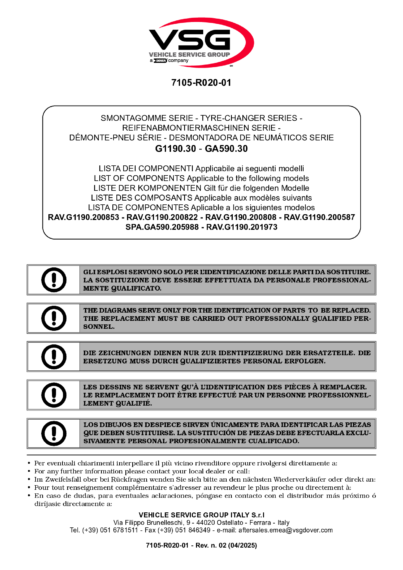

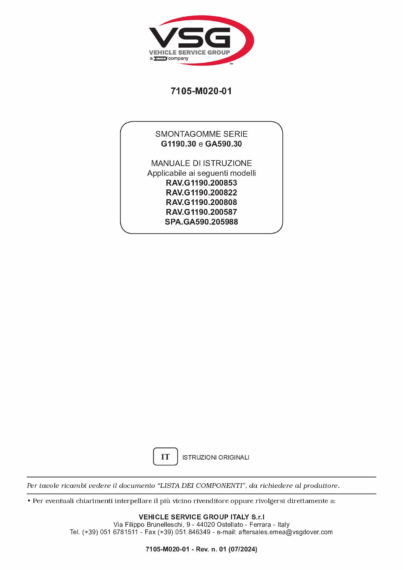

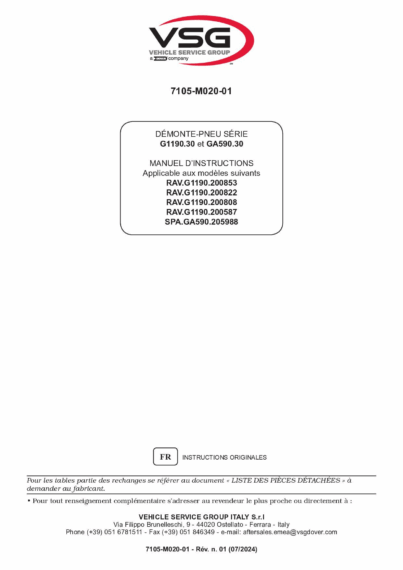

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G1190.30Tyre changer G1190.30Tyre changer G1250.30PLUSTyre changer G1250.30PLUSTyre changer G1190.30ITTyre changer G1190.30IT
Mounting head designwithout tire leverwithout tire leverwithout tire lever
Mounting arm designmoveablemoveablemoveable
Mounting column designrigidrigidrigid
wdk certificationstandardstandardstandard
wdk certificate ID13-02713-02813-027
TeqLinknot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possible
Clamping device designcentralcentralcentral
Min. clamping capacity10″10″10″
Max. clamping capacity30″30″30″
Max. rim width15″15″15″
Min. rim diameter10″10″10″
Max. rim diameter30″30″30″
Tire type passenger carRun-FlatRun-FlatRun-Flat
Max. wheel diameter1194mm1194mm1194mm
Min. working range of the mounting head10″10″
Automatic bead-breaking movementNoYesNo
Bead breaker force12kN12kN12kN
Rotation speed0 – 15rpm0 – 15rpm0 – 15rpm
Max. torque1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW
Chuck motor rating0,75kW0,75kW
Driving power0,75kW0,75kW
Power supply230 V | 50 – 60 Hz230 V | 50 – 60 Hz230 V | 50 – 60 Hz
Phases111
Fuse protection16A slow-blow16A slow-blow16A slow-blow
Air supply8bar8bar8bar
Max. air supply10bar10bar10bar
Width1415mm1400mm1415mm
Weight402kg460kg402kg
Depth1560mm2100mm1560mm
Height2090mm2090mm2090mm
