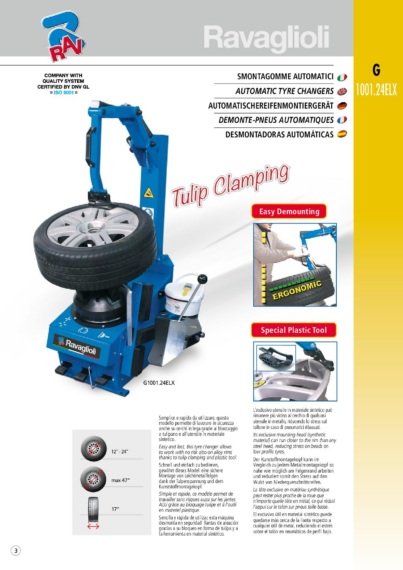

Tyre changer G1001.24ELX

Mounting head and mounting lever, automatic, self-centering tulip chuck, max. speed 15 rpm, passenger car, rim diameter 12 – 24″, max. rim width 381 mm | Blue (RAL 5005)

Category:
Tags: ,
Request Information

Share on:

dashicons-media-document

Description

Easy and fast, this tyre changer allows to work with no risk also on alloy rims thanks to tulip clamping and plastic tool.

  • Easy Demounting
  • Special Plastic Tool: Its exclusive mounting head (synthetic material) can run closer to the rim than any steel head, reducing stress on beads on low profile tyres
  • Exclusive “TULIP″ wheel clamping system: It eliminates steel-jaws clamping, which could damage the surface of sophisticated wheels
  • Center Lock
  • The device makes mounting of low profile tyres fast and easy

Additional information

Mounting head design

With tire lever
Mounting arm design

Moveable
Mounting column design

Rigid
Colour

5005RAL
TeqLink

Not possible
Workshop-Net

Not possible
Clamping device design

central
Min. clamping capacity

10"
Max. clamping capacity

24"
Max. rim width

15"
Min. rim diameter

12"
Max. rim diameter

24"
Tire type passenger car

Run-Flat
Max. wheel width

381mm
Max. wheel diameter

1200mm
Automatic bead-breaking movement

No
Bead breaker force

30kN
Number of mounting speeds

1
Rotation speed

15rpm
Power inverter motor

1,5kW
Driving power

0,75kW
Electrical connection

200/265 V, 50 – 60 Hz
Phases

1
Fuse protection

16A slow-blow
Width

1003mm
Depth

1186mm
Height

1606mm
Country of Origin, customs

IT
