Description

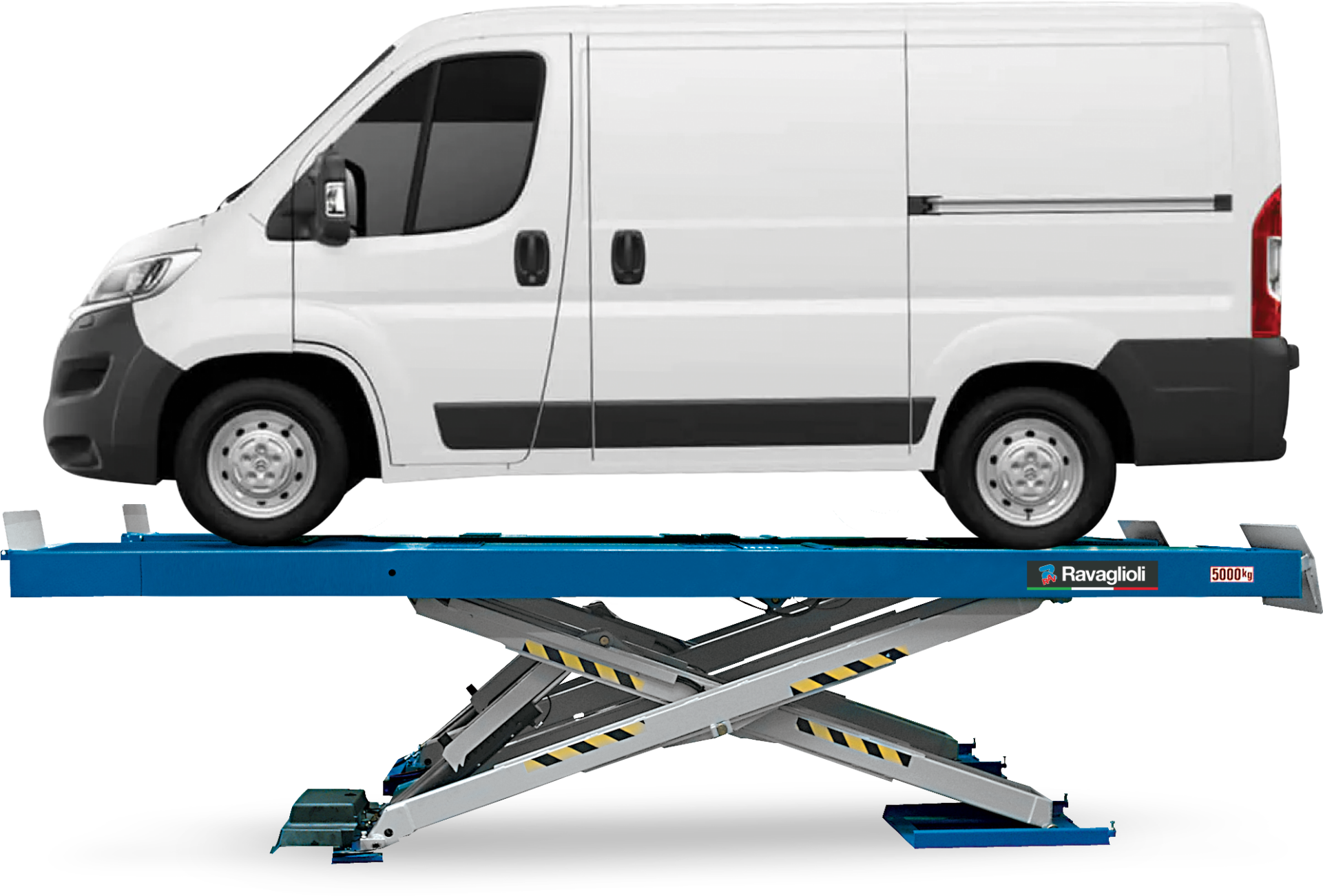

The new lift geometry simplifies the flush mounting pit construction. Lift with big platforms, structured and designed for maximum stability also when loaded with large vehicles.
- Very versatile: the same lift can be flush or floor mounted
- Easy installation: easy setting up of pit
- Wide ranging applications: suitable for different operations on various types of vehicle
- Open flush mounting for turntables: Edge-free platforms that allow the turntables to be positioned over the entire surface of the platform width – Ideal when working on vehicles with narrow track
- Optimal sliding of jacking beam: Preinstalled galvanised guide on the inner side of the platform, which allows fast and smooth sliding of the jacking beam
- Wheel alignment lift: Platforms for total wheel alignment with front housing for turn tables and rear side slip plates
- Rear side slip plates with pneumatic locking, angular and transversal movements in both directions
- Large wheel stop for high working safety
- Pre-drilled platform for Ravaglioli 3D wheel alignment measuring heads brackets housing
- Greater lifting height
- The hydraulic synchronisation of the platform movements is independent of the load distribution, and is guaranteed by a patented hydraulic synchronisation device
- All pivoting points are equipped with maintenance free self lubricating bushings
- Base plates with levelling system for an easy installation
- Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in parking position
- The new lift geometry simplifies the flush mounting pit construction
