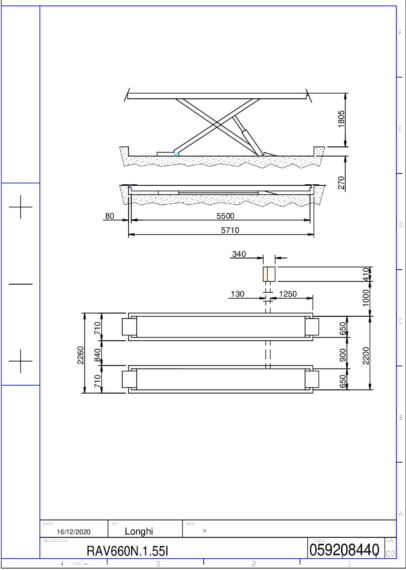

Scissor lift RAV660N.1.55I

6.0 t, electrohydraulic, with level runways, platform length 5500 mm, with safety latch, inground

MPN: RAV.660N1.193186
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

The new lift geometry simplifies the flush mounting pit construction. Lift with big platforms, structured and designed for maximum stability also when loaded with large vehicles.

  • Very versatile: the same lift can be flush or floor mounted
  • Easy installation: easy setting up of pit
  • Wide ranging applications: suitable for different operations on various types of vehicle
  • Open flush mounting for turntables: Edge-free platforms that allow the turntables to be positioned over the entire surface of the platform width – Ideal when working on vehicles with narrow track
  • Optimal sliding of jacking beam: Preinstalled galvanised guide on the inner side of the platform, which allows fast and smooth sliding of the jacking beam
  • Lift with flat platforms: Lift with big platforms (5.5 m) structured and designed for maximum stability also when loaded with large vehicles
  • Large wheel stop for high working safety
  • Greater lifting height
  • The hydraulic synchronisation of the platform movements is independent of the load distribution, and is guaranteed by a patented hydraulic synchronisation device
  • All pivoting points are equipped with maintenance free self lubricating bushings
  • Base plates with levelling system for an easy installation
  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in parking position
  • The new lift geometry simplifies the flush mounting pit construction

Media

Similar Products

Accessories

  • Traverses for XS30-CAT
    Accessories scissor lifts

    Traverses for XS30-CAT
    MPN: S505A2

    For vans and off-road vehicles | 1 set / 2 pieces

  • Rubber pads
    Accessories scissor lifts

    Rubber pads
    MPN: S505A7

    20 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and…

  • Rubber pads
    Accessories scissor lifts

    Rubber pads
    MPN: S505A6

    40 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and…

  • Rubber pads
    Accessories scissor lifts

    Rubber pads
    MPN: S505A9

    60 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N6.193964, RAV.660N2.193360, RAV.650N6.193025, RAV.640N5.193049 and RAV.640N4.192998 | 1 set / 4 pieces

  • Rubber pads
    Accessories scissor lifts

    Rubber pads
    MPN: S505A5

    120 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and…

  • Rubber pads
    Accessories scissor lifts

    Rubber pads
    MPN: S505A1

    200 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and…

  • Drive-on ramp kitit
    Accessories scissor lifts

    Drive-on ramp kit
    MPN: S600NA11

    1350 mm, ground ramps | floor installation kit for 600N series lifts without wheel-free jack | 1 set / 2…

  • Drive-on ramp kitit
    Accessories scissor lifts

    Drive-on ramp kitit
    MPN: S600NA14

    1800 mm, ground ramps | floor installation kit for 600N series lifts without wheel-free jack | 1 set / 2…

  • Placeholder
    Accessories scissor lifts

    Drive-on ramp kit
    MPN: S600NA19

    1560 mm, suspended ramps | floor installation kit for 600N series lifts without wheel-free jack | 1 set / 2…

  • Placeholder
    Accessories scissor lifts

    Drive-on ramp kit
    MPN: S600NA21

    2000 mm, suspended ramps | floor installation kit for 600N series lifts without wheel-free jack | 1 set / 2…

  • Placeholder
    Accessories scissor lifts

    Pipe cover 1 m
    MPN: S510A1

    For surface installation of lifts

  • Placeholder
    Accessories scissor lifts

    Drive-through ramp kit
    MPN: S600NA15

    1350 mm, ground ramps | for 600N series lifts without wheel-free jack | 1 set / 2 pieces

  • Placeholder
    Accessories scissor lifts

    Drive-through ramp kit
    MPN: S600NA16

    1800 mm, suspended ramps | for 600N series lifts without wheel-free jack | 1 set / 2 pieces

  • Placeholder
    Accessories scissor lifts

    Drive-through ramp kit
    MPN: S600NA6

    1560 mm, suspended ramps | for 600N series lifts without wheel-free jack | 1 set / 2 pieces

  • Placeholder
    Accessories scissor lifts

    Drive-through ramp kit
    MPN: S600NA2

    2000 mm, suspended ramps | for 600N series lifts without wheel-free jack | 1 set / 2 pieces

  • Placeholder
    Accessories scissor lifts

    Additional platform for three wheelers
    MPN: S640A2

    For all electro-hydraulic scissor lifts

  • Control unit cover for all electro-hydraulic scissor lifts
    Accessories scissor lifts

    Control unit cover for all electro-hydraulic scissor lifts
    MPN: S611A4

    To protect the control panel | for all models

Delivery

FeaturesScissor lift RAV660N.1.55IScissor lift RAV660N.1.55IScissor lift RAV640N.1IScissor lift RAV640N.1IScissor lift RAV640N.1ISIScissor lift RAV640N.1ISIScissor lift RAV650N.1.55IScissor lift RAV650N.1.55IScissor lift RAV650N.1.55ISIScissor lift RAV650N.1.55ISIScissor lift RAV650N.5.55IScissor lift RAV650N.5.55IScissor lift RAV660N.1.55ISIScissor lift RAV660N.1.55ISIScissor lift RAV640N.2IScissor lift RAV640N.2IScissor lift RAV640N.2ISIScissor lift RAV640N.2ISIScissor lift RAV650N.2.55IScissor lift RAV650N.2.55IScissor lift RAV650N.2.55ISIScissor lift RAV650N.2.55ISIScissor lift RAV660N.2.55IScissor lift RAV660N.2.55IScissor lift RAV660N.2.55ISIScissor lift RAV660N.2.55ISIScissor lift RAV640N.3.46ISIScissor lift RAV640N.3.46ISIScissor lift RAV640N.5.55ISIScissor lift RAV640N.5.55ISIScissor lift RAV650N.5.55ISIScissor lift RAV650N.5.55ISIScissor lift RAV640N.4.46IScissor lift RAV640N.4.46IScissor lift RAV640N.4.46ISIScissor lift RAV640N.4.46ISIScissor lift RAV640N.6.55IScissor lift RAV640N.6.55IScissor lift RAV640N.6.55ISIScissor lift RAV640N.6.55ISIScissor lift RAV650N.6.55ISIScissor lift RAV650N.6.55ISI
Scissor lift designScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runwaysScissors with runways
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mountedsurface mounted
Rated load capacity6000kg4200kg4200kg5000kg5000kg5000kg6000kg4200kg4200kg5000kg5000kg6000kg6000kg4200kg4200kg5000kg4200kg4200kg4200kg4200kg5000kg
Max. lifting height2075mm2070mm2070mm2075mm2100mm2070mm2100mm2070mm2100mm2075mm2100mm2075mm2100mm2100mm2070mm2100mm2070mm2100mm2070mm2100mm2075mm
Max. lifing height at floor level1805mm1800mm1805mm1805mm1805mm1805mm1805mm1800mm1805mm1805mm1805mm1805mm1805mm1805mm1800mm1805mm1800mm1805mm1805mm1805mm1805mm
Play detectornot possiblenot possiblenot possiblenot possiblenot possiblestandardnot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblestandardnot possiblestandardstandardstandardstandardstandardstandard
Length of platforms5500mm4600mm4600mm5500mm5500mm5500mm5500mm4600mm4600mm5500mm5500mm5500mm5500mm4600mm5500mm5500mm4600mm4600mm5500mm5500mm5500mm
Width of platforms650mm615mm615mm650mm650mm650mm650mm615mm615mm650mm650mm650mm650mm615mm650mm650mm615mm615mm650mm650mm650mm
Space of platforms900mm870mm870mm900mm900mm900mm900mm870mm870mm900mm900mm900mm900mm870mm900mm900mm870mm870mm900mm900mm900mm
Wheel free liftnot possiblenot possiblestandardnot possiblestandardnot possiblestandardnot possiblestandardnot possiblestandardnot possiblestandardstandardstandardstandardnot possiblestandardnot possiblestandardstandard
Driving power2,6kW2,6kW3,5kW2,6kW3,5kW2,6kW3,5kW2,6kW3,5kW2,6kW3,5kW2,6kW3,5kW2,6kW2,6kW2,6kW2,6kW2,6kW2,6kW2,6kW2,6kW
Length5500mm4600mm4600mm5500mm5500mm5500mm5500mm4600mm4600mm5500mm5500mm5500mm5500mm4600mm5500mm5500mm4600mm4600mm5500mm5500mm5500mm
Width2200mm2100mm2100mm2200mm2200mm2200mm2200mm2100mm2100mm2200mm2200mm2200mm2200mm2100mm2200mm2200mm2100mm2100mm2200mm2200mm2200mm
Installation depth270mm270mm295mm270mm295mm270mm295mm270mm295mm270mm295mm270mm295mm295mm295mm295mm270mm295mm270mm295mm295mm
