Description
The new lift geometry simplifies the flush mounting pit construction. Lift with big platforms, structured and designed for maximum stability also when loaded with large vehicles.
- Very versatile: the same lift can be flush or floor mounted
- Easy installation: easy setting up of pit
- Wide ranging applications: suitable for different operations on various types of vehicle

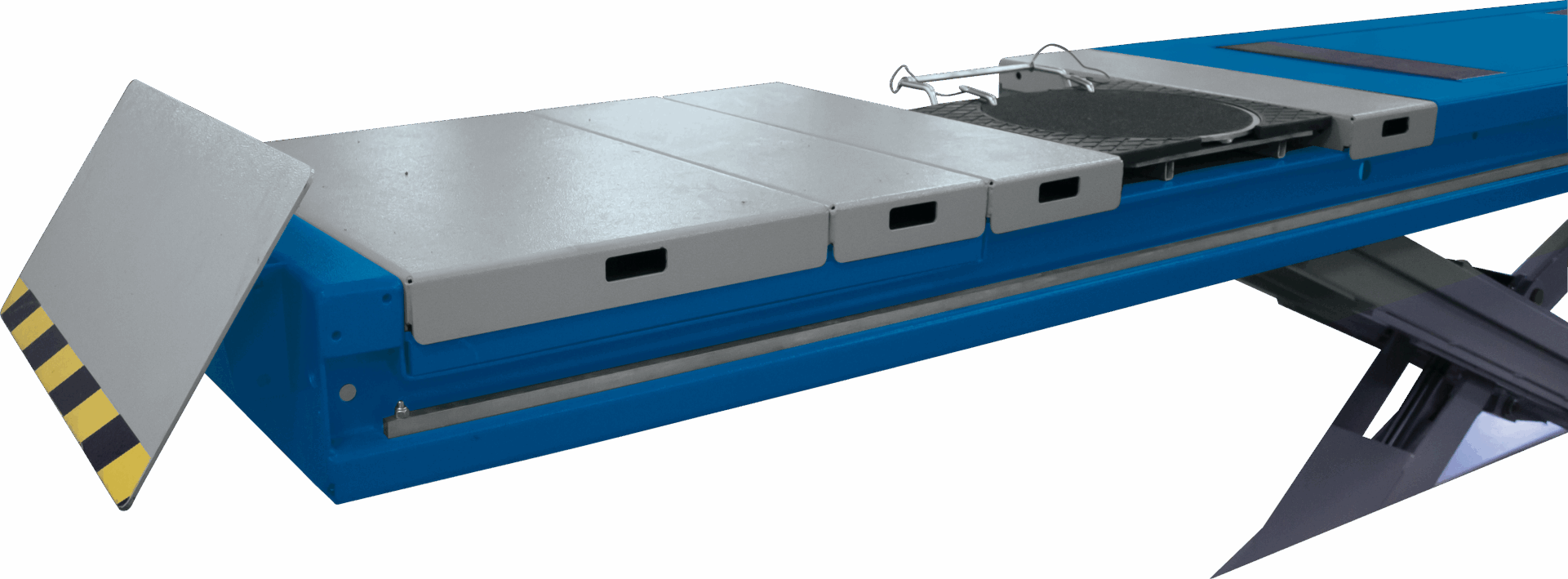

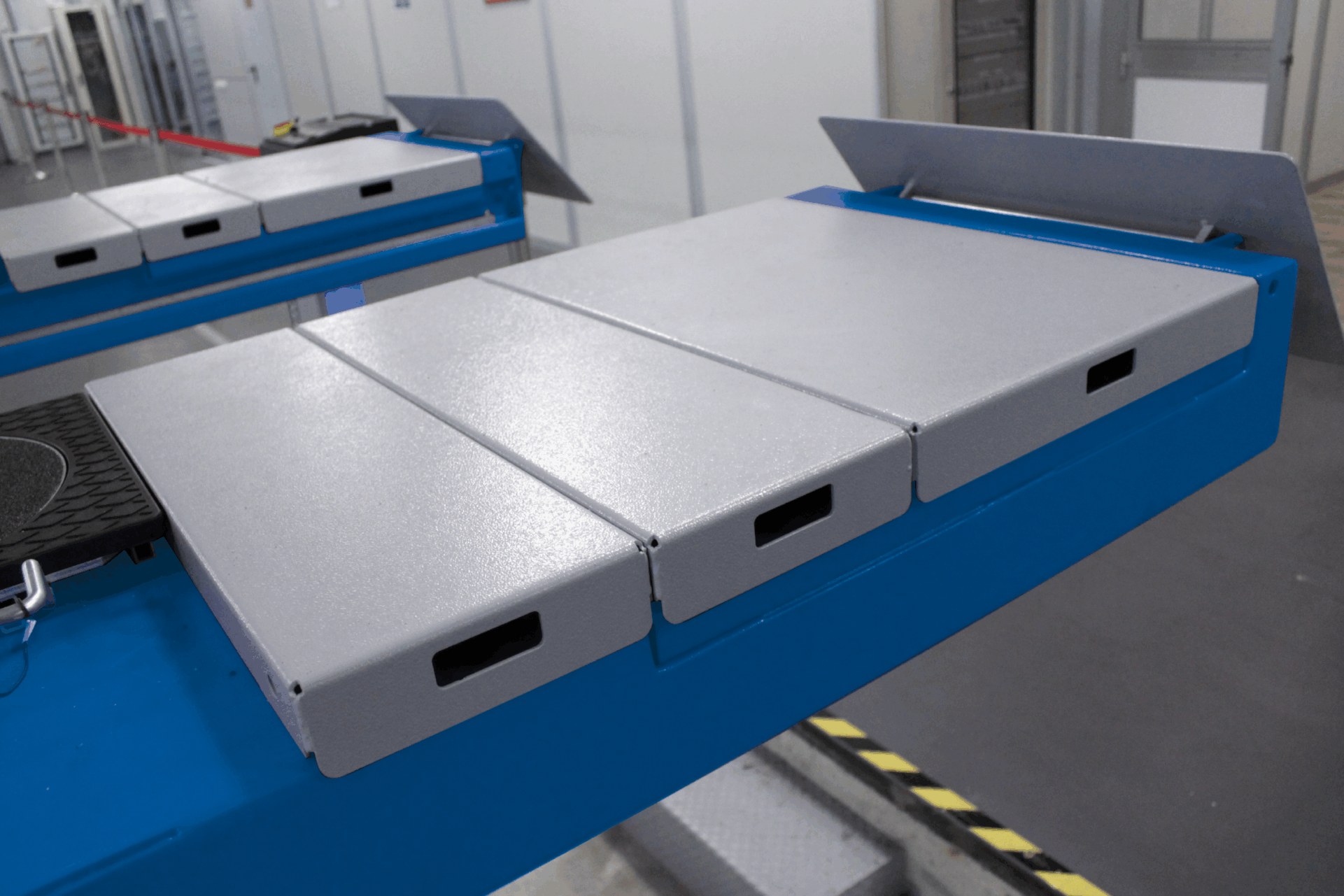

- Open flush mounting for turntables: Edge-free platforms that allow the turntables to be positioned over the entire surface of the platform width – Ideal when working on vehicles with narrow track
- Optimal sliding of jacking beam: Preinstalled galvanised guide on the inner side of the platform, which allows fast and smooth sliding of the jacking beam
- Alignment lift with built in 4 movement play detector: Platforms for total alignment with front seats for turntables, rear rocking surfaces and play detector
- Plate with embossed surface to prevent plate-wheel sliding
- Play detector torch: Led technology, Light weight, Ergonomic control
- Large wheel stop for high working safety
- Integrated wheel free lift with levelling system to ensure a completely flat working surface
- Pre-drilled platform for Ravaglioli 3D wheel alignment measuring heads brackets housing
- Greater lifting height
- The hydraulic synchronisation of the platform movements is independent of the load distribution, and is guaranteed by a patented hydraulic synchronisation device
- All pivoting points are equipped with maintenance free self lubricating bushings
- Base plates with levelling system for an easy installation
- Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in parking position
- The new lift geometry simplifies the flush mounting pit construction
