The new lift geometry simplifies the flush mounting pit construction. Lift with big platforms, structured and designed for maximum stability also when loaded with large vehicles.
Very versatile: the same lift can be flush or floor mounted
Easy installation: easy setting up of pit
Wide ranging applications: suitable for different operations on various types of vehicle
Open flush mounting for turntables: Edge-free platforms that allow the turntables to be positioned over the entire surface of the platform width – Ideal when working on vehicles with narrow track
Optimal sliding of jacking beam: Preinstalled galvanised guide on the inner side of the platform, which allows fast and smooth sliding of the jacking beam
Wheel alignment lift: Platforms for total wheel alignment with front housing for turn tables and rear side slip plates
Rear side slip plates with pneumatic locking, angular and transversal movements in both directions
Large wheel stop for high working safety
Pre-drilled platform for Ravaglioli 3D wheel alignment measuring heads brackets housing
Greater lifting height
The hydraulic synchronisation of the platform movements is independent of the load distribution, and is guaranteed by a patented hydraulic synchronisation device
All pivoting points are equipped with maintenance free self lubricating bushings
Base plates with levelling system for an easy installation
Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in parking position

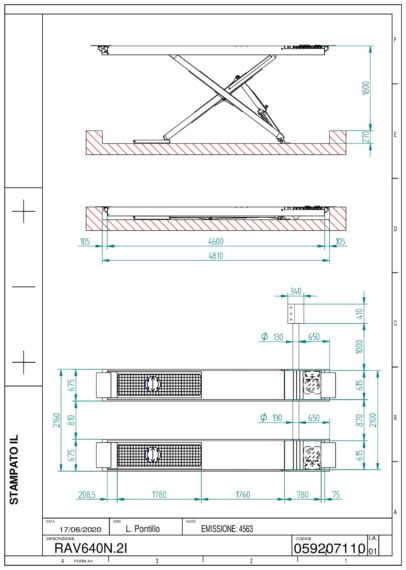

The new lift geometry simplifies the flush mounting pit construction
Spacers to completely close turntable recess | suitable for RAV.640N2.193117, RAV.640N2.193469, RAV.640N2.193001, RAV.640N2.193582, RAV.640N2.193216, RAV.640N3.192981 and RAV.640N2.193476 | 1 set…
60 mm | suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N6.193964, RAV.660N2.193360, RAV.650N6.193025, RAV.640N5.193049 and RAV.640N4.192998 | 1 set / 4 pieces
