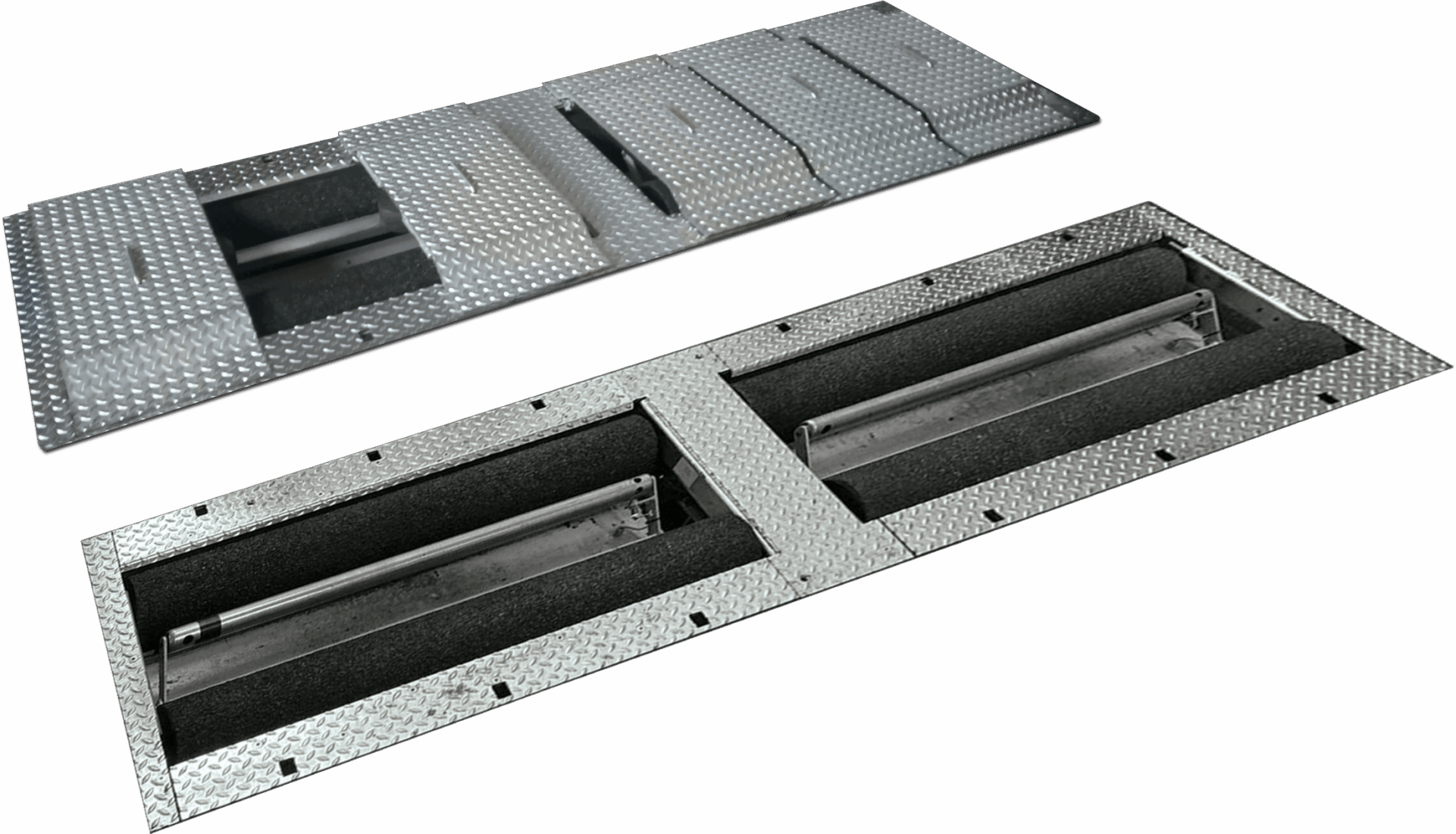

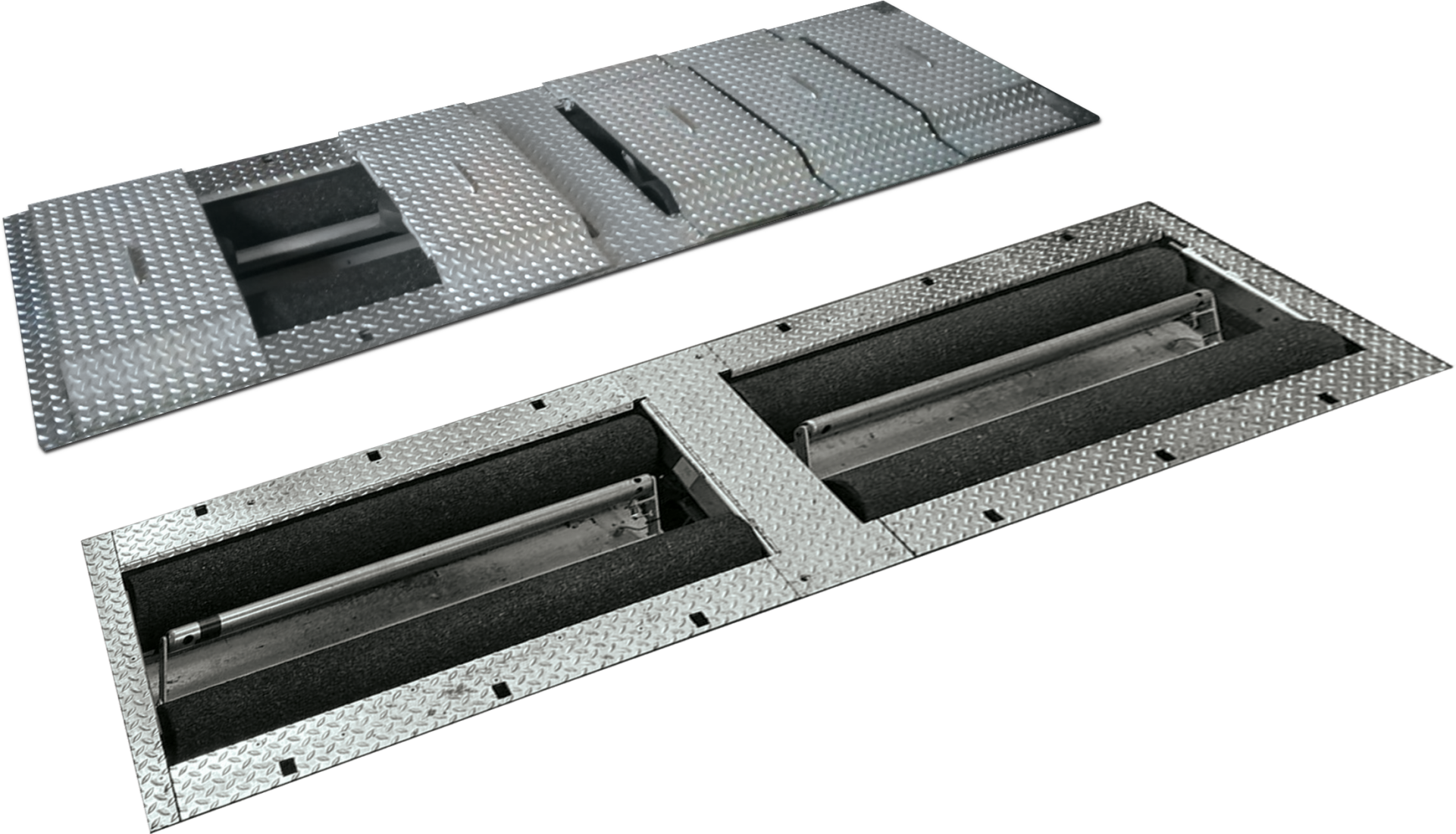

Roller brake tester RAVRT122P4F

Universal car/motorcycle plate brake tester, 2.5 t axle load, 6000 N

Share on:

dashicons-media-document

Description

Braking diagnosis solutions

The RAVRT122P4F brake tester, with its 100-cm-long rollers and smaller chassis frame, can perform braking tests on a full range of vehicle types: 2-3-4 wheel mopeds/motorcycles, cars, commercial vehicles and campers with a maximum weight of 3.5 t.

  • Easy to use: the intuitive software with its simplified graphics interface guides the operator in every step of the test in highest safety
  • Highly versatile: test can be performed on every vehicle type, from motorbike to camper
  • All-in-One: a single brake tester allowing useful space inside the workshop to be saved
  • The brake testers can be quickly adapted from car to motorbike with the covering sets. They considerably reduce lateral shifting during motorbike testing, in this way guaranteeing utmost operator safety.
  • Rollers with crystalline silicon resin coating: For a longer lifetime even when used intensively – Excellent friction coefficient
  • Speedometer speed test bench: Dual speed test bench complete with passive current brake for 2, 3 and 4-wheel motorcycles (e.g. APE, QUAD and MICRO CAR) – model RAVRT094MVBX + RAVRT094MTRBX
    • Required to perform anti-pollution tests (MCTCNet2)
    • Available in single version for 2-wheel vehicles only – model RAVRT094MVBX
  • By integrating the single (RAVRT094M) or double (RAVRT094MVBX + RAVTR094MTRBX) speed test bench all tests required by the local motor vehicle authorities for 2, 3, 4-wheel vehicles can be performed (for example, gas analysis) – as well as maximum speed tests for motorbikes.
  • Compatible with TeqLink system TEq-Link
  • Internet connection
    • Sending results to the customers
    • Remote assistance
  • Equipped with:
    • 4.7 kW self-braking motors
    •  Built-in fourcell weighing systems
  • Can be integrated with the speedtester
  • Useful for narrow tread vehicles
  • Can be adapted to several vehicle types
  • Integrated management software, compatible with the MCTCNet2 system
  • Braking capacity split between front and rear axle
  • Axle weight
  • Pedal pressure test (only with SRT047M)
  • Rolling resistance on single wheel
  • Brake ovality (out of roundness) on single wheels
  • Maximum brake force on single wheel, on axle and total
  • Maximum unbalance of the braking force of the axle in percentage
  • Total braking system efficiency, and parking brakes efficiency in percentage

Media

Accessories

Tech Data

FeaturesRoller brake tester RAVRT122P4FRoller brake tester RAVRT122P4F
Type of installationfloor mounted
Display designdigital
Number of rollers4
Max. drive-over load4t
Max. axle weight2,5t
Max. brakeable performance6kN
Coefficient of friction dry/wet> 0,7
Roller length1000mm
Roller diameter205mm
Rollerset Length2472mm
Rollerset Width801mm
Rollerset Height378mm
Automatic zero pointstandard
Weighing systemstandard
Surface coatingCorundum-coated
Power supply400 V | 50 Hz
Phases3
