Plate brake testers RAVRT900PLT

Universal car/motorcycle plate brake tester, max. axle load testable 2 t axle load, installation inground or above ground

Share on:

dashicons-media-document

Description

Braking diagnosis solutions

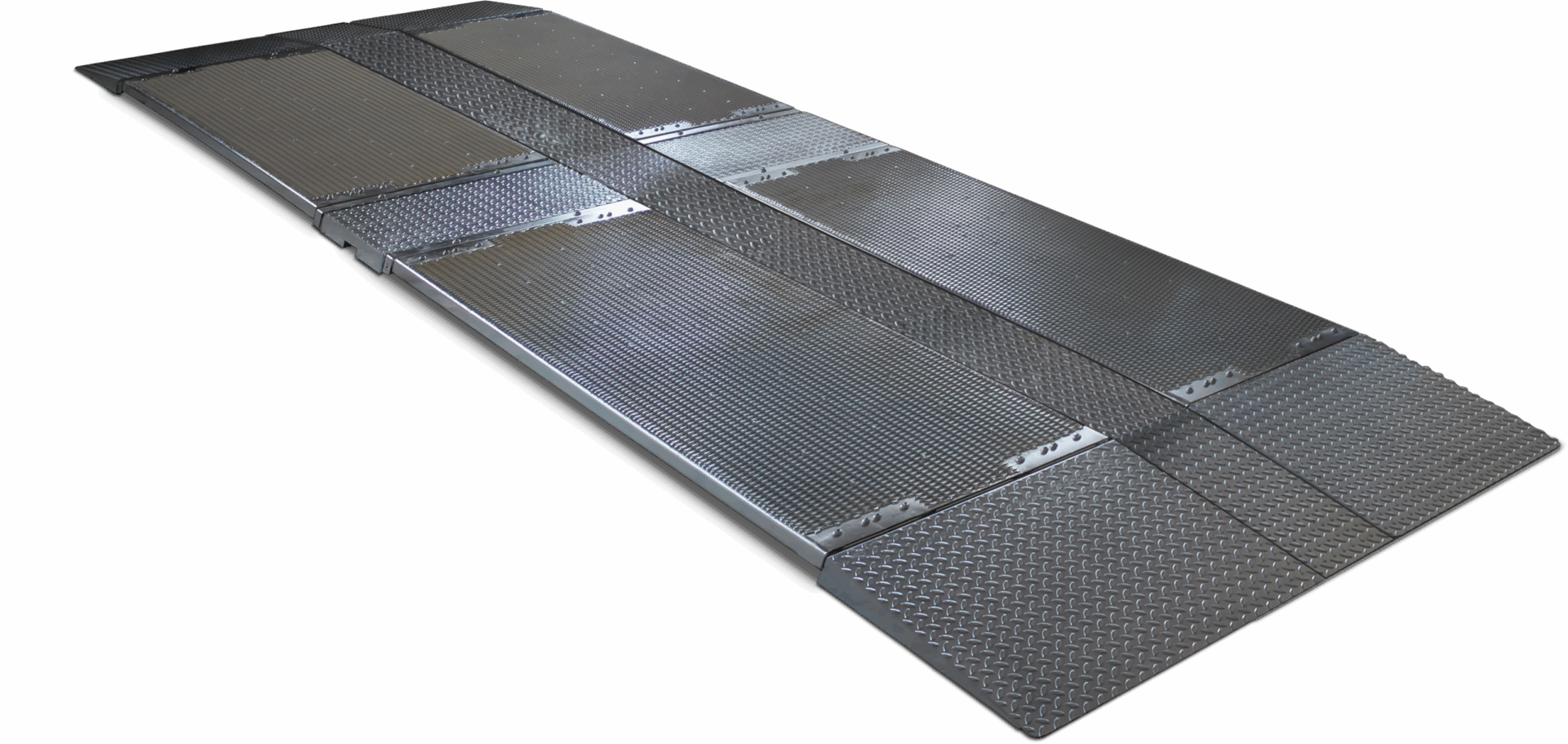

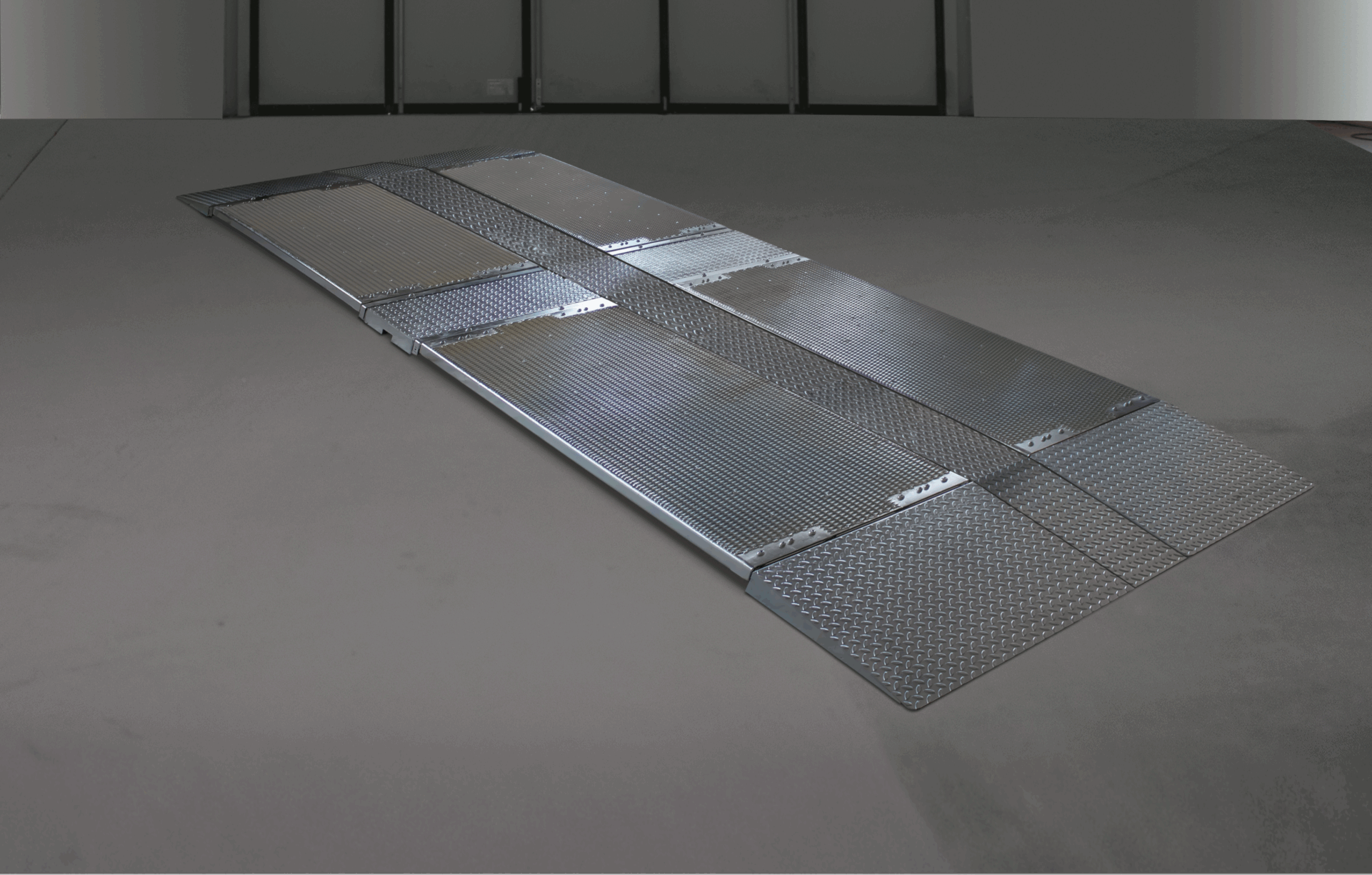

The RAVRT900PLT plate brake tester for 2, 3 and 4 wheel cars and motorbikes is a control and diagnosis system that can be universally used on every type of vehicle. The simultaneous operation of two axles and the easy to use software offer high precision diagnostic operations in a short time.

  • Universal application: diagnosis and control system suitable for every vehicle
  • Fast testing: weight data and braking forces are acquired in a single passage with simultaneous operation of two axles
  • Reduces time/cost: particularly low profile with no or minimal civil works required
  • Control and diagnosis system for cars and motorcycles 2, 3, 4 wheels – Can be universally used on all types of vehicle.
  • The RAVRT900PLT model is ideal for those workshops having high work volume.
  • Suitable for 2WD – 4WD – AWD tractions – It is also suitable for all 4×4, AWD (All Wheel Drive) and 4WD (4 Wheel Drive) vehicles, with automatic traction control without the need for additional accessories.

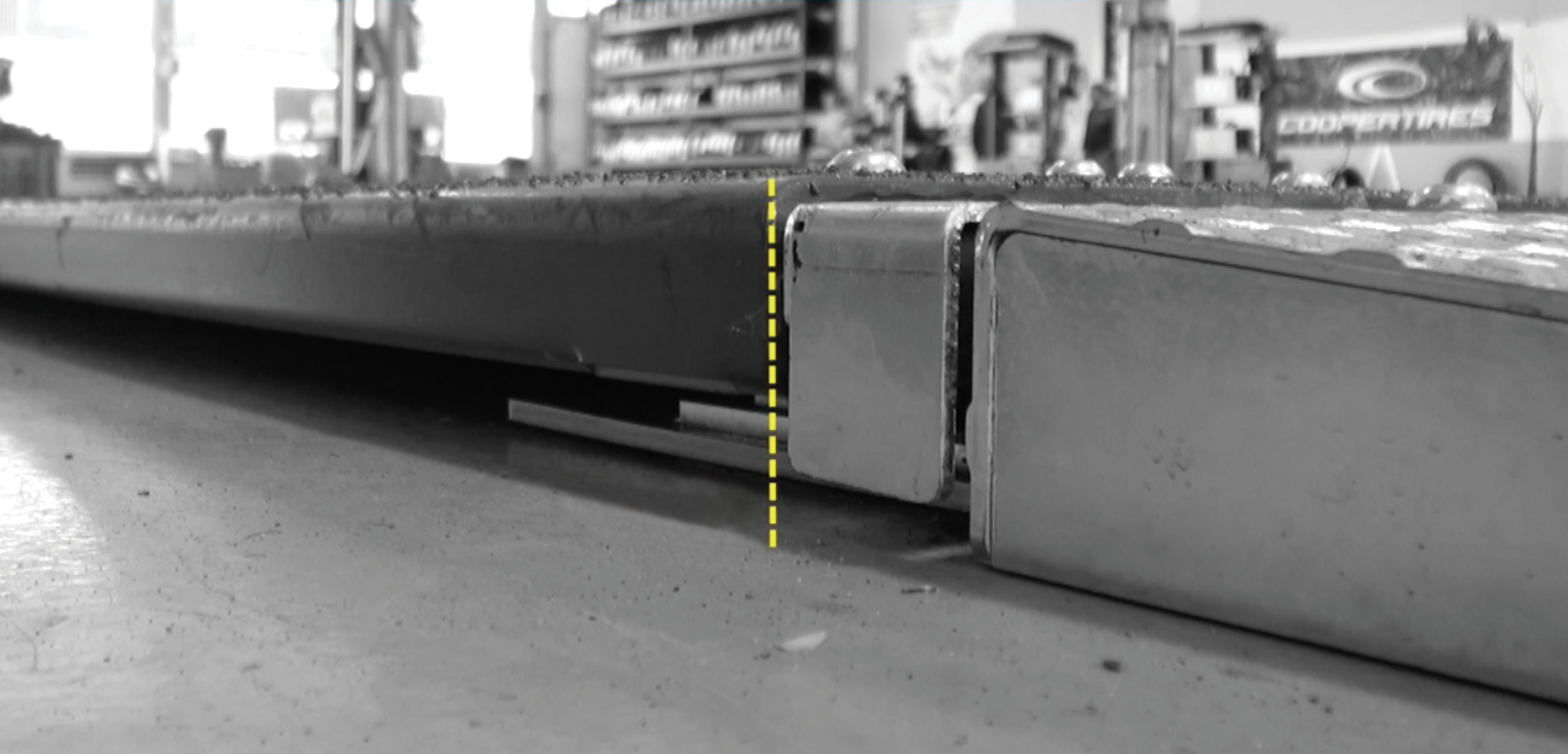

  • Low profile: A particularly low profile of the structure makes the tests extremely easy, even for vehicles with low or super low settings, such as sports cars.

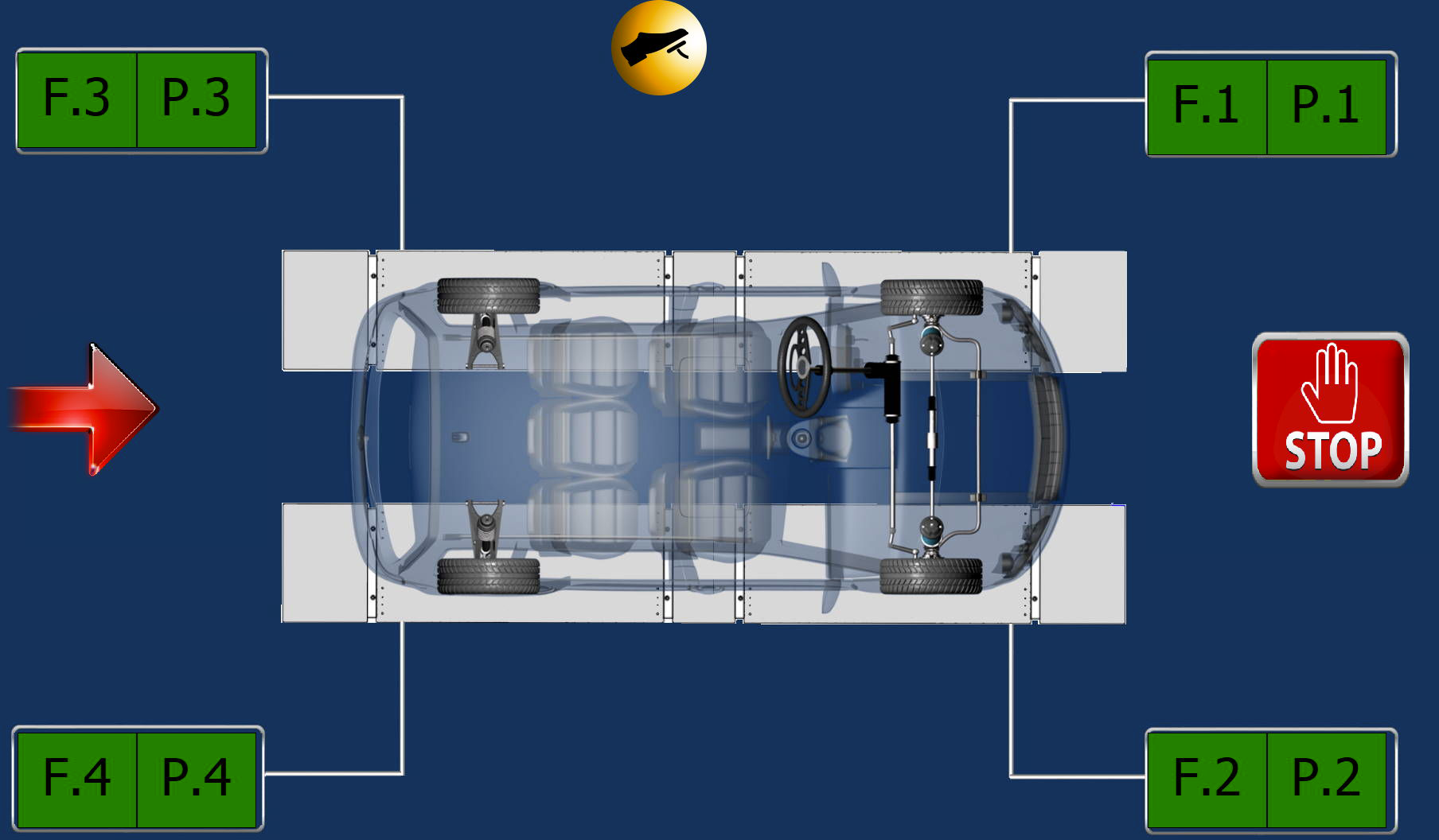

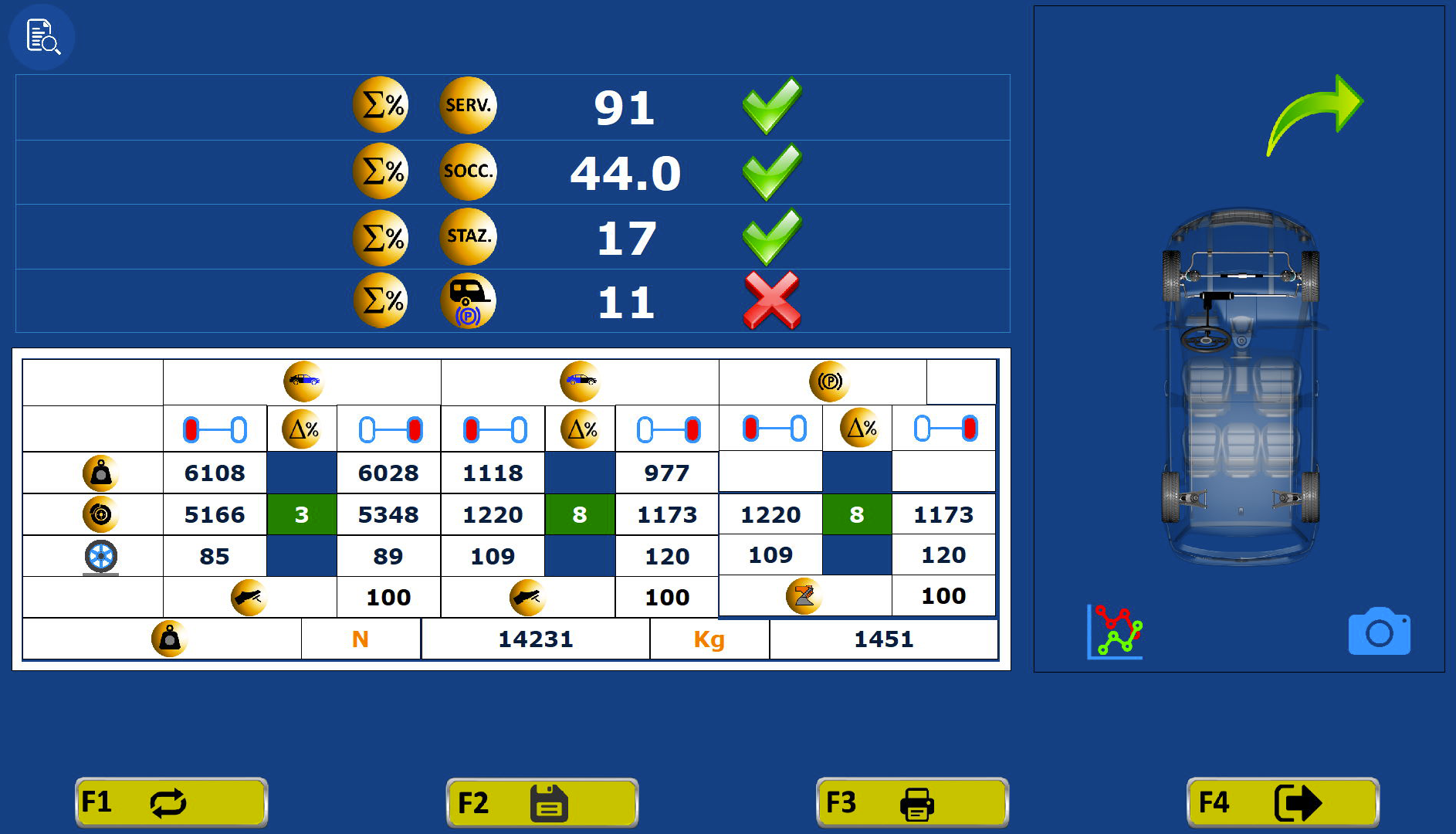

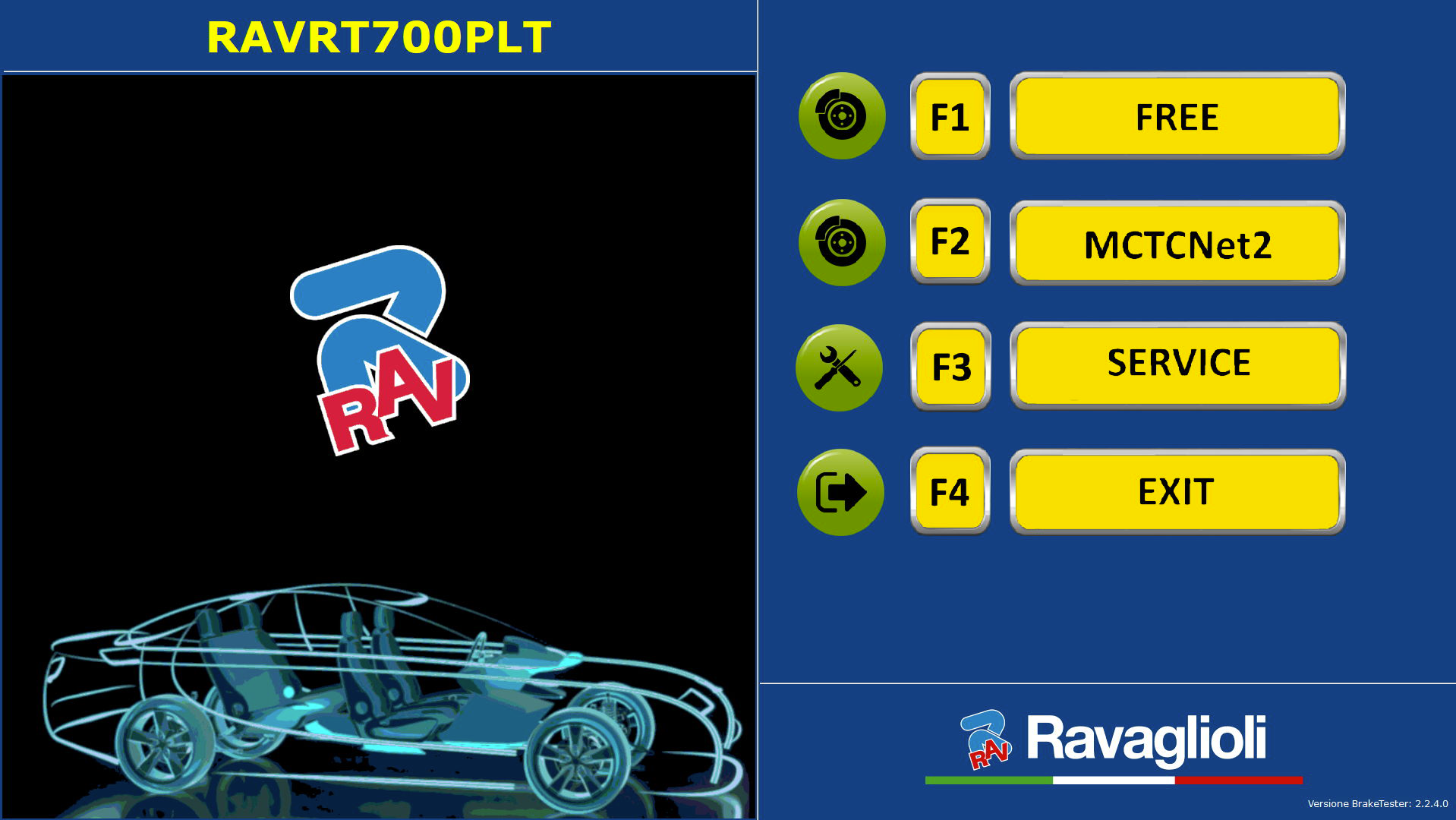

  • Integrated management software, compatible with the MCTCNet2 system.

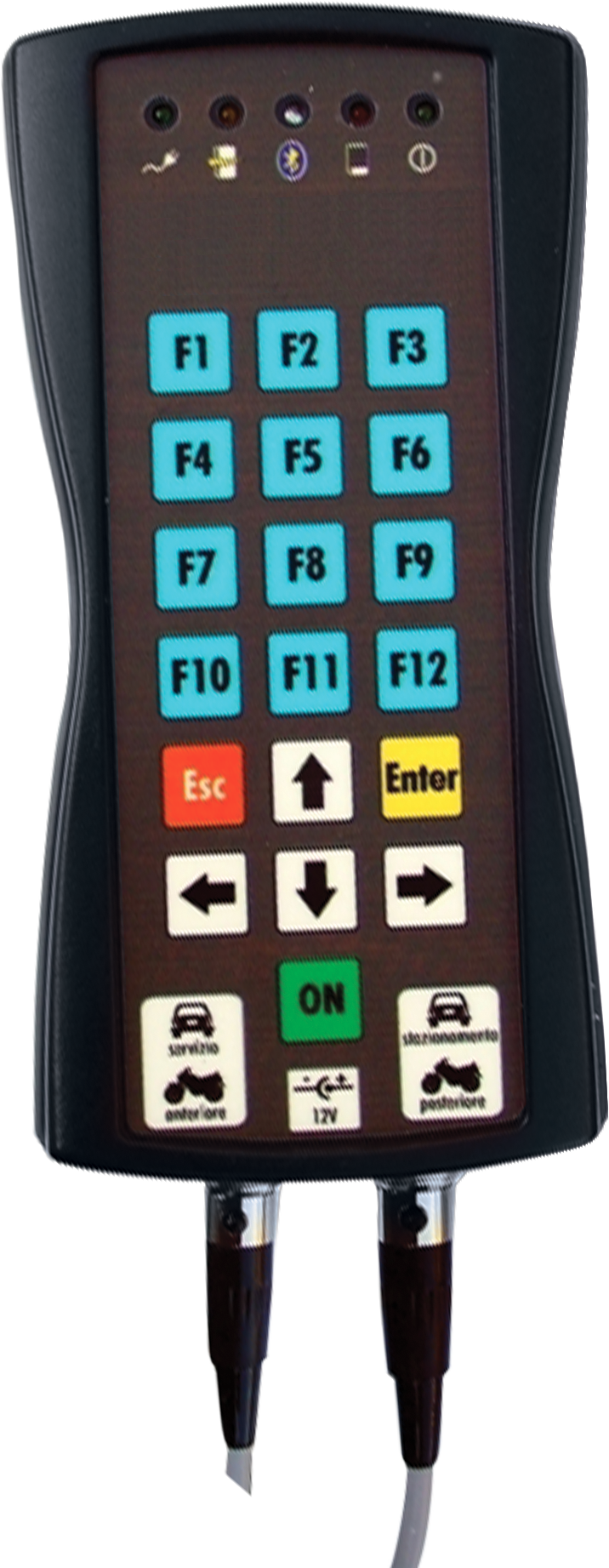

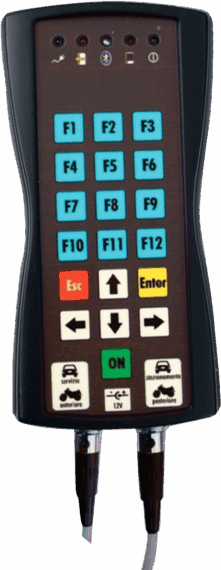

  • Universal Bluetooth remote control for test management and connection of the lever/pedal pressure sensors for cars and motorcycles.
  • Braking efficiency and dynamic behaviour. The dynamic behaviour of the vehicle when braking on the road is recreated.

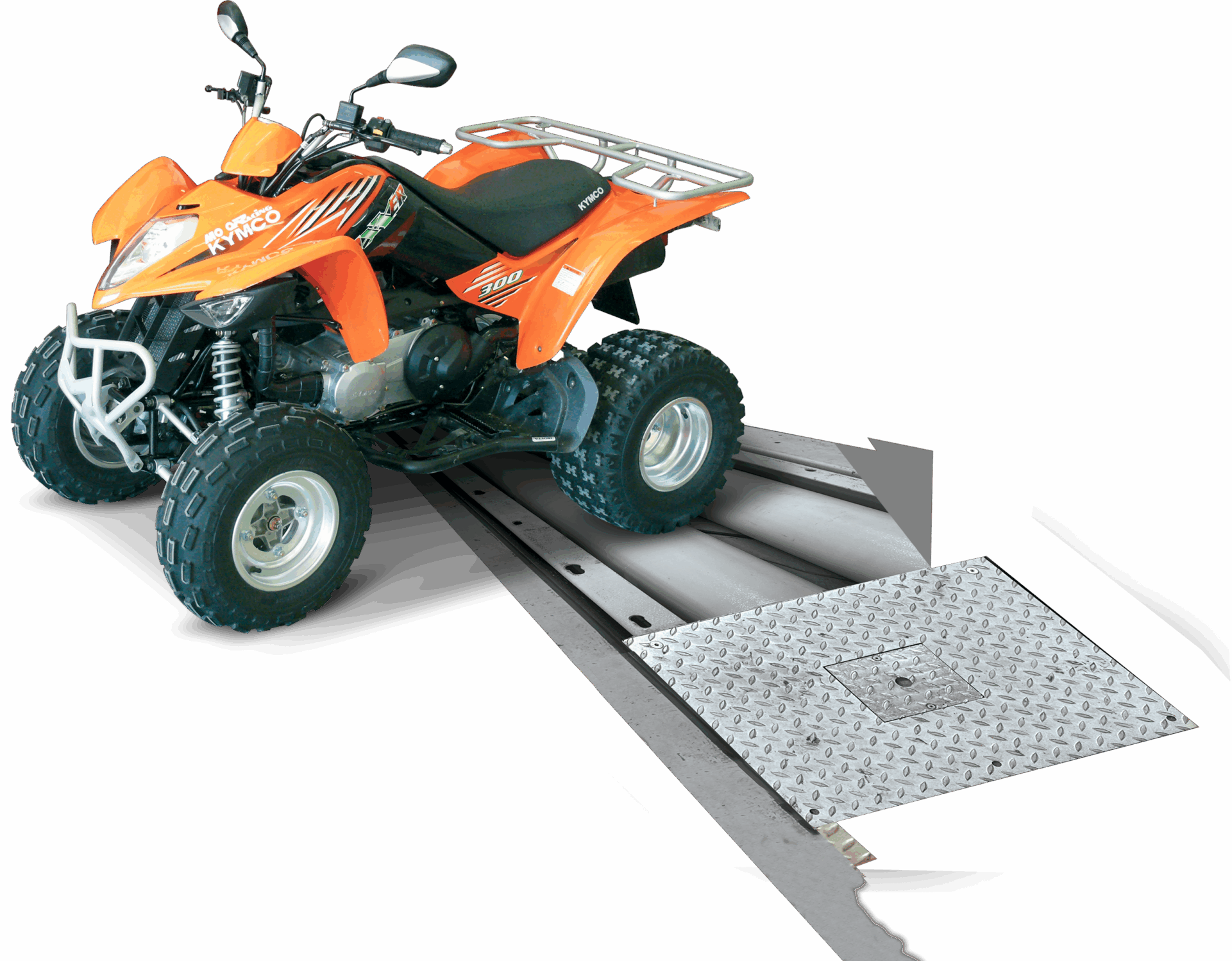

  • Speedometer speed test bench: Dual speed test bench complete with passive current brake for 2, 3 and 4-wheel motorcycles (e.g. APE, QUAD and MICRO CAR) – model RAVRT094MVBX + RAVRT094MTRBX
    • Required to perform anti-pollution tests (MCTCNet2)
    • Available in single version for 2-wheel vehicles only – model RAVRT094MVBX
  • By integrating the single (RAVRT094M) or double (RAVRT094MVBX + RAVTR094MTRBX) speed test bench all tests required by the local motor vehicle authorities for 2, 3, 4-wheel vehicles can be performed (for example, gas analysis) – as well as maximum speed tests for motorbikes.

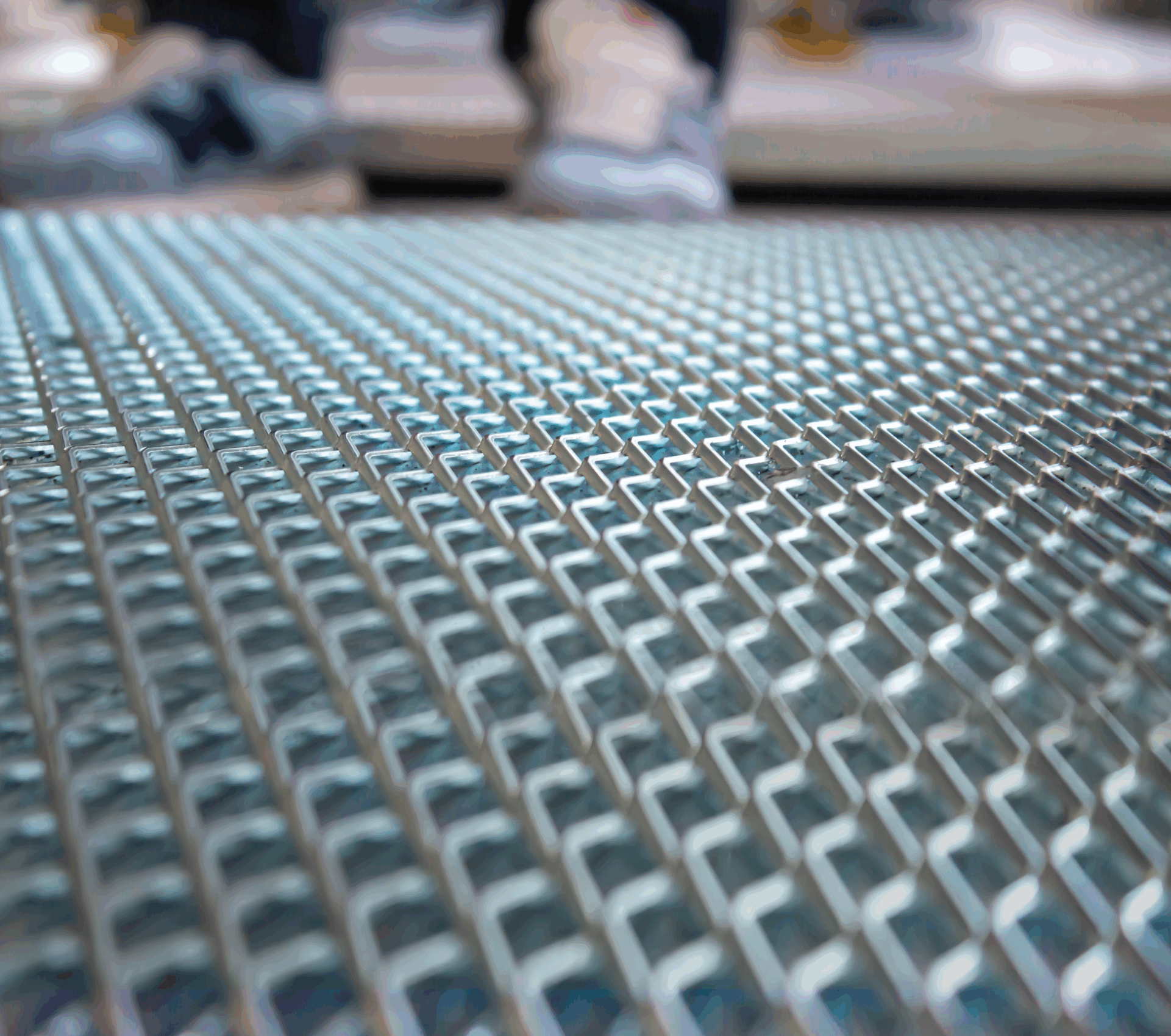

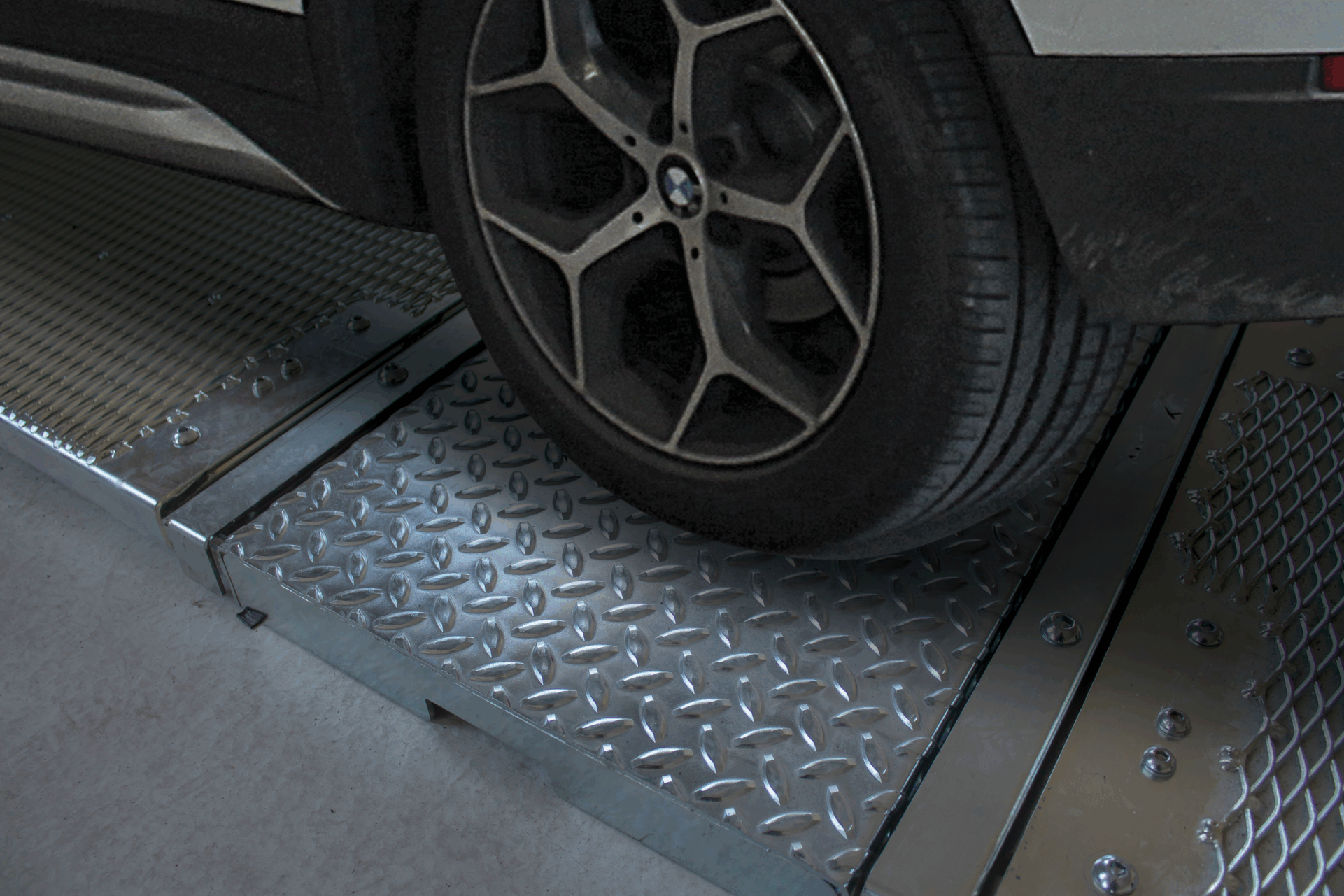

  • Innovative electrowelded mesh covering. Improves adhesion and ensures a longer lifespan.
  • Braking tests: By means of 16 cells (4 per plate making up the platform), the braking weight and force data are acquired in a single step, enabling braking tests to be carried out even at extremely low speeds.
  • Type approvals: RAVRT900PLT (*valid in Italy)

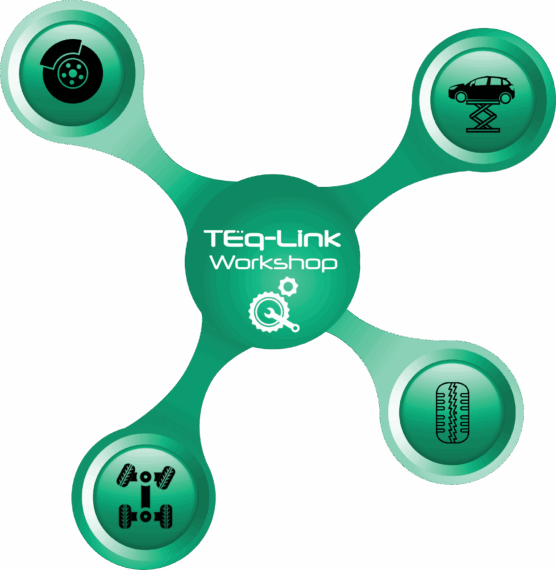

  • Compatible with TeqLink system TEq-Link
  • Internet connection
    • Sending results to the customers
    • Remote assistance

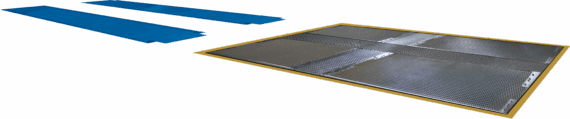

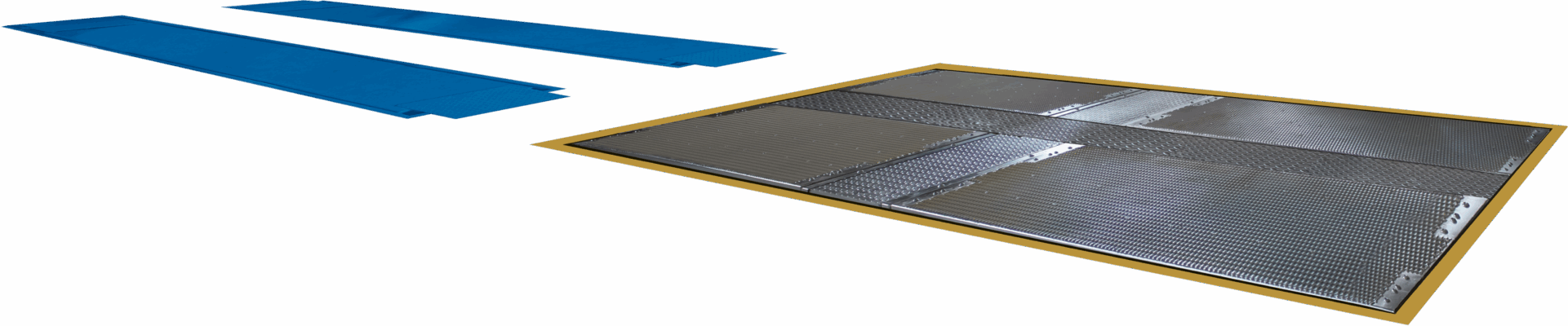

  • Installation in inground version requires only a small excavation
  • Low overall dimensions – width: 2.10 m, length: 4.04 / 4.80 m (inground / above ground)
  • Installation in above ground does not require any civil work

Media

Accessories

Delivery

Tech Data

FeaturesPlate brake testers RAVRT900PLTPlate brake testers RAVRT900PLT
Display designdigital
DisplayLCD
Tabletnot possible
ASA livestreamoptional
TeqLinkoptional
asanetworkoptional
Max. axle load testable2,5t
Test weight2,5t
Coefficient of friction dry/wet> 0,6
Test width min.300mm
Test width max.2020mm
Test speed5km/h
Test plate length4000mm
Test plate width900mm
Test plate height55mm
Space requirement length4000 | 4800mm
Space requirement width2100mm
