Description

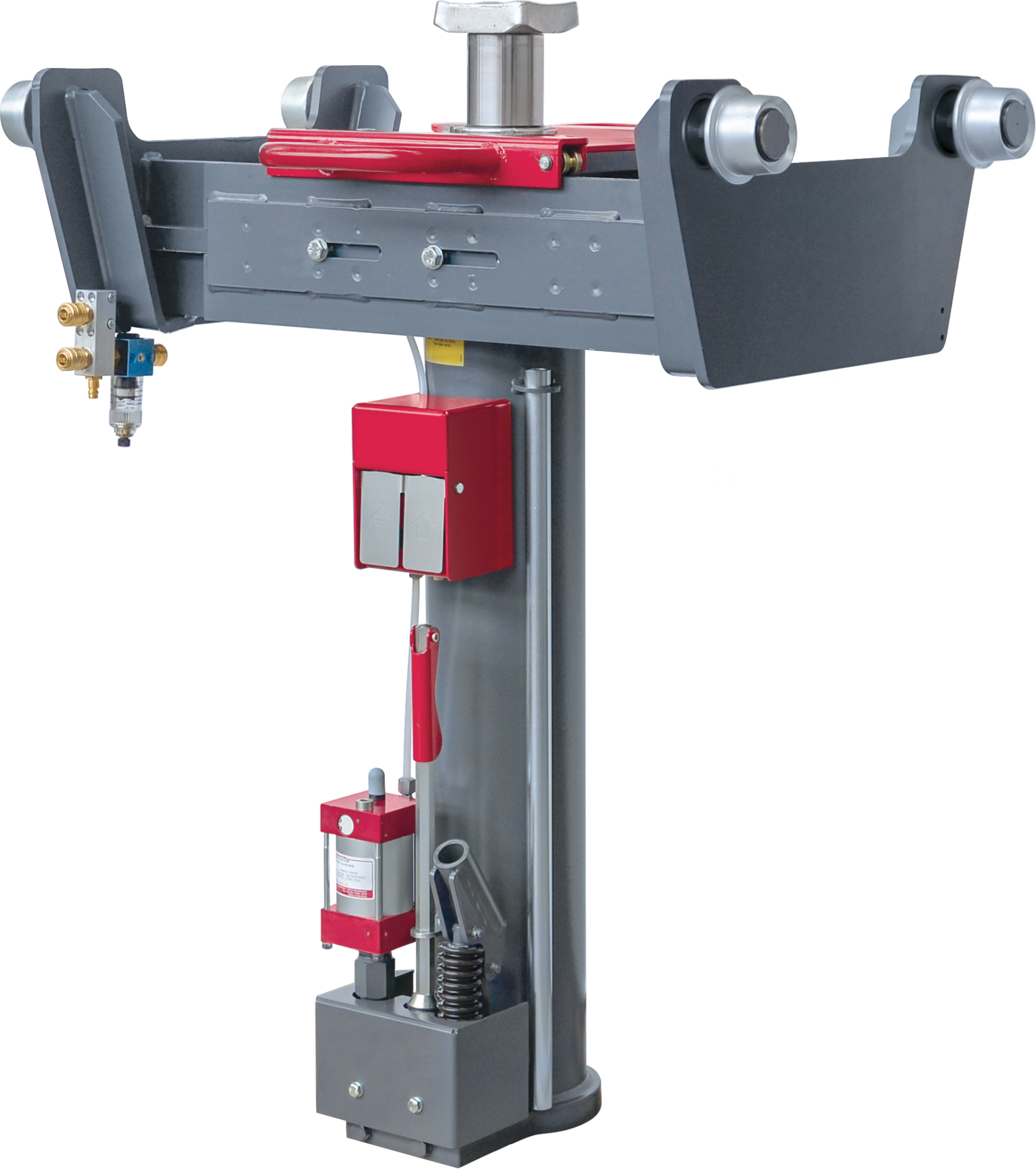

The hanging pit lifts from Ravaglioli convince with an exceptionally well thought-out safety concept, combined with ergonomic ease of use – without compromise. This is how we set standards in modern lifting technology.
- Measuring the pit becomes a minor matter
- Undercarriage with above-average adjustment range
- Made in Germany – 125 years’ experience in lifting Technology
- All important controls are red to prevent incorrect operation

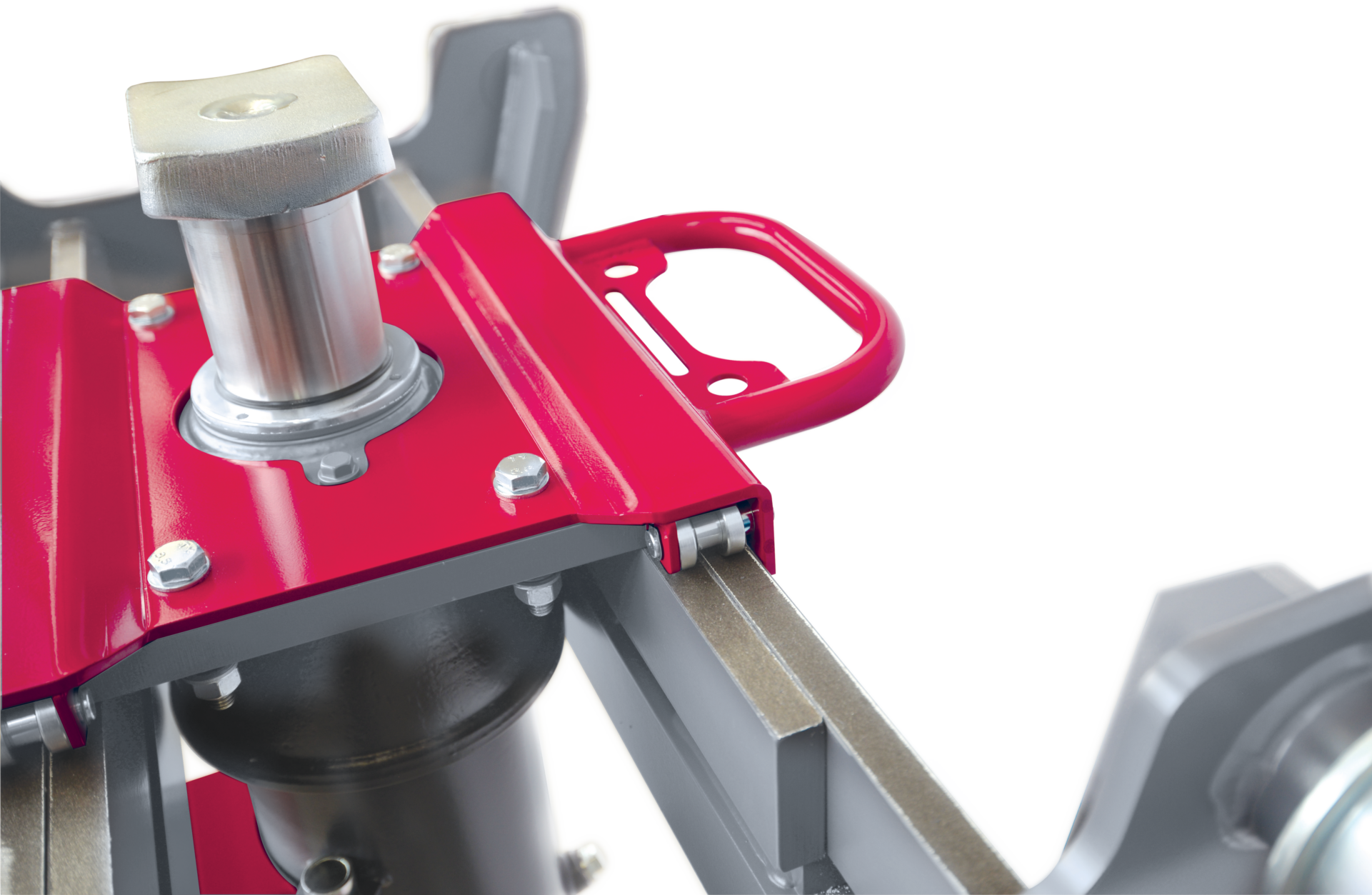

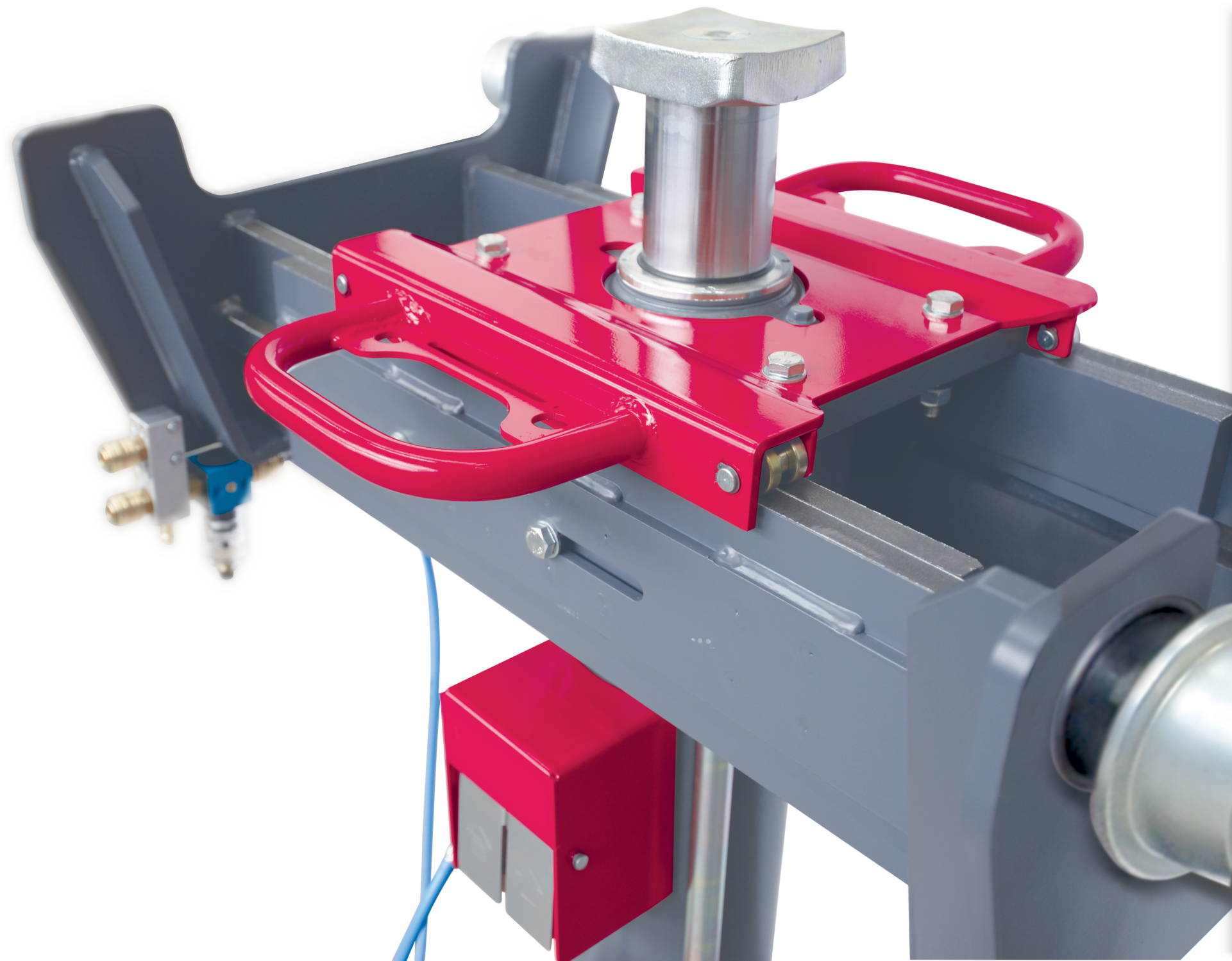

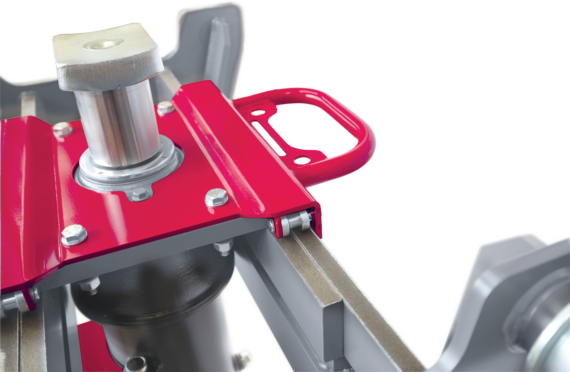

- Handle for moving the lift
- Front-mounted controls and large-scale control buttons, also operable with gloves

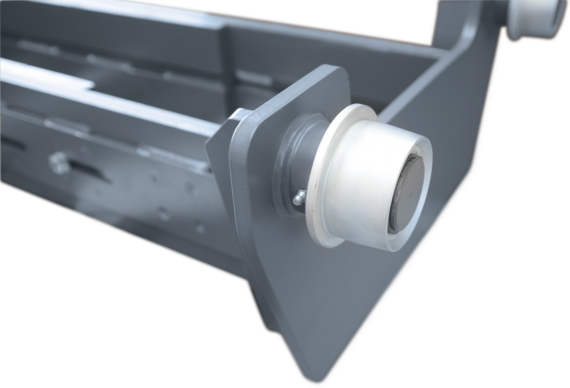

- Undercarriage castors are covered against damage

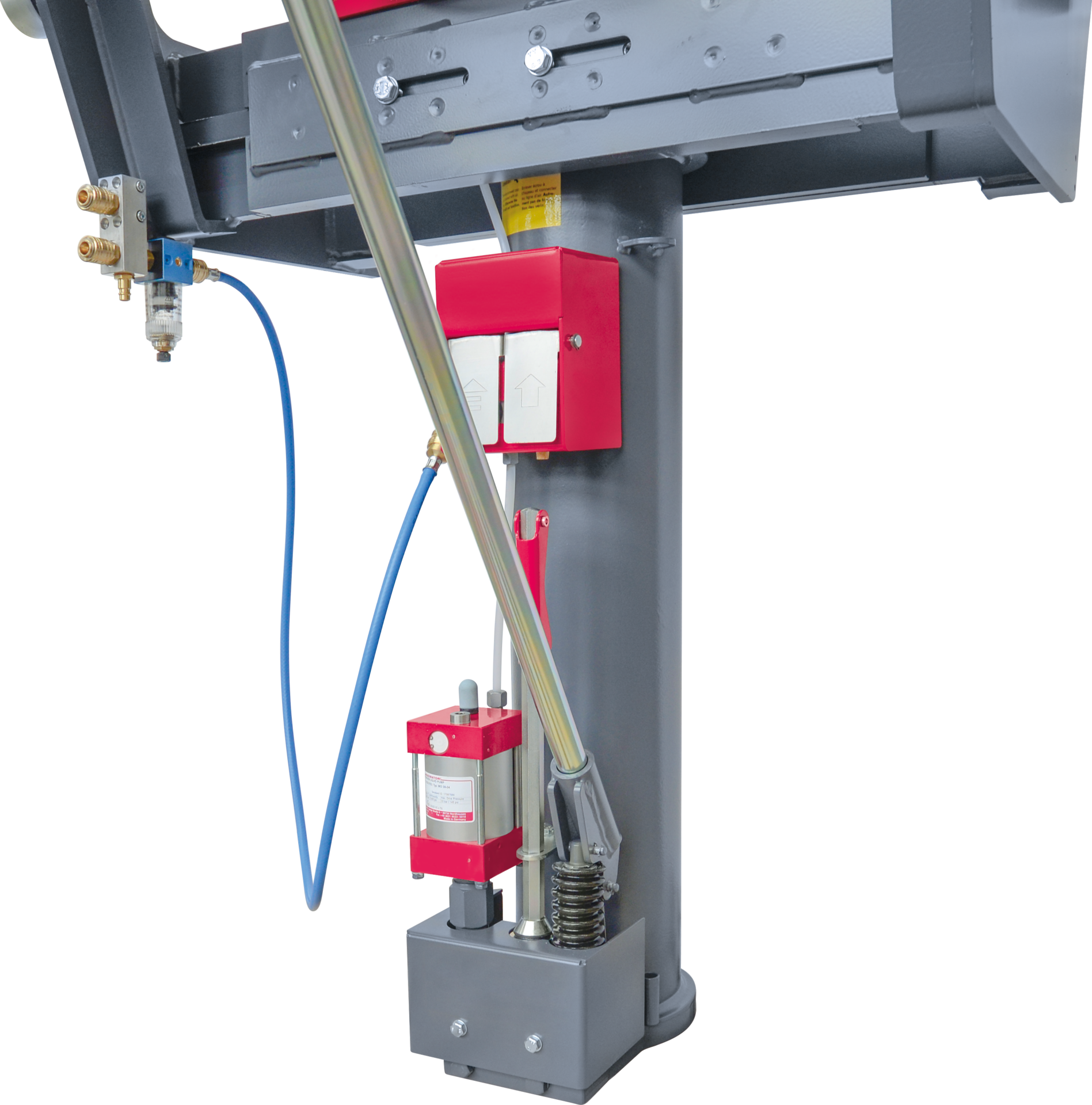

- Pump rod tidily positioned on the lift. The lifting unit lowers by means of spring pack at 250 kg load and secures against slipping

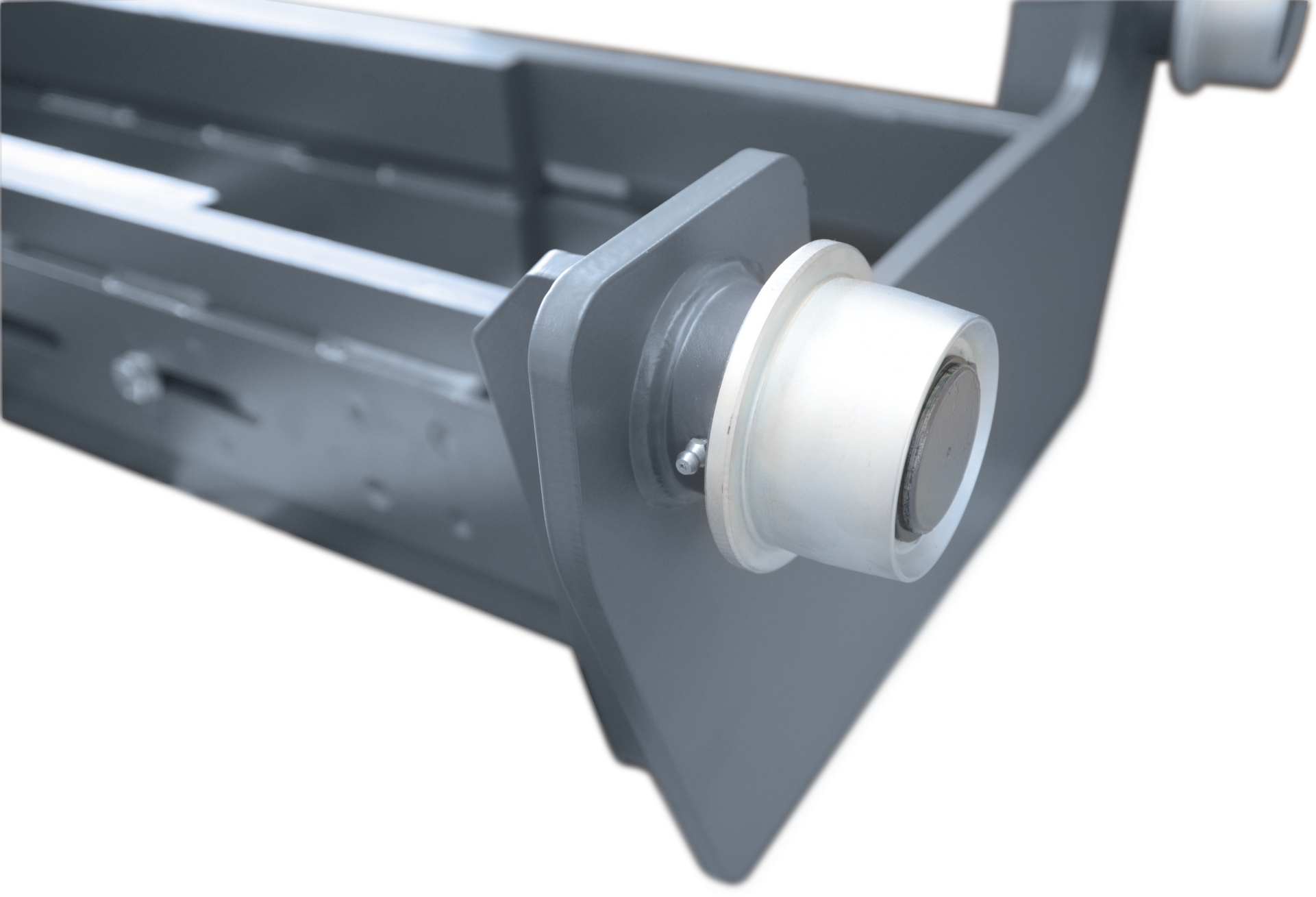

- Needle bearing mounted undercarriage castors with grease nipple
- The piston rod is slightly wetted with oil to protect against corrosion

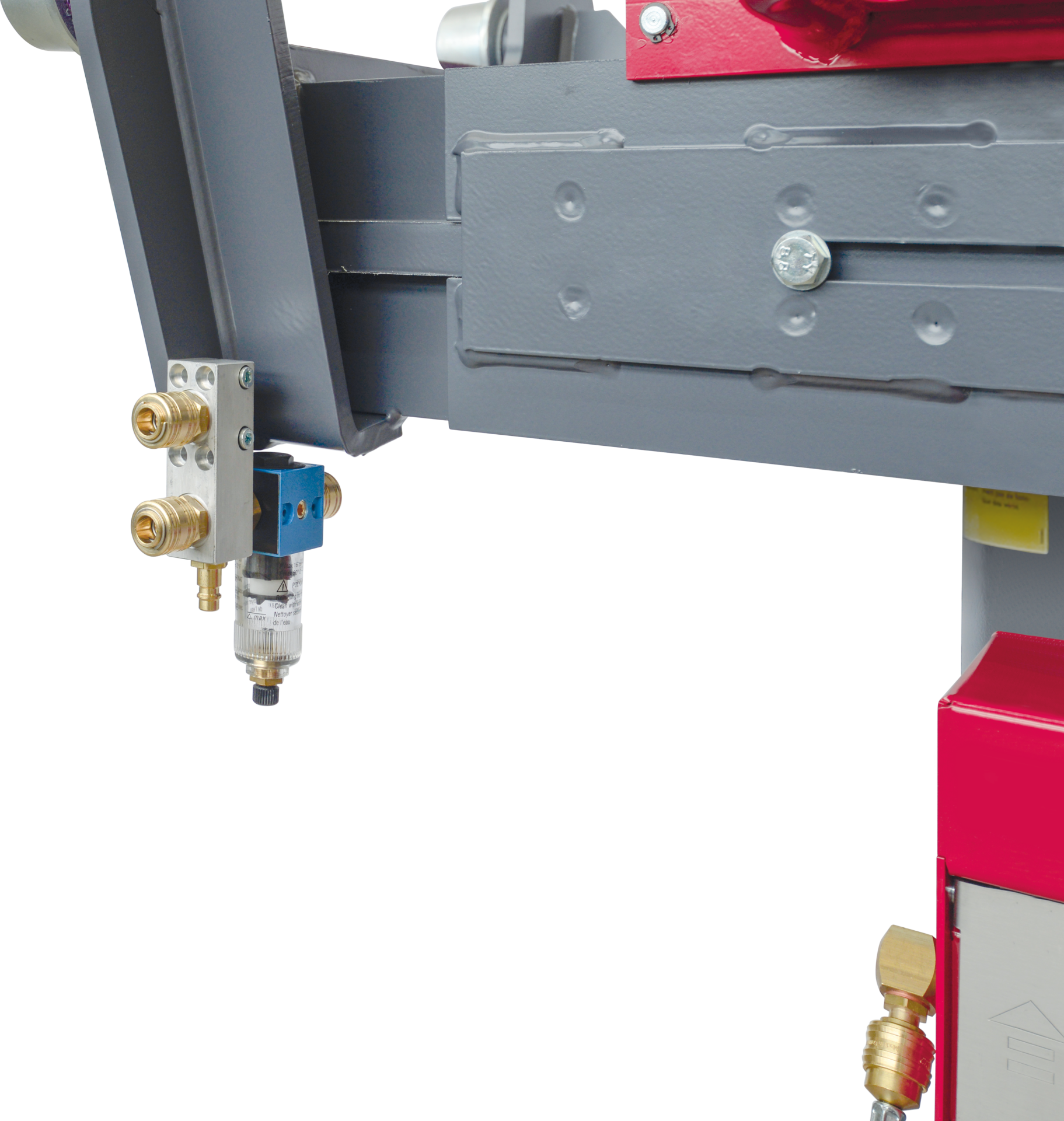

- Optional: Pneumatic power set with condensate separator and compressed air connections
- Compact, sturdy design for a reassuring sense of security.
- Safely dimensioned – External forces and bending moments are compensated by the large piston rod diameter.

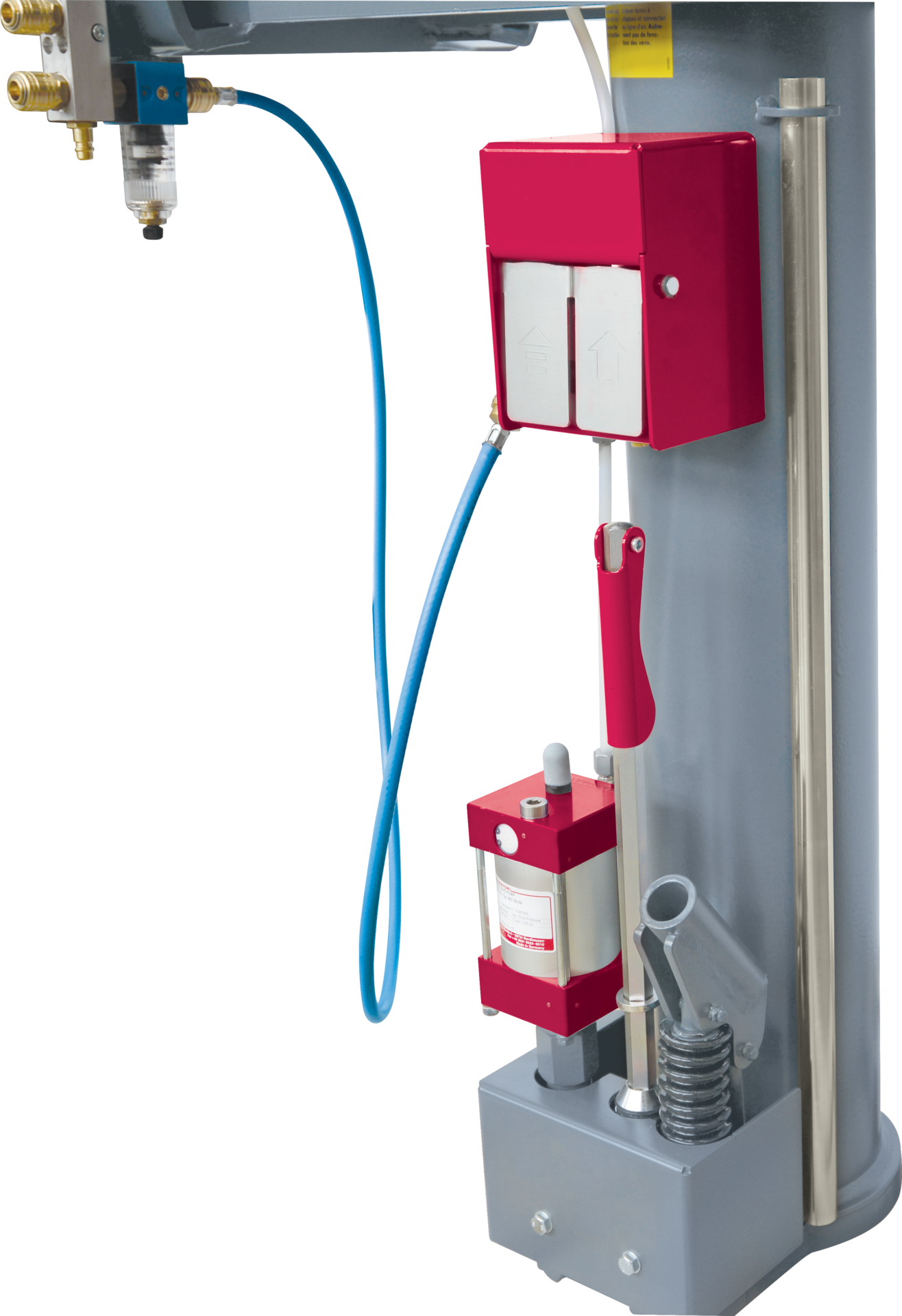

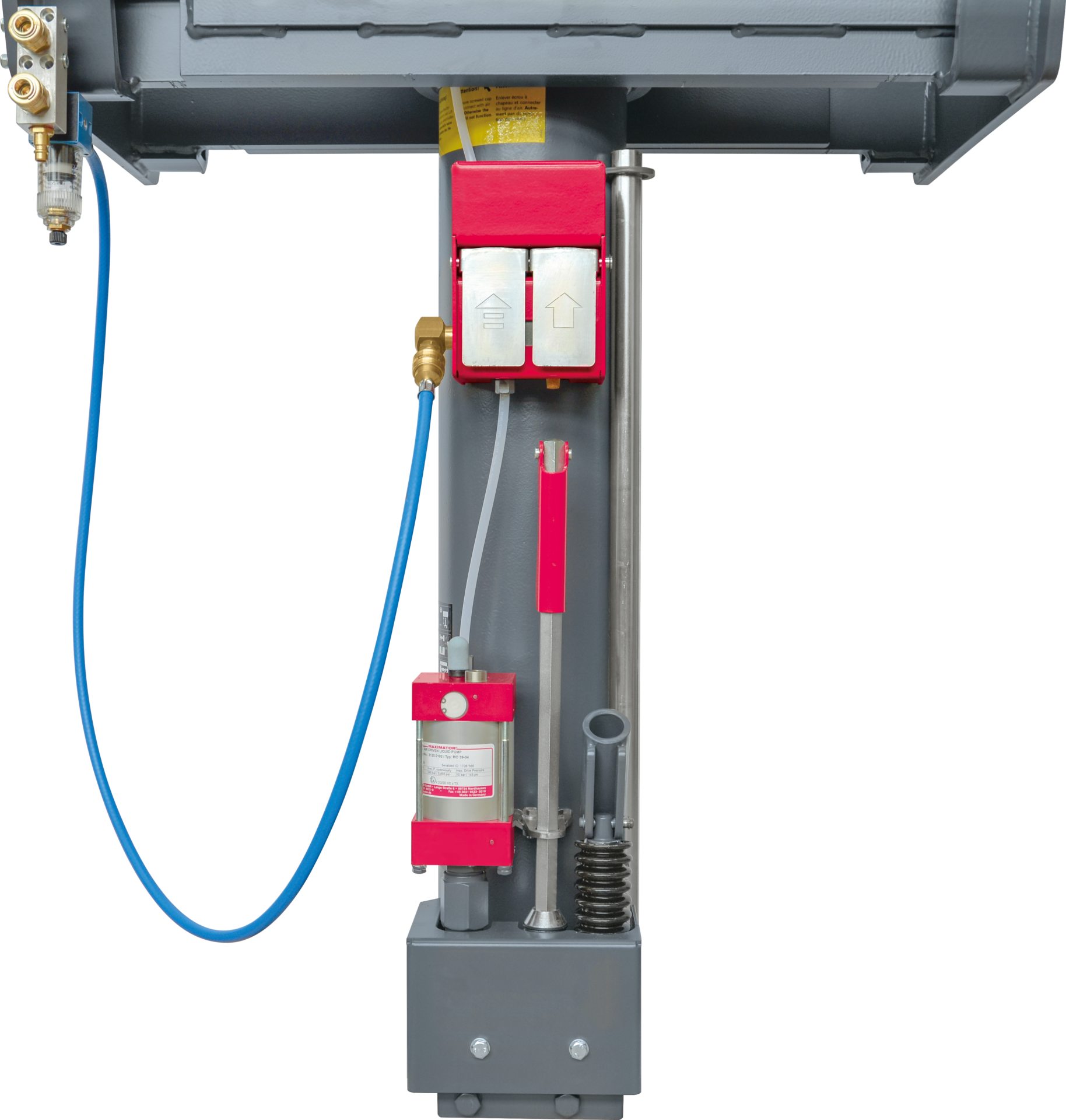

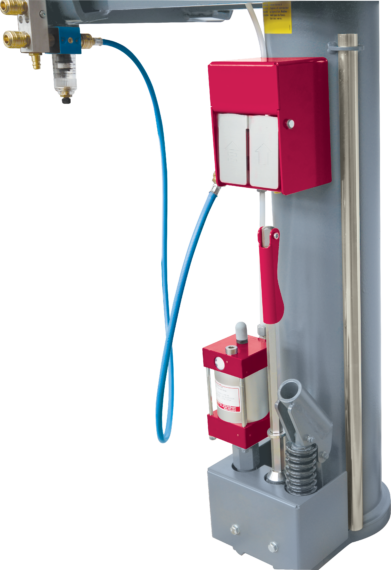

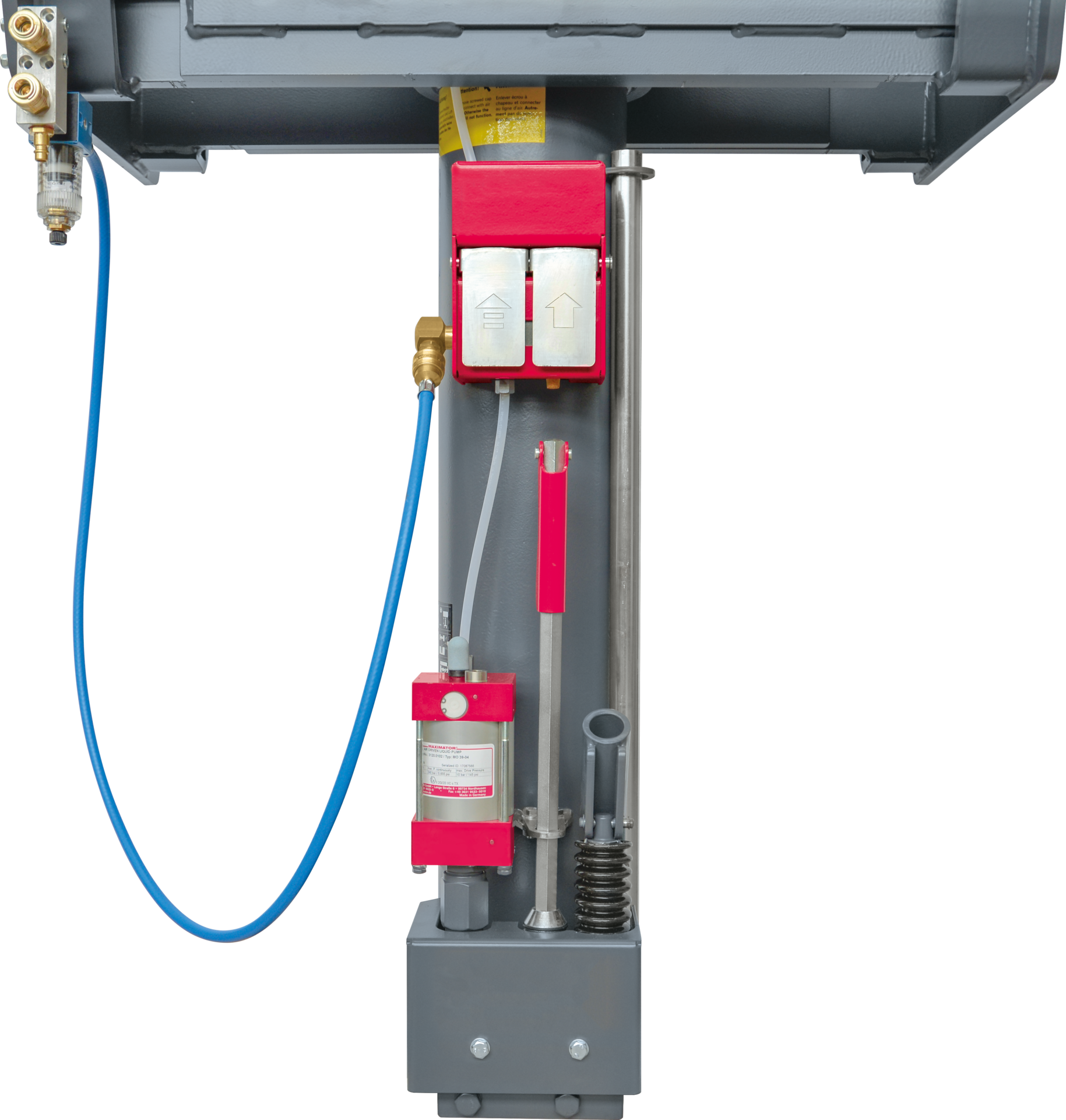

- Intuitive operation includes a quick lift via push button, additional load lift by means of an air motor, a fine lift with a pump rod and a lowering via hand lever.
- The extra-long cylinder guide ensures that lateral forces can be absorbed, even when loads are outside the center.
- 2 layer coating for perfect corrosion protection.
- No disturbing hydraulic hoses installed
- Longevity – Piston rod and pump piston are hard-chrome plated against corrosion and wear.
- Anti-rust prevention – During each lifting and lowering movement piston rod and inner cylinder wall are moistened with oil.
- The forced return allows a quick return of the lifting ram with and without load to the lowest position.
- The lifter is delivered with universal castors.
