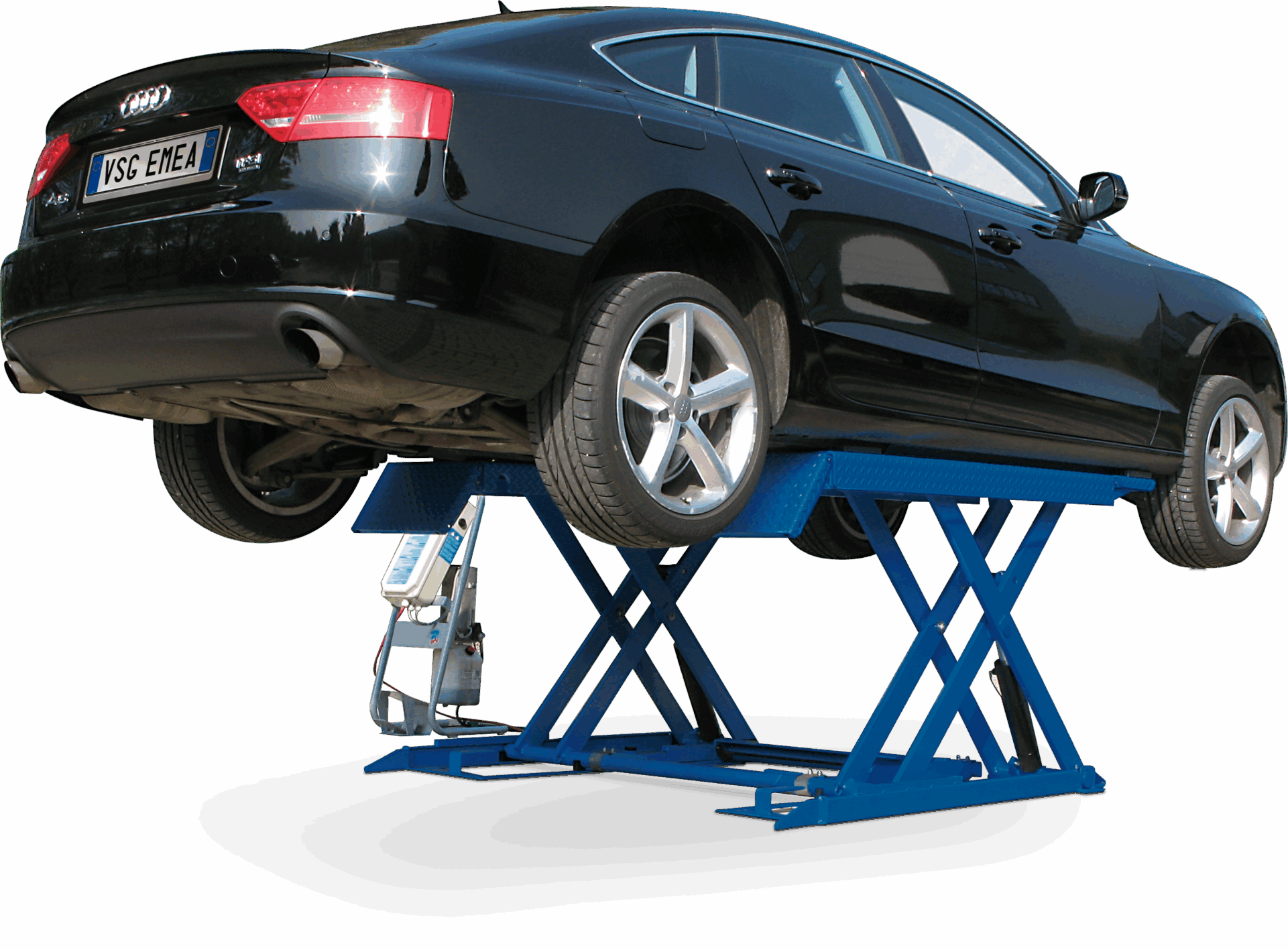

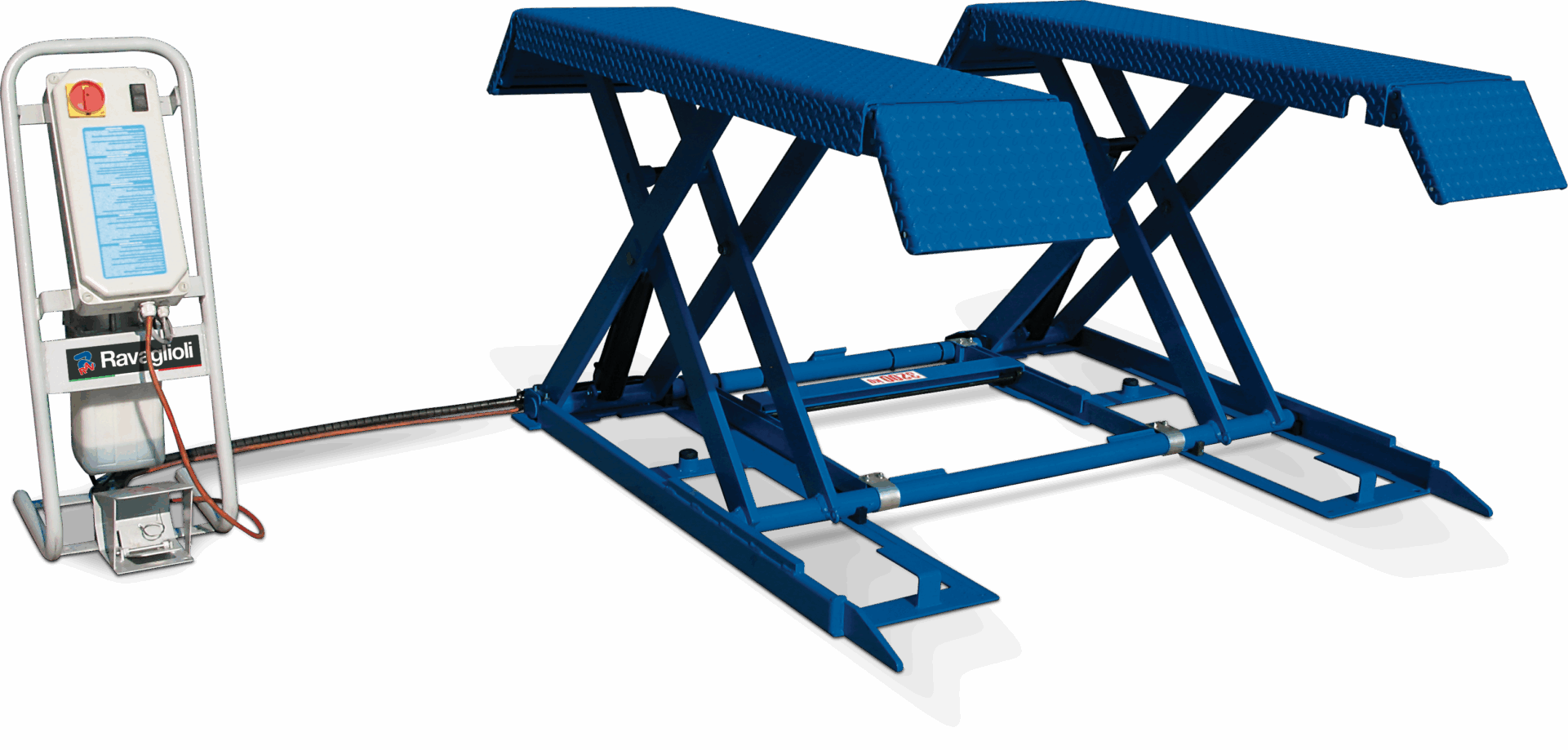

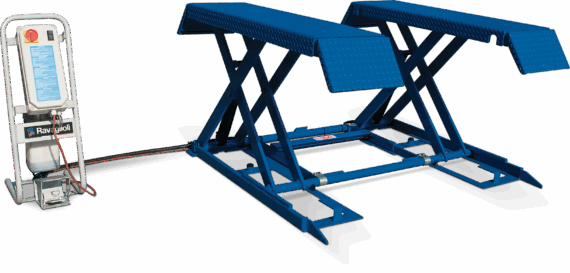

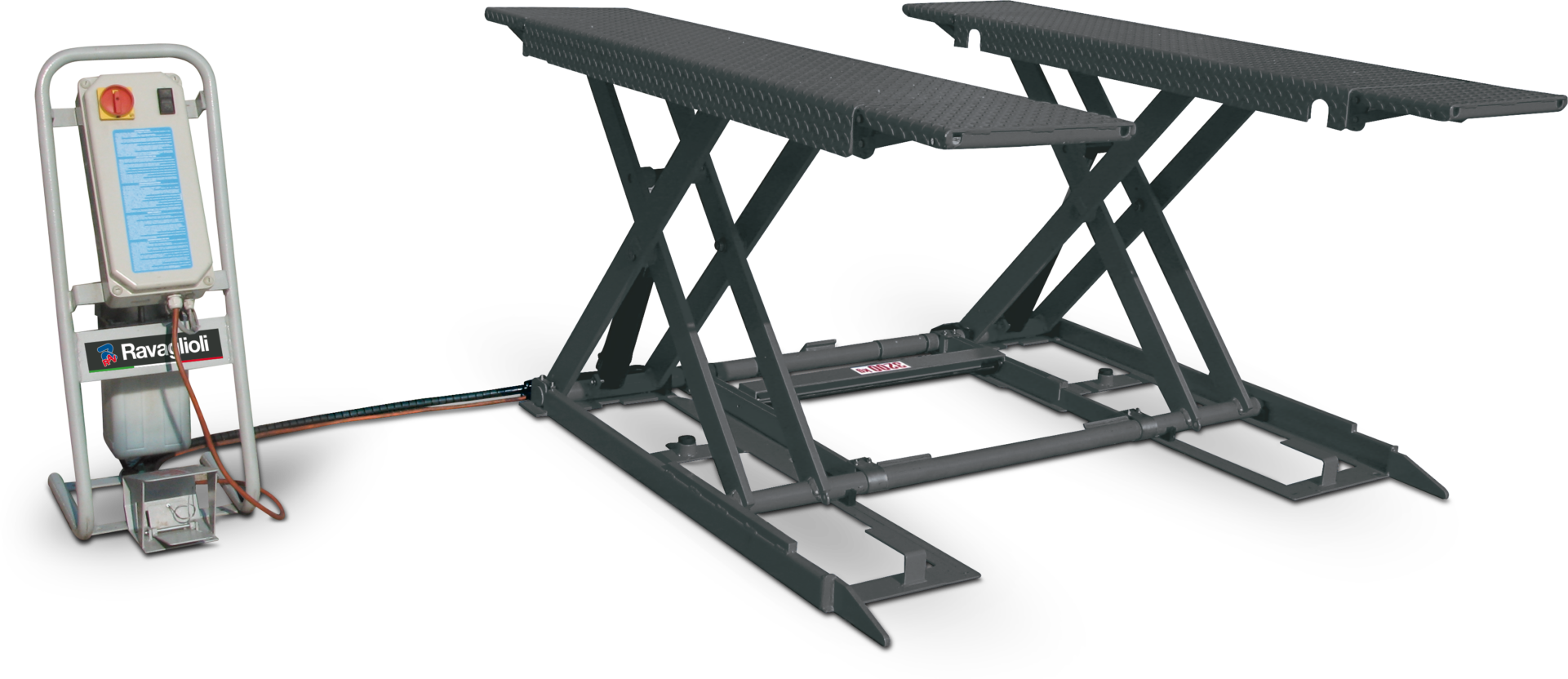

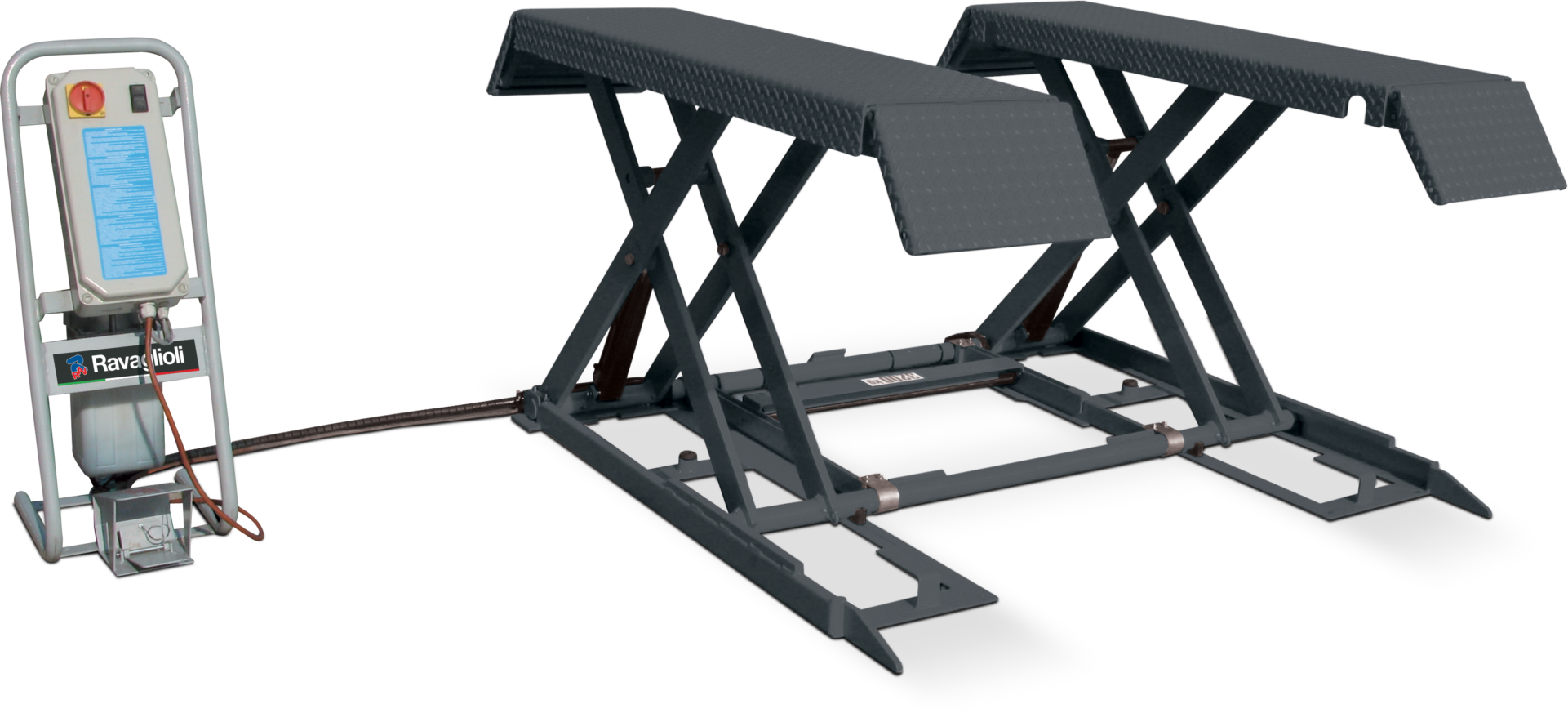

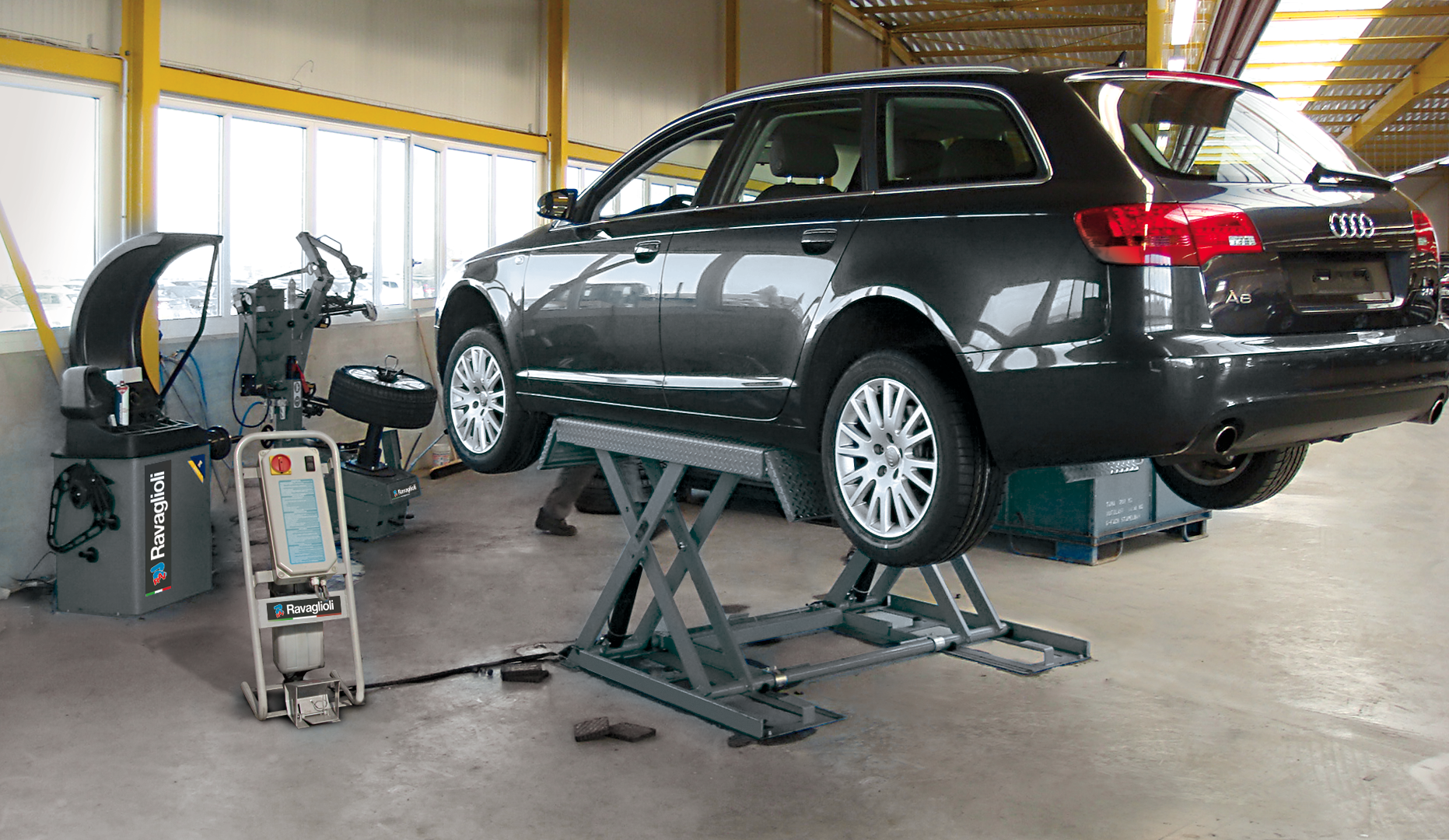

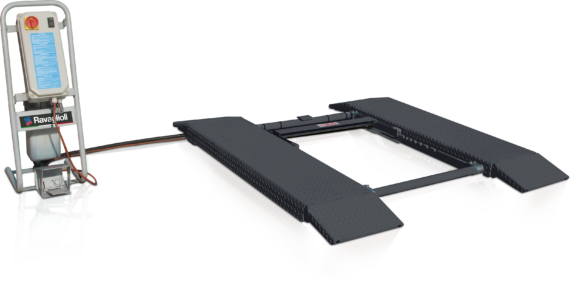

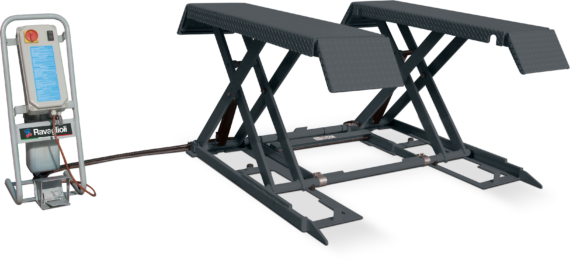

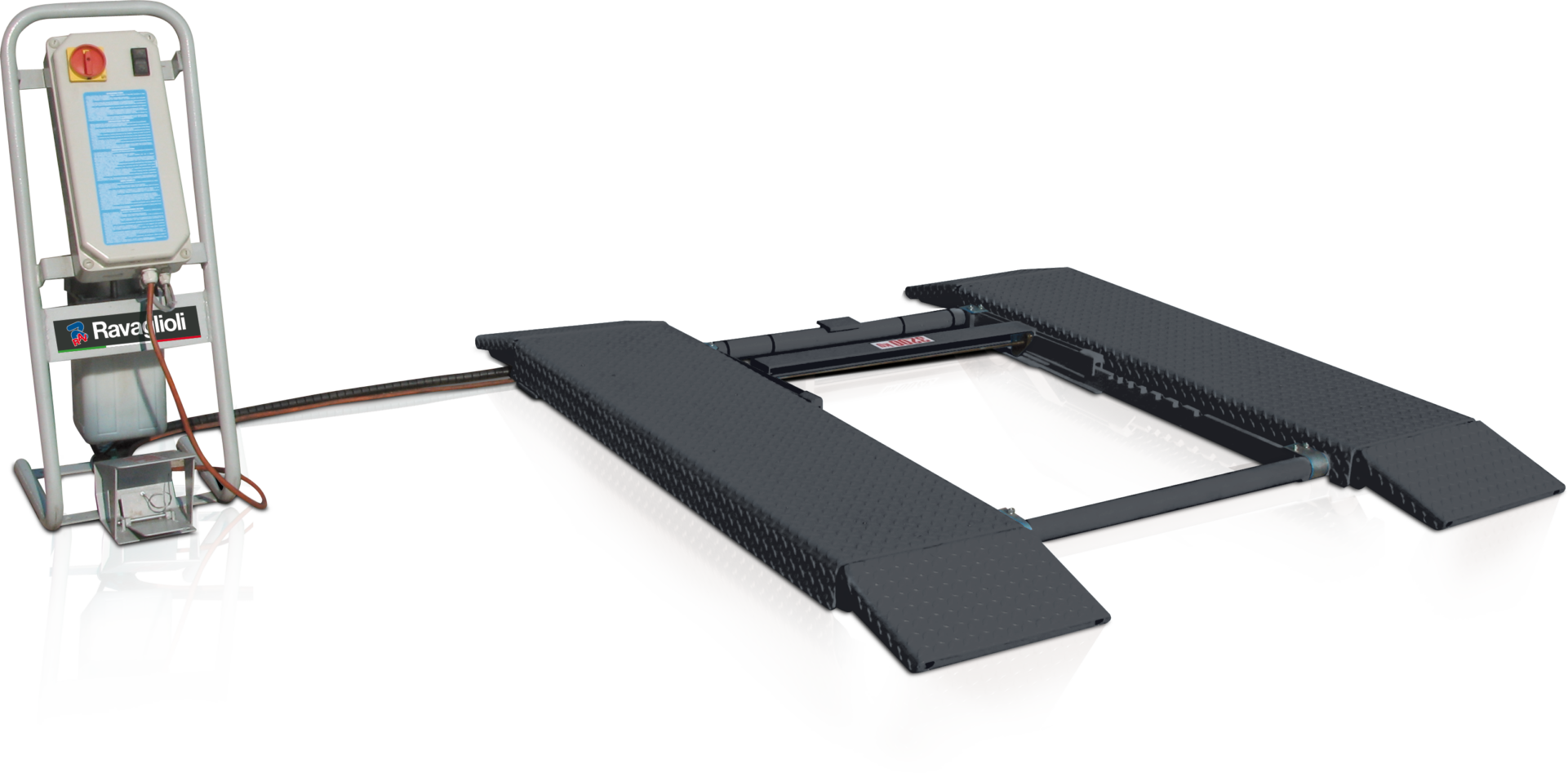

Low-rise scissor lift RAV1450N

3.2 t, electrohydraulic, with pedal operation of the safety locks, above ground

Description

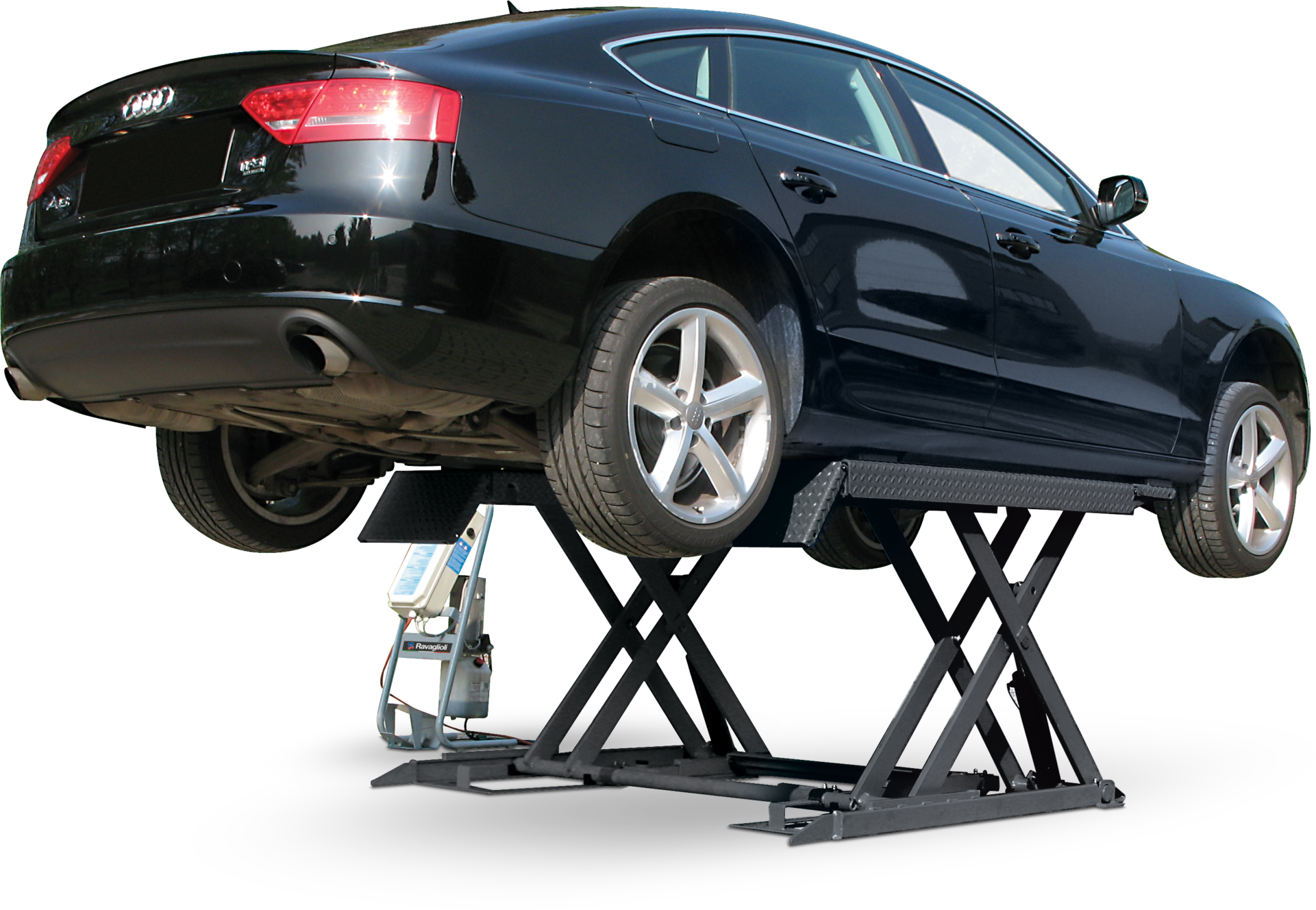

The ideal lift for servicing tyres, brakes, suspension and bodywork. This lift of the latest generation has the following features: electro-hydraulic operation, high loading capacity and elevated lifting height, rapid cycle times. Being practical and easy to use, this lift guarantees the maximum safety to the user. A mechanical levelling system assures constant levelling of the lifting platforms regardless of weight distribution.

  • Pedal release of safety locks

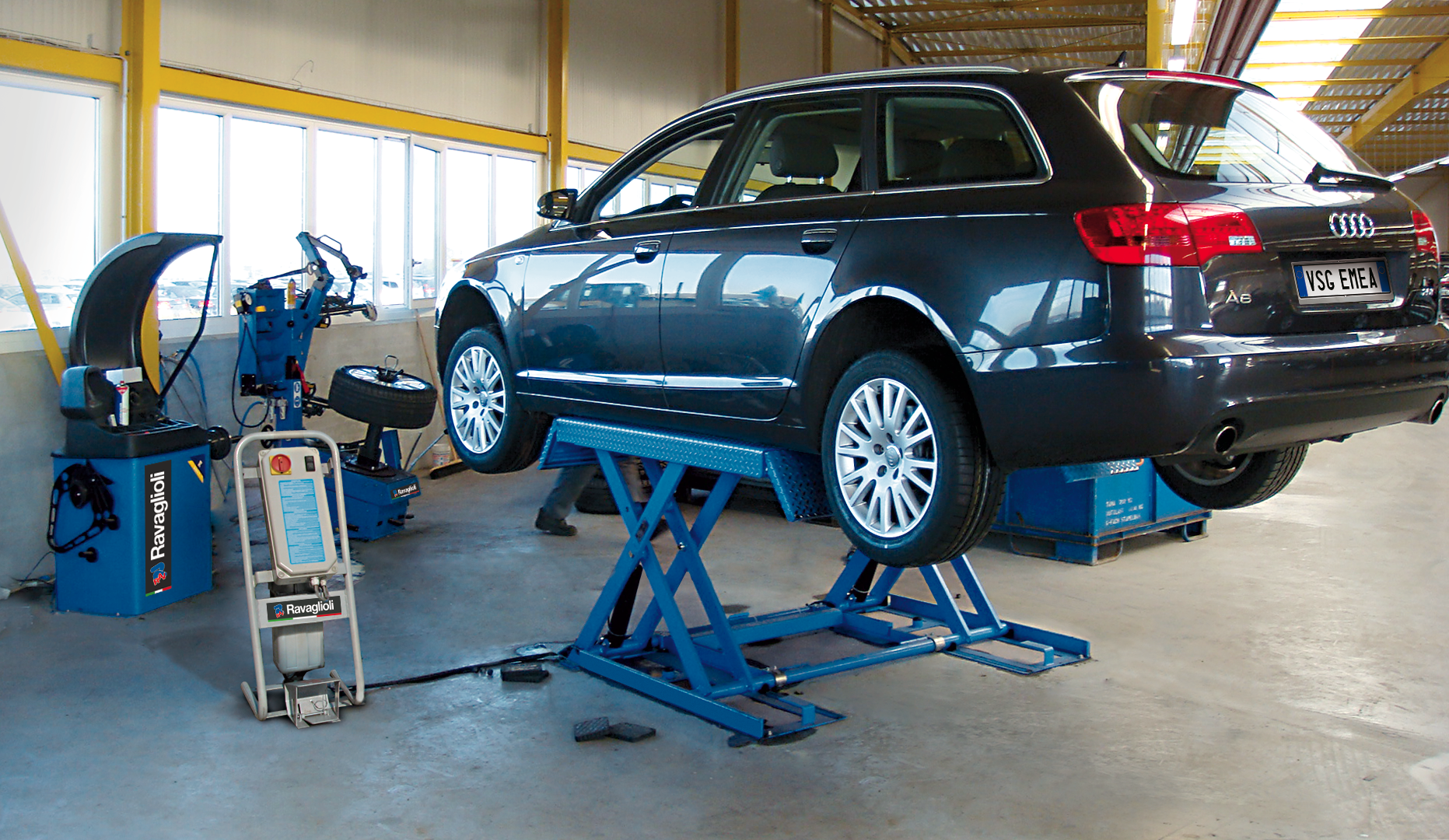

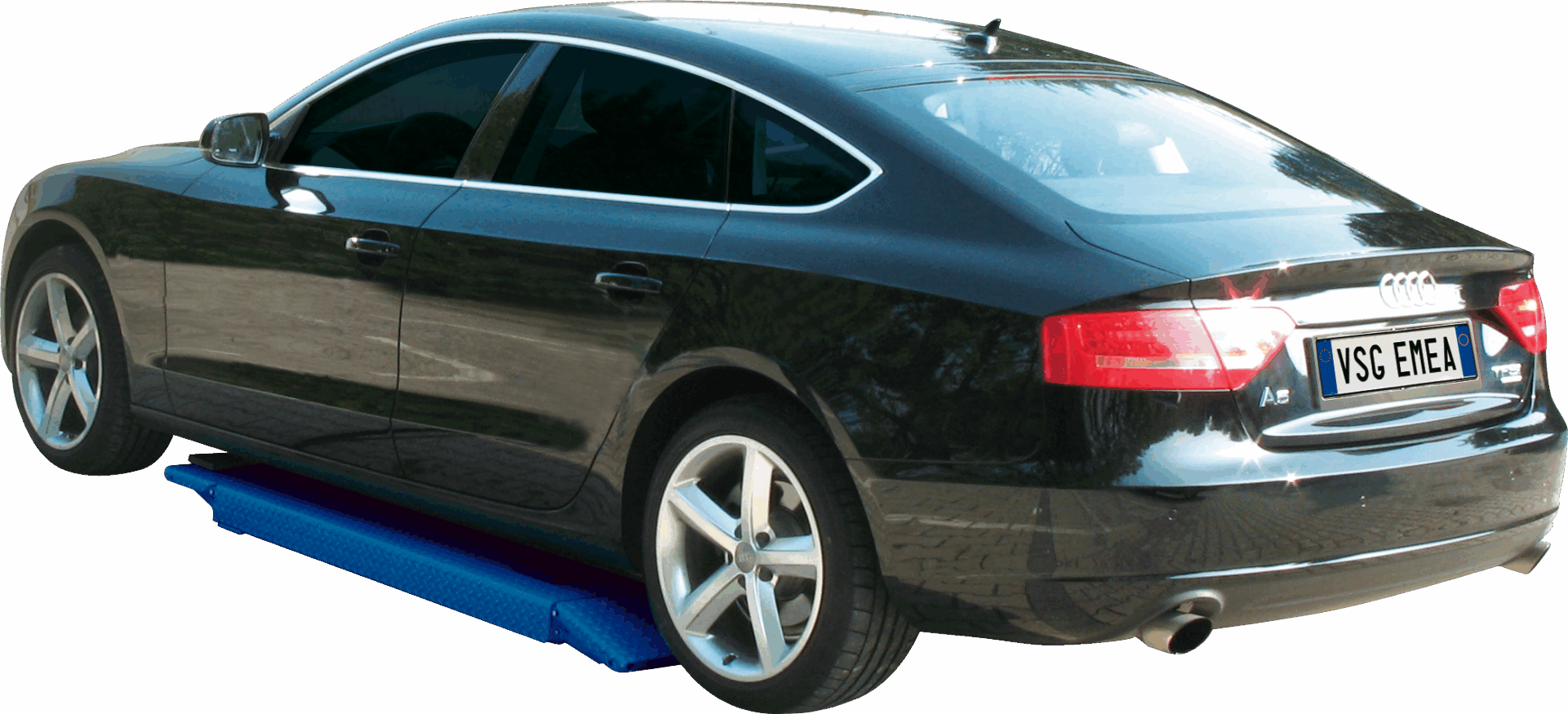

  • Ideal for tyre service

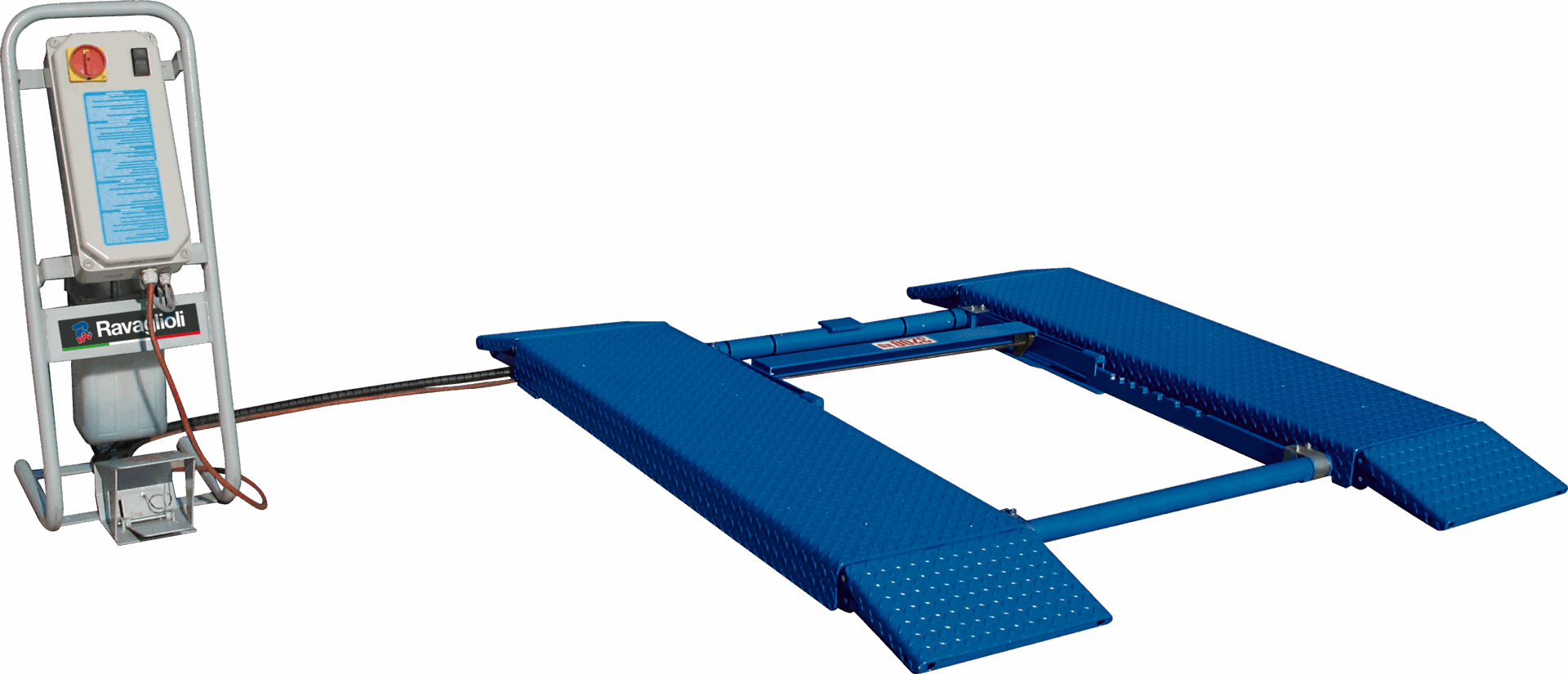

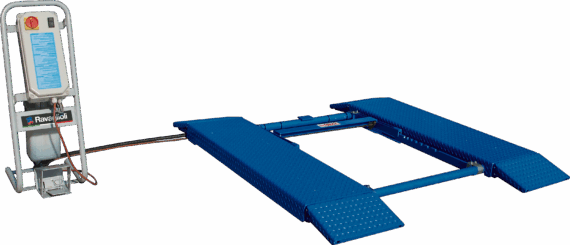

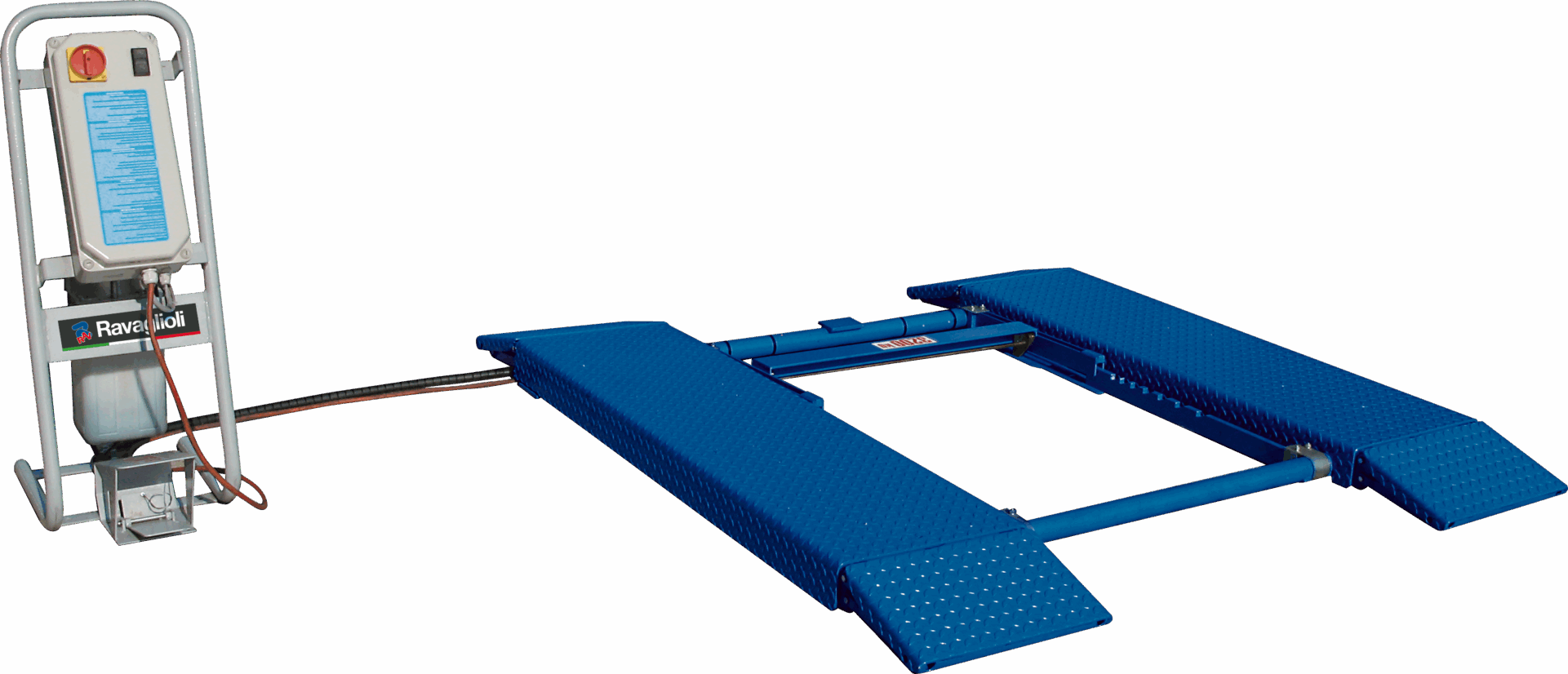

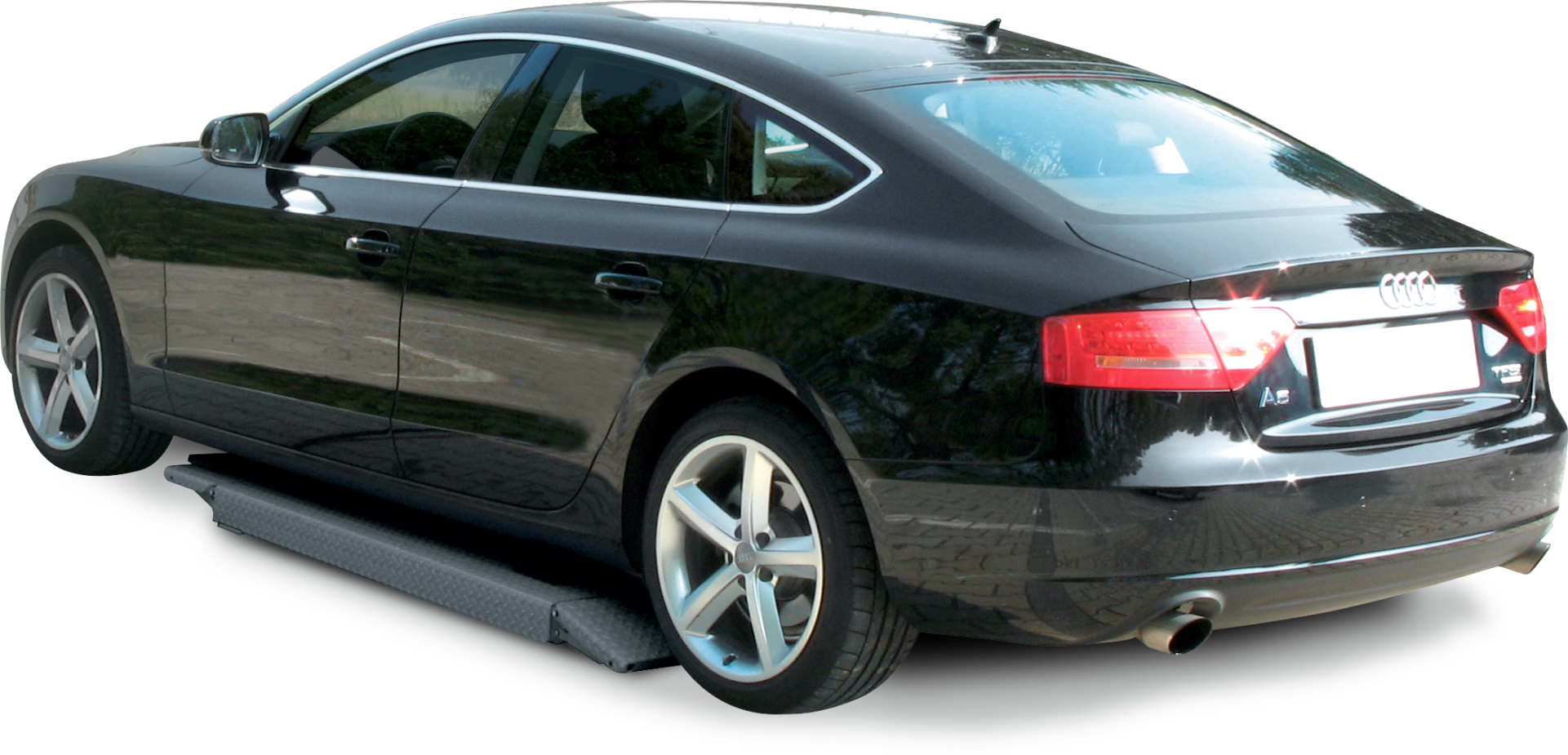

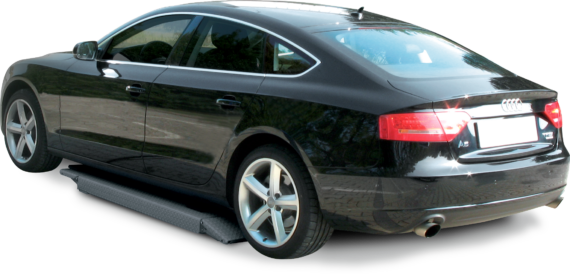

  • Extra flat 100 mm

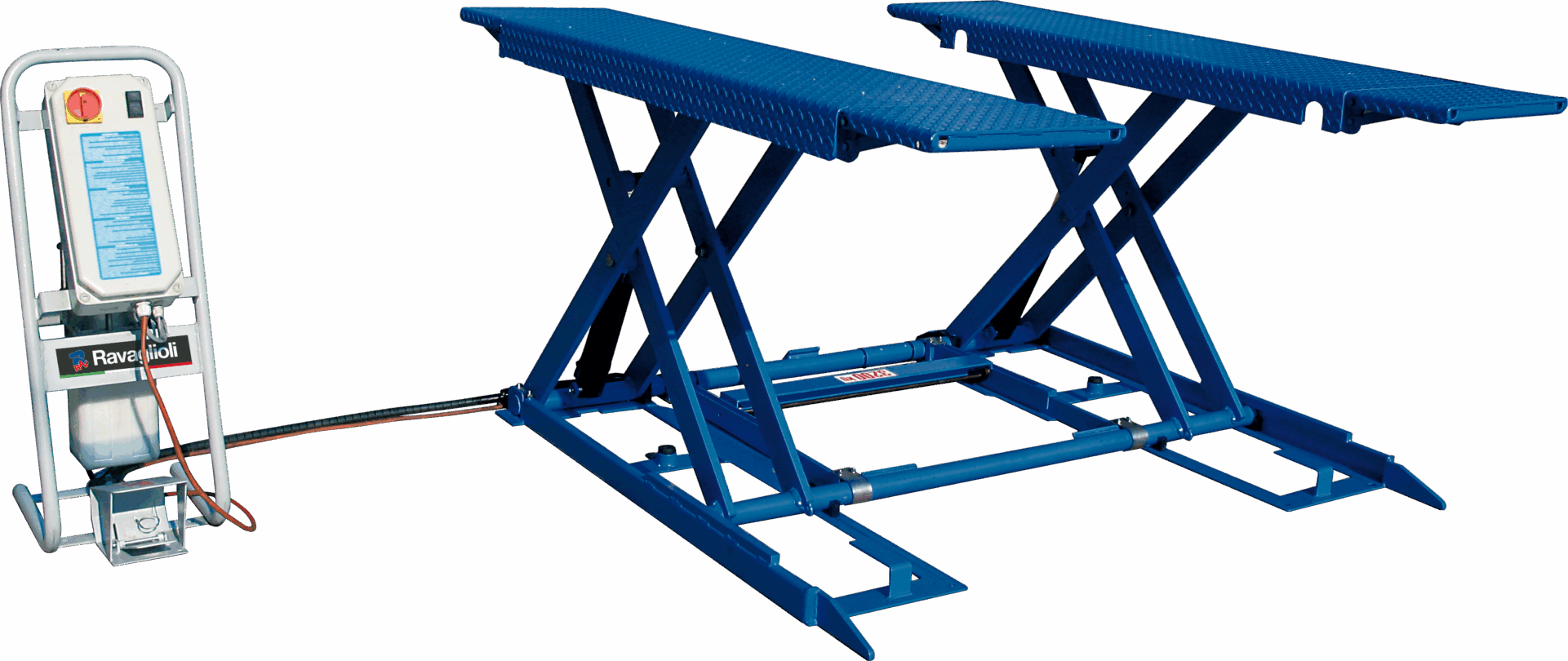

  • High lifting 1000 mm
  • Quick ramp extensions from 1420 mm to 1950 mm

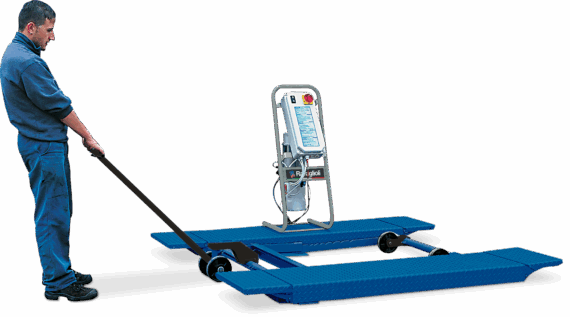

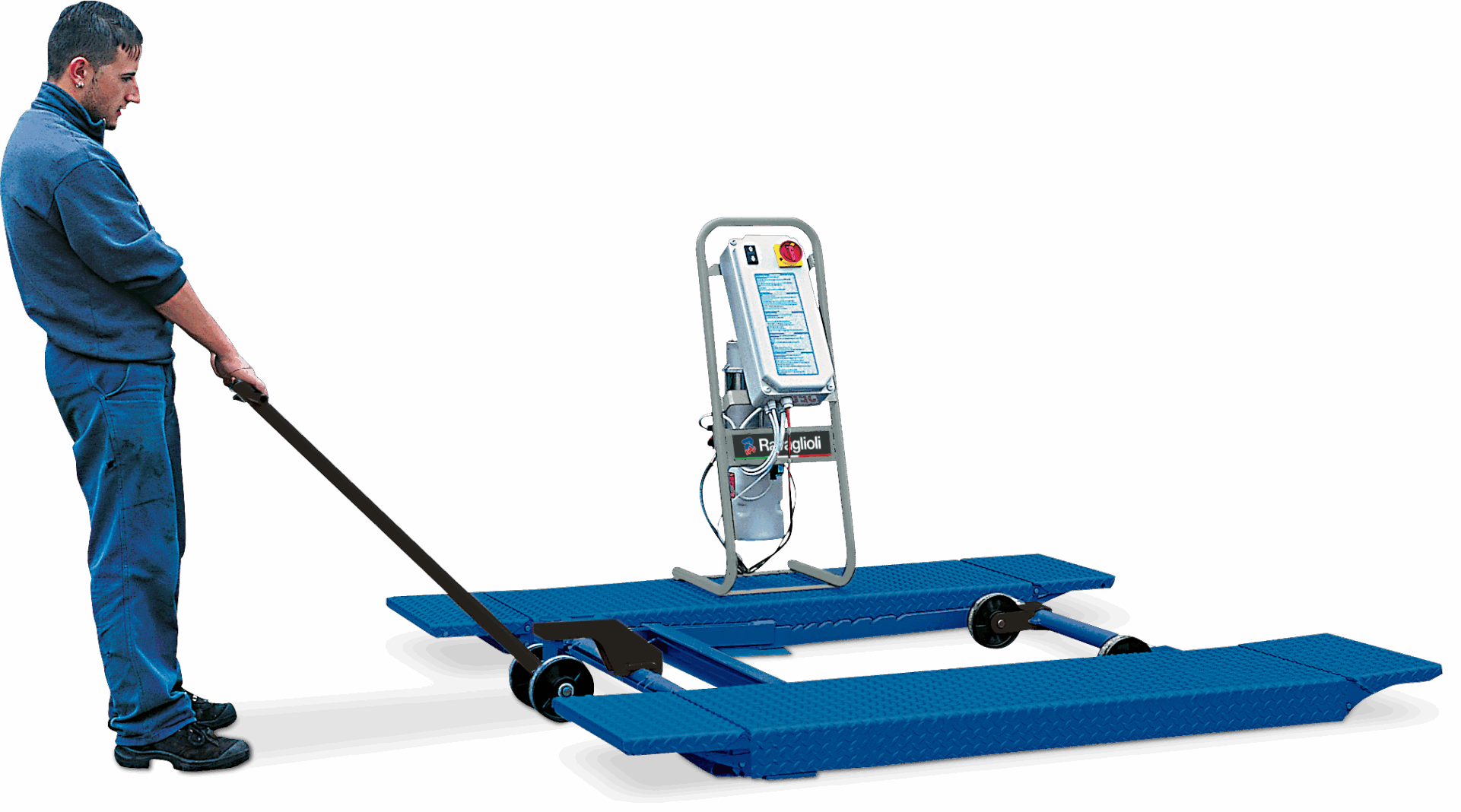

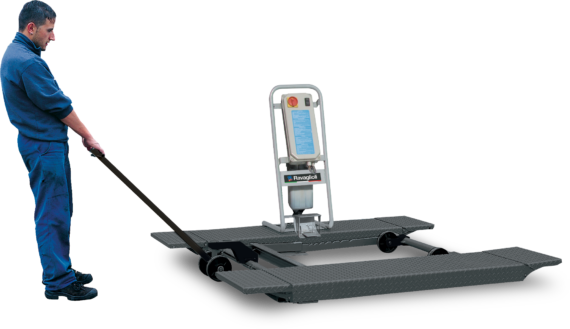

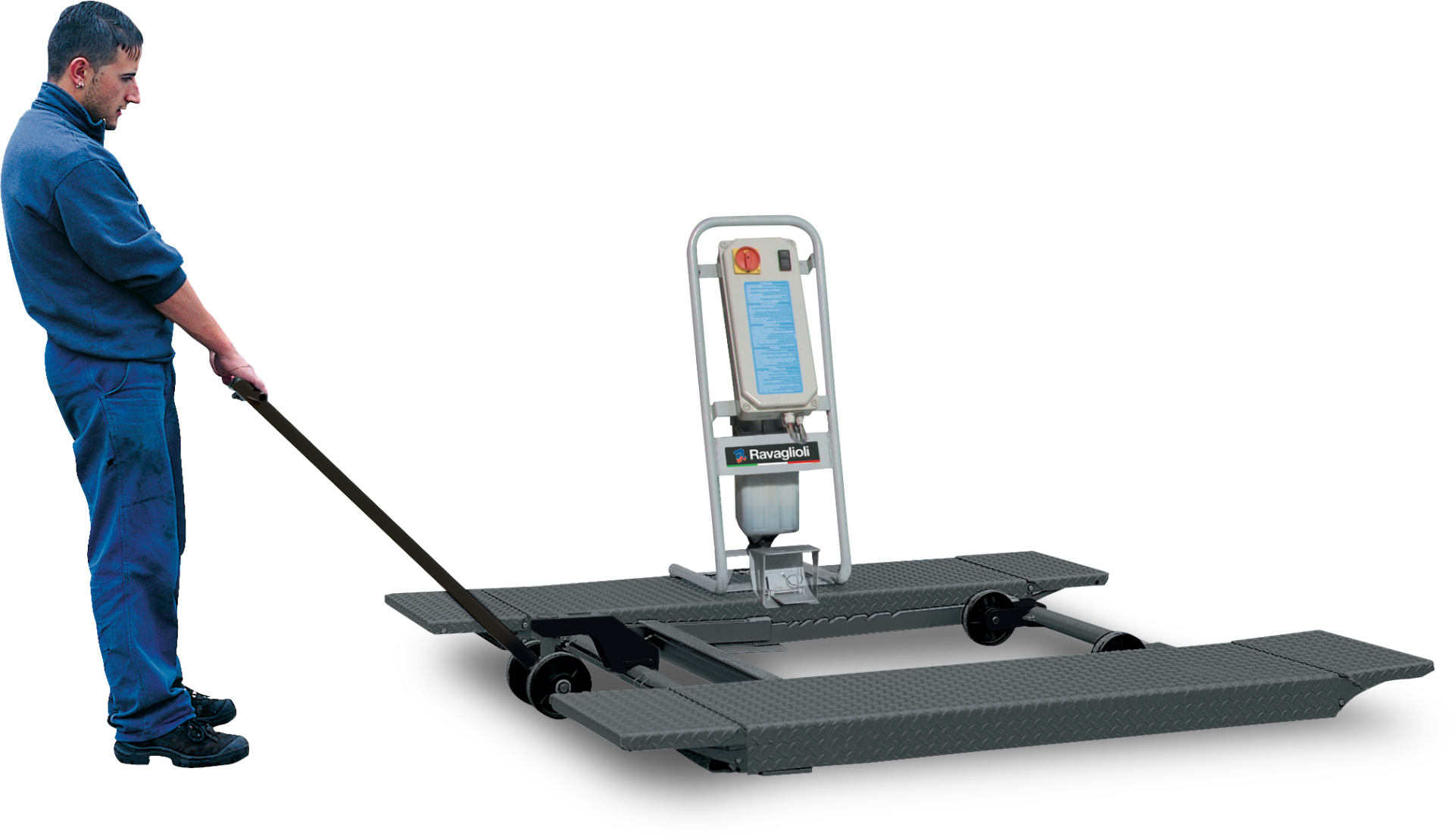

  • Easy mobile

Additional information

Scissor lift design

Low-rise scissors

Mode of drive

Electrohydraulic

Type of installation

Floor mounted

Capacity

3200kg

Max. lifting height

1000mm

Max. lifing height at floor level

955mm

Lifting time loaded

25s

Lowering time loaded

18s

Play detector

Not possible

Drive-on-height

100mm

Surface coating

Powder coated

Wheel alignment

Not possible

Length of platforms

1420mm

Width of platforms

420mm

Space of platforms

900mm

Wheel free lift

Not possible

Driving power

2,6kW

Electrical connection

230/400 V, 50 Hz

Phases

3

Air supply

8bar

Max. air supply

10bar

Noise level

≤70dB(A)

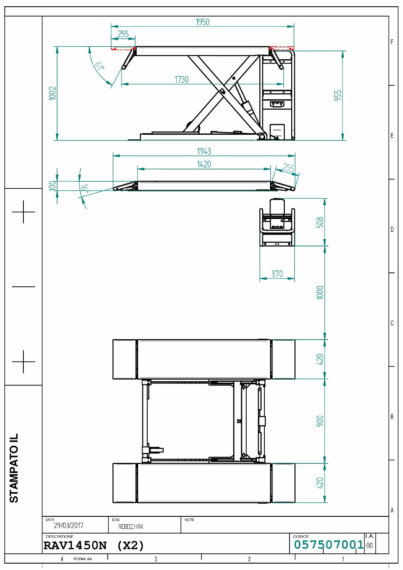

Length

1950mm

Width

1740mm

Height

1000

Weight

405kg

Country of Origin, customs

CN
