Description
The Universal Lifting Table
- Flexibility of use: easy handling and extensive application possibilities, including in electric vehicles
- Total safety: optimum assembly and fastening of the various components
- Great versatility: wide range of accessories for all fields of application
Universal lifting table with a load capacity up to 1 t. Suitable for easy and safe removal and installation of engines, gearboxes, HV batteries, and chassis components. Developed on the basis of 20 years of experience as a manufacturer of lifting tables in cooperation with leading car manufacturers.
- Tradition, experience and technological progress – A combination that results in high-performance, reliable and practical products.
- Braking tests – In combination with a lift, these lifting tables are used in particular for those vehicle components that, because of their design, can only be installed/removed from underneath the vehicle.
- The lifting tables of the KT series, combined with the separately available accessories, make it easy to mount engines, gearboxes, high-voltage batteries and even entire drive units.
- A wide range of accessories (available separately) makes the lifting table an indispensable and universally usable workshop tool.
- For engines, gearboxes & HV batteries
- Also suitable for electric vehicles
- Using standard maintenance permits safe working when servicing the lifting table
- Tiltable mounting plate with 2 x 7 holes for secure mounting of various supports – The mounting holes arranged on both left- and right-hand side of the platform offer plenty of possibilities to mount mounting tools
- The integrated lowering brake valve allows an exact dosing of the lowering speed

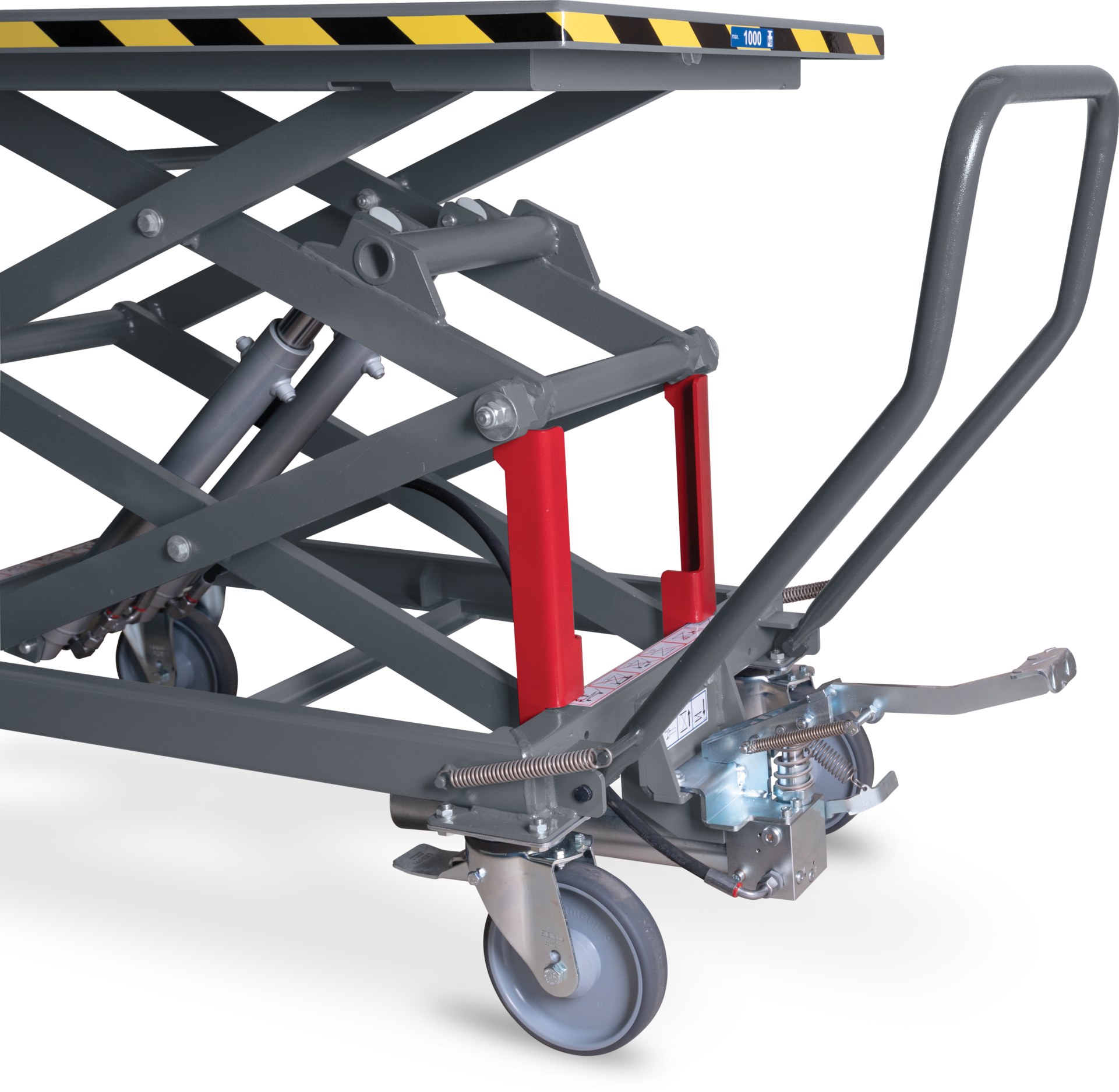

- Large castors and parking brakes ensure excellent mobility in the workshop – Easy to maneuver even with load thanks to plastic rollers with ball bearings

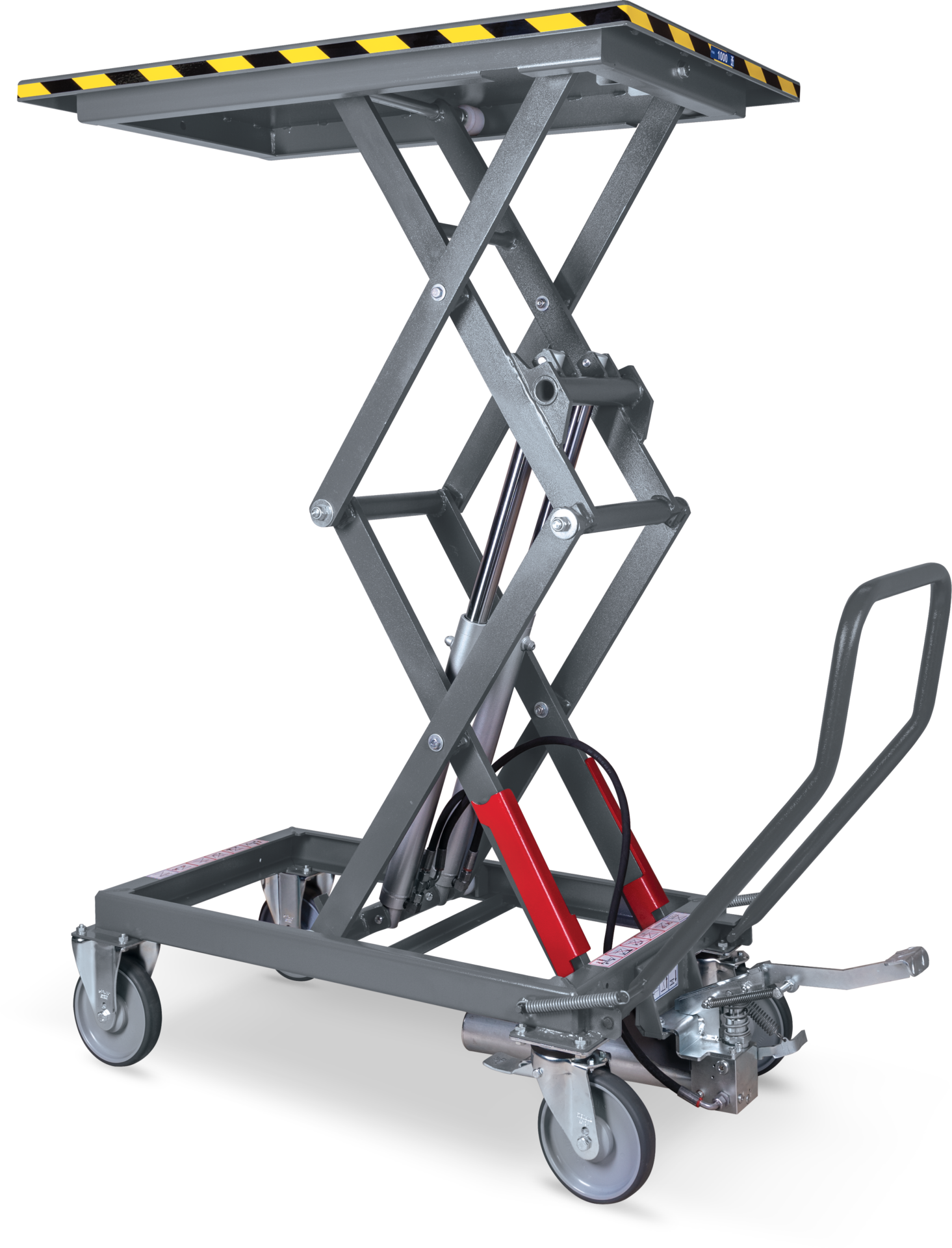

- The hydraulically controlled lifting load stroke is activated by foot, using a double acting pump that ensures the lifting of any load quick and effortless.
- The compact design provides plenty of space underneath the vehicle.

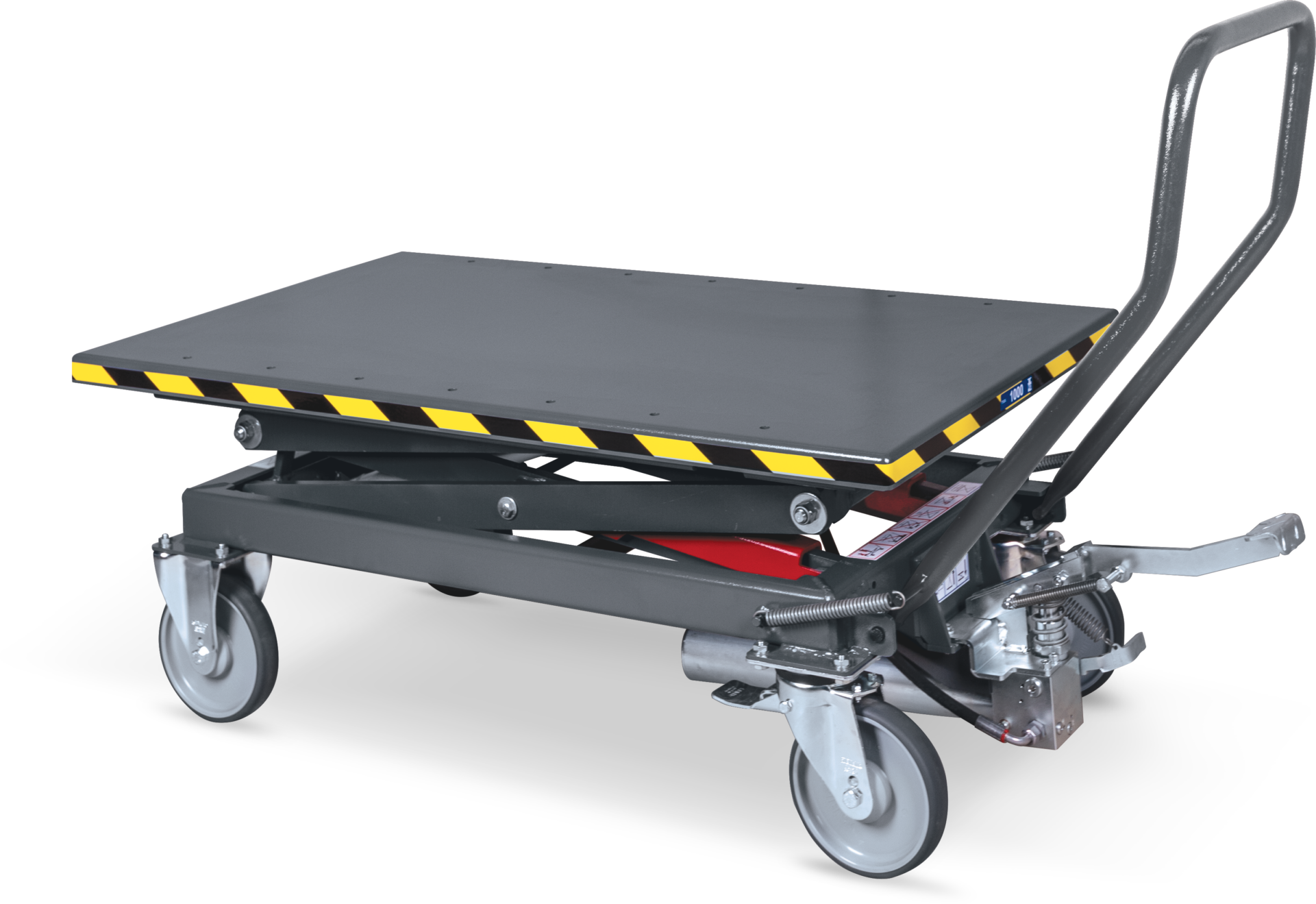

- The shallow, slim design and the handle that can be moved vertically, make positioning underneath the vehicle very easy.
- Tabletop: it can be inclined 2° perpendicular to the direction of travel, can be moved 20 mm longitudinally and transversely
- Tabletop bores: 2 rows each with 7 bores Ø 12
- Handle: fixed, foldable
