Description
- Great lifting height
- Translation device on elastic rollers
- Automatically-engaging and pneumatic-release mechanical lock device
- Two-hand “deadman” lowering control
Media
Similar Products
-
Jacking beams

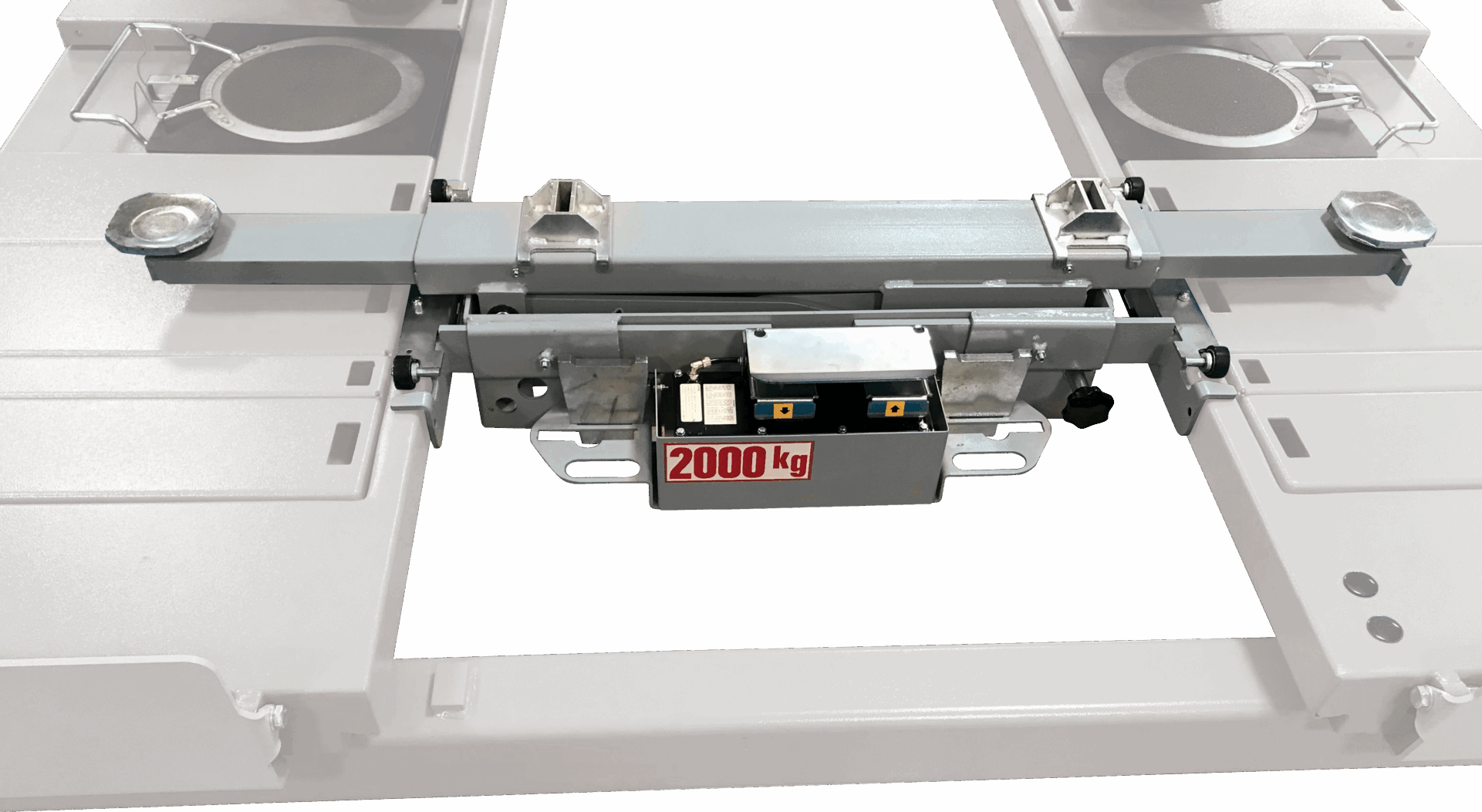

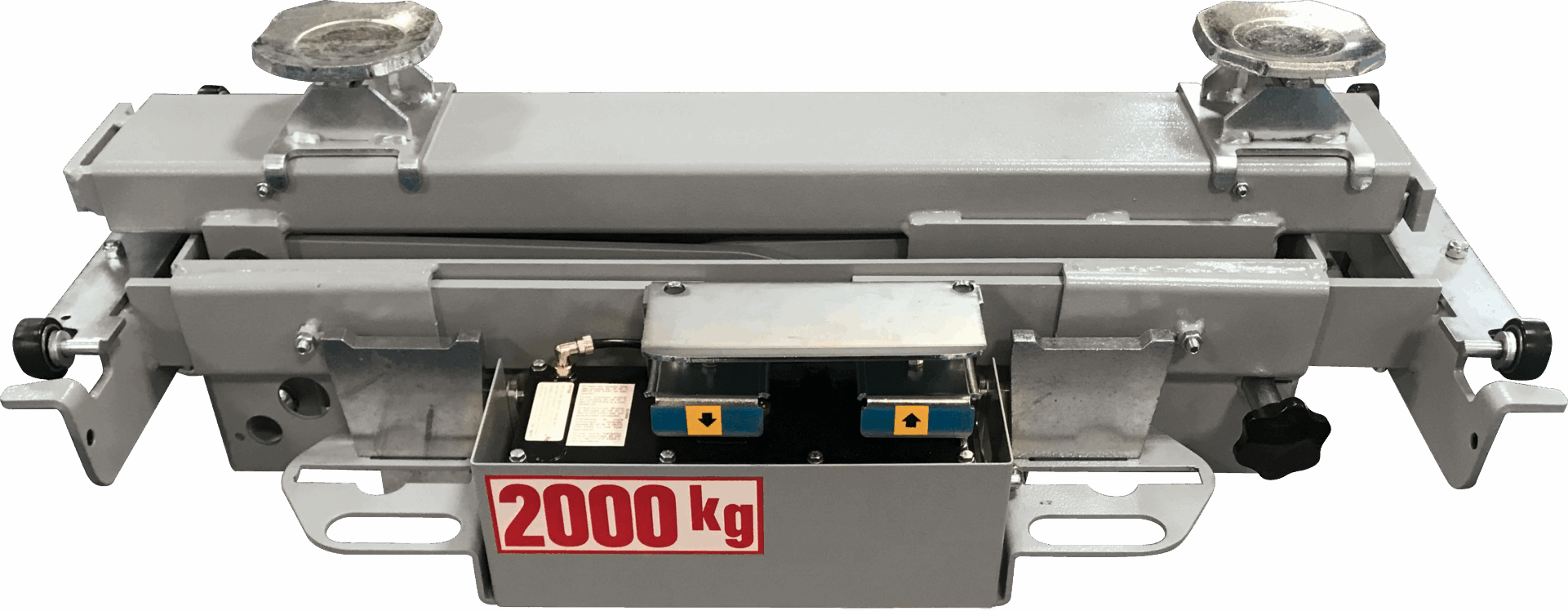

Jacking beam J20PNR
MPN: VSG.J20PN.9015832.0 t, air-hydraulic
Tech Data
| Features | Jacking beam J20PNRL | Jacking beam J20PNR |
|---|---|---|
| Mode of drive | hydropneumatic | hydropneumatic |
| Operation | manual control | manual control |
| Axle jack design | Jacking beam | Jacking beam |
| Rated load capacity | 2000kg | 2000kg |
| Operating pressure | 6 – 10bar | 6 – 10bar |
| Weight | 107kg | 95kg |
