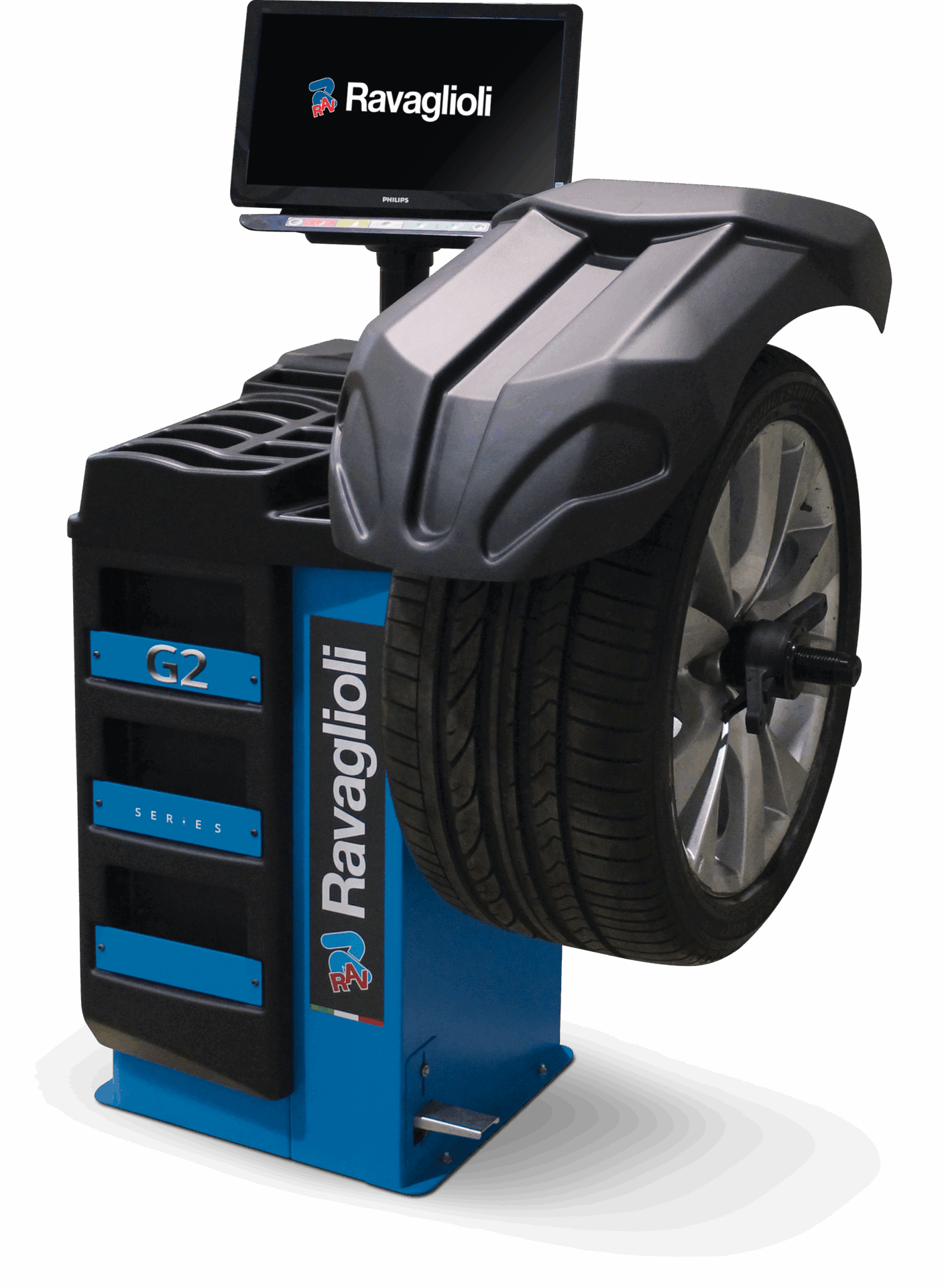

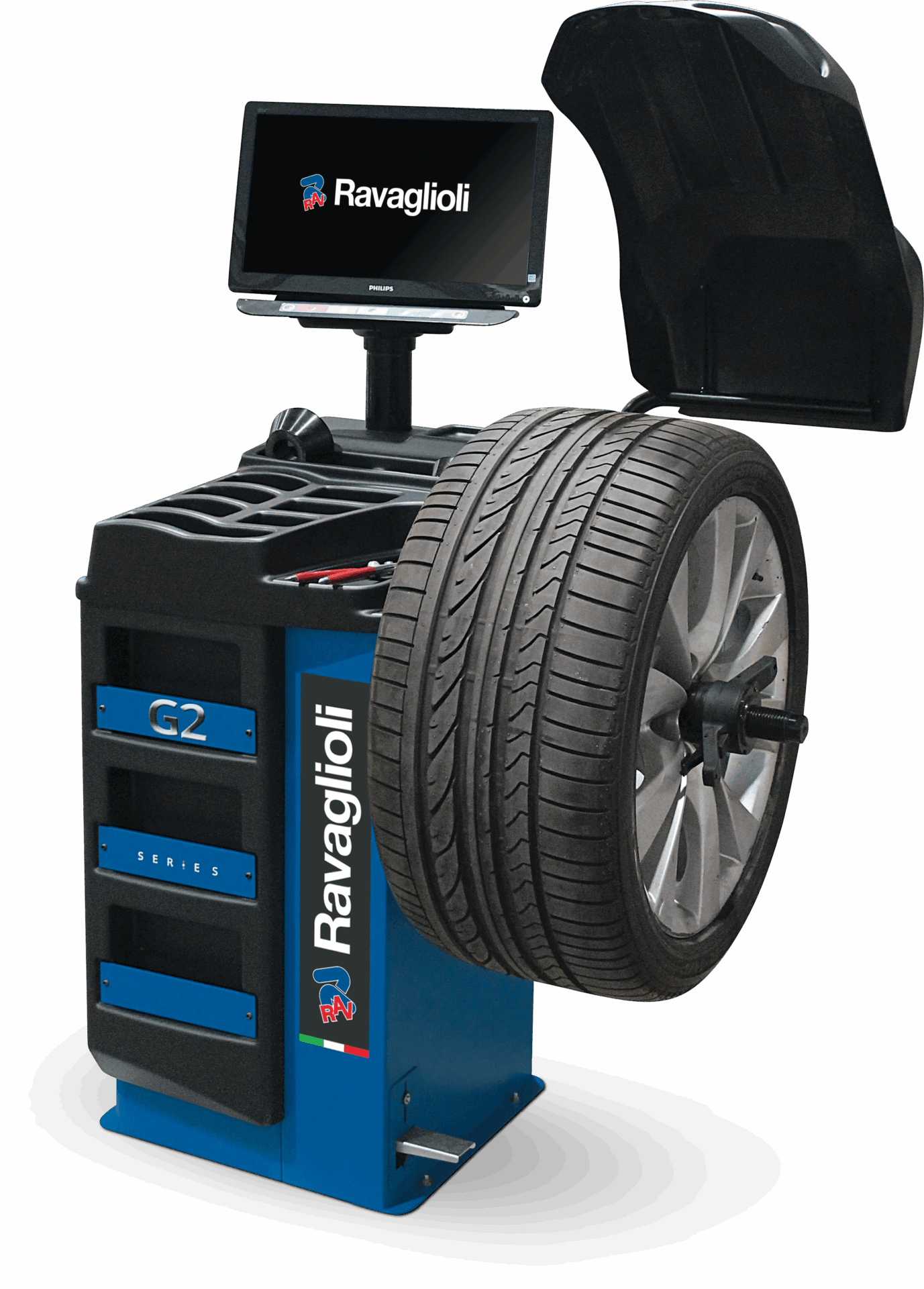

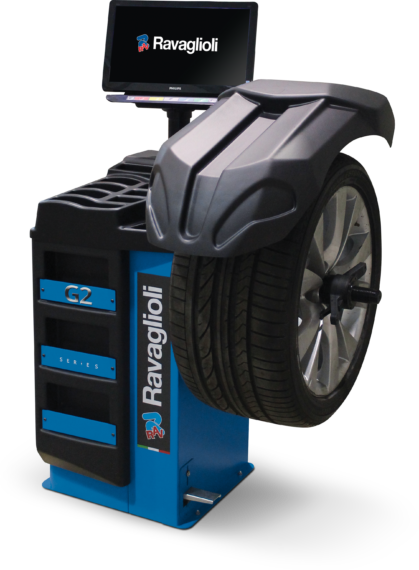

Electronic wheel balancer with microprocessor G2.140R

LCD monitor, 2D measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″ | Blue (RAL 5005)

Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

  • Automatic spin when cover is lowered
  • The arm stores the positions for balancing correction: automatic programs for ALU S wheels
  • Guided rim/tyre optimisation process
  • Pedal brake to keep the wheel stopped during weight positioning
  • Calliper for automatic distance and diameter measurement
  • Automatic ALU S programme
  • Automatic start-stop
    • Automatic spin when cover is lowered
    • Stop on top in external unbalanced position
  • Software guided balancing
    • Hidden weight program
    • 3 Automatic ALU S programs

Additional information

Wheel data recording

Semi-automatic
Colour

5005RAL
Tread depth measurement

Not possible
TeqLink

Not possible
Workshop-Net

Not possible
Measuring speed

< 100rpm
Measuring time

6s
Balancing accuracy +/-

1g
Display

LCD
Min. rim width

1,5"
Max. rim width

22"
Min. rim diameter

10"
Max. rim diameter

26"
Max. wheel diameter

1020mm
Max. wheel weight

65kg
Electrical connection

220 – 240 V, 50 – 60 Hz
Phases

1
Width

1047mm
Depth

878mm
Height

1540mm
