Interactive LCD Display, passenger car, rim diameter 10 – 26″, RAL 5005
Interactive LCD Display, passenger car, rim diameter 10 – 26″, RAL 5005
2D, 7″ touchscreen, pneumatic locking, passenger car, rim diameter 10 – 26″, RAL 5005
LCD monitor, internal 2D measuring arm for automatic measuring, passenger car, rim diameter 10 – 26″, RAL 5005
22″ full HD LCD monitor, industrial PC, automatic cycle, cones for trucks (Ø 202 – 221 mm, 281 mm), with…
Backlit LCD graphic display (132 x 40 mm), automatic cycle, cones for trucks (Ø 202 – 221 mm, 281 mm),…
80 kg, passenger car
80 kg, passenger car
Calibration kit for wheel balancers: cars and light commercial vehicles
Double centering, quickfit nut
Double centering, handwheel quickfit nut
Double centering
Double centering, handwheel nut
For off-road vehicles | Ø 95 – 132 mm
Inclusive spacer
For wheel balancers | 1 set / 5 pieces
Universal flange for blind wheels | including center to center calliper
Universal flange with stands
Set of stands | 1 set / 5 pieces
Stand flange for wheels
Flange with 5 pins for Maserati wheels
For Renault | Ø 60 / 66 mm | 1 set / 2 pieces
For Renault Trafic Master, incl. Spacer | Ø 71 / 88.9 / 129.9 mm | 1 set / 3 pieces
For GAR131H, incl. spacer | 1 set / 4 pieces
Set of columns flange for 5-hole BMW wheels | including center ring Ø 66.5 mm | for all models
For motorcycles | with shaft, Ø 14 mm, and accessories | GAR181A1 required
For motorcycles | without shaft and accessories | GAR181A1 required
Complete with shaft, 2 cones, 6 spacers, centering nut and2 bushes | GAR181N or GAR354 required
Complete with shaft, 2 cones, 6 spacers, centering nut and 2 bushes | GAR181N or GAR354 required
Complete with extended shaft (318 mm), 2 spacers and centering nut | GAR181N or GAR354 required
Complete with shaft, 2 spacers and centering nut | GAR181N or GAR354 required
GAR354 or GAR181N required | 1 set / 18 pieces
GAR354 or GAR181N required
Centering bush for BMW | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR1
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bushes | option for universal flange GAR181N or GAR191N
Option for universal flange GAR181N or GAR191N | 1 set / 6 pieces
Double centering, quickfit nut, for car wheels (excluding pneumatic locking versions)
Inclusive protection cup | Ø 44 – 112 mm | 1 set / 3 pieces

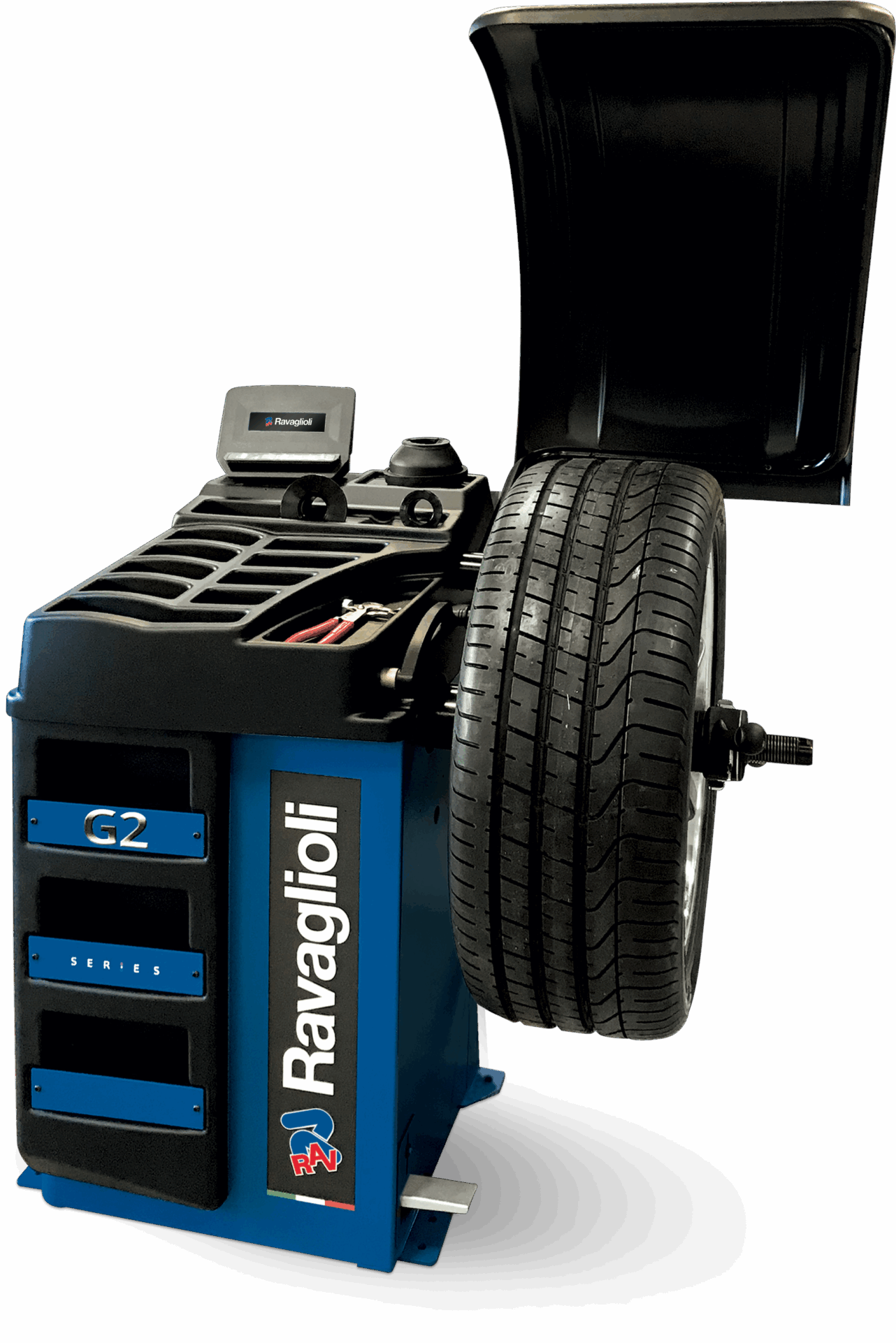

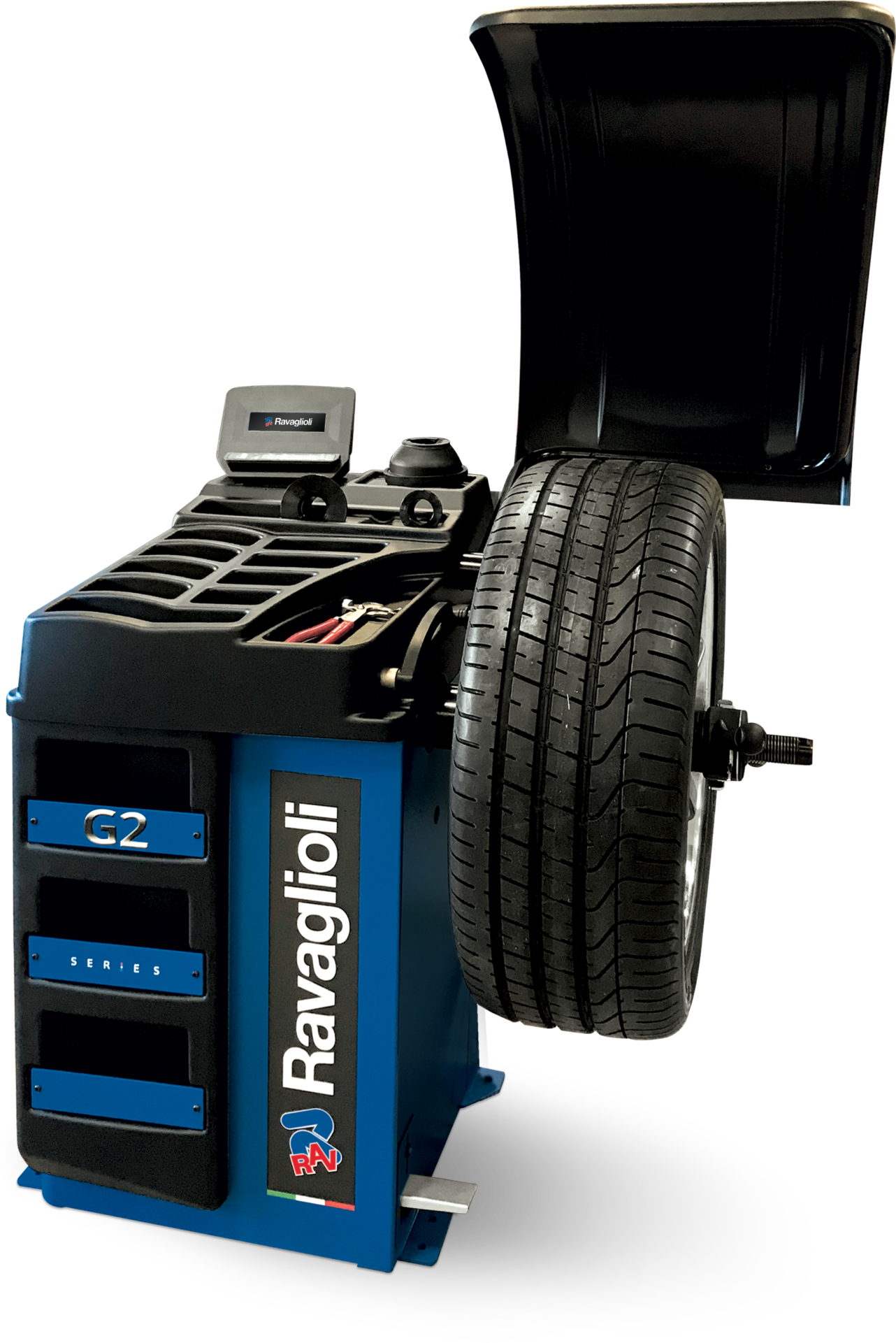

| Features |  Electronic wheel balancer with microprocessor G2.124NR | Electronic wheel balancer with microprocessor G2.124NWSPLUS | Electronic wheel balancer with microprocessor GP3.128NR | Electronic wheel balancer with microprocessor G2.140R | Wheel balancer GTL4.140RC | Wheel balancer GTL2.120NRC |
|---|---|---|---|---|---|---|
| Wheel data recording | semi-automatic | semi-automatic | semi-automatic | semi-automatic | semi-automatic | manually |
| Tread depth measurement | not possible | not possible | not possible | not possible | not possible | not possible |
| TeqLink | not possible | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible | not possible |
| Measuring speed | < 100rpm | < 100rpm | < 100rpm | < 100rpm | < 100rpm | < 100rpm |
| Measuring time | 6s | 6s | 6s | 6s | 6s | 6s |
| Balancing accuracy +/- | 1g | 1g | 1g | 1g | 1g | 1g |
| Display | LCD | LCD | TFT | LCD | LCD | LCD, backlit |
| Min. rim width | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ |
| Max. rim width | 22″ | 22″ | 22″ | 22″ | 20″ | 20″ |
| Rim diameter min. | 10″ | 10″ | 10″ | 10″ | 10″ | 10″ |
| Rim diameter max. | 26″ | 26″ | 26″ | 26″ | 30″ | 30″ |
| Max. wheel diameter | 1020mm | 1020mm | 1090mm | 1020mm | 1300mm | 1300mm |
| Wheel weight max. | 70kg | 70kg | 70kg | 65kg | 200kg | 200kg |
| Power supply | 220 – 240 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | 230 V | 50 – 60 Hz |
| Phases | 1 | 1 | 1 | 1 | 1 | 1 |
| Width | 1212mm | 1258mm | 1211mm | 1047mm | 2070mm | 1920mm |
| Depth | 1110mm | 1110mm | 898mm | 878mm | 1130mm | 1100mm |
| Height | 1700mm | 1700mm | 1695mm | 1540mm | 1890mm | 1800mm |
| Weight | 125kg | 127kg | 130kg | 120kg | 220kg | 175kg |
