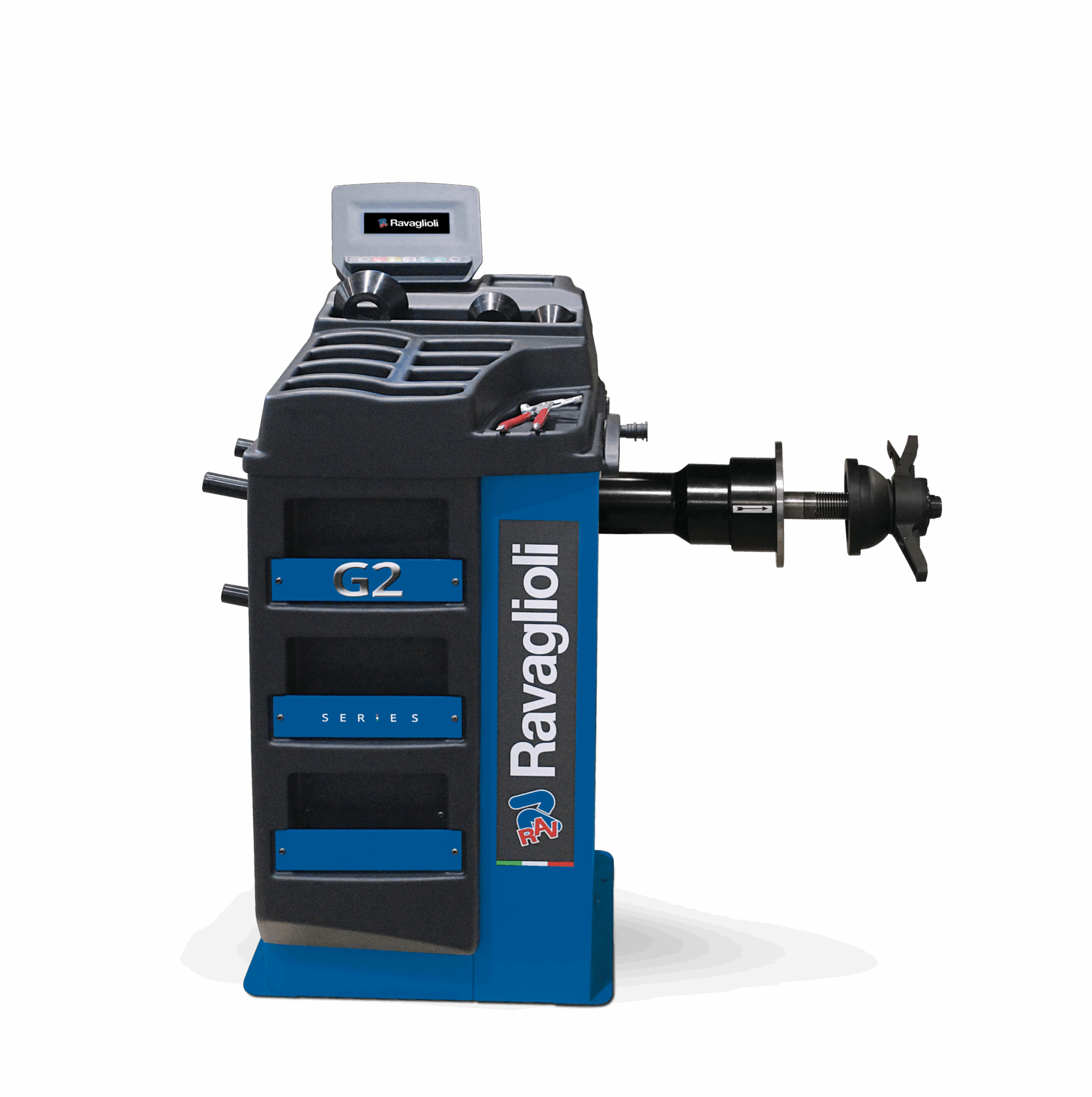

Electronic wheel balancer with microprocessor G2.120R

Interactive LCD display, measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″ | Blue (RAL 5005)

Category:
Tags: ,
Request Information

Share on:

dashicons-media-document

Description

  • Automatic spin when cover is lowered
  • The arm stores the positions for balancing correction: automatic programs for ALU S wheels
  • Guided rim/tyre optimisation process
  • Pedal brake to keep the wheel stopped during weight positioning
  • Calliper for automatic distance and diameter measurement
  • Automatic ALU S programme
  • Backlit graphic LCD display (132 x 40 mm) – Multifunction and interactive keys to guide the operator

Additional information

Wheel data recording

Semi-automatic
Colour

5005RAL
Tread depth measurement

Not possible
TeqLink

Not possible
Workshop-Net

Not possible
Measuring speed

< 100rpm
Measuring time

6s
Balancing accuracy +/-

1g
Display

LCD, backlit
Min. rim width

1,5"
Max. rim width

22"
Min. rim diameter

10"
Max. rim diameter

26"
Max. wheel diameter

850mm
Max. wheel weight

65kg
Electrical connection

230 V, 50 – 60 Hz
Phases

1
Width

1047mm
Depth

646mm
Height

1108mm
