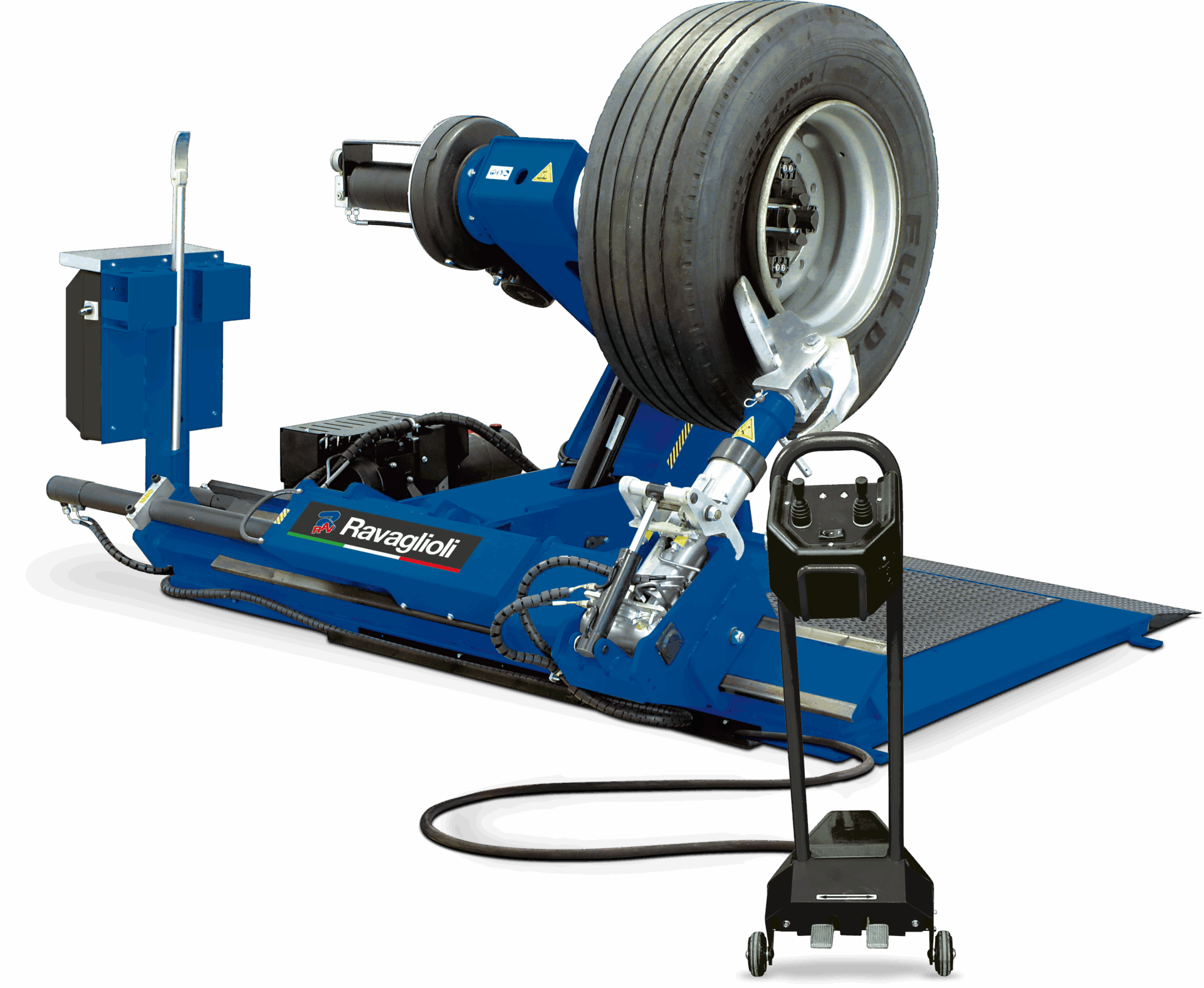

Tyre changer G10360.15

Universal, 2 speeds (max. 8 rpm), cable console unit, truck, rim diameter 11 – 43″, max. rim width 1500 mm

MPN: RAV.G0360.206237
GTIN (EAN): 5063084206237
Category:
Tags: , , ,

Share on:

dashicons-media-document

Description

Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles. The chucking table can accommodate rims up to 43″ without extensions (and 60″ with extensions).

  • Double speed for chucking table rotation
  • Double speed on hydraulic movement
  • After 5 sec. the machine has not been used, the motor turns off
  • Thanks to its considerable bead breaking force mounting and demounting are effortless, even when working with tyres which have been left on the rim for a long period of time in construction sites or mines
  • The electro-brake allows immediate stopping of the rotation to avoid any damage to the tyre
  • Ideal also for many 19″ and 22,5″ truck wheels
  • 90 mm min internal clamping diameter

Media

Similar Products

Accessories

FeaturesTyre changer G10360.15Tyre changer G10360.15Tyre changer G9256.15Tyre changer G9256.15Tyre changer G10156.15Tyre changer G10156.15Tyre changer G10760.17Tyre changer G10760.17
Mounting head designautomaticautomaticautomaticautomatic
Mounting arm designswivelingswivelingswivelingswiveling
Mounting column designrigidrigidrigidrigid
TeqLinknot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possible
Clamping device designcentralcentralcentralcentral
Min. clamping capacity11″11″11″11″
Max. clamping capacity43″43″43″50″
Max. rim width59″59″59″69″
Min. rim diameter11″11″11″11″
Max. rim diameter43″43″43″50″
Tire type truckall typesall typesall typesall types
Max. wheel width1500mm1500mm1500mm1750mm
Max. wheel diameter2700mm2360mm2550mm2700mm
Max. wheel weight1400kg1400kg2300kg3000kg
Automatic bead-breaking movementYesYesYesYes
Bead breaker force37kN32kN34kN42kN
Number of mounting speeds2222
Rotation speed4 / 8rpm4 / 8rpm4 / 8rpm4 / 8rpm
Max. torque5800Nm5300Nm5300Nm6000Nm
Chuck motor rating1,85 / 2,5kW1,85 / 2,5kW1,8 / 2,5kW1,85 / 2,5kW
Driving power1,5 / 2,2kW1,3 / 1,85kW1,35 / 1,85kW1,5 / 2,2kW
Electrical connection400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz400 V | 50 Hz
Phases3333
Fuse protection13,5A slow-blow12,5A slow-blow13A slow-blow
Max. air supply180bar160bar180bar
Width2050mm2010mm2805mm2065mm
Weight1400kg1150kg1020kg1730kg
Depth2815mm2715mm2145mm3215mm
Height1950mm1330mm1595mm1985mm
