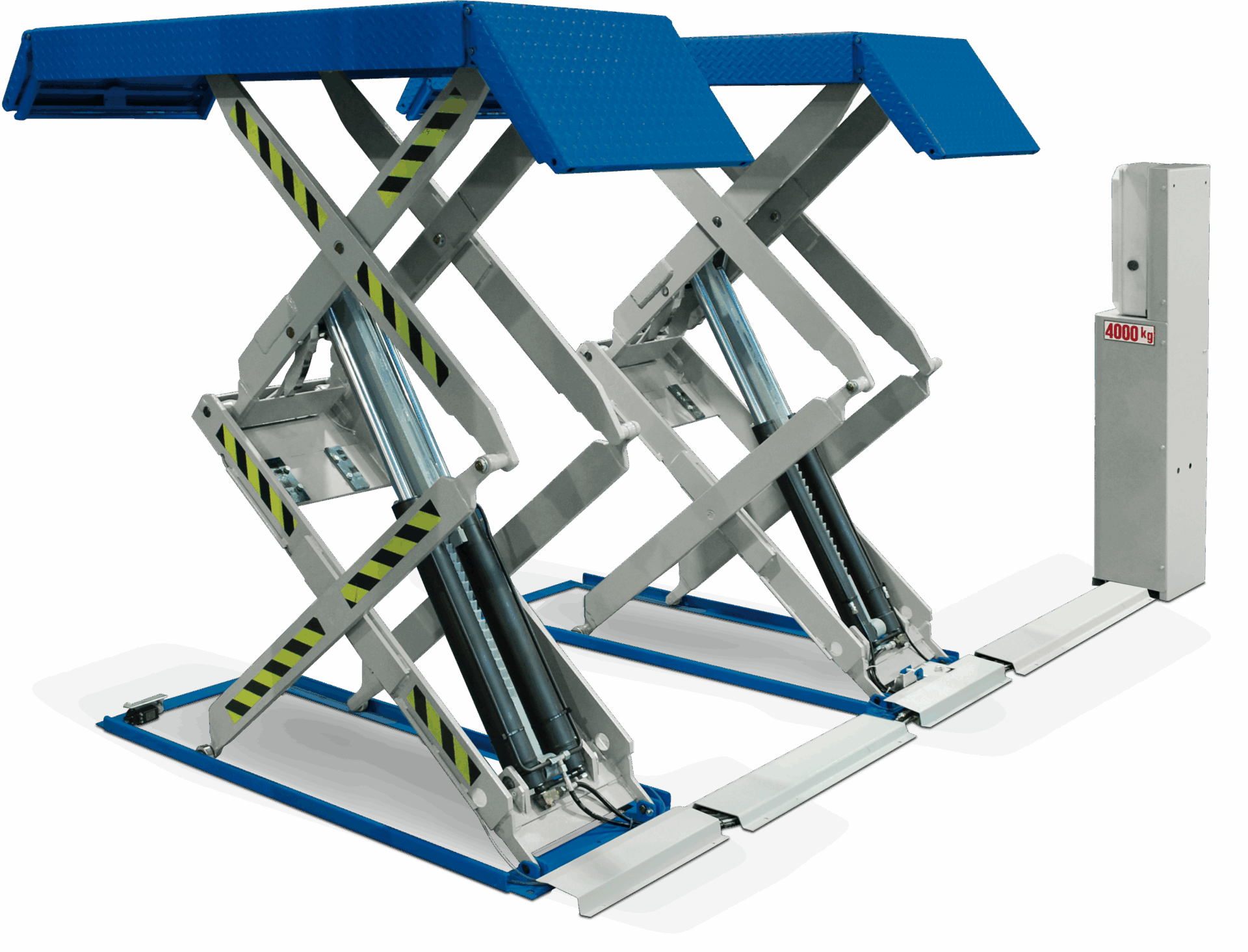

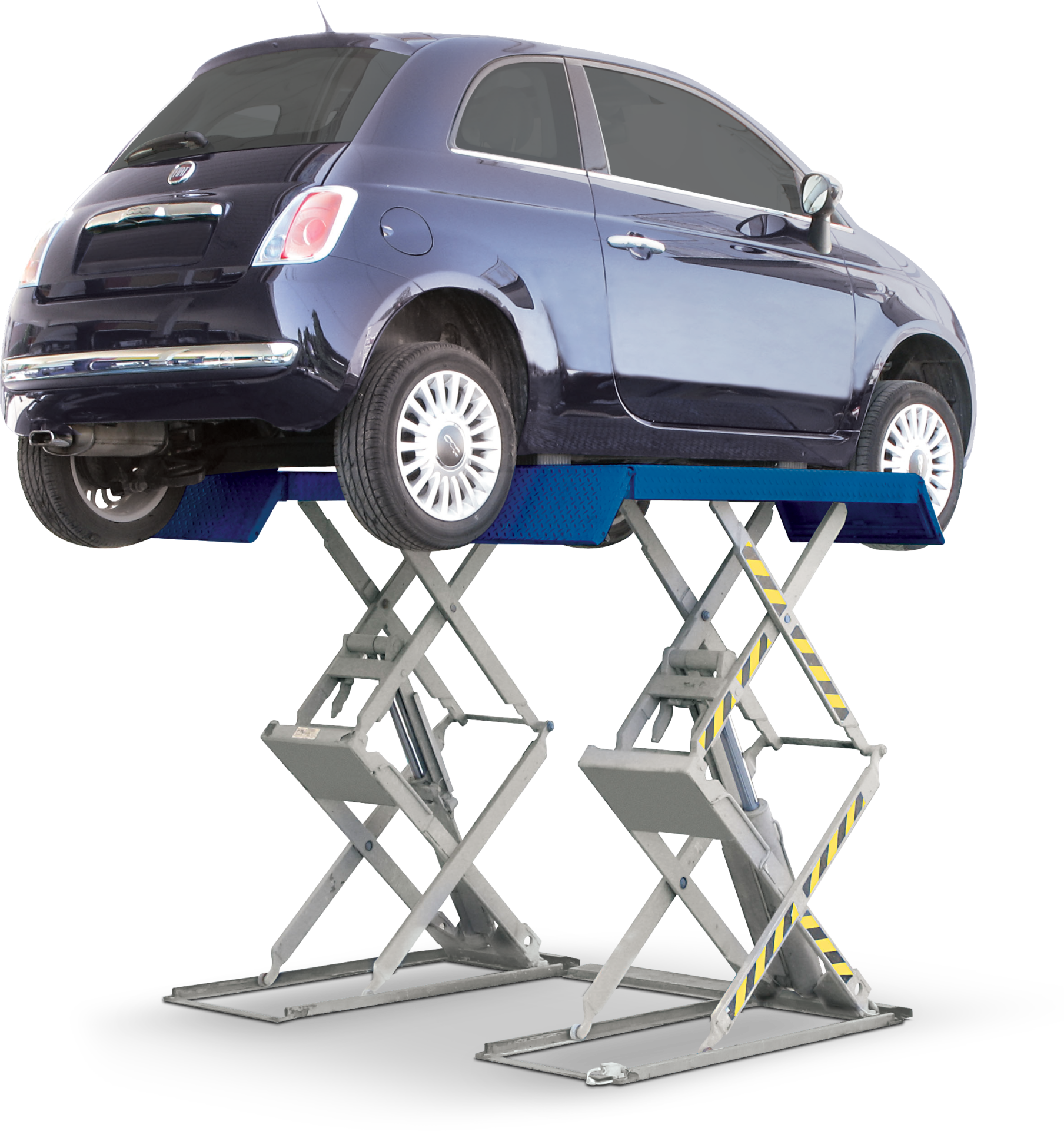

Double scissor lift RAV540

4.0 t, low-profile (135 mm), electrohydraulic, above ground

MPN: RAV.540XX.195234
GTIN (EAN): 5063084195234
Category:
Tags: ,

Share on:

dashicons-media-document

Description

High capacity model with longer lifting plates

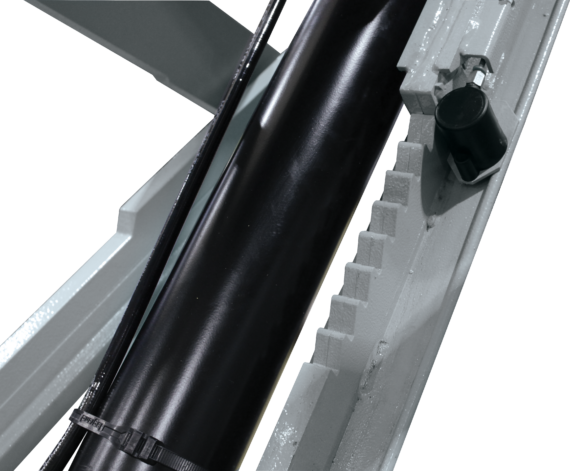

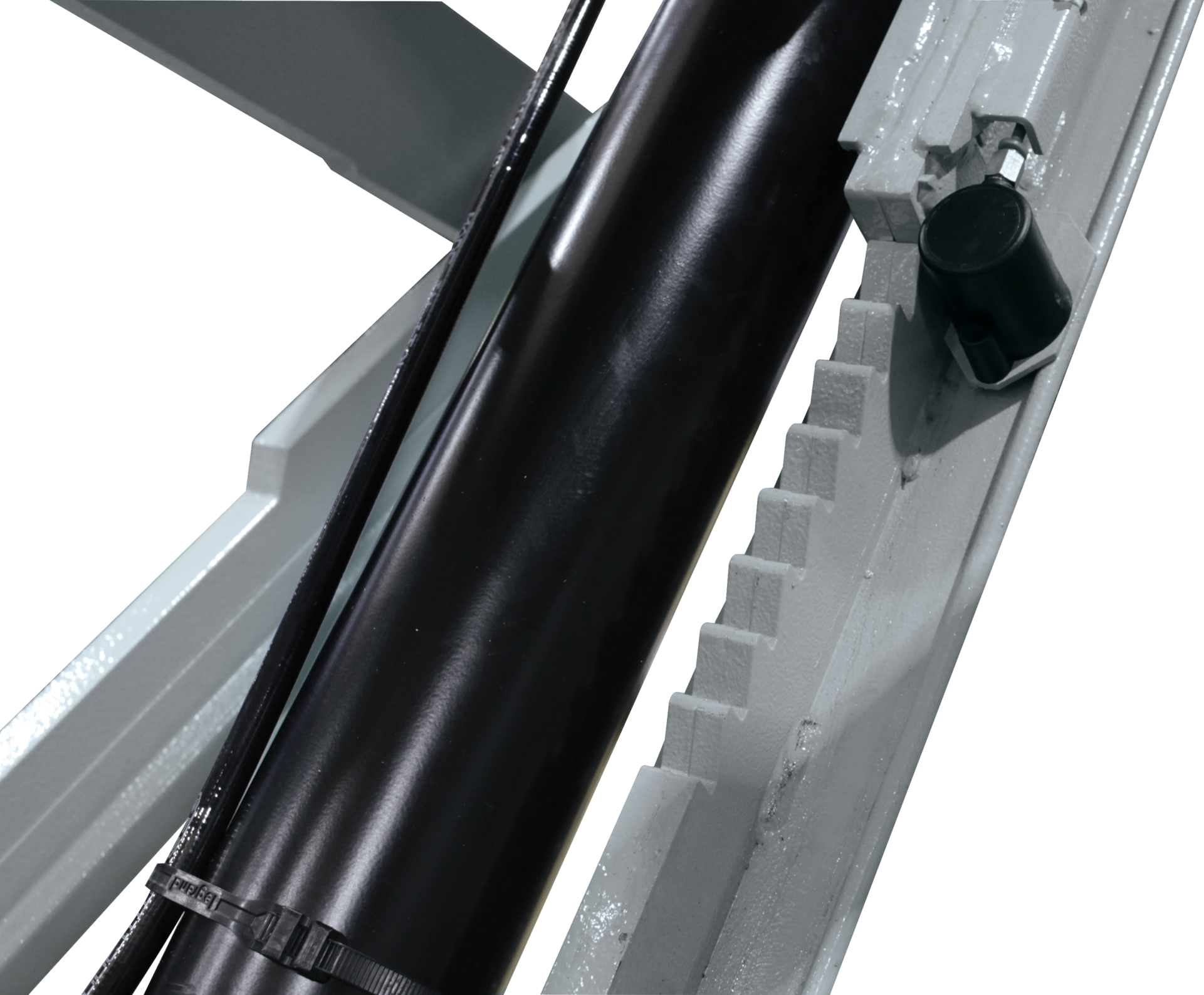

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • All pivot points made with self lubricating bushings for long life

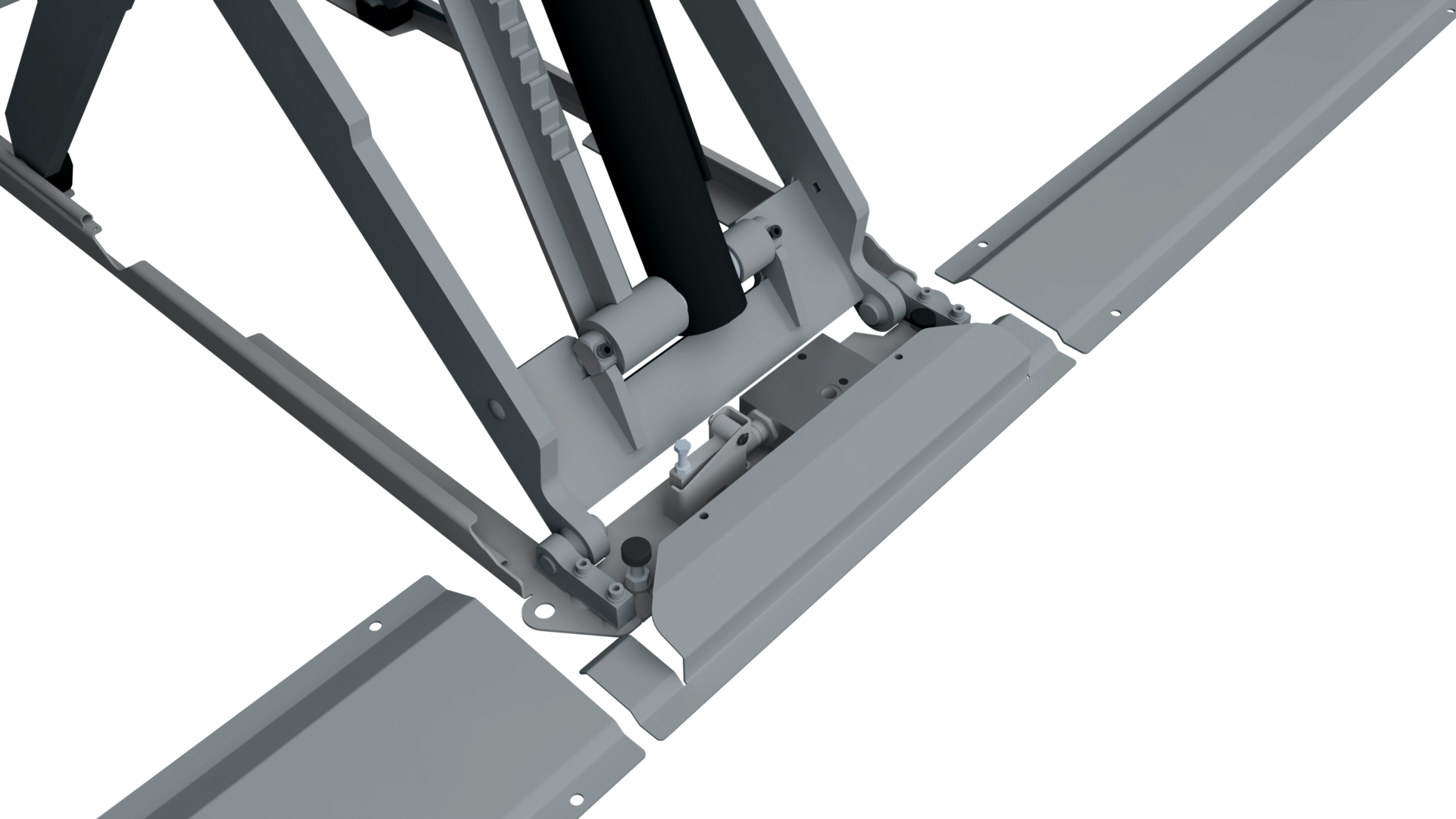

  • Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
  • No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
  • Controlled speed during initial lifting and final lowering phase
  • Audible alarm during the final lowering phase
  • Forged scissors ends to grant maximum resistance to load
  • Drive-on-height 135 mm

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift RAV540Double scissor lift RAV540Double scissor lift RAV535Double scissor lift RAV535Double scissor lift RAV510IDouble scissor lift RAV510I
Scissor lift designDouble scissorsDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationfloor mountedfloor mountedsurface mounted
Rated load capacity4000kg3500kg3500kg
Max. lifting height2000mm1900mm1825mm
Lifting time loaded46s35s
Lowering time loaded27s30s
Play detectornot possiblenot possiblenot possible
Drive-on-height135mm100mm265mm
Wheel alignmentnot possiblenot possiblenot possible
Length of platforms2060mm1940mm1900mm
Width of platforms620mm610mm510mm
Wheel free liftnot possiblenot possiblenot possible
Driving power2,6kW2,6kW2,6kW
Power supply230/400 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz
Length2080mm1950mm1940mm
Width2030mm2020mm1920mm
Weight850kg750kg
