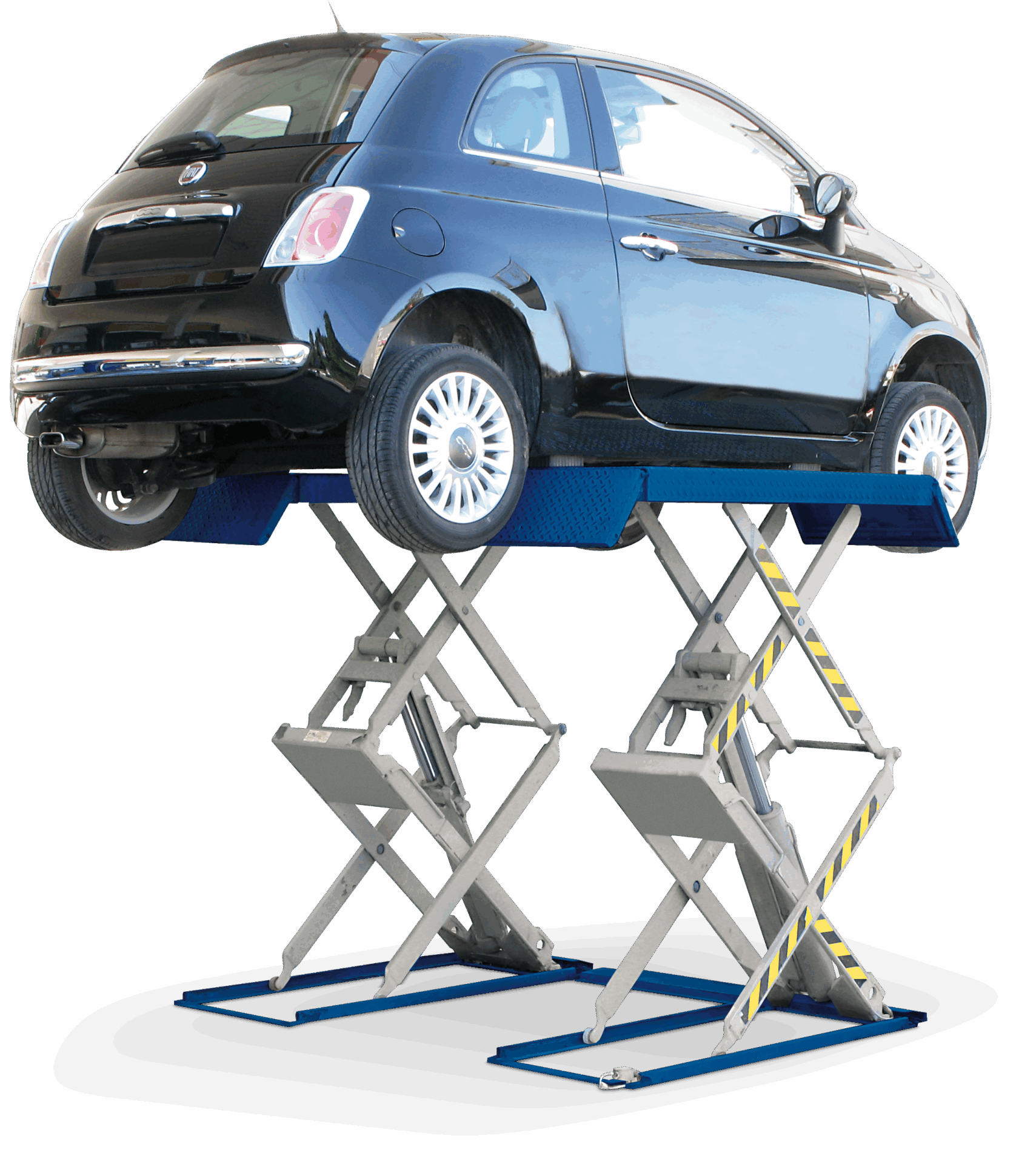

Double scissor lift RAV535Q

3.5 t, low-profile (100 mm), electrohydraulic, TEq-Link, above ground

MPN: RAV.535XX.195784
GTIN (EAN): 5063084195784
Category:
Tags: ,

Share on:

dashicons-media-document

Description

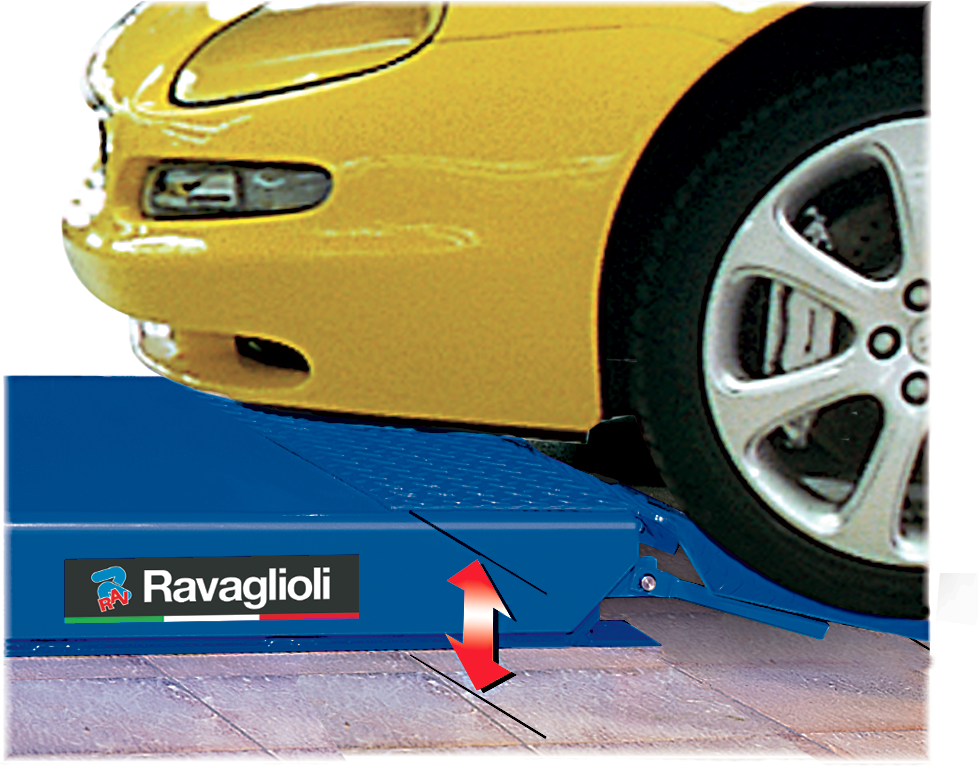

Extra low version (100 mm) – The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers. The lift is strongly recommended for vehicles with variable height, or damaged suspensions.

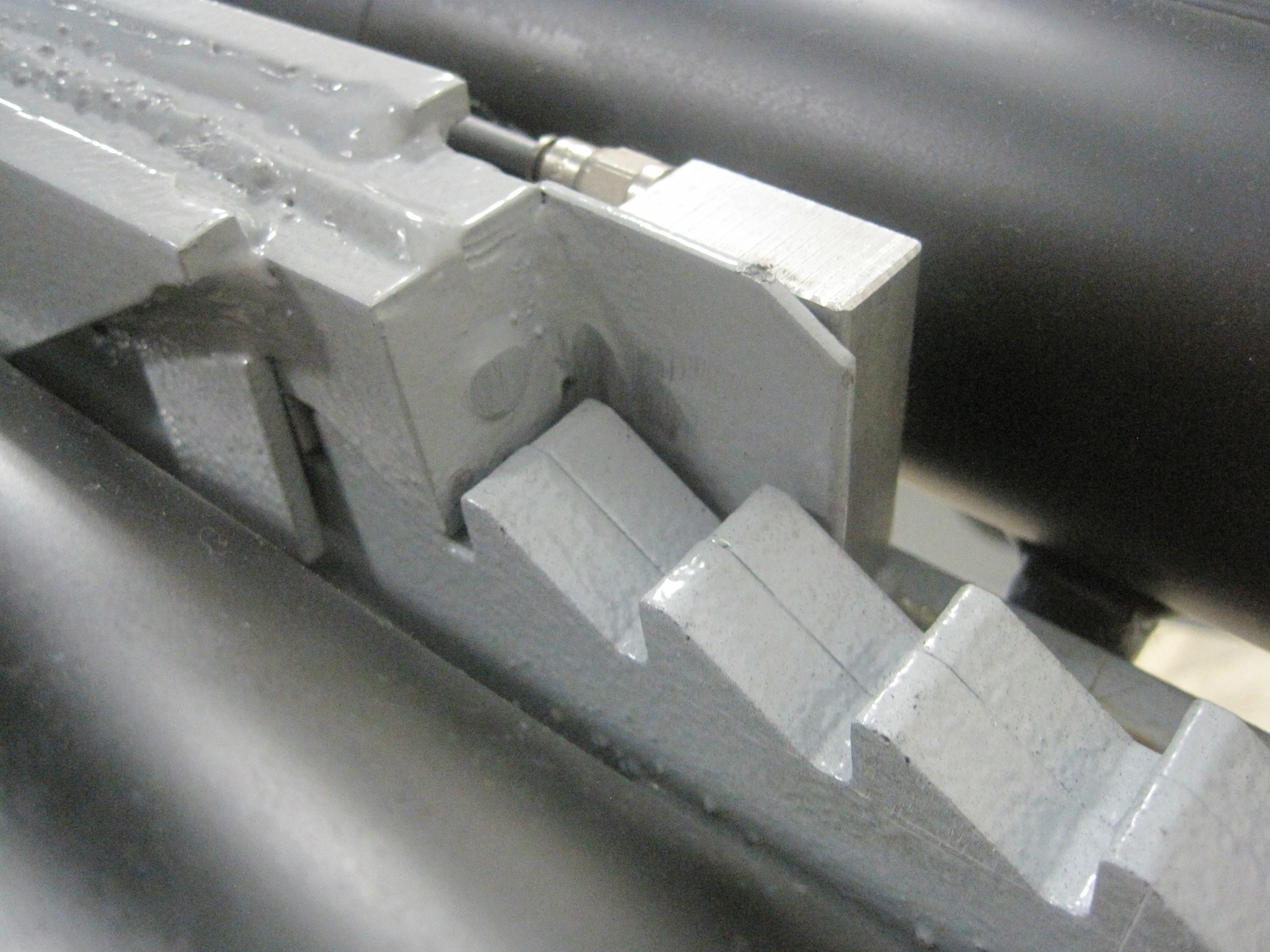

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • All pivot points made with self lubricating bushings for long life

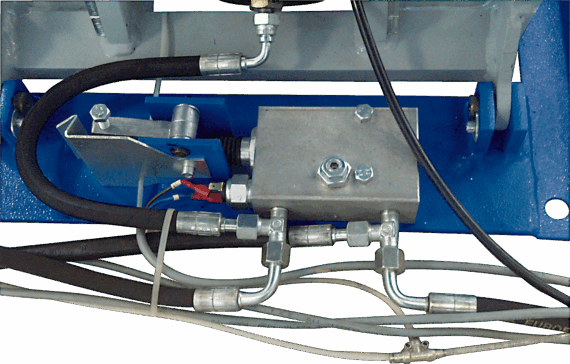

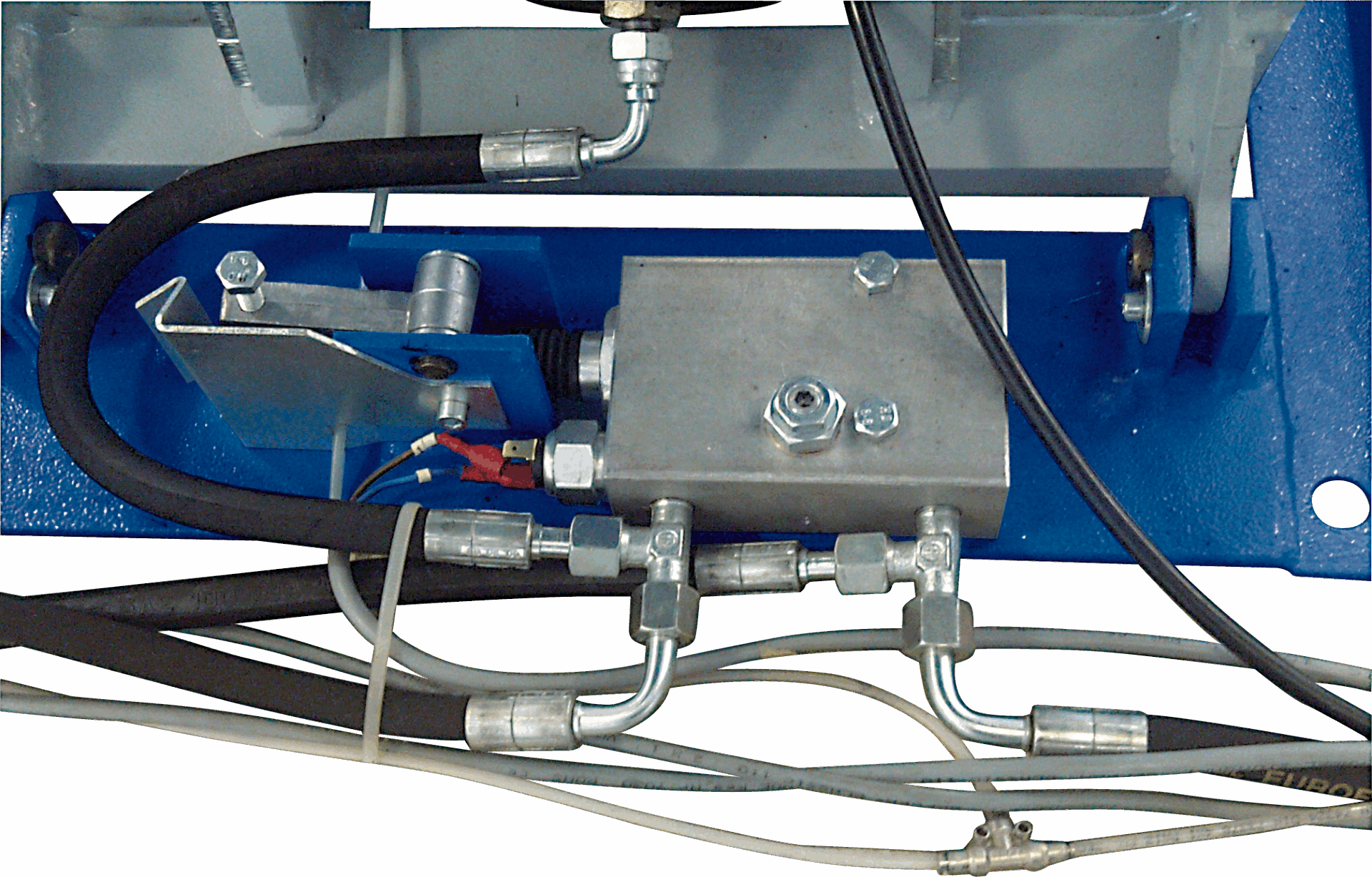

  • Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
  • No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
  • Controlled speed during initial lifting and final lowering phase
  • Audible alarm during the final lowering phase

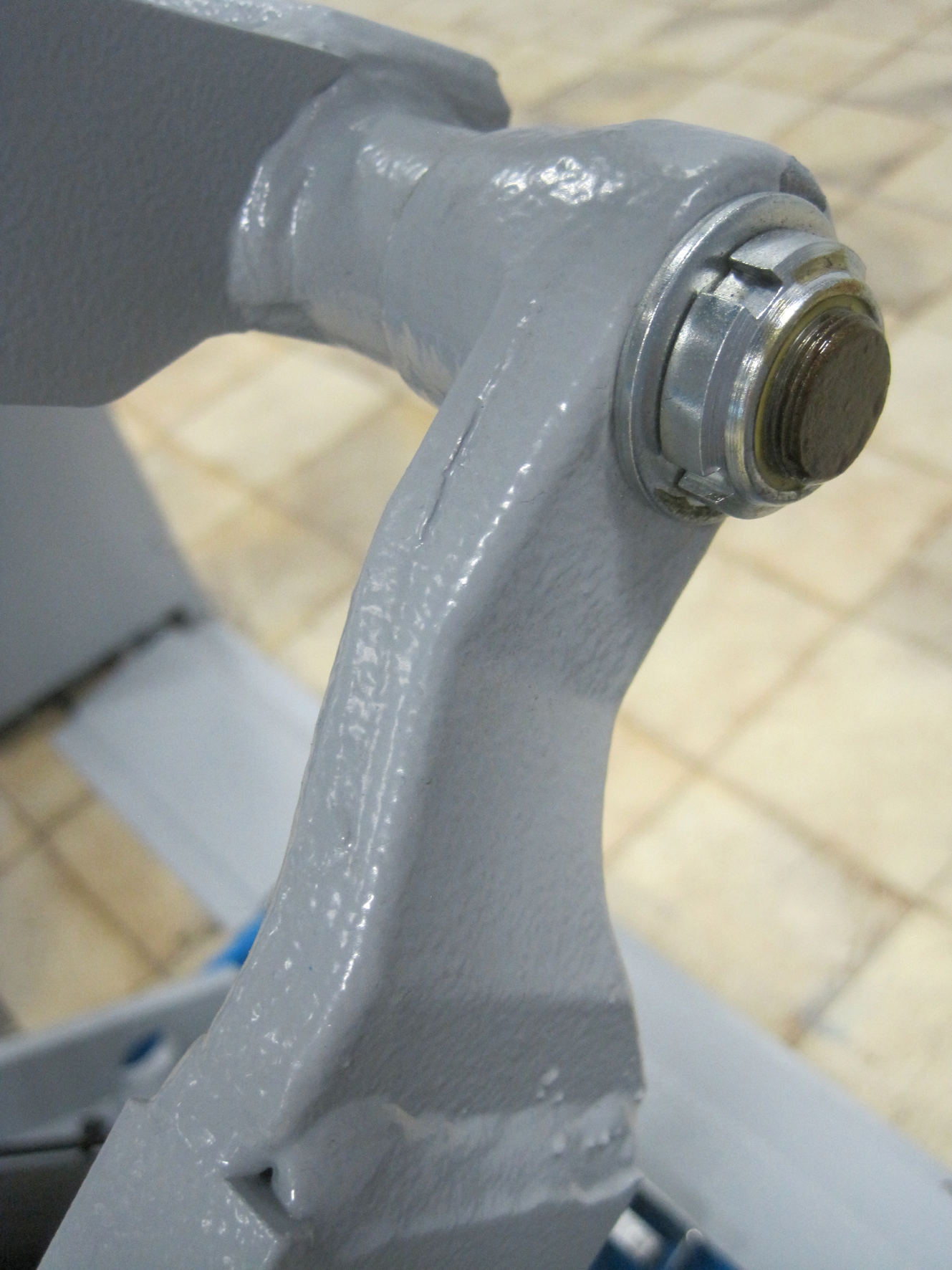

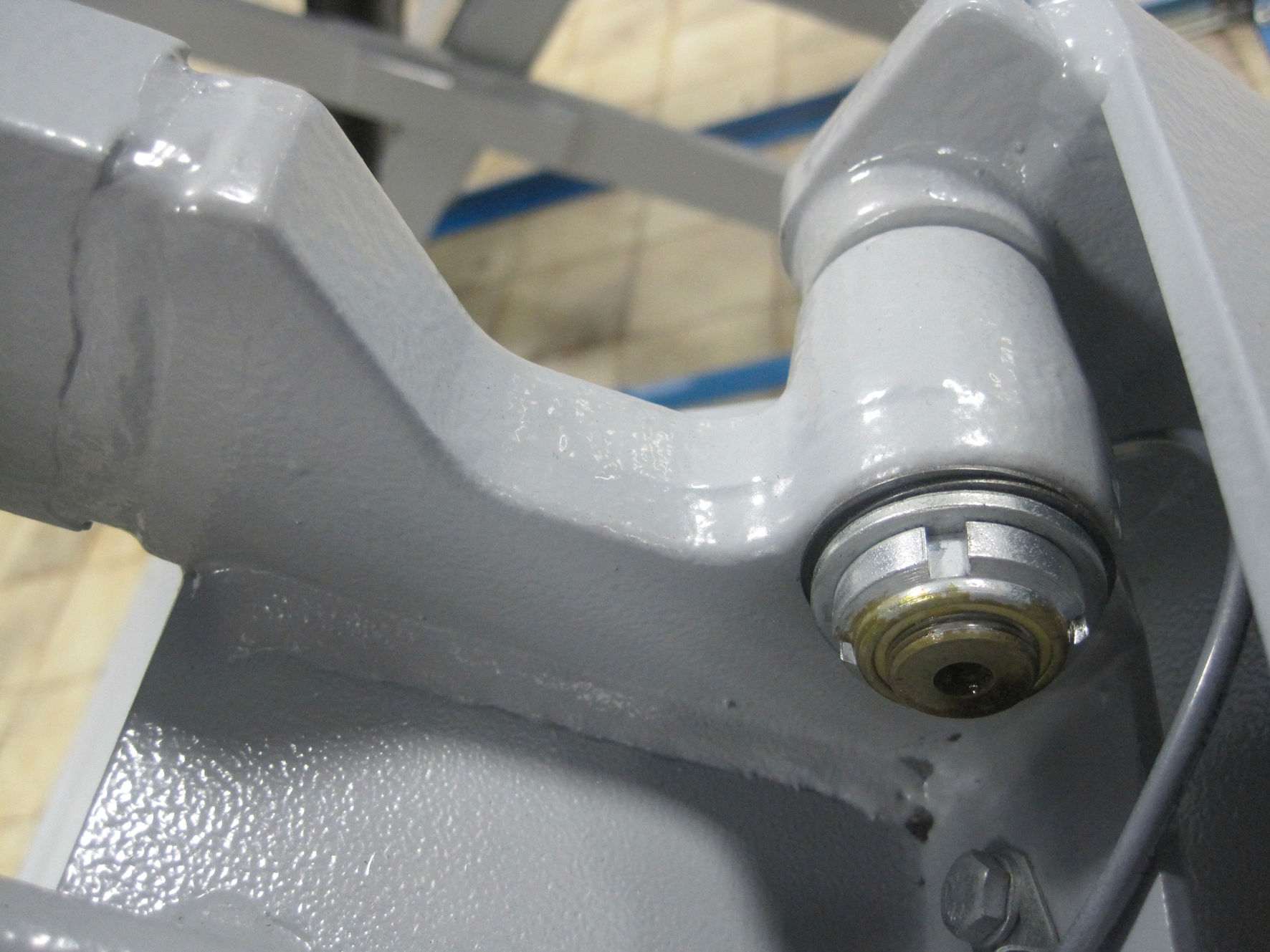

  • Forged scissors ends to grant maximum resistance to load

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift RAV535QDouble scissor lift RAV535QDouble scissor lift RAV535Double scissor lift RAV535Double scissor lift RAV510IQDouble scissor lift RAV510IQ
Scissor lift designDouble scissorsDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationfloor mountedfloor mountedsurface mounted
Rated load capacity3500kg3500kg3500kg
Max. lifting height1900mm1900mm1825mm
Lifting time loaded35s35s
Lowering time loaded30s30s
Play detectornot possiblenot possiblenot possible
Drive-on-height100mm100mm265mm
Wheel alignmentnot possiblenot possiblenot possible
Length of platforms1940mm1940mm1900mm
Width of platforms610mm610mm510mm
Wheel free liftnot possiblenot possiblenot possible
Driving power2,6kW2,6kW2,6kW
Power supply230/400 V | 50 Hz230/400 V | 50 Hz230 V | 50 Hz
Length1950mm1950mm1940mm
Width2020mm2020mm1920mm
Weight750kg750kg
