Double scissor lift RAV535L

3 t, low-profile (102 mm), electrohydraulic, above ground

MPN: RAV.535LX.195531
GTIN (EAN): 5063084195531
Category:
Tags: ,

Share on:

dashicons-media-document

Description

Extra low version (102 mm) – The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers. The lift is strongly recommended for vehicles with variable height, or damaged suspensions.

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • All pivot points made with self lubricating bushings for long life
  • Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
  • No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
  • Controlled speed during initial lifting and final lowering phase
  • Audible alarm during the final lowering phase
  • Forged scissors ends to grant maximum resistance to load
  • Minimum height from the floor of 102 mm

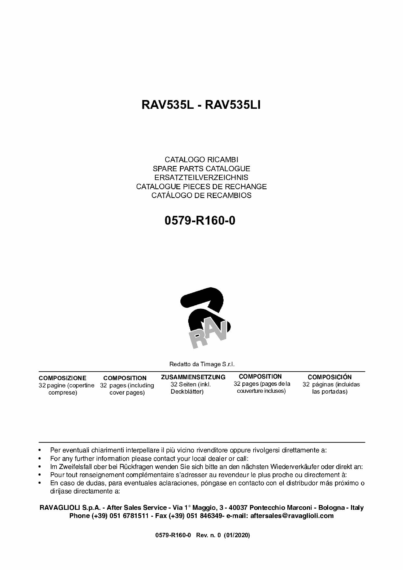

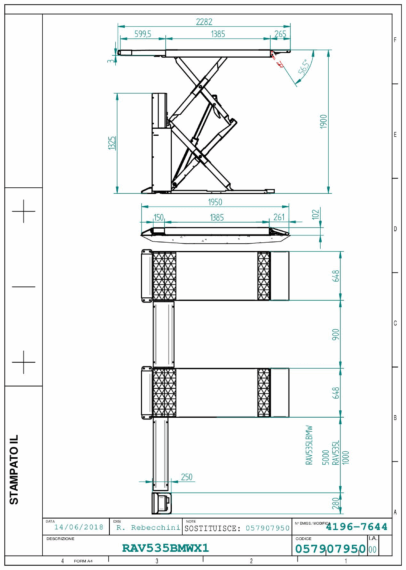

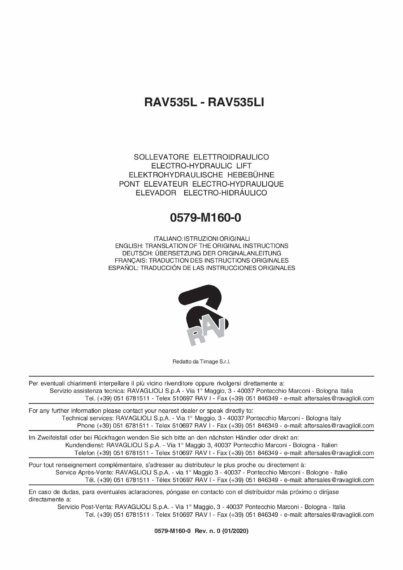

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift RAV535LDouble scissor lift RAV535LDouble scissor lift RAV535Double scissor lift RAV535
Scissor lift designDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulic
Type of installationfloor mountedfloor mounted
Rated load capacity3000kg3500kg
Max. lifting height1900mm1900mm
Время подъема в нагруженном состоянии35с
Время опускания в нагруженном состоянии30с
Play detectornot possiblenot possible
Высота подъема100мм
Wheel alignmentnot possiblenot possible
Length of platforms1950mm1940mm
Ширина платформ648мм
Wheel free liftnot possiblenot possible
Мощность привода2,6кВт
Электрическое соединение230/400 В | 50 Гц
Длина2282мм
Width2196mm2020mm
Вес750кг
