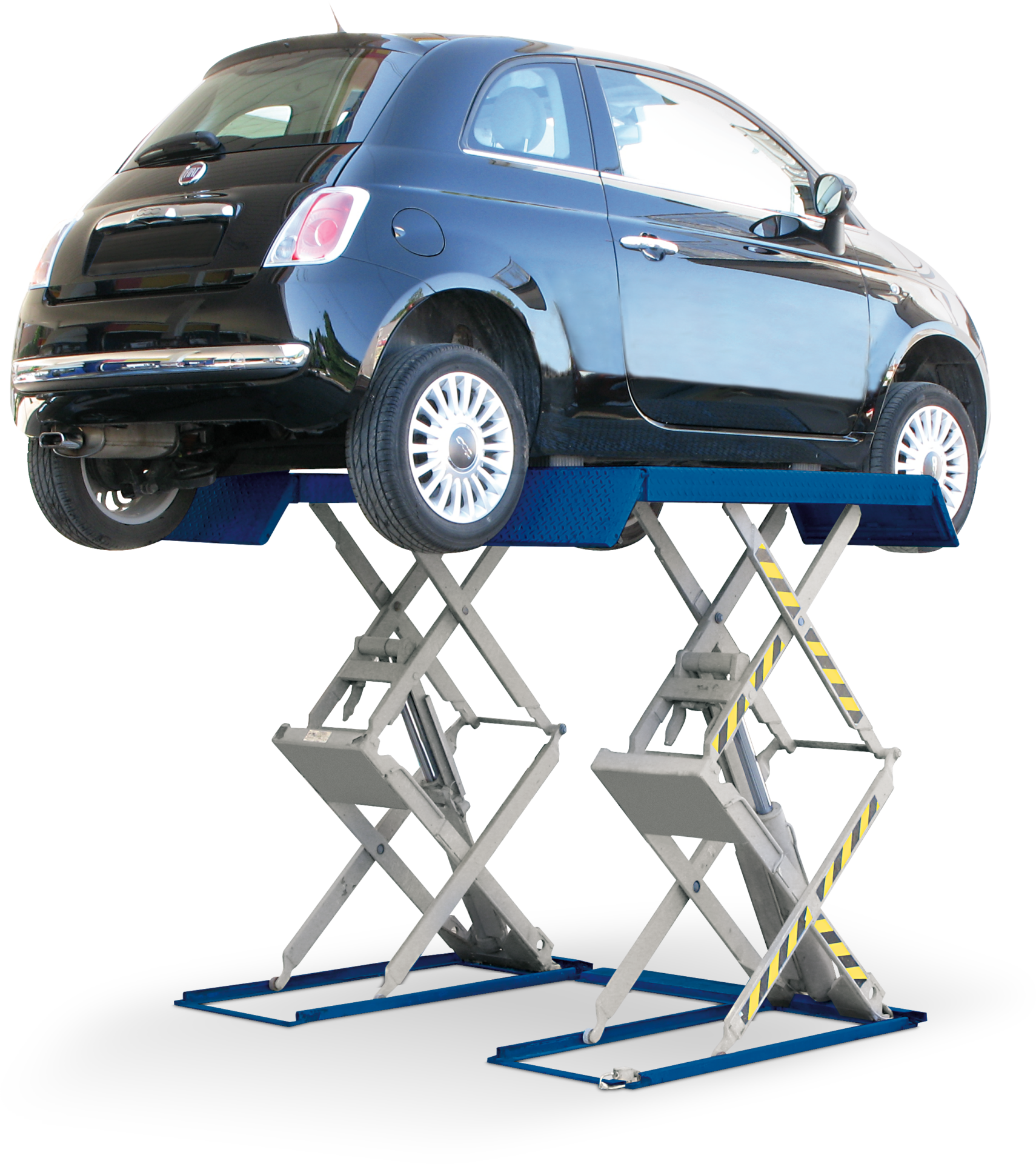

Double scissor lift RAV535

3.5 t, low-profile (100 mm), electrohydraulic, above ground

Description

Extra low version (100 mm) – The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers. The lift is strongly recommended for vehicles with variable height, or damaged suspensions.

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • All pivot points made with self lubricating bushings for long life

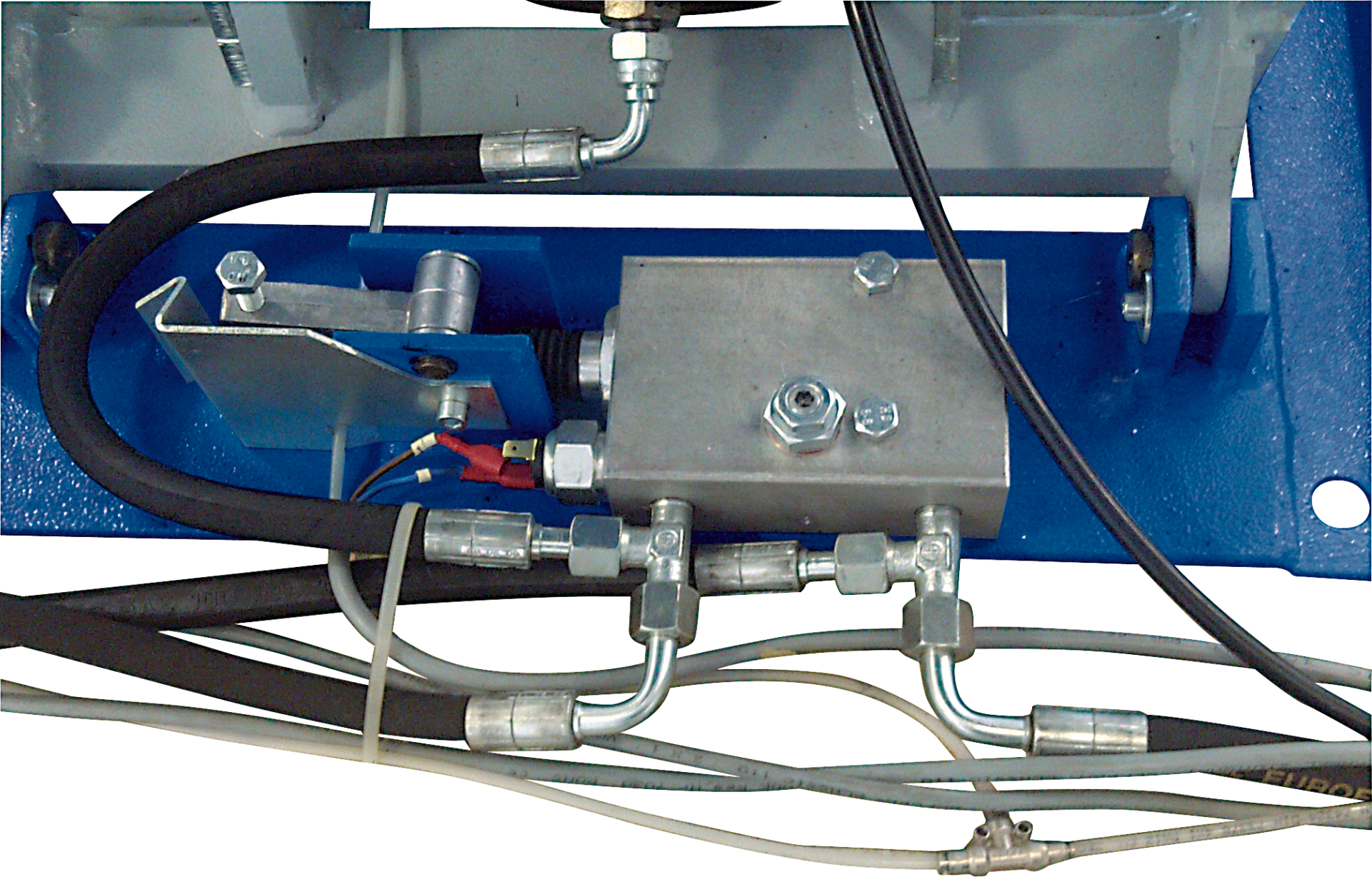

  • Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
  • No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
  • Controlled speed during initial lifting and final lowering phase
  • Audible alarm during the final lowering phase
  • Forged scissors ends to grant maximum resistance to load

Additional information

Scissor lift design

Double scissors

Mode of drive

Electrohydraulic

Type of installation

Floor mounted

Capacity

3500kg

Max. lifting height

1900mm

Lifting time loaded

35s

Lowering time loaded

30s

Play detector

Not possible

Drive-on-height

100mm

Wheel alignment

Not possible

Length of platforms

1940mm

Width of platforms

610mm

Wheel free lift

Not possible

Driving power

2,6kW

Electrical connection

230/400 V, 50 Hz

Length

1950mm

Width

2020mm
