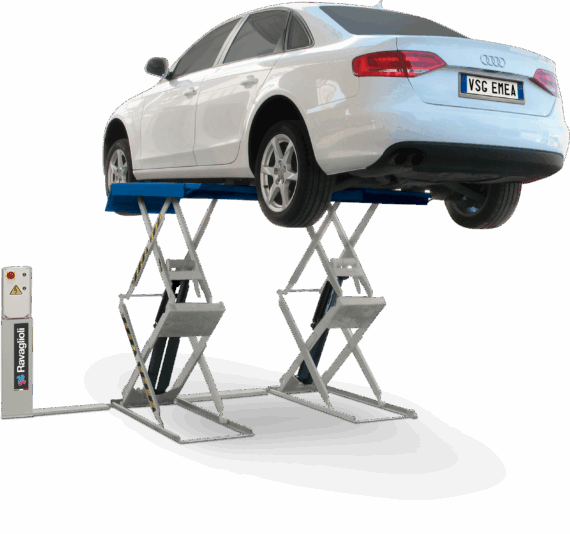

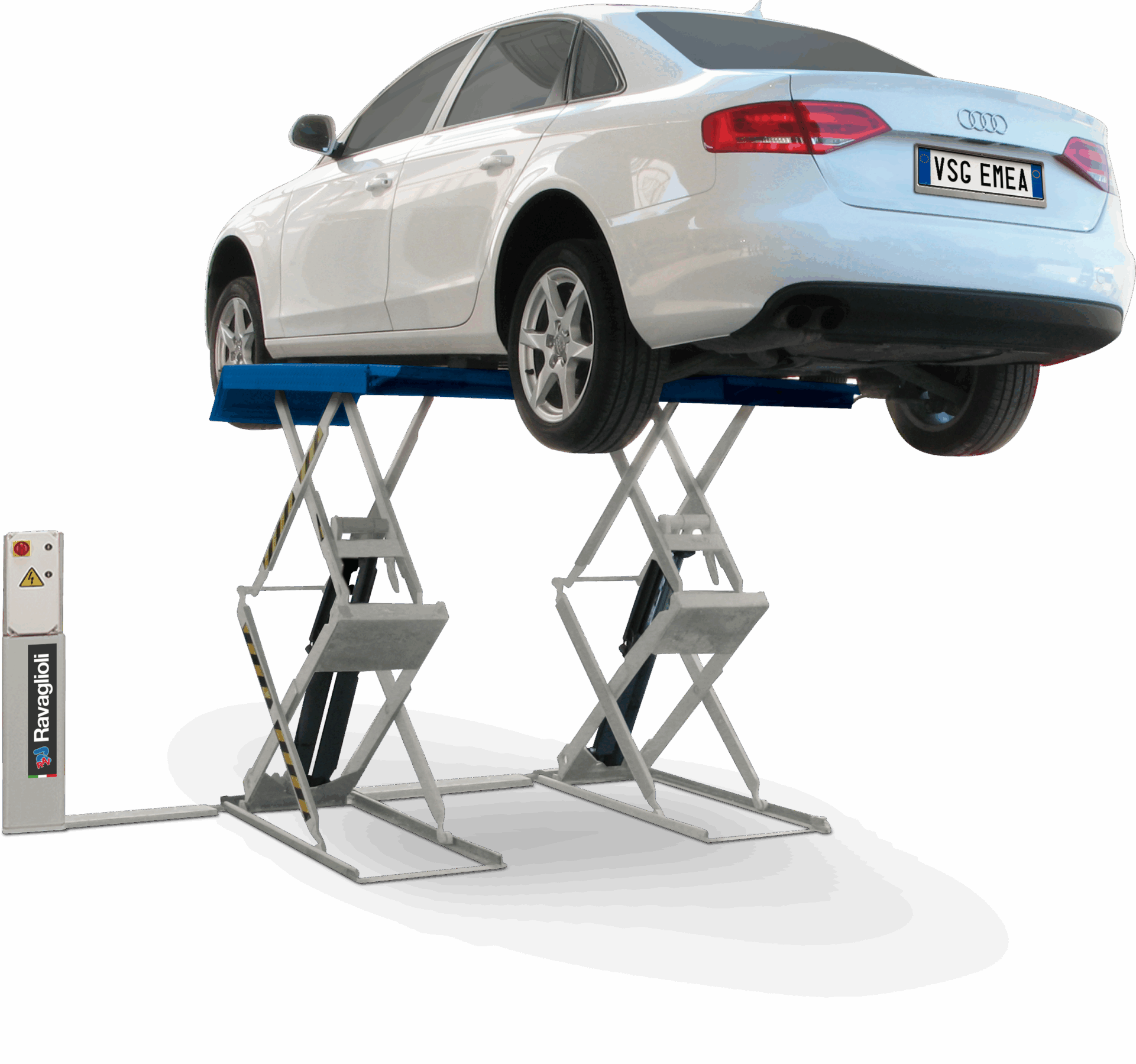

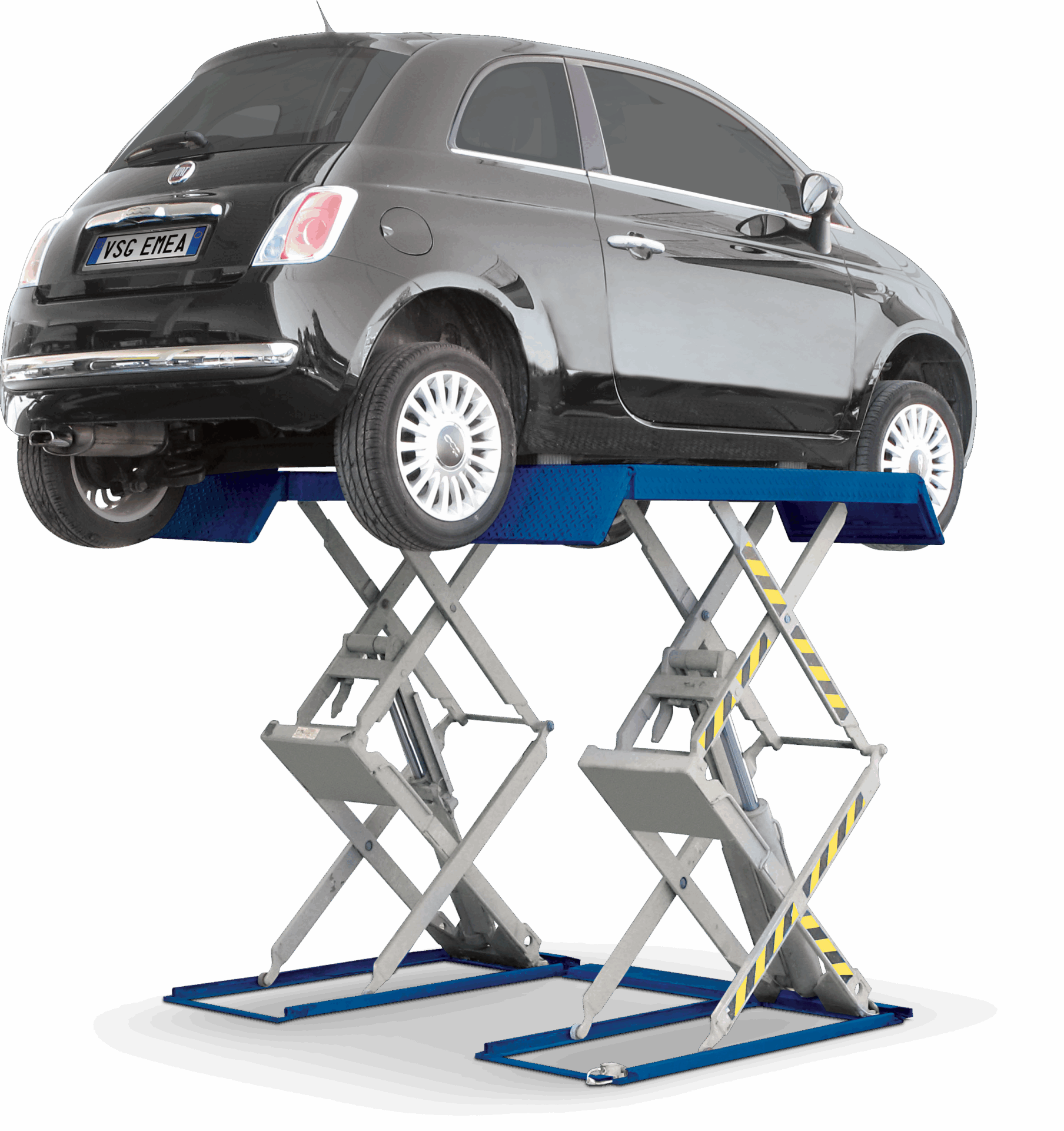

Double scissor lift RAV518TQ

3.0 t, low-profile (95 mm), electrohydraulic, TEq-Link, above ground

MPN: RAV.518TX.195081
GTIN (EAN): 5063084195081
Category:
Tags: ,

Share on:

dashicons-media-document

Description

Extra low version (95 mm) – The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers. The lift is strongly recommended for vehicles with variable height, or damaged suspensions.

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • All pivot points made with self lubricating bushings for long life
  • Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
  • No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
  • Controlled speed during initial lifting and final lowering phase
  • Audible alarm during the final lowering phase
  • Forged scissors ends to grant maximum resistance to load

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift RAV518TQDouble scissor lift RAV518TQDouble scissor lift RAV509IF | 230/400 V / 50 HzDouble scissor lift RAV509IF | 230/400 V / 50 HzDouble scissor lift RAV510IQDouble scissor lift RAV510IQDouble scissor lift RAV518TDouble scissor lift RAV518TDouble scissor lift RAV535QDouble scissor lift RAV535Q
Scissor lift designDouble scissorsDouble scissorsDouble scissorsDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationfloor mountedsurface mountedsurface mountedfloor mountedfloor mounted
Rated load capacity3000kg3500kg3500kg3000kg3500kg
Max. lifting height1900mm1825mm1825mm1900mm1900mm
Lifting time loaded33s33s35s
Lowering time loaded20s20s30s
Play detectornot possiblenot possiblenot possiblenot possiblenot possible
Drive-on-height95mm255mm265mm95mm100mm
Wheel alignmentnot possiblenot possiblenot possiblenot possiblenot possible
Length of platforms1940mm1580mm1900mm1940mm1940mm
Width of platforms610mm510mm510mm610mm610mm
Wheel free liftnot possiblenot possiblenot possiblenot possiblenot possible
Driving power2,6kW2,6kW2,6kW2,6kW2,6kW
Power supply230/400 V | 50 Hz230/400 V | 50 Hz230 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz
Length1940mm1610mm1940mm1940mm1950mm
Width2020mm1920mm1920mm2020mm2020mm
Weight715kg815kg715kg750kg
