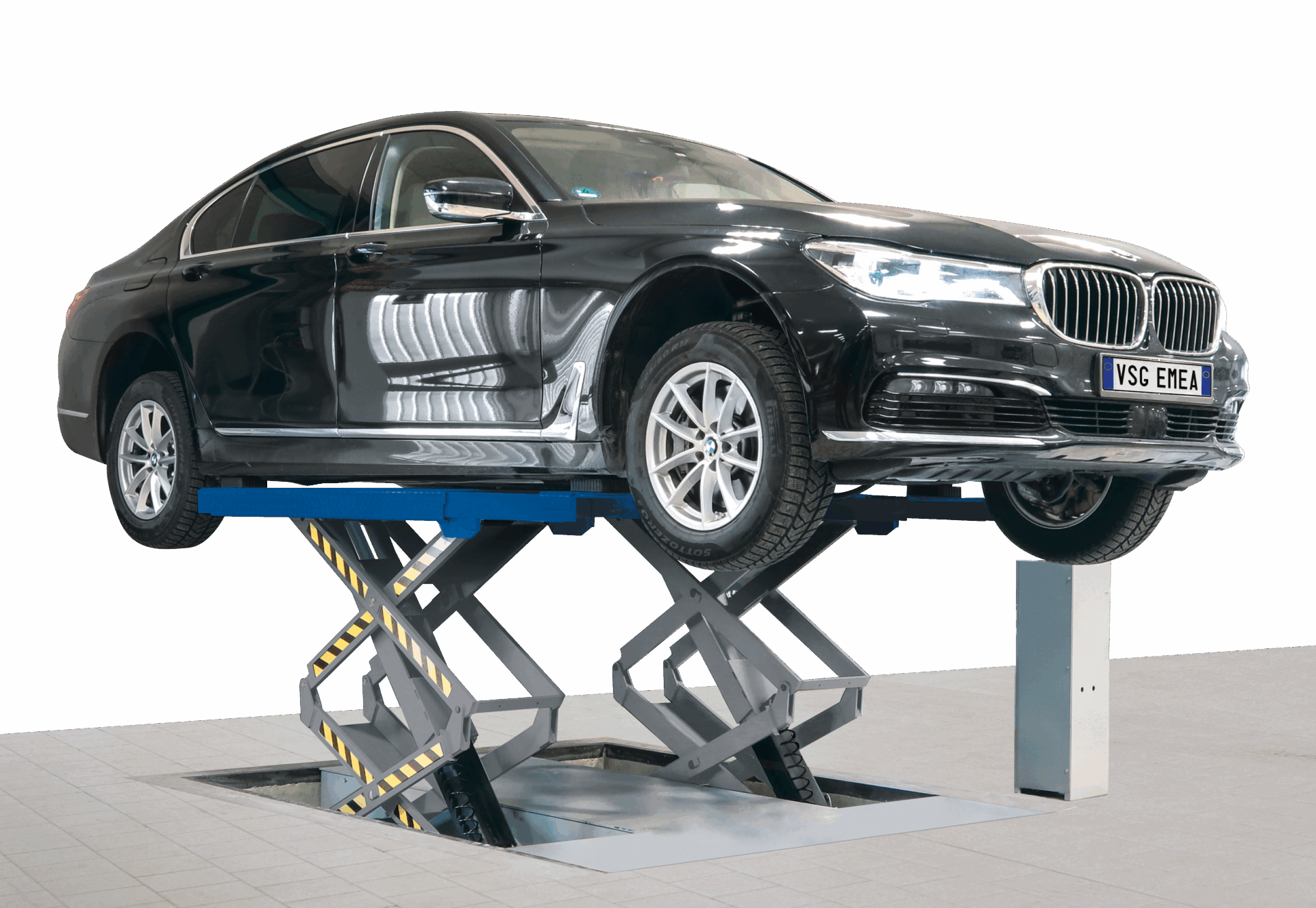

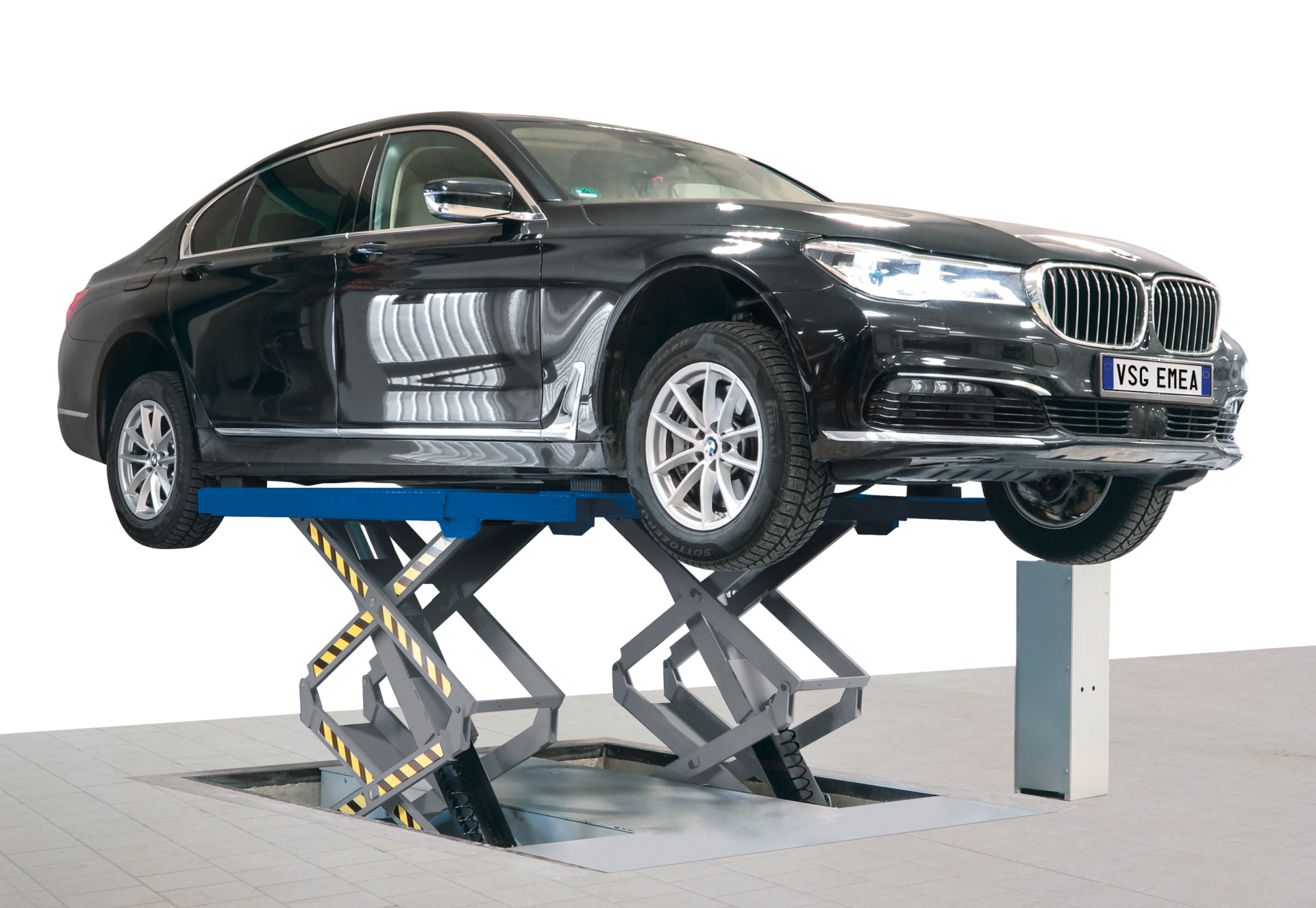

Double scissor lift RAV510IQ

3.5 t, electrohydraulic, TEq-Link, inground

MPN: RAV.510IX.196538
GTIN (EAN): 5063084196538
Category:
Tags: ,

Share on:

dashicons-media-document

Description

Extensible platforms to reach pick up points of the more demanding vehicles. The best solution for a rational workshop.

  • Space-saving when lift is all raised

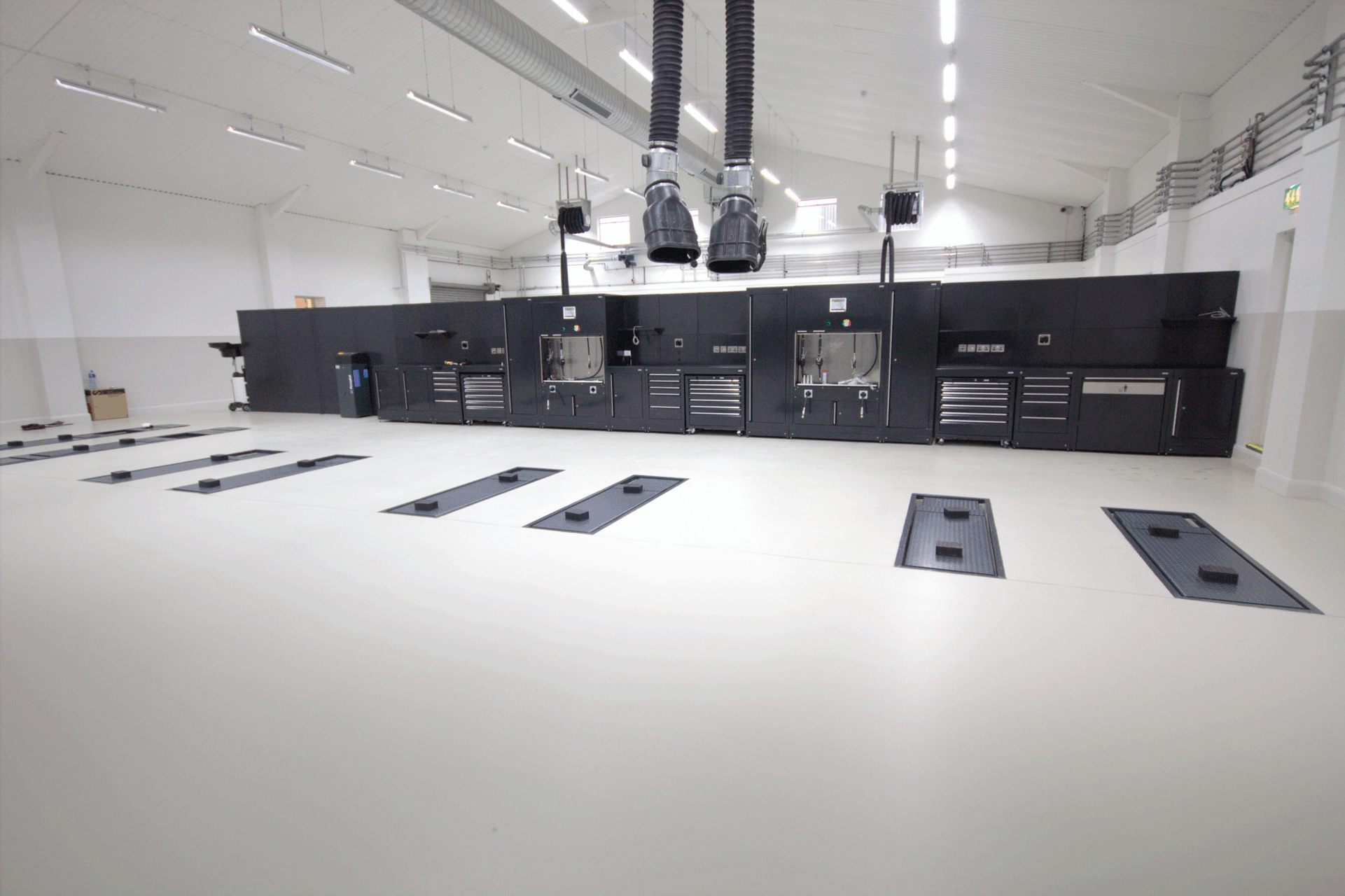

  • Completely free floor space when lift is fully lowered
  • All pivot points made with self lubricating bushings for long life

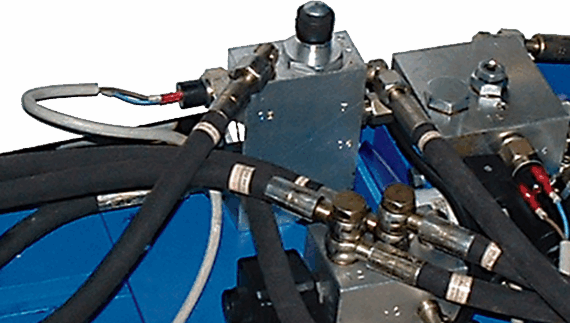

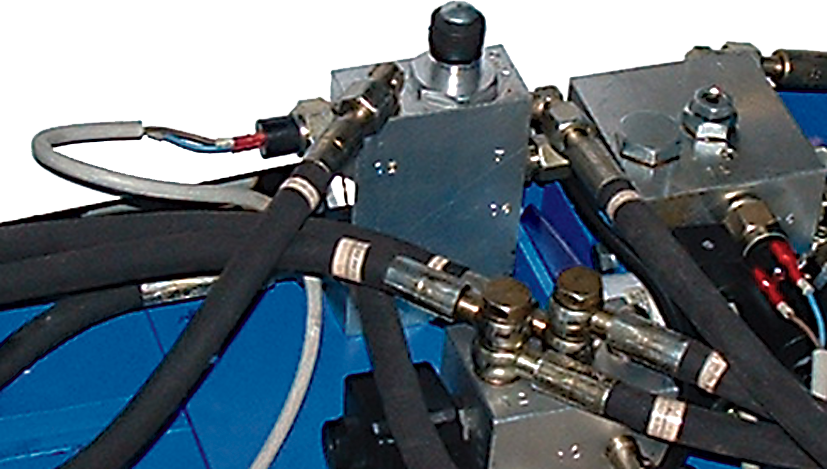

  • Every time the platforms reach the floor, the lift is perfectly levelled thanks to a patented valve

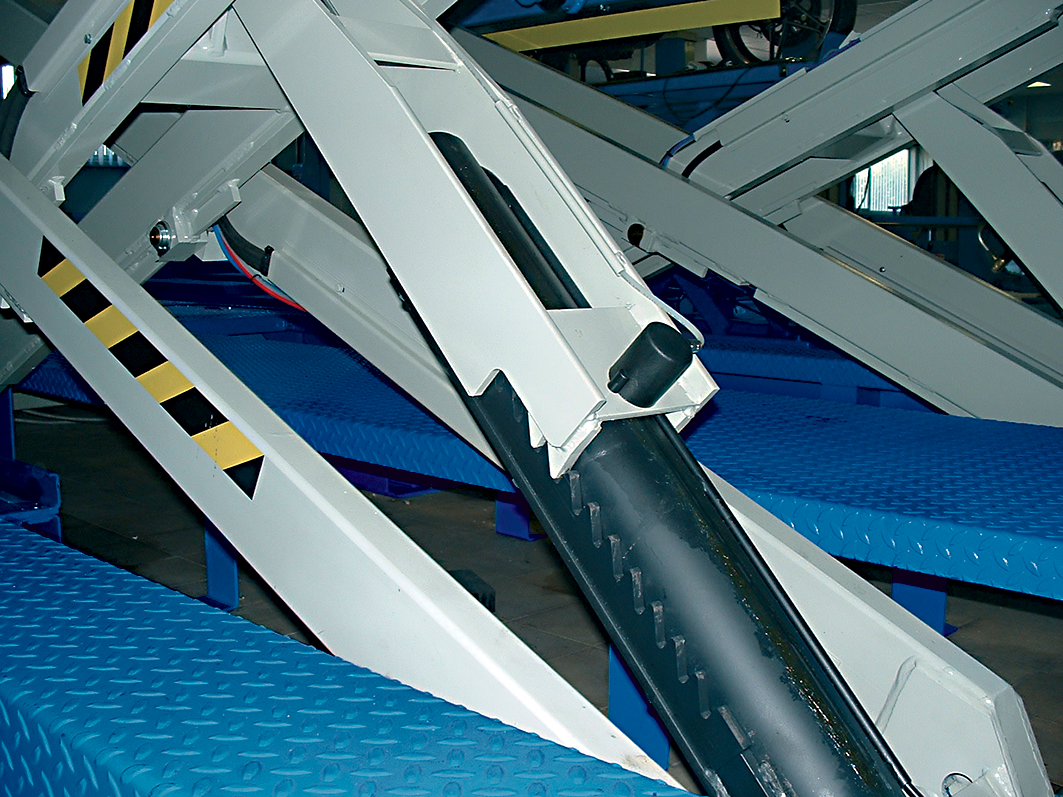

  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift RAV510IQDouble scissor lift RAV510IQDouble scissor lift RAV510IDouble scissor lift RAV510IDouble scissor lift RAV518TQDouble scissor lift RAV518TQDouble scissor lift RAV535QDouble scissor lift RAV535Q
Scissor lift designDouble scissorsDouble scissorsDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Type of installationsurface mountedsurface mountedfloor mountedfloor mounted
Rated load capacity3500kg3500kg3000kg3500kg
Max. lifting height1825mm1825mm1900mm1900mm
Lifting time41s41s
Lowering time41s41s
Play detectornot possiblenot possiblenot possiblenot possible
Drive-on-height265mm265mm95mm100mm
Wheel alignmentnot possiblenot possiblenot possiblenot possible
Length of platforms1900mm1900mm1940mm1940mm
Width of platforms510mm510mm610mm610mm
Wheel free liftnot possiblenot possiblenot possiblenot possible
Driving power2,6kW2,6kW2,6kW2,6kW
Power supply230 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz
Length1940mm1940mm1940mm1950mm
Width1920mm1920mm2020mm2020mm
