3.5 t, electrohydraulic, inground
Fixed length of platforms for easy use. The best solution for a rational workshop.
3.5 t, electrohydraulic, inground
for vans and off-road vehicles
“m” meter, control unit right | mounting the operating unit in a special position – in drive-up direction “right” from…
Additional ramps on the short ramp side | 1 set

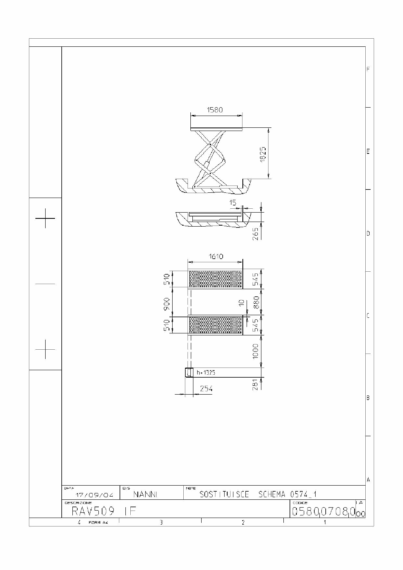

| Features | Double scissor lift RAV509IF | 3 x 230/400 V / 60 Hz | Double scissor lift RAV509IF | 230/400 V / 50 Hz |
|---|---|---|
| Scissor lift design | Double scissors | Double scissors |
| Mode of drive | electrohydraulic | electrohydraulic |
| Type of installation | surface mounted | surface mounted |
| Rated load capacity | 3500kg | 3500kg |
| Max. lifting height | 1825mm | 1825mm |
| Lifting time | 41s | 41s |
| Lowering time | 41s | 41s |
| Play detector | not possible | not possible |
| Drive-on-height | 255mm | 255mm |
| Wheel alignment | not possible | not possible |
| Length of platforms | 1580mm | 1580mm |
| Width of platforms | 510mm | 510mm |
| Wheel free lift | not possible | not possible |
| Driving power | 2,6kW | 2,6kW |
| Power supply | 230/400 V | 60 Hz | 230/400 V | 50 Hz |
| Phases | 3 | — |
| Length | 1610mm | 1610mm |
| Width | 1920mm | 1920mm |
| Weight | 815kg | 815kg |
