Double scissor lift RAV508I

3.0 t, electrohydraulic, inground

Description

Extensible platforms to reach pick up points of the more demanding vehicles. The best solution for a rational workshop.

  • Space-saving when lift is all raised

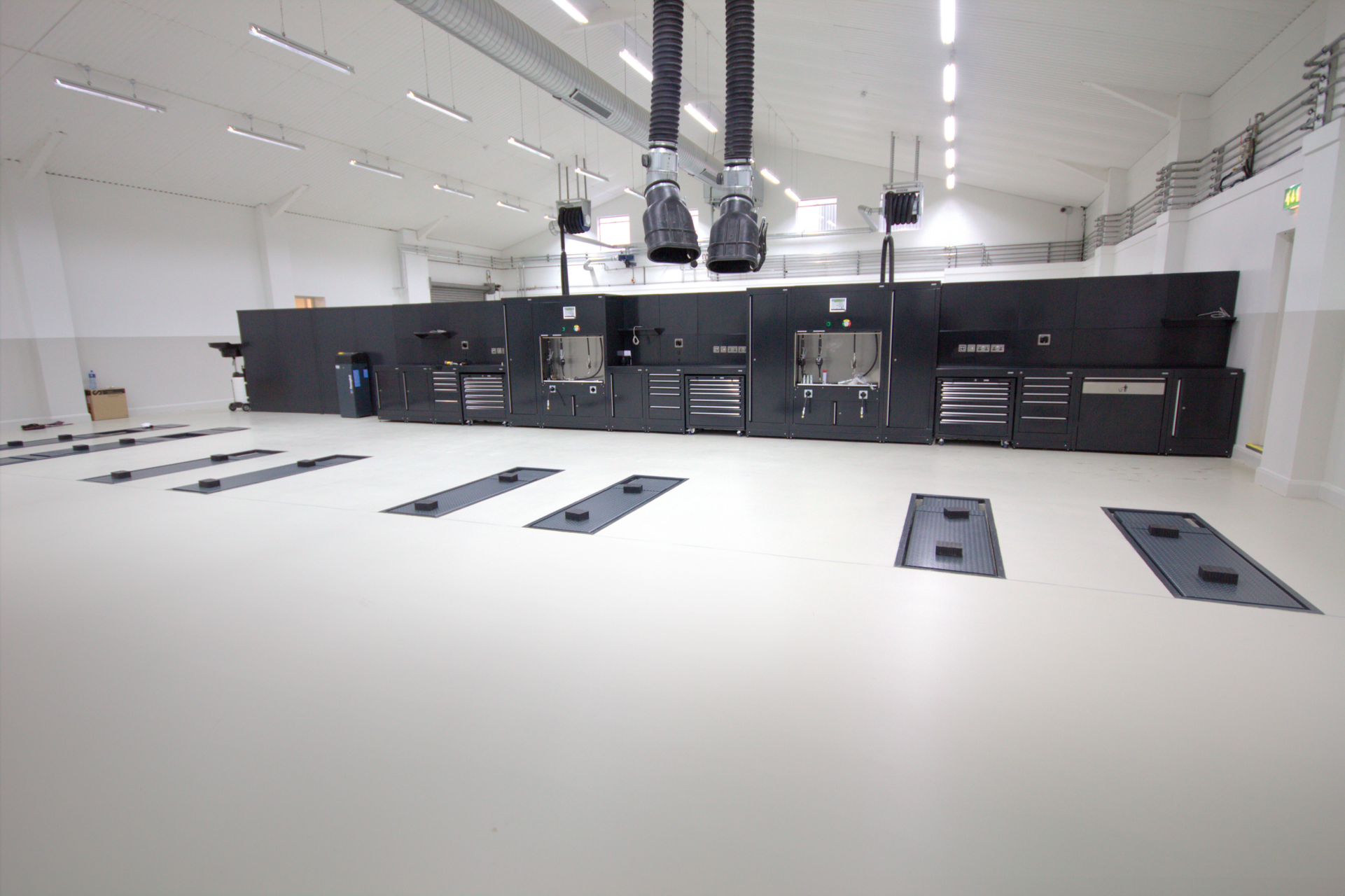

  • Completely free floor space when lift is fully lowered
  • All pivot points made with self lubricating bushings for long life
  • Every time the platforms reach the floor, the lift is perfectly levelled thanks to a patented valve
  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position

Additional information

Scissor lift design

Double scissors

Mode of drive

Electrohydraulic

Type of installation

Surface mounted

Capacity

3000kg

Max. lifing height at floor level

1825mm

Lifting time

38s

Lowering time

38s

Play detector

Not possible

Drive-on-height

265mm

Wheel alignment

Not possible

Length of platforms

1730mm

Width of platforms

510mm

Wheel free lift

Not possible

Driving power

2,6kW

Electrical connection

230/400 V, 50 Hz

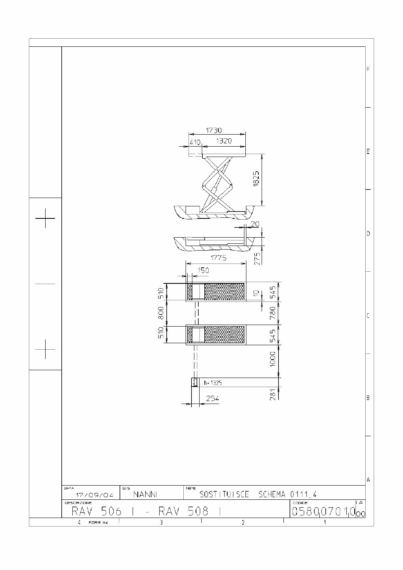

Length

1775mm

Width

1920mm
