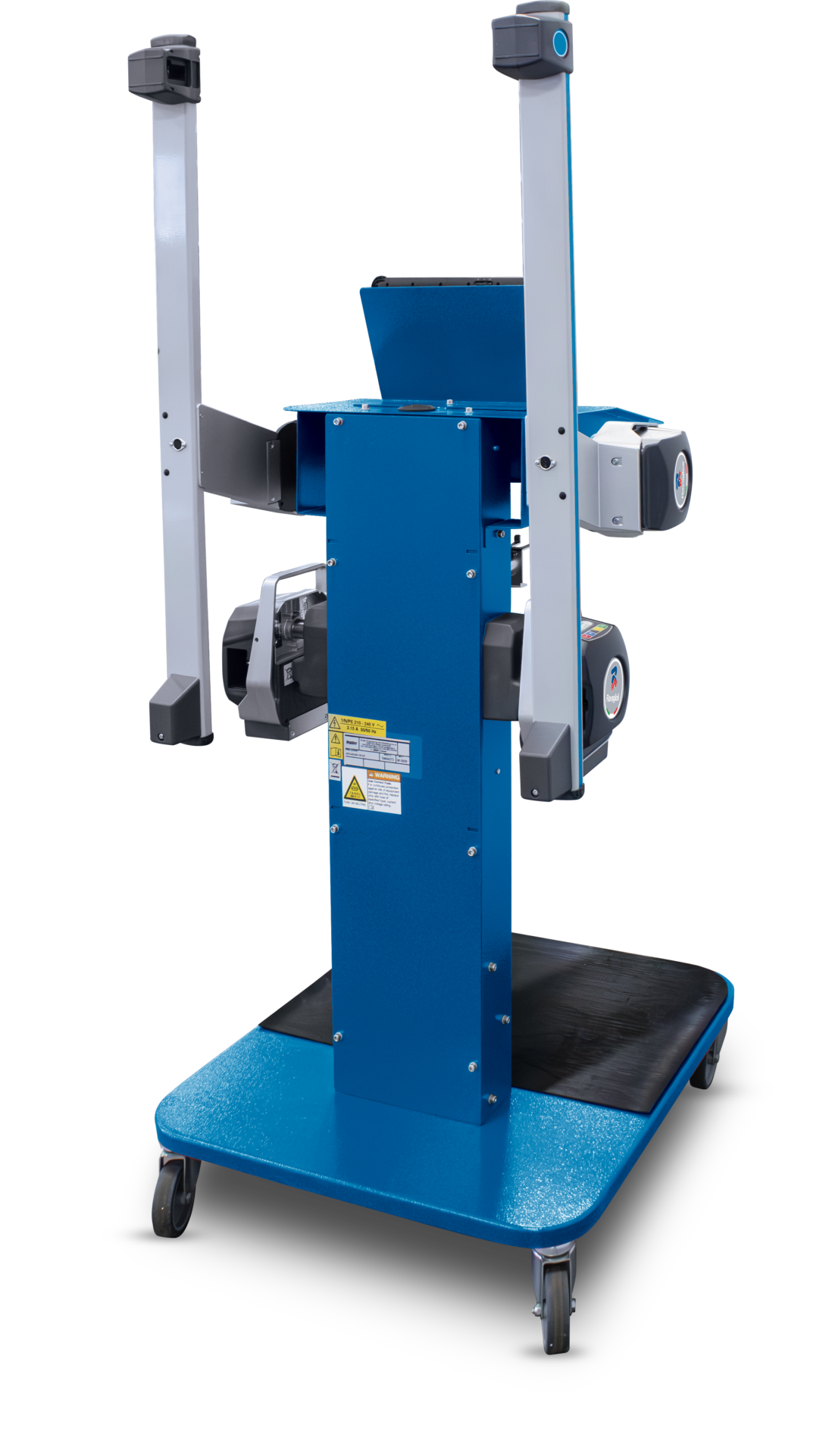

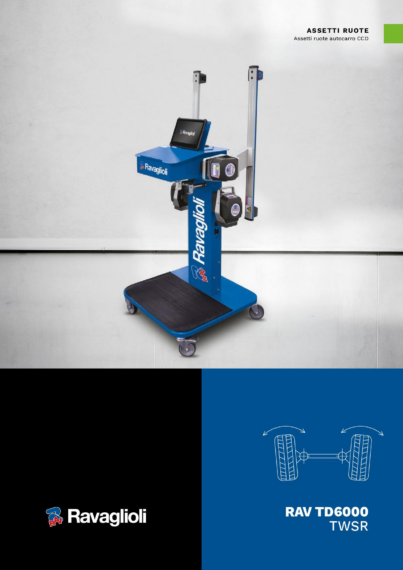

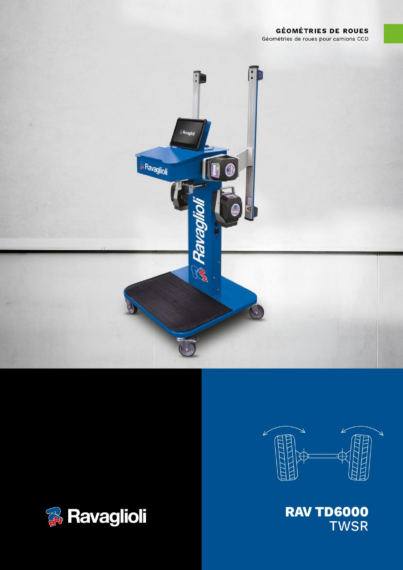

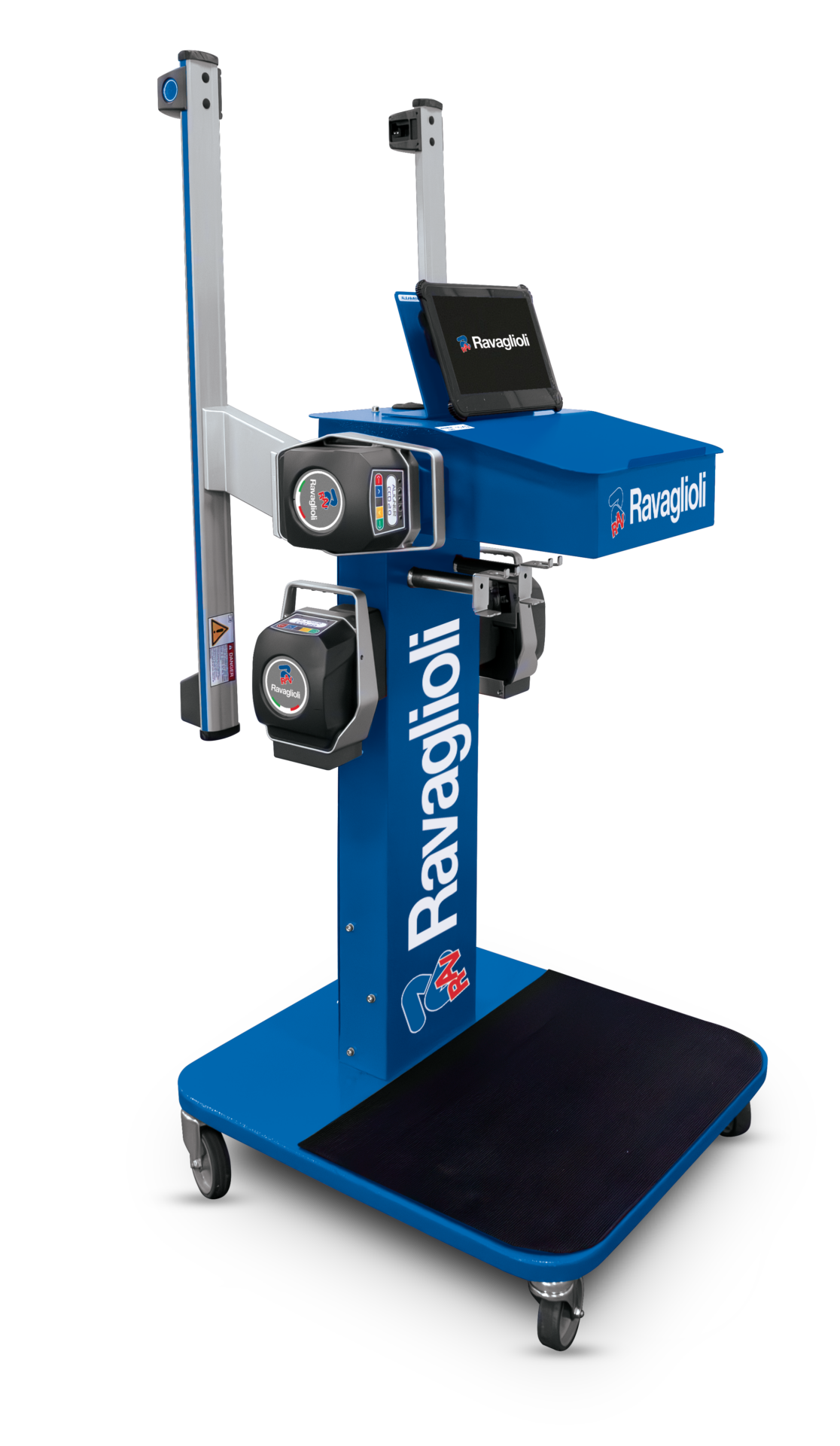

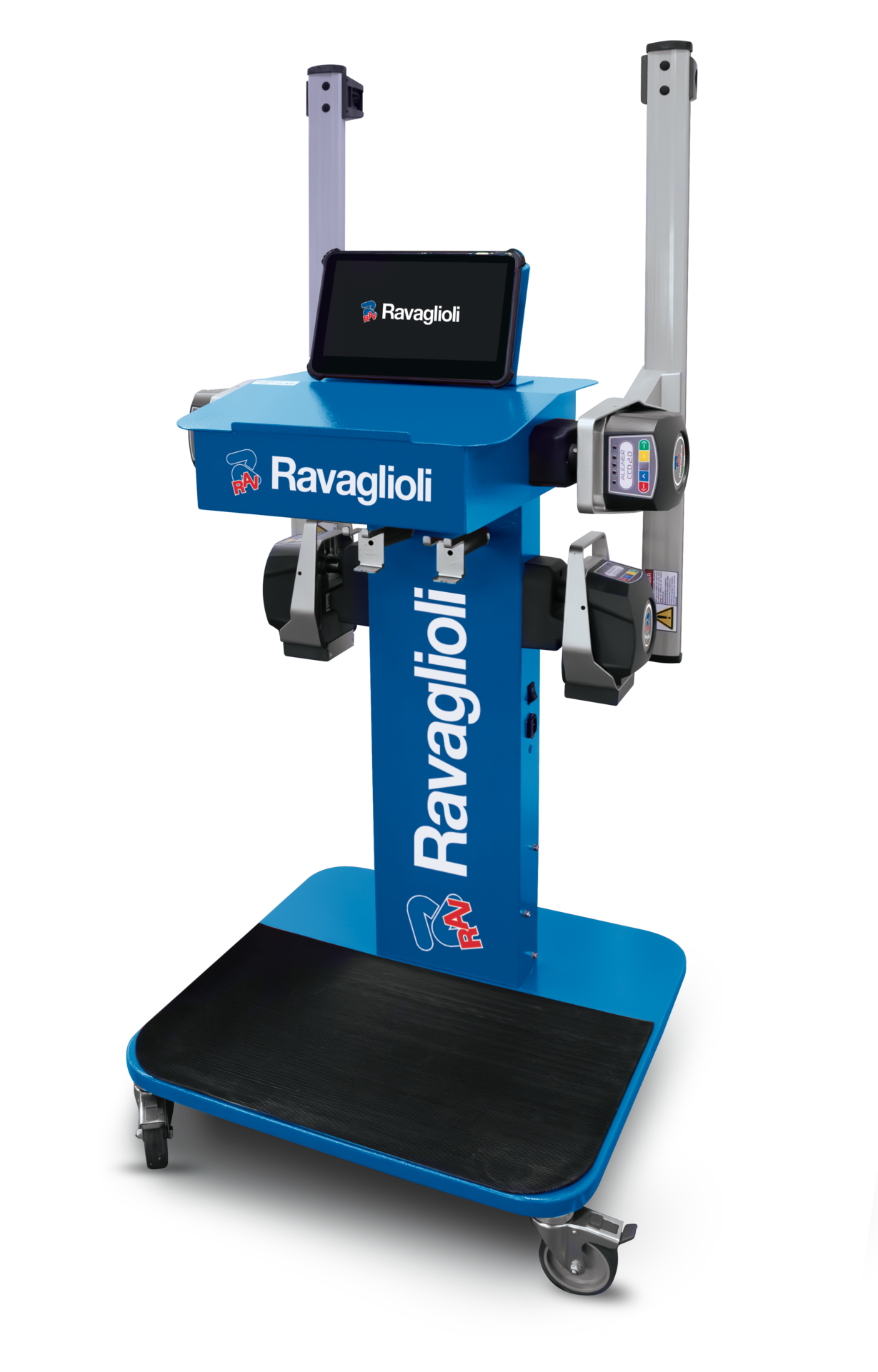

CCD wheel aligner RAVTD6000TWSR

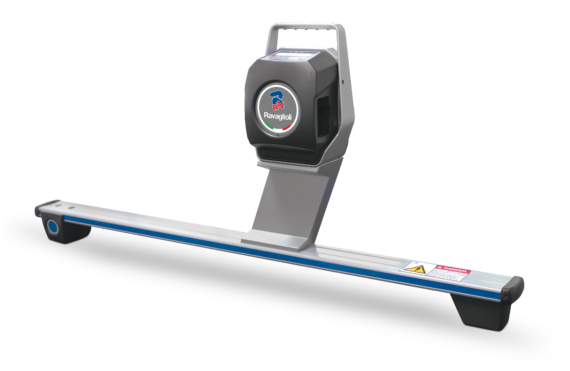

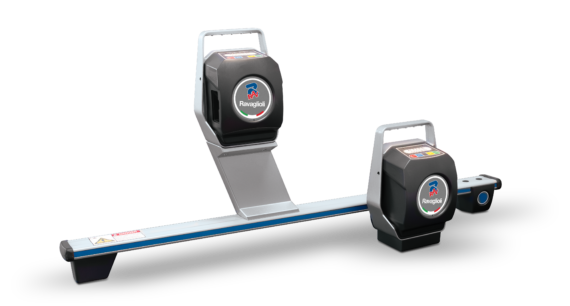

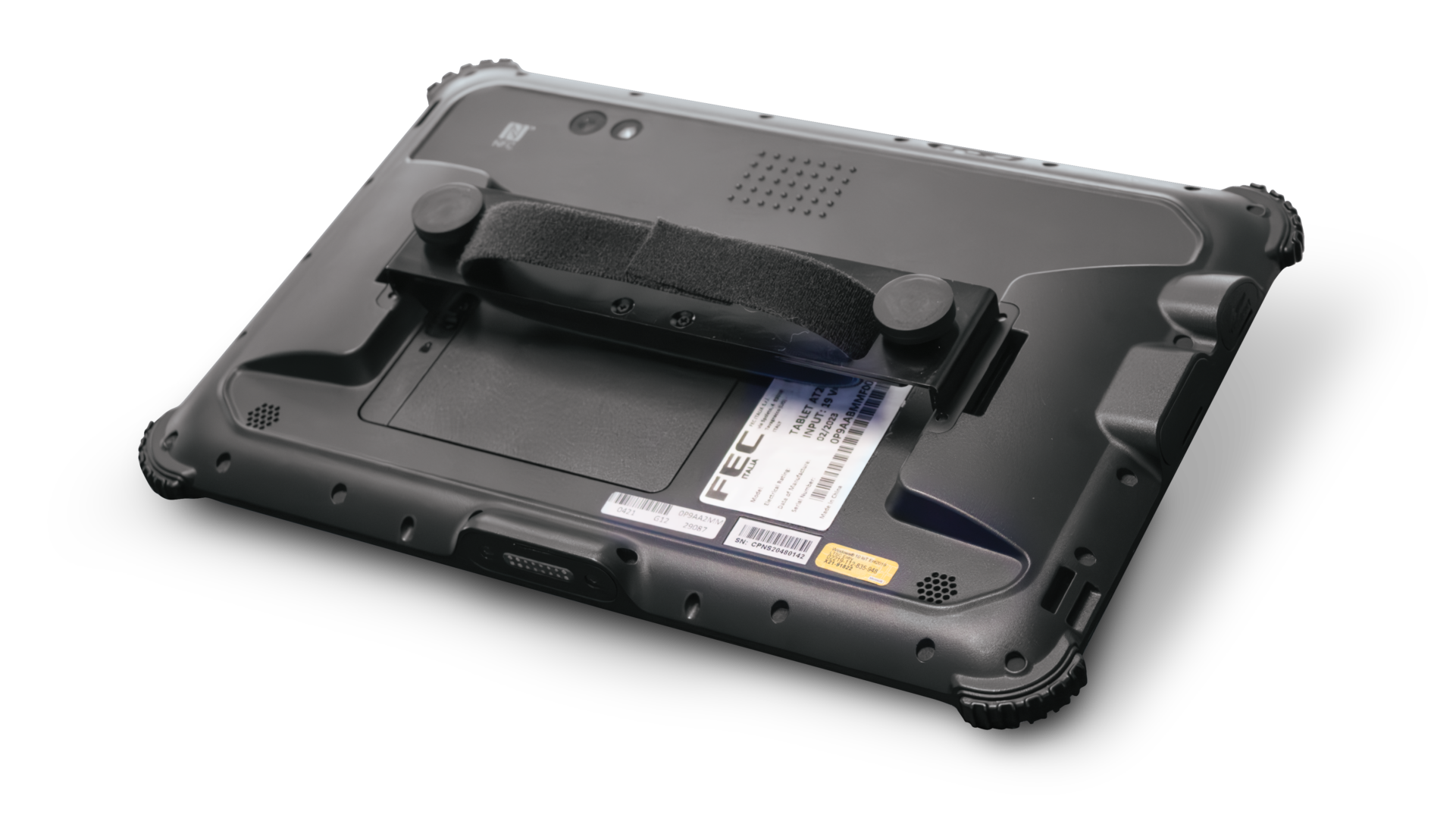

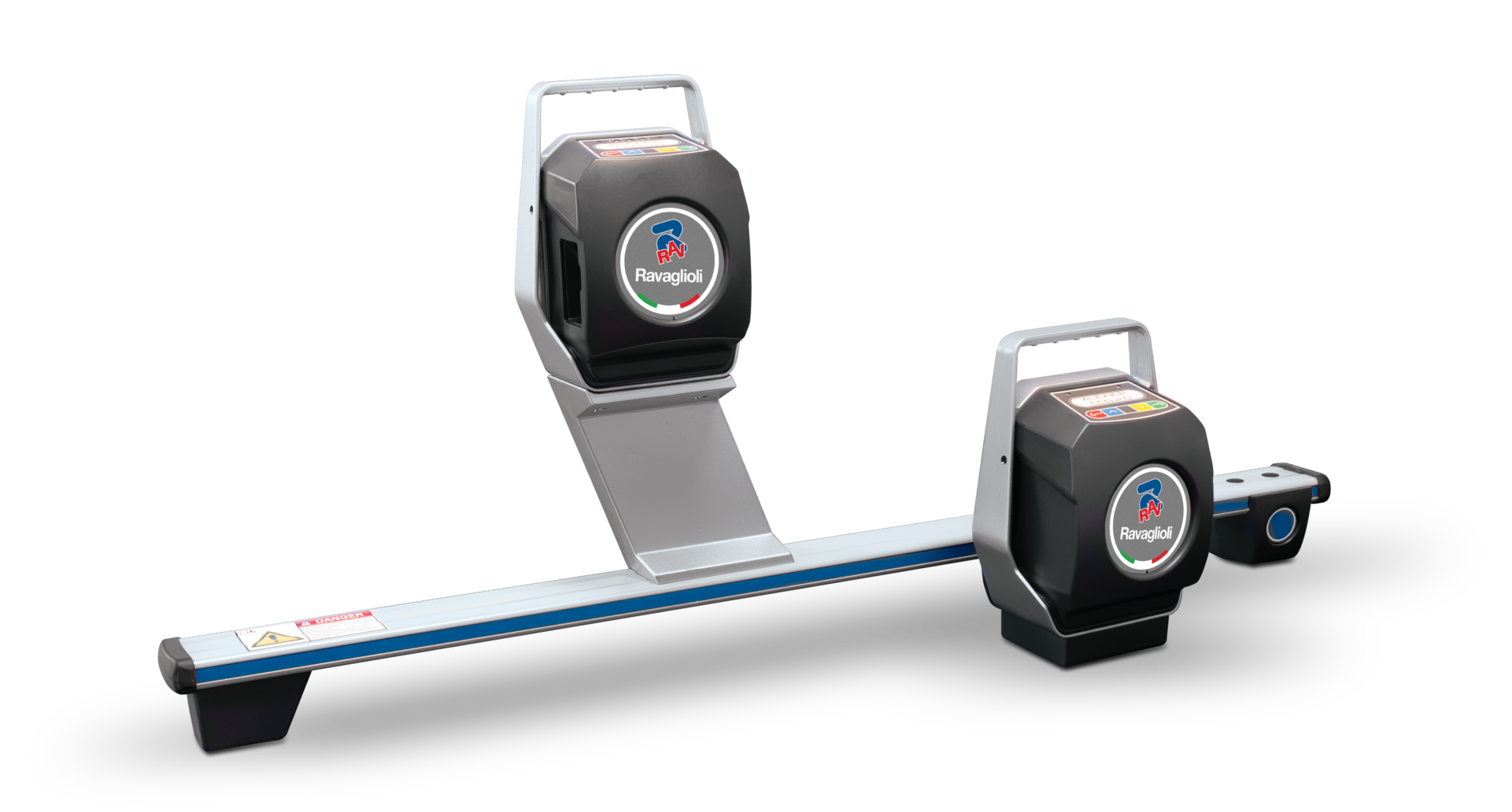

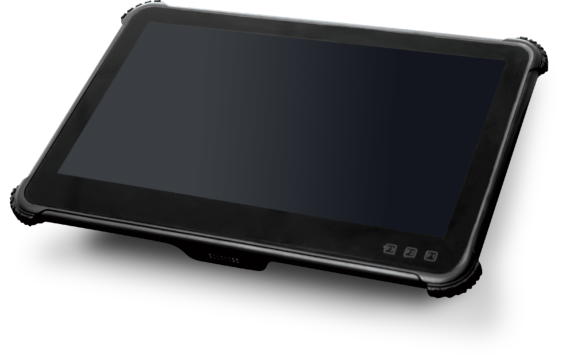

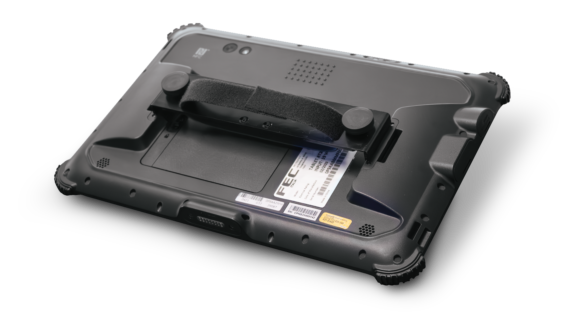

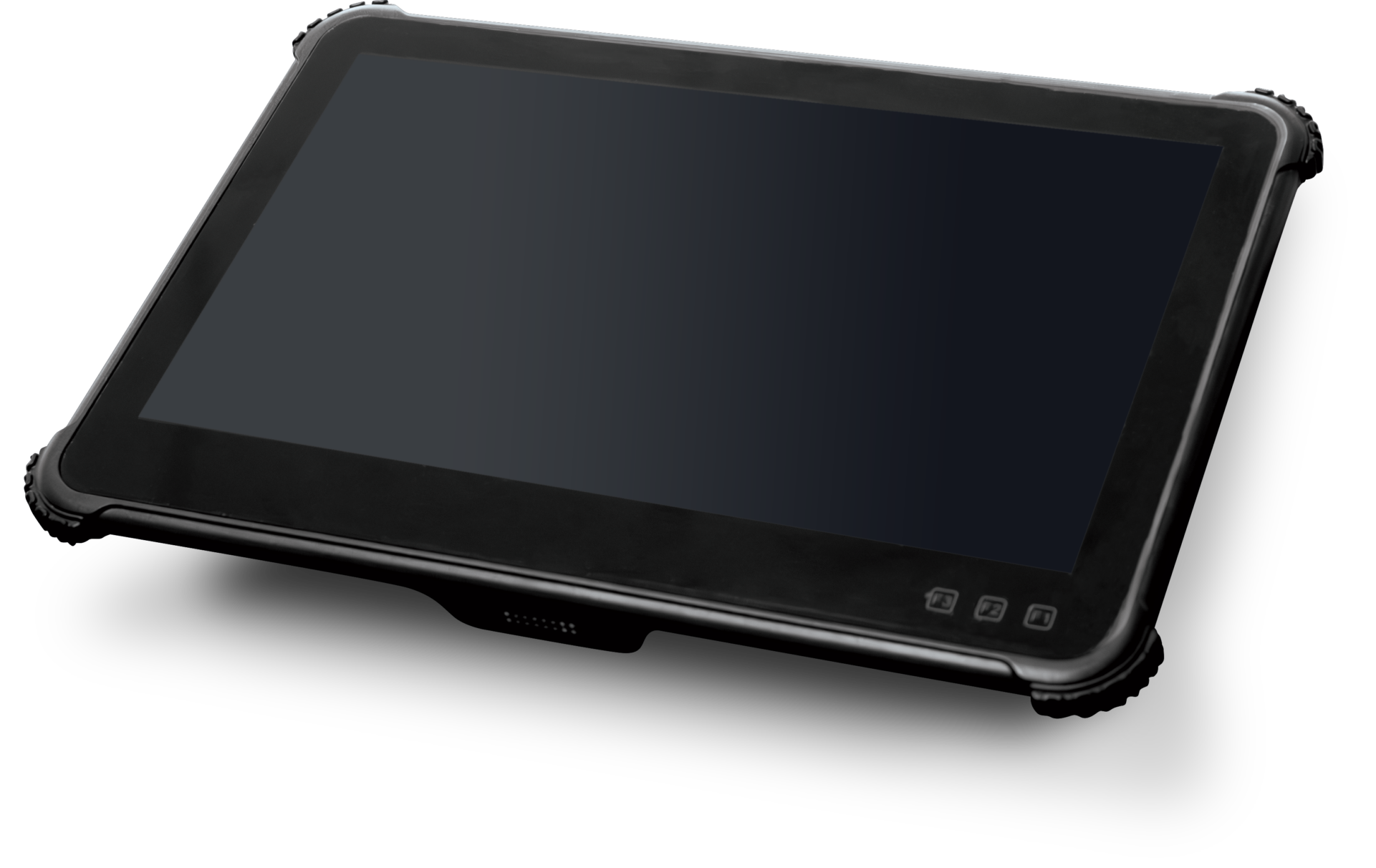

6 CCD truck wheel aligner, with lowered CCD sensors | incl. open cabinet, 11,6″ LCD Windows tablet, press pedal and steering lock | 1 x 230 V / 50 – 60 Hz
Similar Products
-
Wheel aligners
CCD wheel aligner RAVTD6000TWSR.3
MPN: RAV.TD600.7015966 CCD truck wheel aligner, with lowered CCD sensors | incl. 4 3-point clamps (2 x STDA92), 2 turntables (STDA29L),…

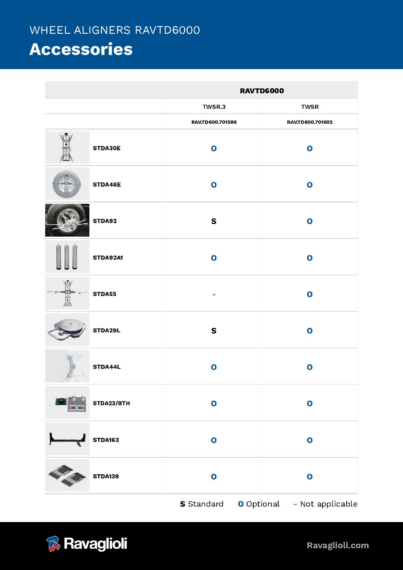

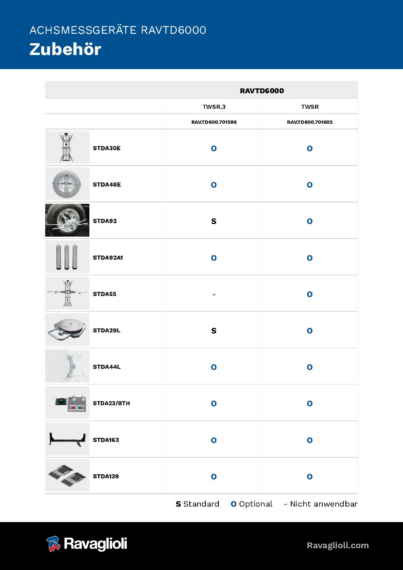

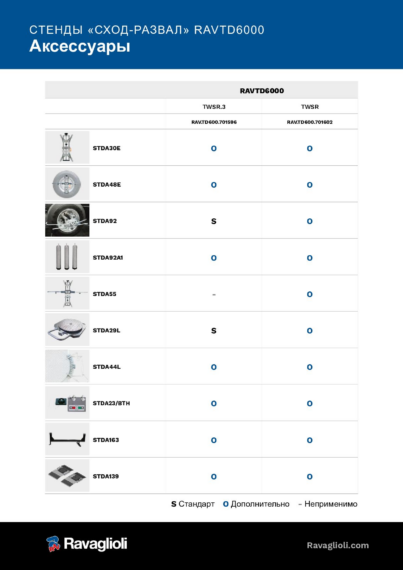

Accessories
-
Accessories wheel aligners
Wheel clamps Truck | 4-point | rim Ø 12 – 28″, tyre Ø min. 700 mm
MPN: STDA30ESelf-centering 4-point clamps truck with quick-locking arms, movable shaft | including long removable claws | 1 set / 2 pieces
-
Accessories wheel aligners
Wheel clamps Truck | 4-point | rim Ø 12 – 28″, tyre Ø 780 – 1220 mm
MPN: STDA48E4-point truck self-centering clamps with quick-locking arms, movable shaft | including metal grabbing armser | 1 set / 2 pieces
-
Accessories wheel aligners
Wheel clamps Truck | 3-point | tyre Ø 890 – 1290 mm
MPN: STDA92Special truck clamps with quick-locking arms to prevent wheel compensation, clamping on rim flange | 1 set / 2 pieces
-
Accessories wheel aligners
Quick-locking arms for upgrading 4-point wheel clamps STDA30E | tyre Ø 780 – 1220 mm
MPN: STDA55To upgrade 4-point truck clamps STDA30E to STDA48E | including metal fingers | 1 set / 2 pieces
-
Accessories wheel aligners
Claws ABS, conic
MPN: STDA39Wheel clamp plastic fingers for wheel clamps STDA46EU-48E-35E-95E | 1 set / 8 pieces
-
Accessories wheel aligners
Claws ABS, small profile
MPN: STDA94Wheel clamp plastic fingers for wheel clamps STDA46EU-48E-35E-95E | 1 set / 8 pieces
-
Accessories wheel aligners
Claws for VW to be used with clamps with quick locking arms | ABS
MPN: STDA131Special wheel clamp plastic fingers | 1 set / 8 pieces
-
Accessories wheel aligners
Claws for low profile tyres | Metal
MPN: STDA136Wheel clamp steel fingers for 4- or 3-point wheel clamps | 1 set / 8 pieces
-
Accessories wheel aligners
Claws for vans | Metall, long
MPN: STDA41Wheel clamp metal fingers for wheel clamps STDA30E-48E (standard) and STDA33EU-46EU-34E-35E-95E | 1 set / 8 pieces
-
Accessories wheel aligners
Spacers 200 mm
MPN: STDA92A1Mid-size | for truck wheel clamps STDA92 | 1 set / 6 pieces
-
Accessories wheel aligners
Claws ABS, flat profile
MPN: STDA143Wheel clamp plastic fingers for wheel clamps STDA46EU-48E-35E-95E | 1 set / 8 pieces
-
Accessories wheel aligners
Turntables for trucks | 1 set / 2 pieces
MPN: STDA29LCapacity 2 x 4500 kg
-
Accessories wheel aligners
Goniometers for truck turntables STDA29L
MPN: STDA44LGraduated scales for wheel aligner | 1 set / 2 pieces
-
Accessories wheel aligners
Turn tables mechanical | for passenger cars
MPN: STDA77Accessory for wheel aligner | 1 set / 2 pieces
-
Accessories wheel aligners
Sliding plates 300 x 225 x 35 mm
MPN: S110A21 set / 2 pieces
-
Accessories wheel aligners
Sliding plates 1100 x 500 x 50 mm
MPN: STDA161 set / 2 pieces
-
Accessories wheel aligners
Sliding plates 1500 x 500 x 50 mm
MPN: STDA171 set / 2 pieces
-
Accessories wheel aligners
Level and height gauge
MPN: STDA23/BTHLevel and height gauge (option)
-
Accessories wheel aligners
Emergency power supply cable
MPN: STDA68WFor one measuring head / for WS series | 1 piece
-
Accessories wheel aligners
Аварийных кабеля
MPN: STDA76WАварийное электроснабжение и передача данных | для серии Bluetooth | 1 комплект / 2 шт.
-
Accessories wheel aligners
Access point kit to transmit to smartphones/tablets
MPN: STDA142WiFi access point | STDA141 required
-
Accessories wheel aligners
Software licence Aligner Connect
MPN: STDA141Remote display on a mobile device | to use with on smartphones/tablets
-
Accessories wheel aligners
Advanced enabling of ADAS functions
MPN: STDA141ADAS -
Accessories wheel aligners
Software licence
MPN: STDAWISHBONERemote display on a mobile device | to use with on smartphones/tablets
-
Accessories wheel aligners
Kit for clamp support 3D2.0WALL
MPN: STDA166RAL7016
-
Accessories wheel aligners
Turn tables Premium, HD | Ø 360 mm
MPN: STDA1241 set / 2 pieces
-
Accessories wheel aligners
Token (password) KBA query
MPN: STDAShootFor consulting database on-line via query of German Federal Bureau of Motor Vehicles and Drivers (KBA) | includes 200 credits
-
Connected workshop
Workshop connectivity software TEq-Link
MPN: TEq-LinkSoftware to connect equipment in the workshop and monitor its use, manage preventive maintainance, send reports via e-mail and much…
Delivery
-
Accessories wheel aligners
Wi-Fi antenna
MPN: STDA158Wheelalignment-On, Wi-fi USB flash drive included
-
Accessories wheel aligners
Steering wheel lock
MPN: STDA161Plastic steering wheel lock with non-slip rubber guards for steering wheel and seat
-
Accessories wheel aligners
Vehicle data bank
MPN: STDA110 -
Accessories wheel aligners
Brake pedal depressor
MPN: 10479
Tech Data
| Features | CCD wheel aligner RAVTD6000TWSR | CCD wheel aligner RAVTD6000TWSR.3 |
|---|---|---|
| ASA livestream | optional | optional |
| TeqLink | optional | optional |
| Workshop-Net | optional | optional |
| Compensazione del fuori centro | standard | standard |
| Semiconvergenza | +/- 20° | +/- 20° |
| Convergenza totale | +/- 20° | +/- 20° |
| Divergenza in curva | +/- 20° | +/- 20° |
| Campanatura | +/- 10° | +/- 10° |
| Incidenza | +/- 18° | +/- 18° |
| Inclinazione asse montante (SAI) | +/- 18° | +/- 18° |
| Deviazione asse | +/- 5° | +/- 5° |
| Deviazione asse anteriore | +/- 5° | +/- 5° |
| Dimensione min. cerchio | 12″ | 12″ |
| Dimensione max. cerchio | 28″ | 28″ |
| Max. wheel diameter | 1220mm | 1220mm |
| Interasse max. | 15000mm | 15000mm |
| Hardware | standard | standard |
| Versione hardware | Tablet | Tablet |
| Display design | digital | digital |
| Unità di visualizzazione e controllo | Touch display | Touch display |
| Display | LCD | LCD |
| Dimensioni monitor | 11,6″ | 11,6″ |
| Collegabile in rete | Sì | Sì |
| Comunicazione dati | senza cavo | senza cavo |
| Measuring system | CCD | CCD |
| Numero sensori | 6 | 6 |
| Alimentazione elettrica | 230 V | 50 – 60 Hz | 230 V | 50 – 60 Hz |
| Fasi | 1 | 1 |
| Width | 732mm | 732mm |
| Depth | 707mm | 707mm |
| Height | 1711mm | 1711mm |
