CCD wheel aligner RAVTD2.0WIFI | Standard

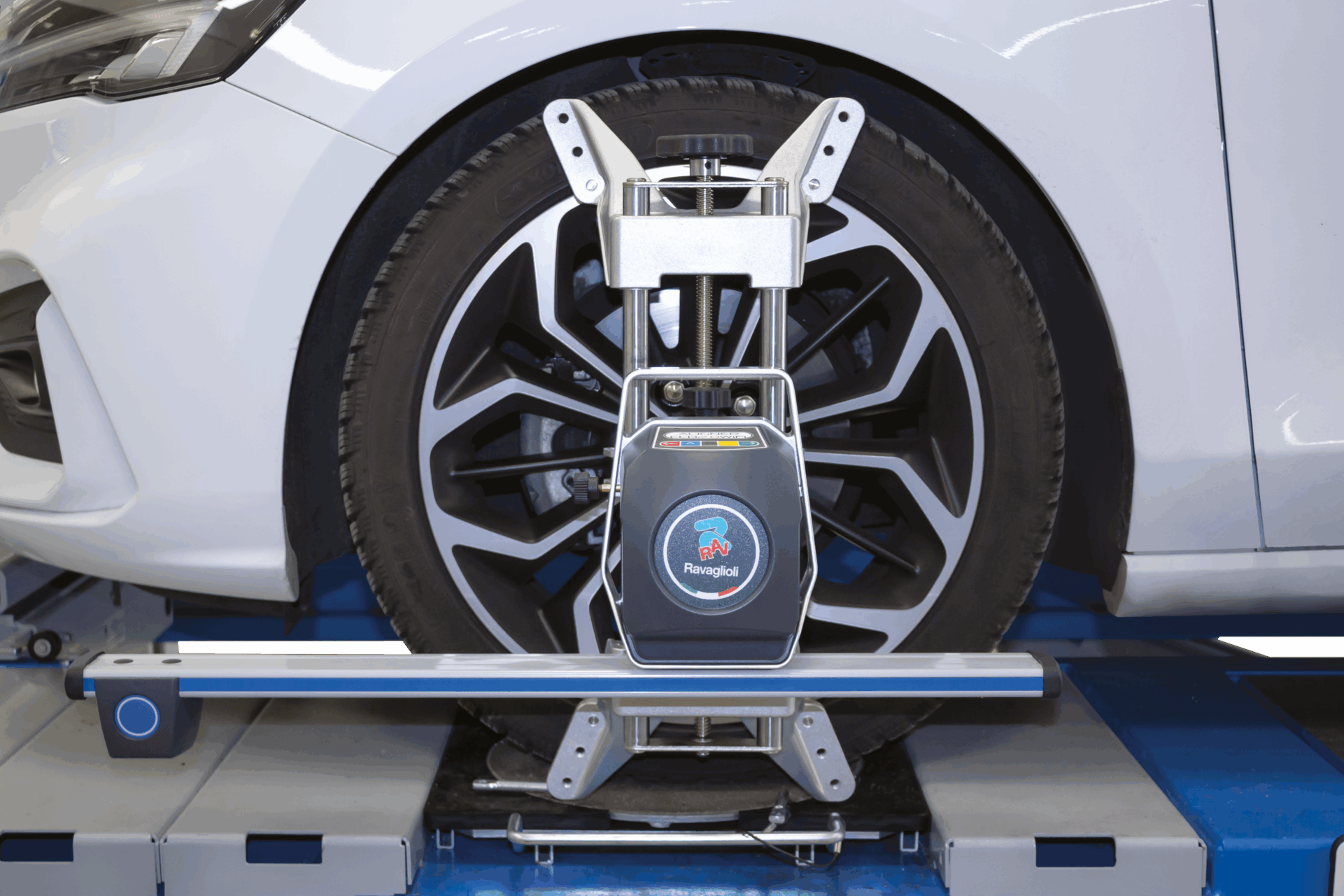

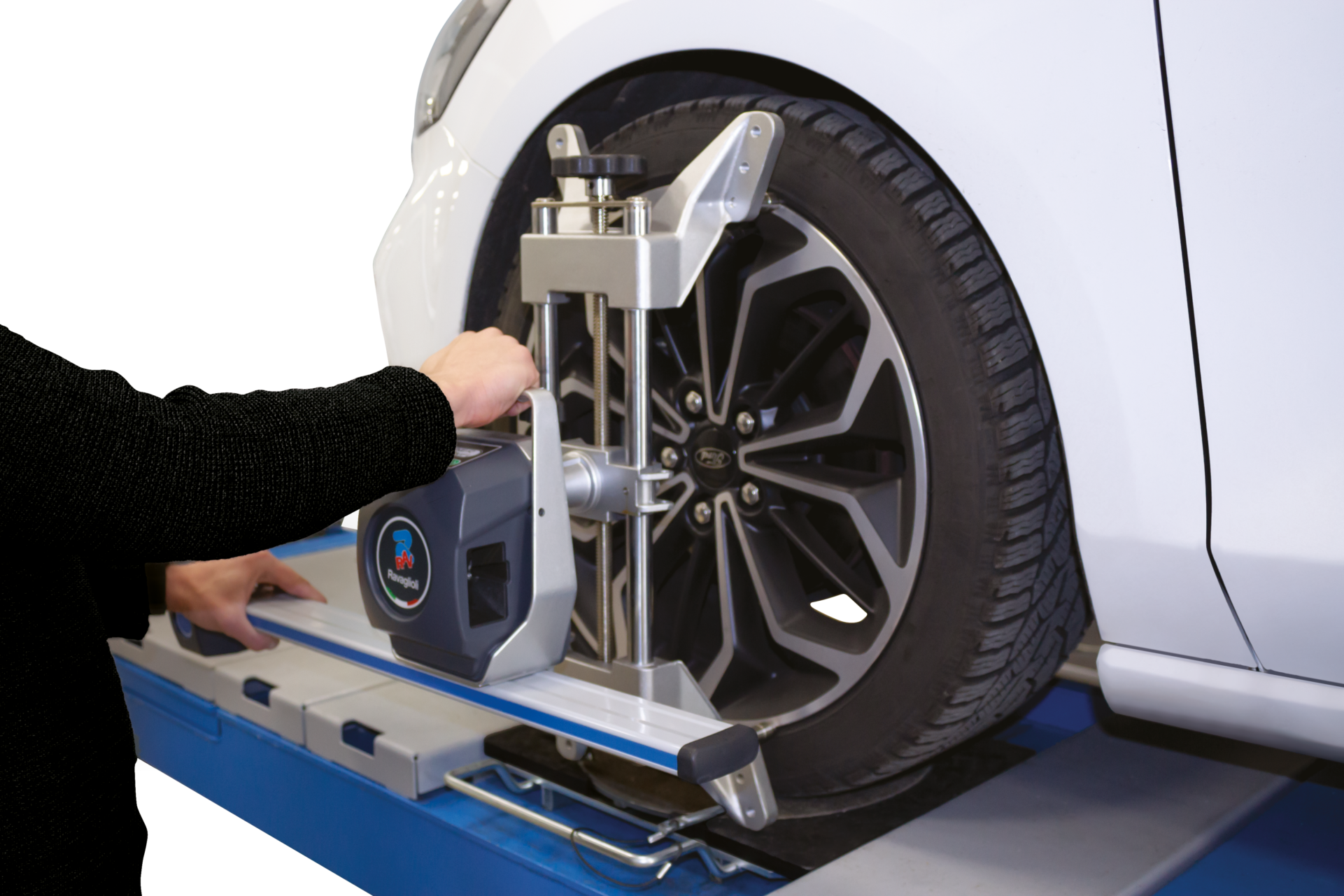

Wheel aligner RAVTD2 0WIFI measuring head DI 06
Wheel aligner RAVTD2 0WIFI measuring head DI 07
Wheel aligner RAVTD2 0WIFI software DI

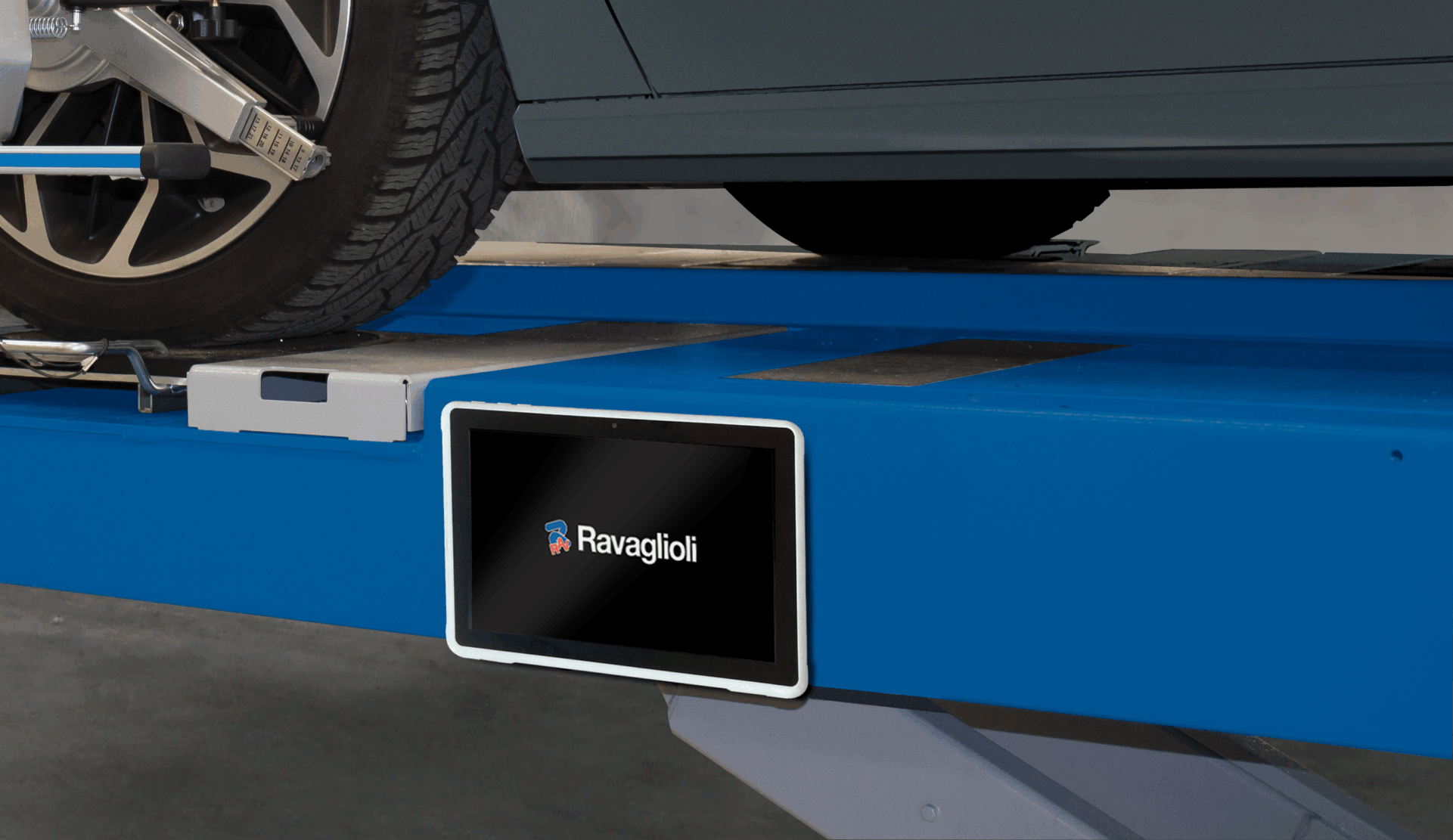

Wheel aligner RAVTD2 0WIFI tablet DI

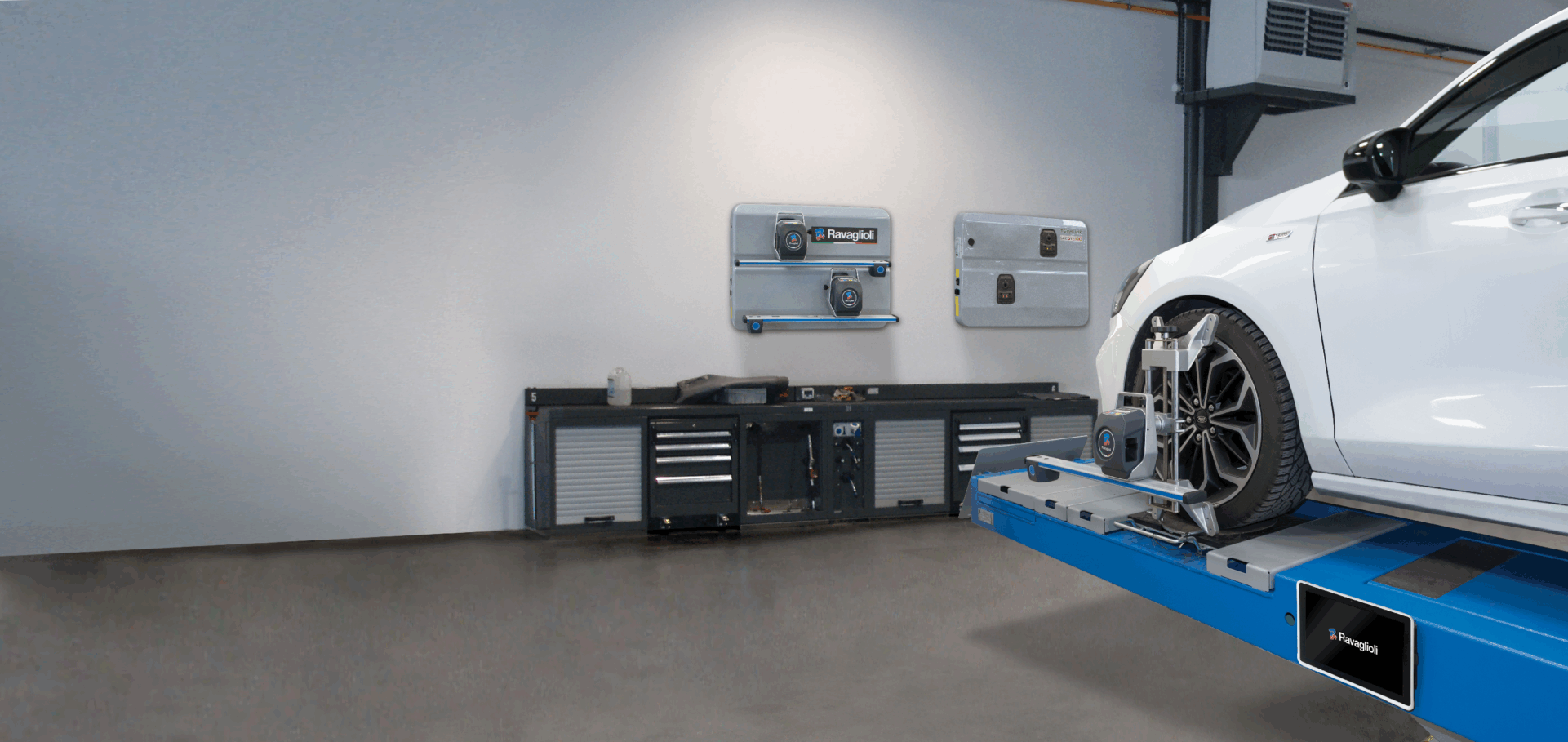

CCD wheel aligner RAVTD2.0WIFI | Standard

Tablet-controlled CCD wheel aligner | incl. 4-point wheel clamps and data transmission via Wi-Fi

MPN: RAV.TD2WF.701084
GTIN (EAN): 5063084701084
Category:
Tags:
Request Information

Share on:

dashicons-media-document

Description

A New Wheel Alignment Concept

The wheel aligner system RAVTD2.0WIFI is a new conception of CCD technology. Totally PC-free, data are transmitted between the sensors and a compatible latest generation Bluetooth tablet. The measuring heads and their support are designed to adapt to all types of workshop.

  • Complete control of operations: the operator can monitor the wheel alignment operations with a tablet easy to position on the lift
  • Space-saving design: alignment operations are performed in total freedom without space occupied by a console, a data transfer tower or a PC
  • Bluetooth connection: the sensors and tablet fully communicate via compatible Bluetooth connection
  • Compact and lightweight measuring heads
  • Short installation time
  • Hi-tech design
  • Compact and lightweight measuring heads
  • Tablet extremely lightweight but boasting an attractive design long lifetime
    • Dust- and water-resistant (IP52)
    • Fall-resistant up to 76 cm
    • 64 GB of memory
    • Display 800 x 1280
    • Complete with adhesive magnets
    • Rounded edges to ensure greater sturdiness
    • 2 MP front camera + 5 MP rear camera
    • Weighs less than 700 g
  • Software totally rewritten for Android with updated graphics, animations and adjustment aids so work is rapid and effective
  • 10″ multi-touch 800 x 1280 tablet complete with adhesive magnets
  • 8 CCD sensors with bearings, encoder rapid charging sockets

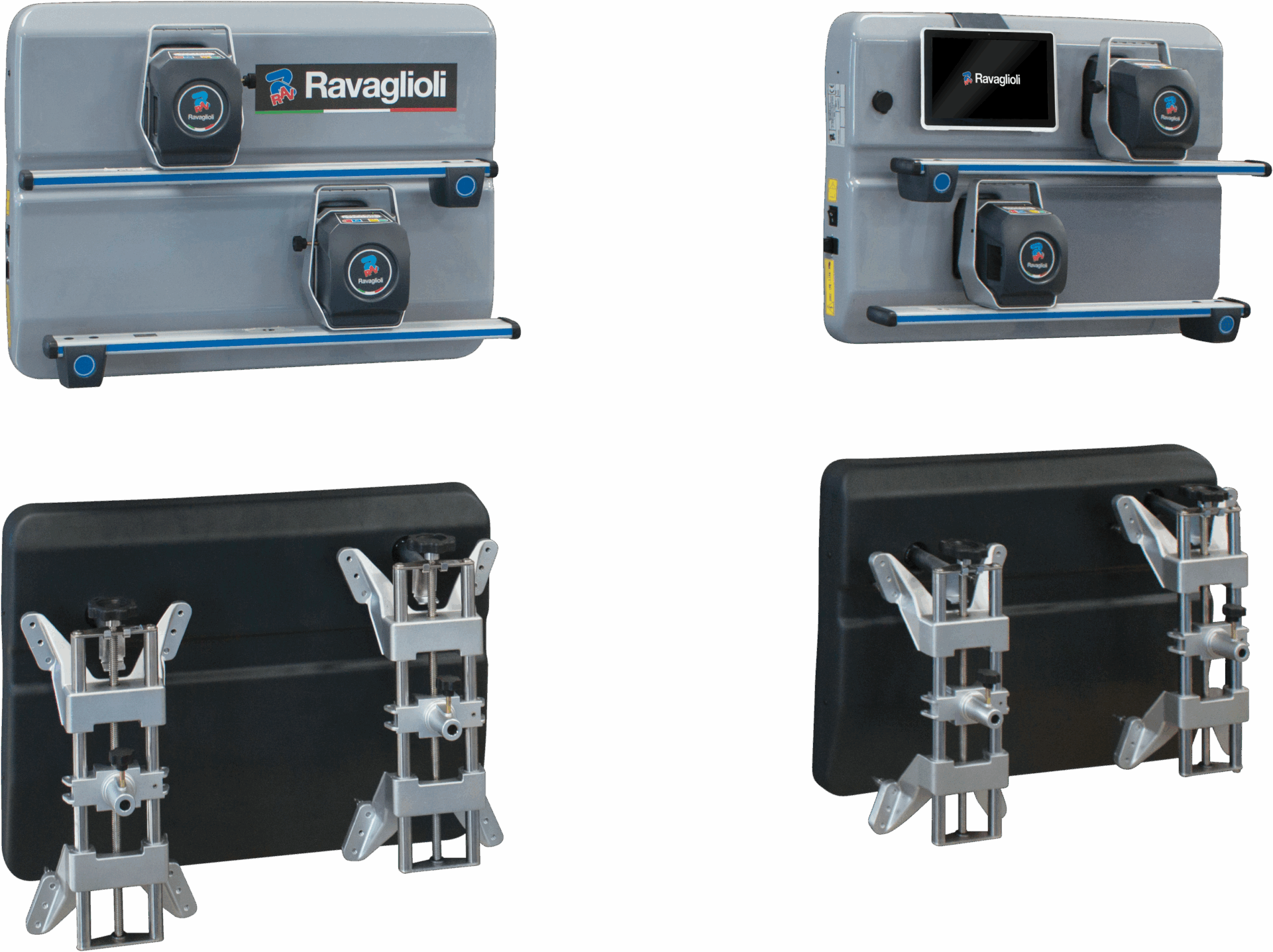

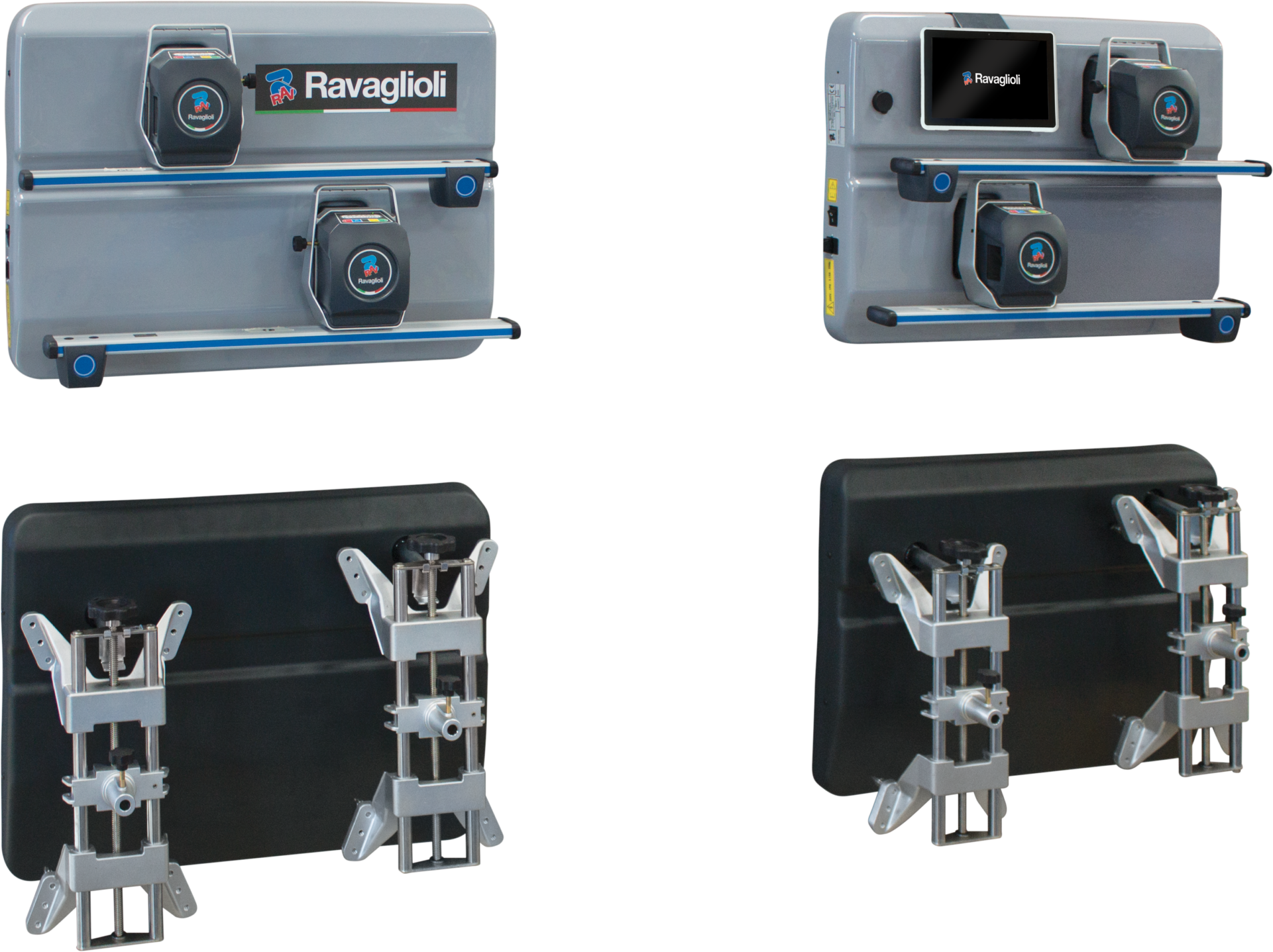

  • 2 wall-mounted panels with recharging for the measuring heads, and USB charging port for the tablet
  • 2 pairs of STDA33EU 4-point clamps
  • The acoustic aid makes adjustment easier when the screen is hidden
  • All-included: The system is fully pre-assembled so it can be put into service quickly
  • Pair of S110A7/P turntables (included)
  • 1 STDA161 steering wheel lock (included)
  • 1 brake pedal arrestor (included)
  • Possibility to send test reports directly to the customer by e-mail
  • Possibility to add a photo with vehicle details to the print report

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesCCD wheel aligner RAVTD2.0WIFI | StandardCCD wheel aligner RAVTD2.0WIFI | StandardCCD wheel aligner RAVTD2.0WIFI | PremiumCCD wheel aligner RAVTD2.0WIFI | Premium
Measuring systemCCDCCD
Sensor count88
TeqLinkoptionaloptional
Workshop-Netoptionaloptional
ASA livestreamoptionaloptional
Run-out compensationoptionaloptional
Individual toe front/rear axle+/- 20°+/- 20°
Total toe+/- 20°+/- 20°
Toe-out on turns+/- 20°+/- 20°
Camber front/rear axle+/- 10°+/- 10°
Caster+/- 18°+/- 18°
SAI+/- 18°+/- 18°
Set-back+/- 5°+/- 5°
Set-back front axle+/- 5°+/- 5°
Geometric centre line+/- 5°+/- 5°
Thrust angle+/- 5°+/- 5°
Min. tyre size8″8″
Max. tyre size24″24″
Max. wheel base4500mm4500mm
Display designdigitaldigital
DisplayTFTTFT
Display size10″10″
Network compatibleYesYes
Data transmission typecordlesscordless
Load capacity per turntable2 x 1000kg2 x 1000kg
Electrical connection230 V | 50 – 60 Hz230 V | 50 – 60 Hz
Width800mm800mm
Depth250mm250mm
Height600mm600mm
Weight2 x 15kg2 x 15kg
