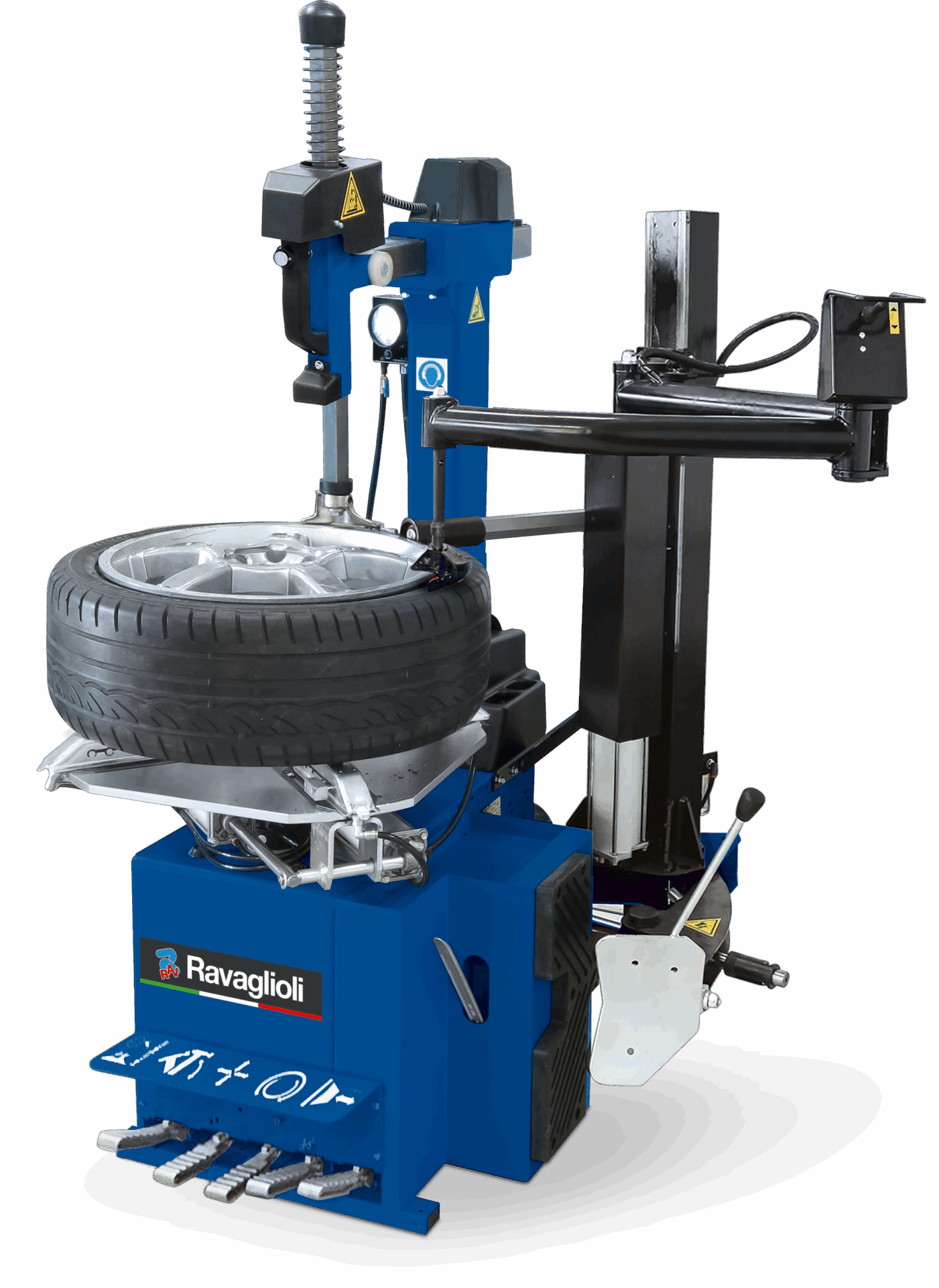

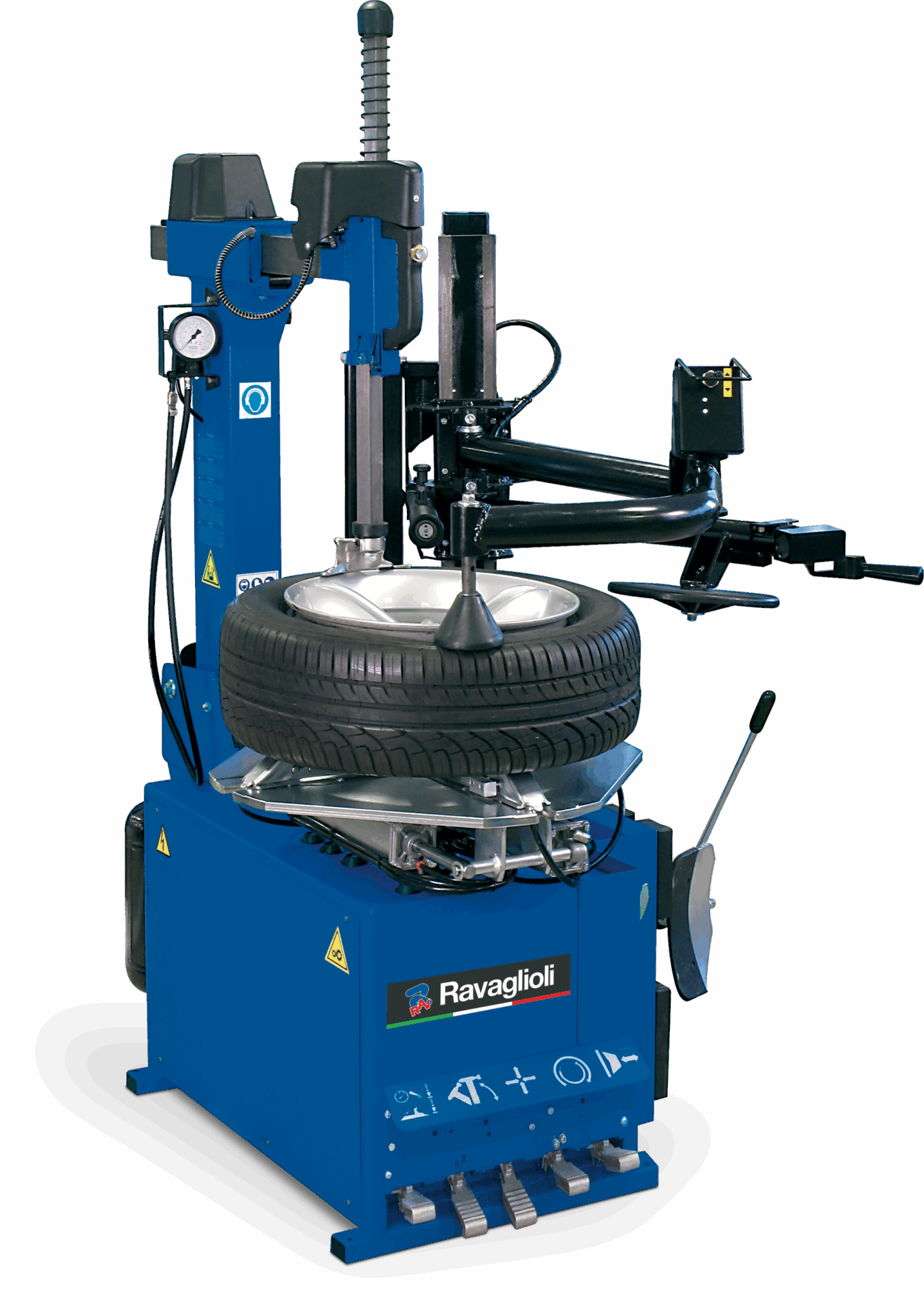

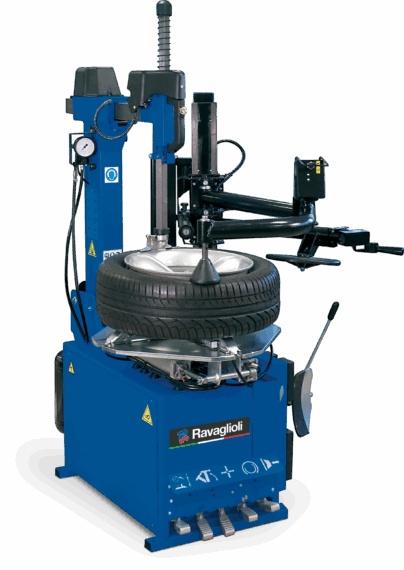

Tyre changer G7645D.26PLUS

Automatic, max. speed 16 rpm, passenger car, rim diameter 10 – 28,5″, max. rim width 431 mm | Blue (RAL 5005)

MPN: RAV.G7645.200990
GTIN (EAN): 5063084200990
Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

G7645 Series PLUS version

  • The frame is large and reinforced, to grant the utmost rigidity to the structure and chucking table.
  • The gear box is installed between two steel plates, to avoid flexion during operation.
  • The extra height of the vertical post and tool shaft allow operation on tyres to a max. of 17″ (431 mm) width.

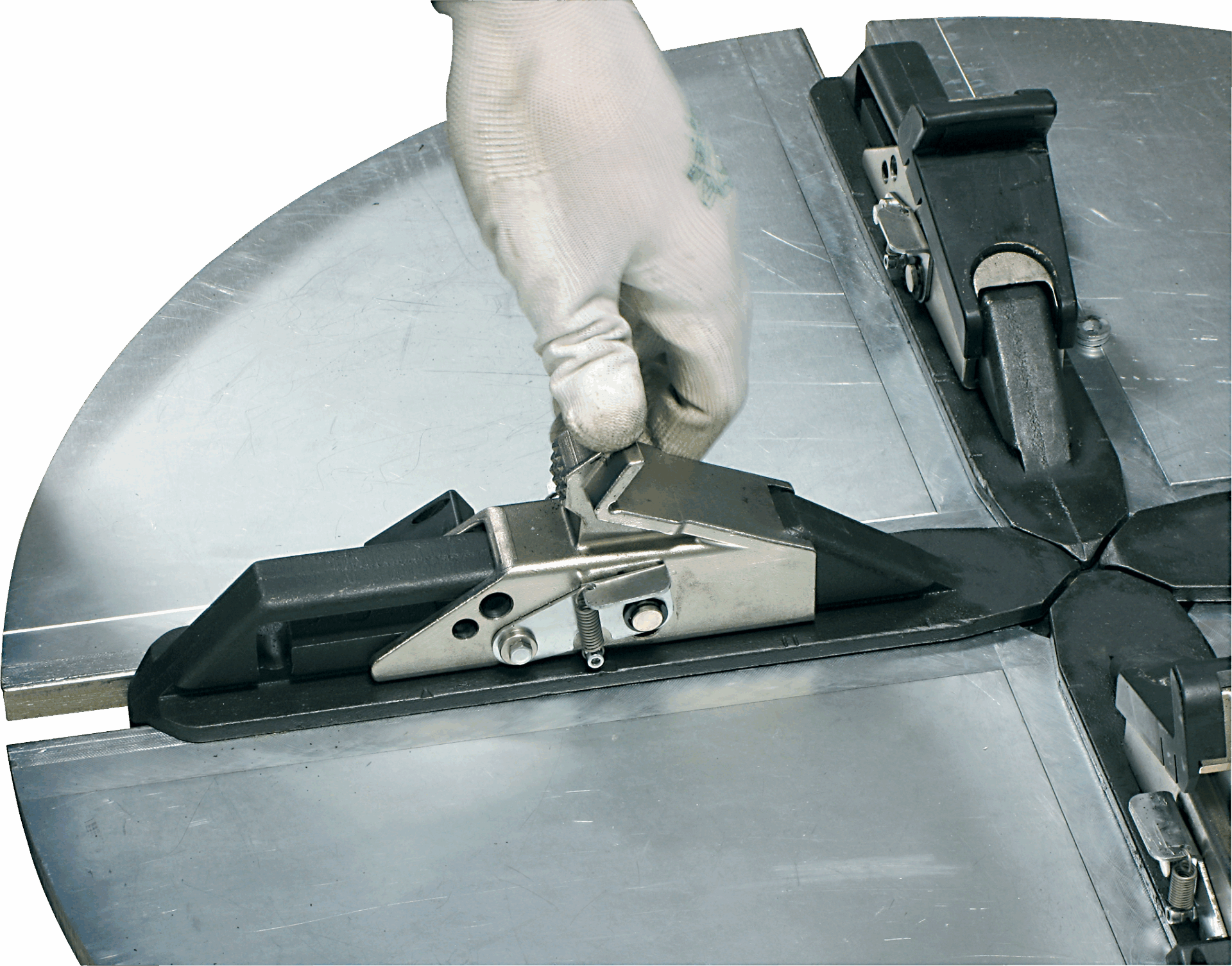

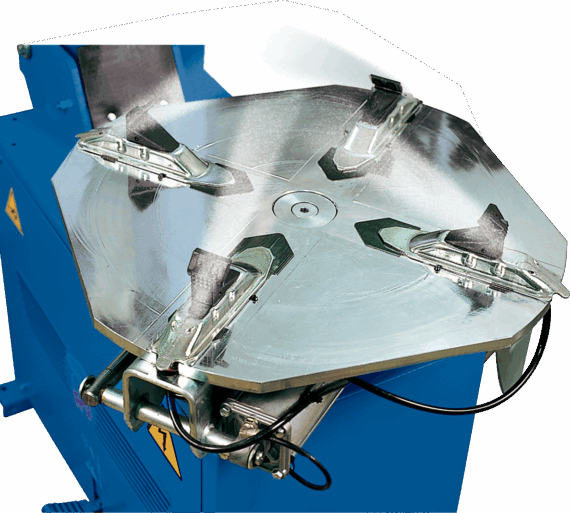

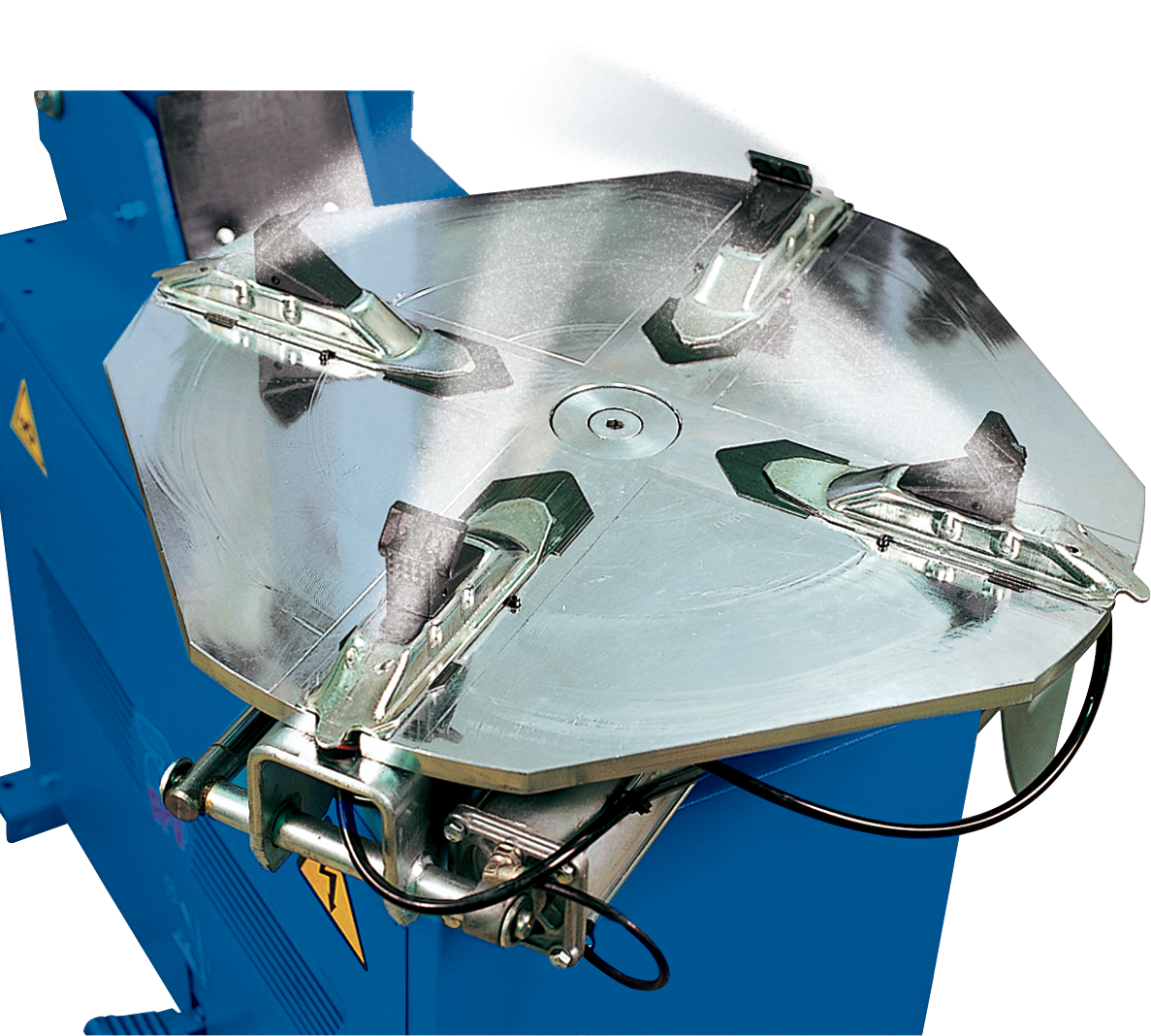

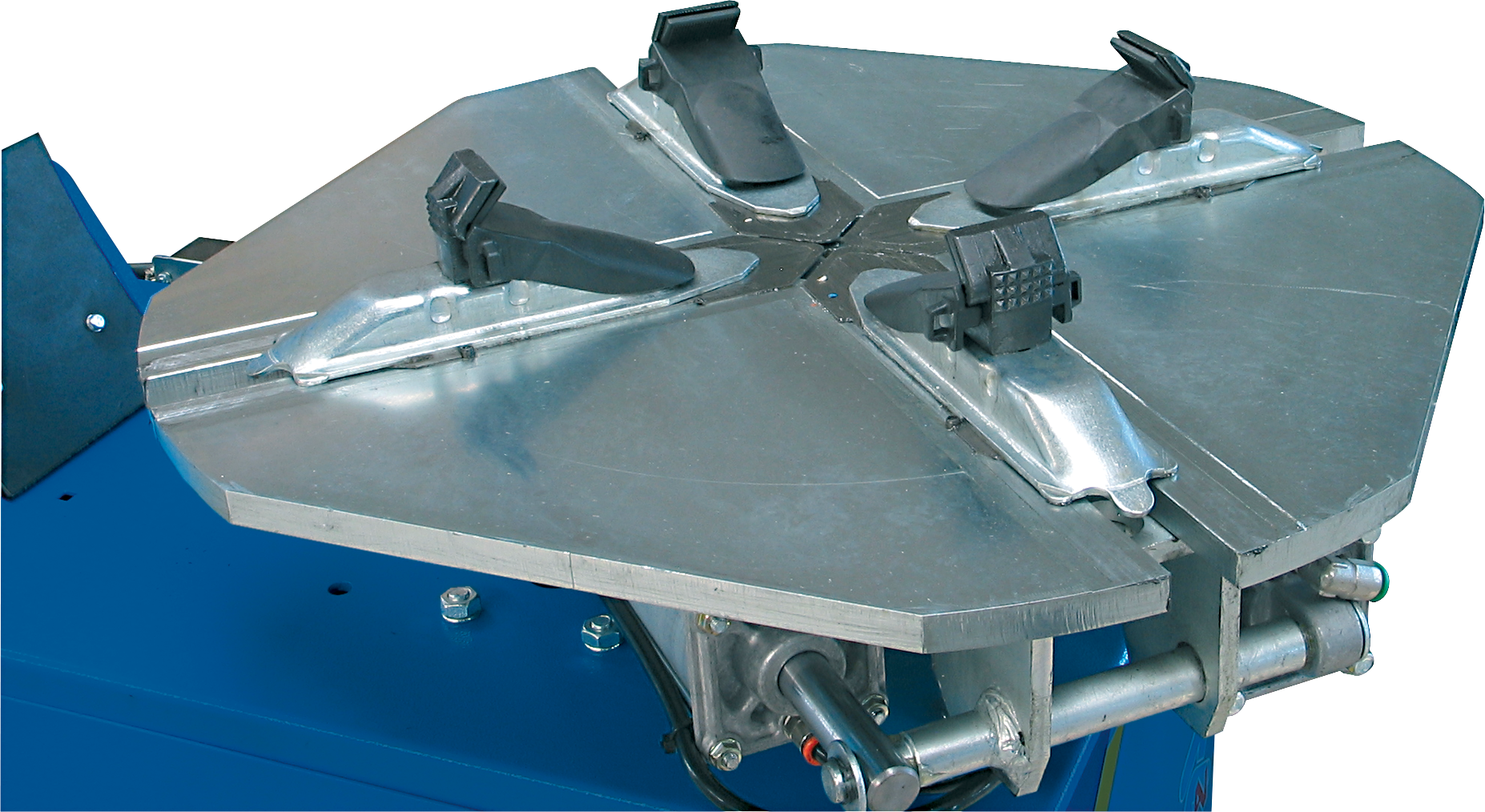

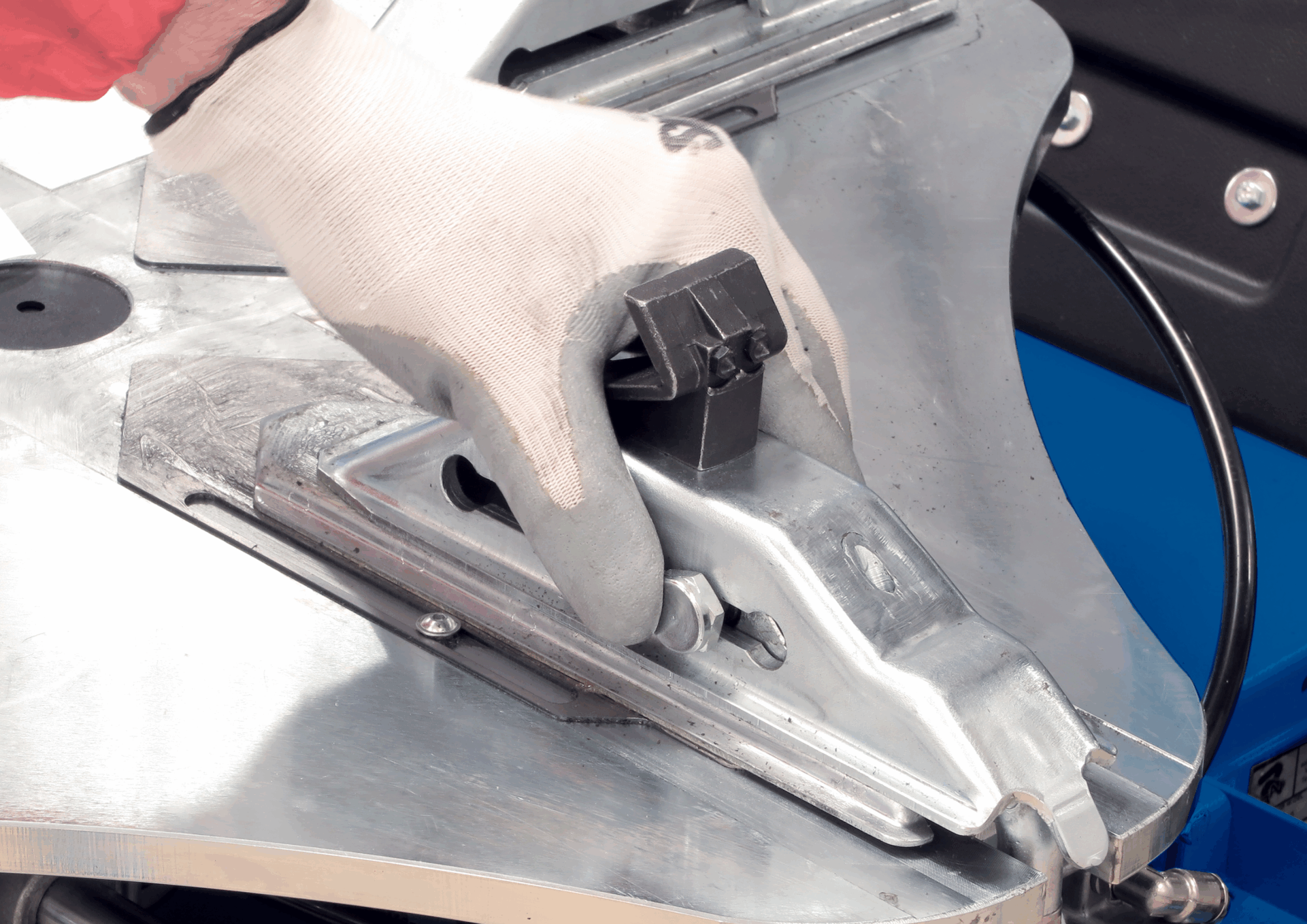

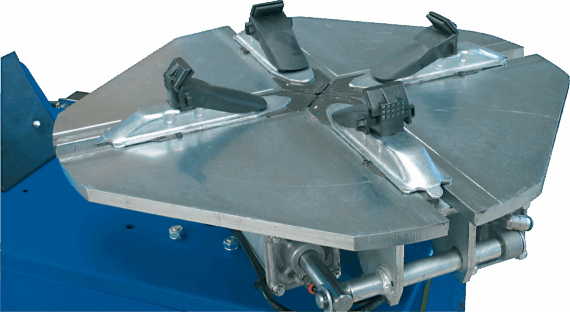

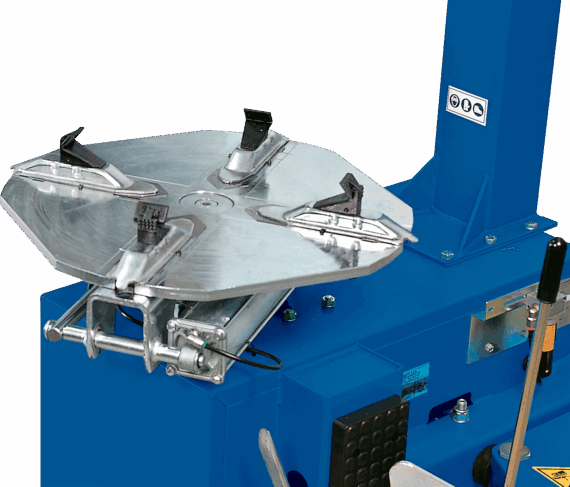

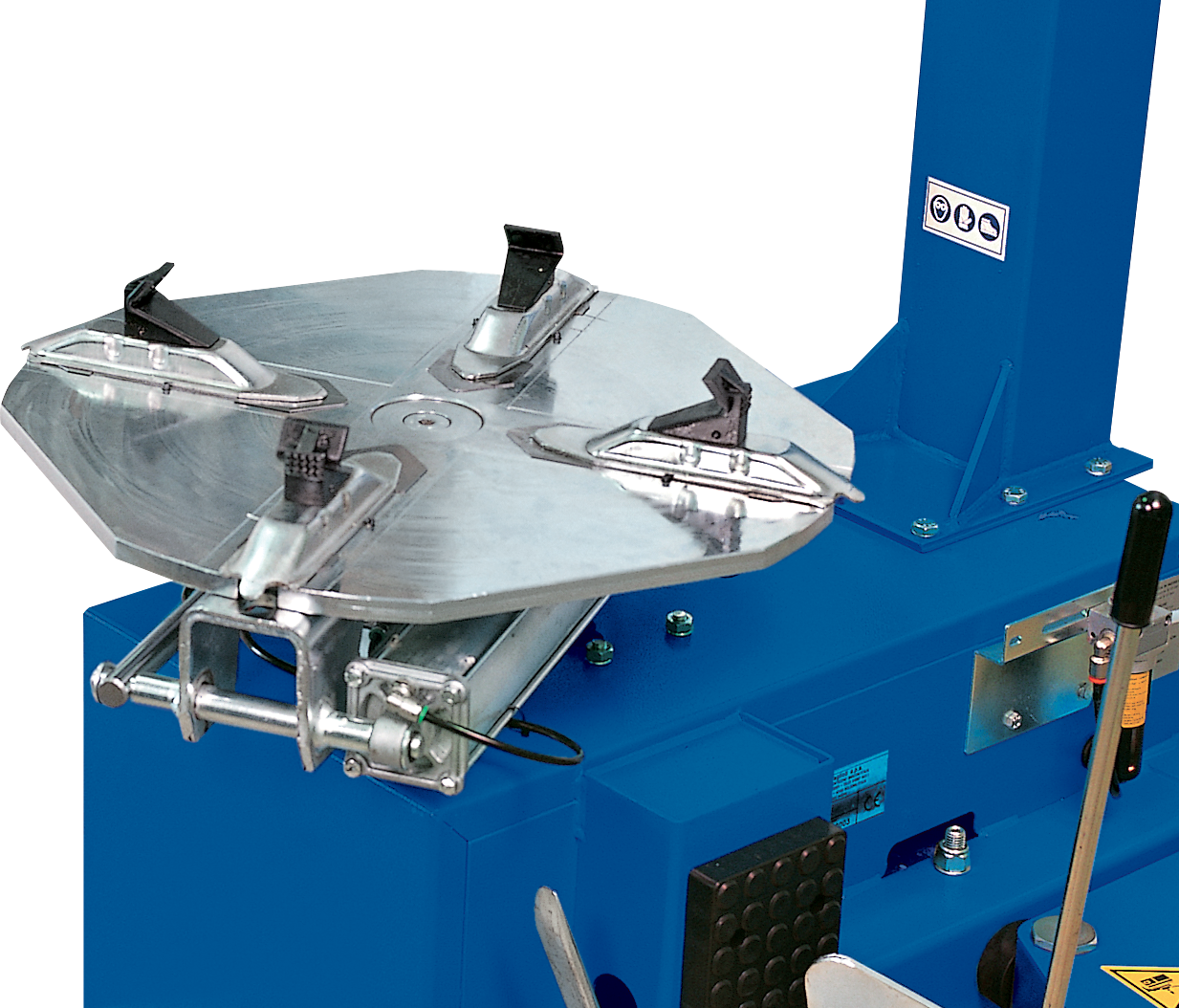

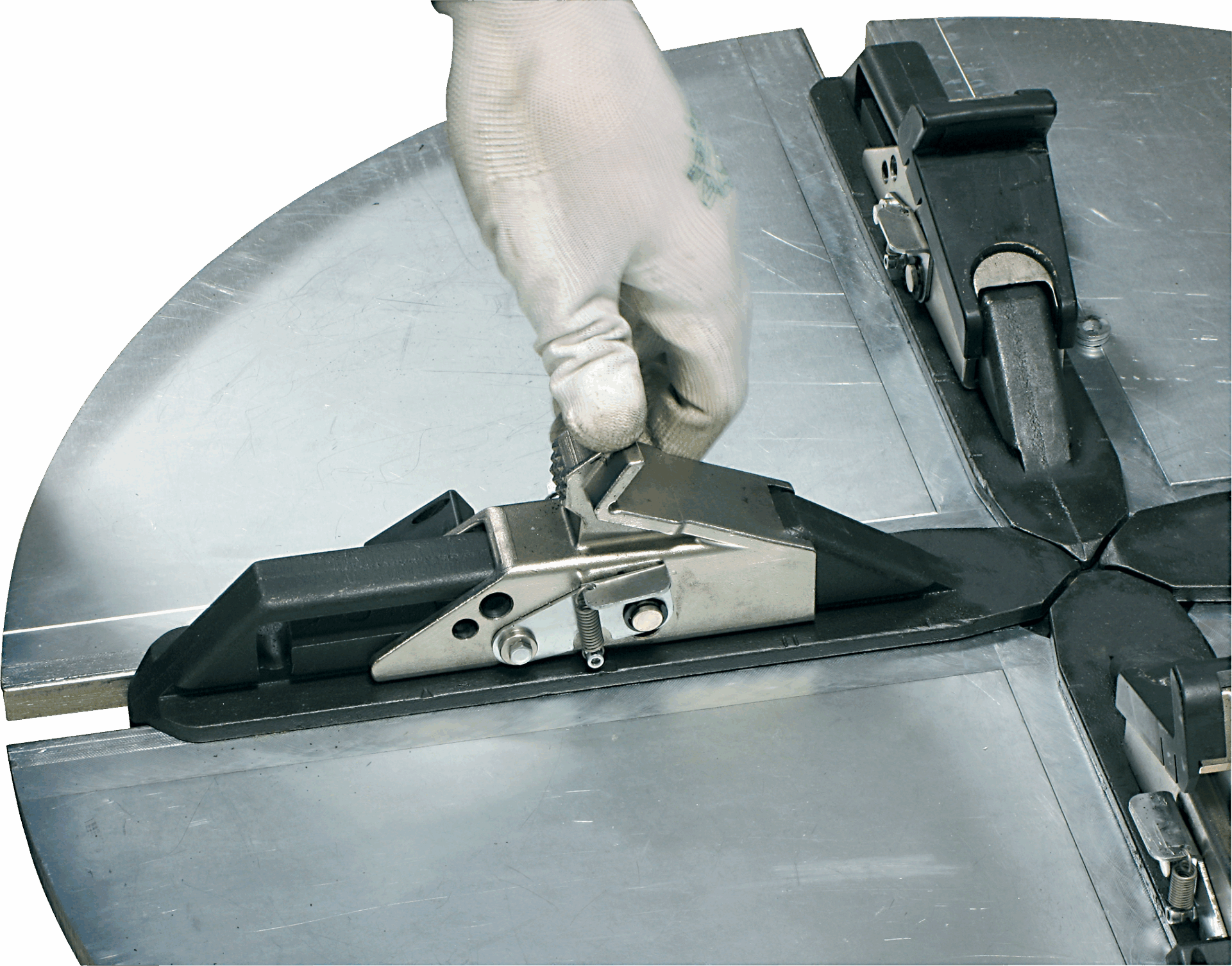

  • Self-centering chuck
    • Two-way rotation
    • High torque
    • High clamping force (two pistons)
  • Controls
    • Sturdy and ergonomic handle
    • Tool locking with automatic setting of appropriate distance from the rim
  • Roller
    • To facilitate arm movement during tool positioning

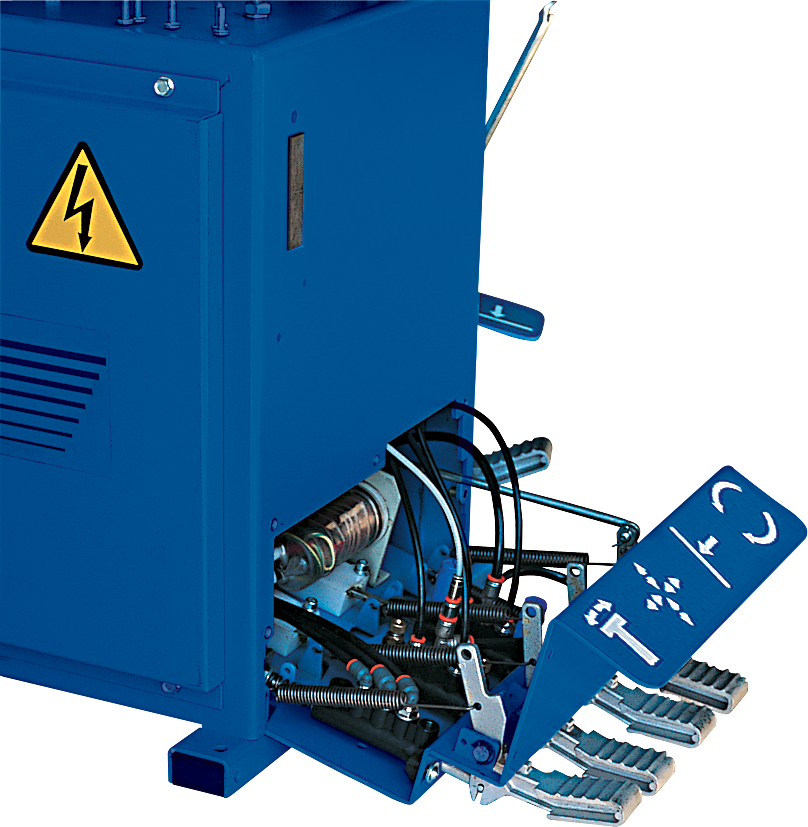

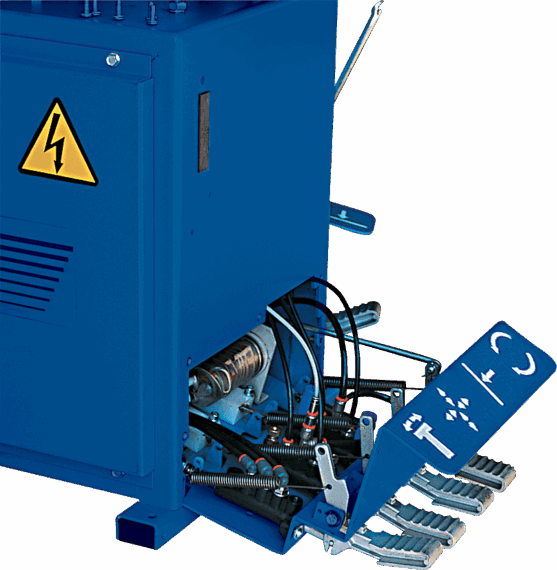

  • Pedal assembly
    • Pedals in press-cast aluminium
    • The pedal assembly can be removed as an integral unit allowing easy servicing

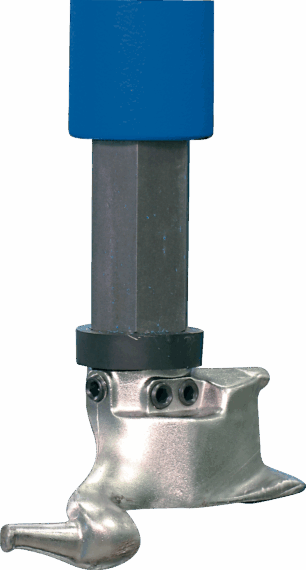

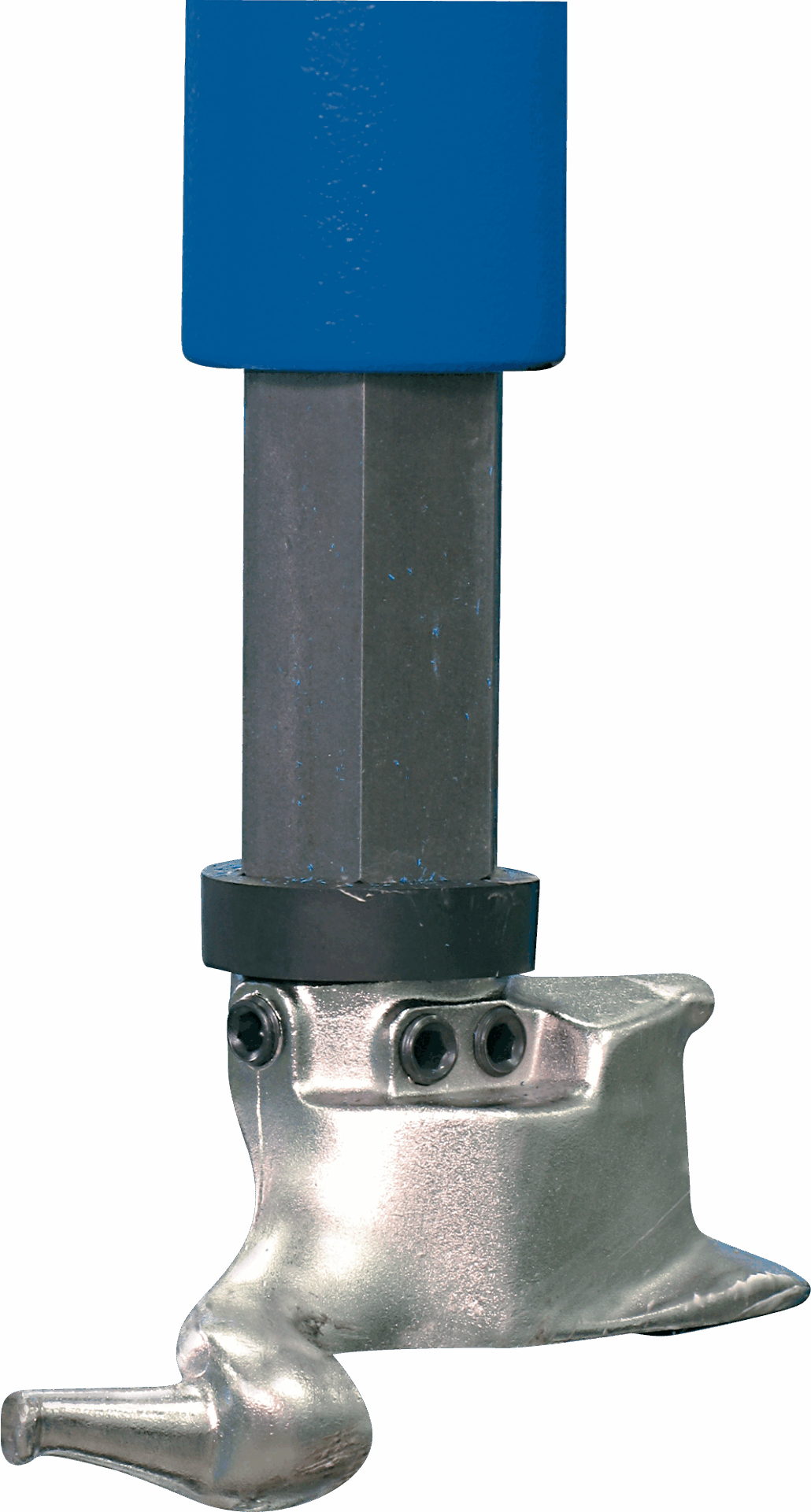

  • Tool

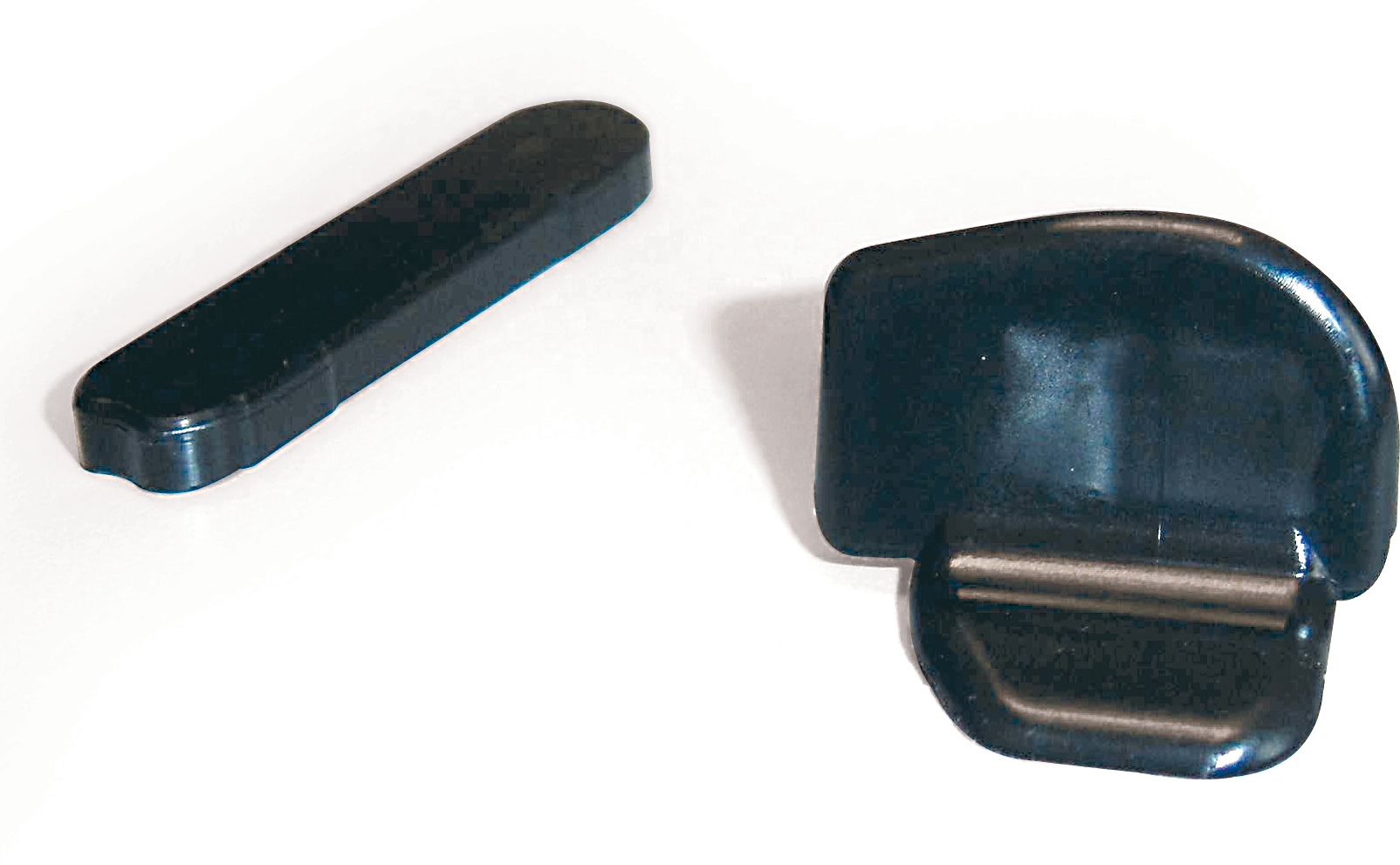

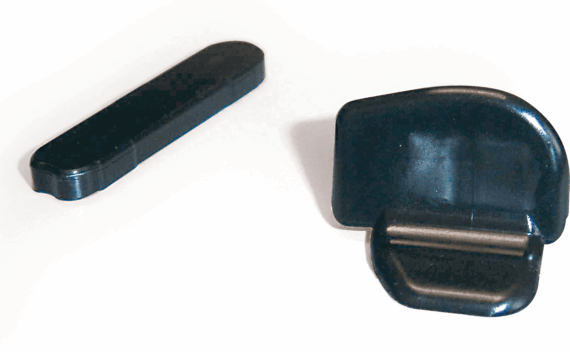

    • Tool with integrated protection for alloy rims
    • Adjustable angle and rotation

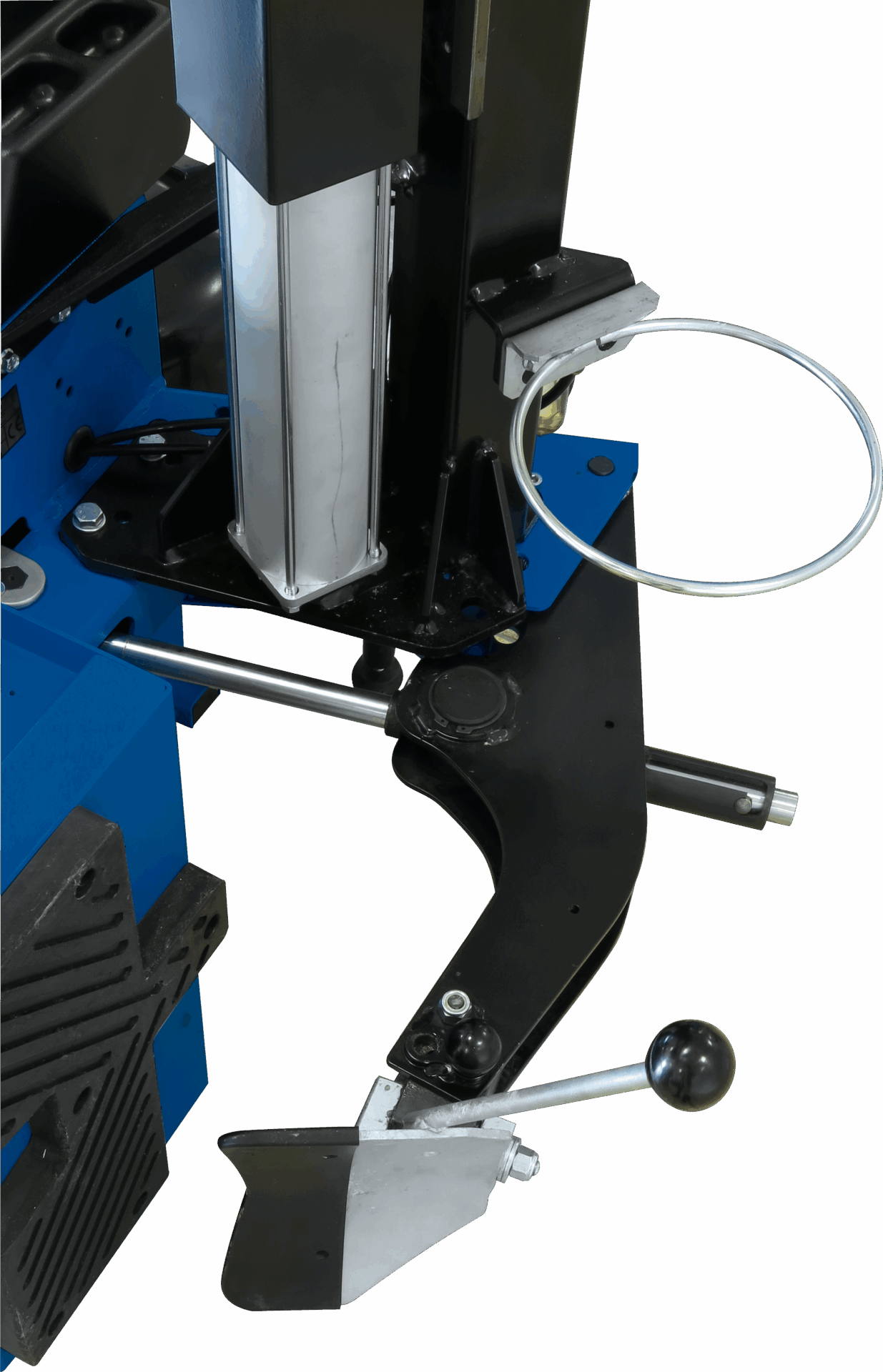

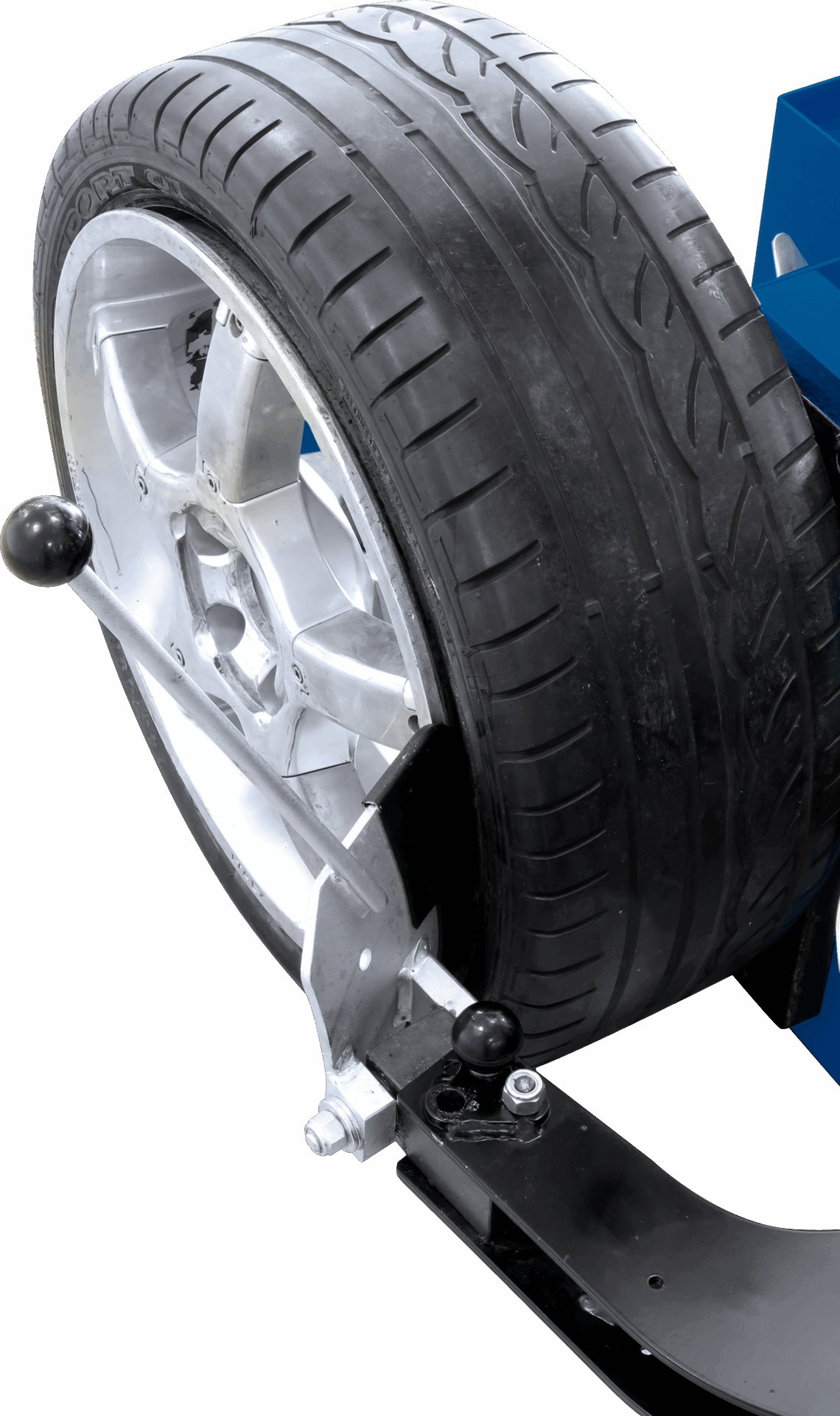

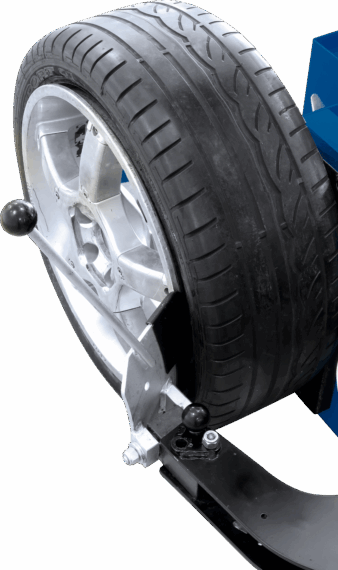

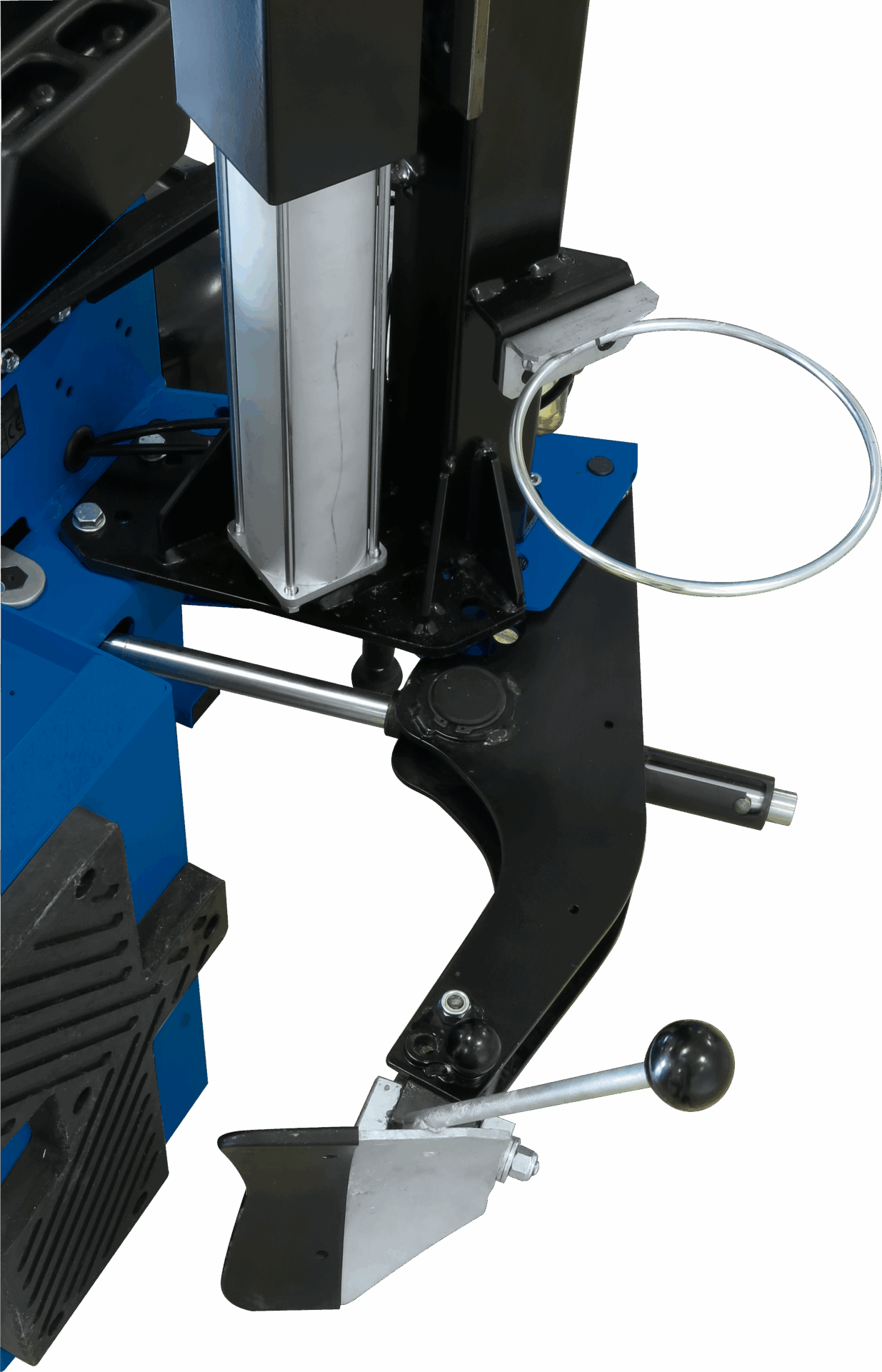

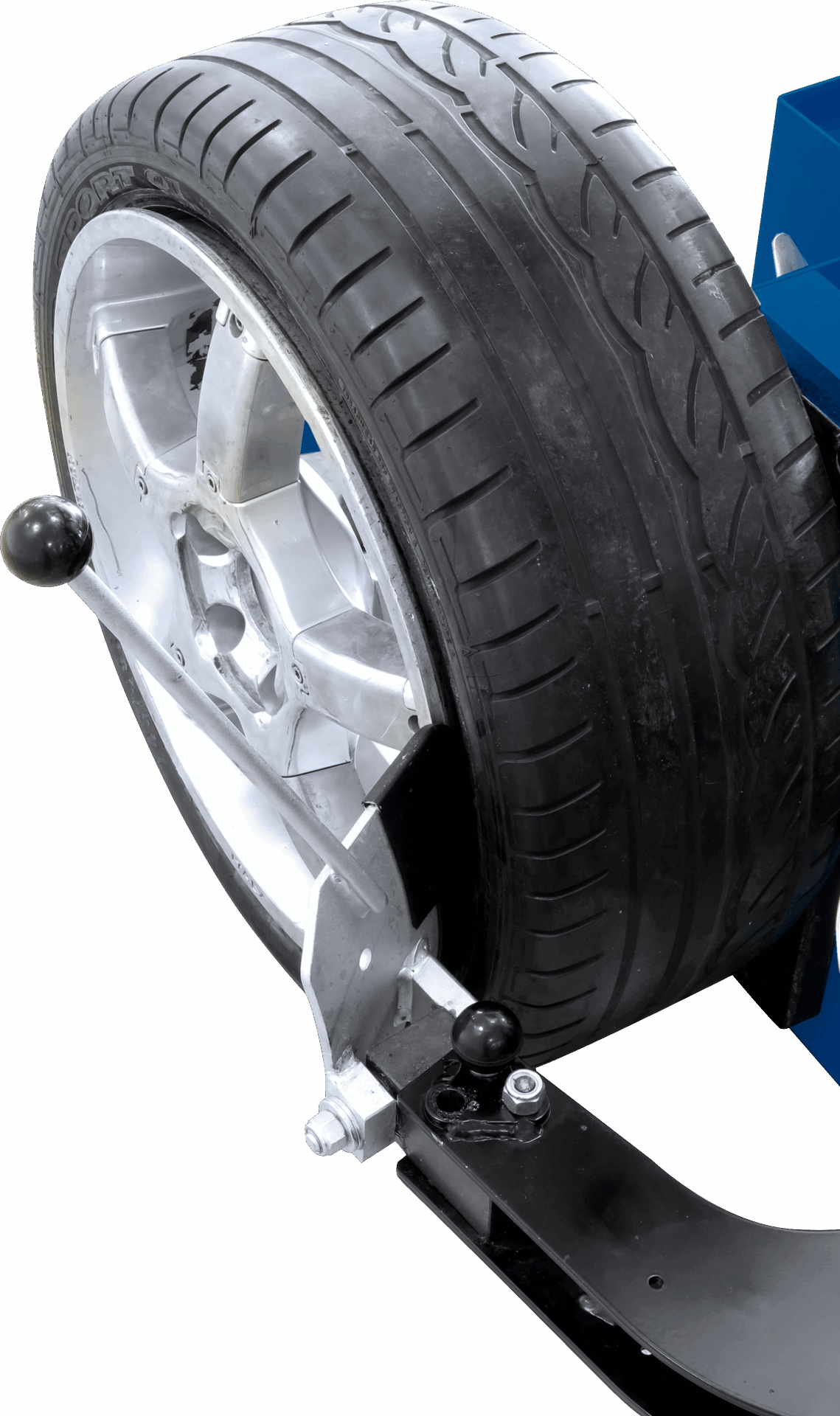

  • Bead breaker
    • The bead breaker opening can be adjusted into 2 positions to work with extreme rapidity
    • Jointed and shaped blade to facilitate bead breaking
    • Galvanised cylinder with double operation

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7645D.26PLUSTyre changer G7645D.26PLUSTyre changer G7641D.24PLUSTyre changer G7641D.24PLUSAutomatic tyre changer G7645ID.26Automatic tyre changer G7645ID.26Automatic tyre changer G7645D.26Automatic tyre changer G7645D.26Tyre changer G1065.NTyre changer G1065.NTyre changer G8645ID.26PLUSTyre changer G8645ID.26PLUS
Mounting head designautomaticwith tire leverautomaticautomaticwith tire leverwithout tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltablerigidtiltable
Colour5005RAL5005RAL————
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possible————
Clamping device designClamping plateClamping plateClamping plateClamping platecentralClamping plate
Min. clamping capacity10″10″8″8″12″10″
Max. clamping capacity26″24″32″32″24″28,5″
Min. inner clamping range12″12″12″10″—12″
Max. inner clamping range28,5″26,5″28,5″26″—28,5″
Min. outer clamping range10″10″10″12″12″10″
Max. outer clamping range26″24″26″28,5″24″24″
Max. rim width17″15″17″17″15″17″
Min. rim diameter10″10″————
Max. rim diameter28,5″26,5″————
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width431mm381mm————
Max. wheel diameter1143mm1050mm1143mm1143mm1143mm1143mm
Max. wheel weight80kg80kg————
Min. working range of the mounting head8″8″8″8″—8″
Max. working range of the mounting head32″24″24″24″—32″
Automatic bead-breaking movementNoNoNoNoNoNo
Bead breaker force11,9kN10,7kN11,9kN11,9kN10,7kN11,9kN
Number of mounting speeds111111
Rotation speed16rpm16rpm16rpm16rpm15rpm16rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW
Driving power0,75kW0,75kW0,75kW0,75kW0,75kW0,75kW
Phases111111
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow
Air supply8bar8bar————
Max. air supply10bar10bar10bar10bar10bar10bar
Width1595mm1533mm1630mm1630mm1540mm1663mm
Weight310kg330kg290kg280kg307kg360kg
Depth1992mm1520mm1990mm1990mm900mm1999mm
Height2134mm2091mm1973mm1973mm1980mm2063mm
