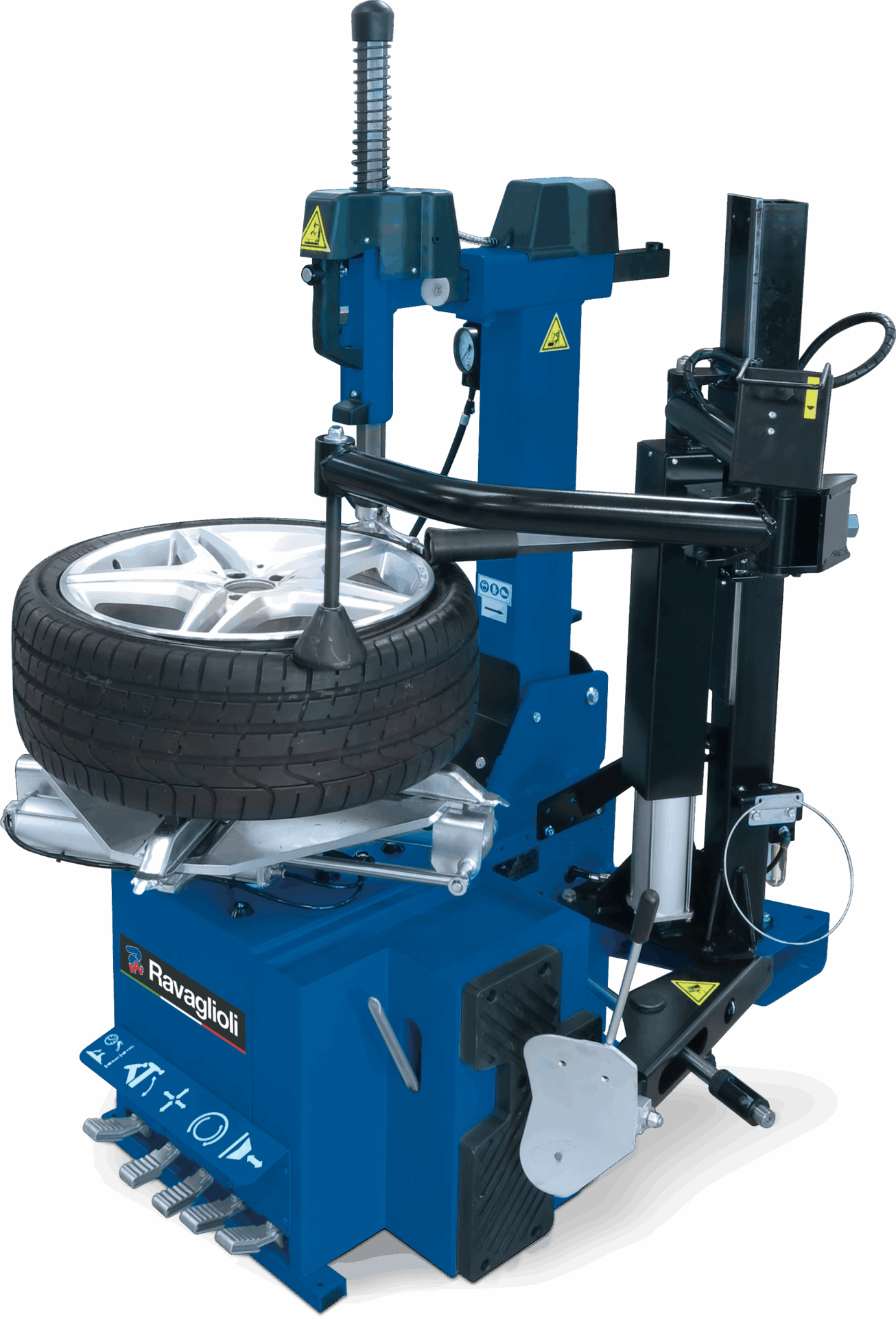

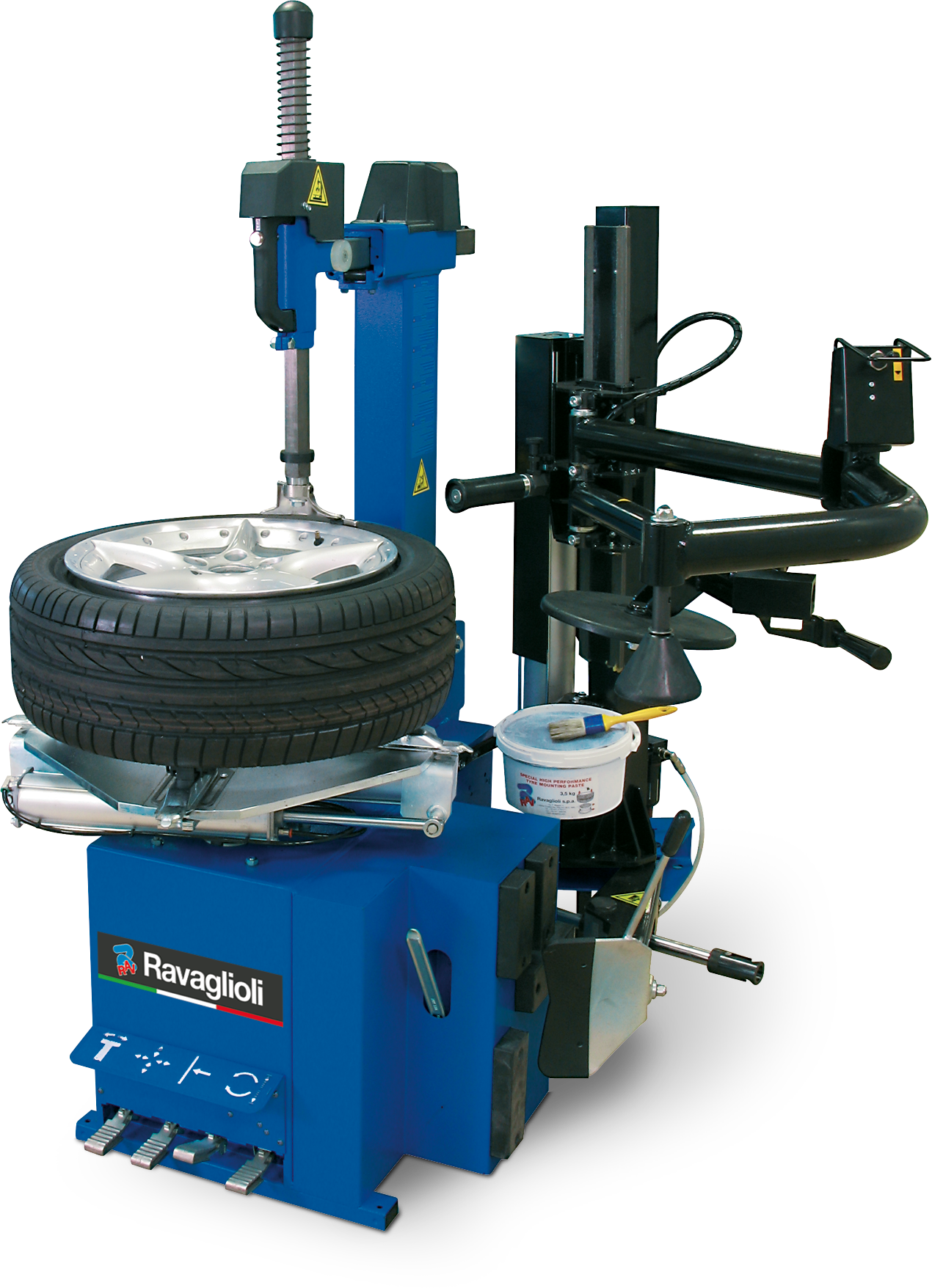

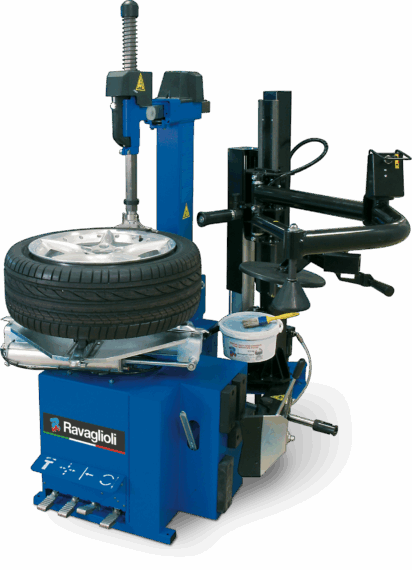

Tyre changer G7641IV.22

Mounting head and mounting lever, automatic, 2 speeds (max. 13 rpm), passenger car, chucking table with double adjustable clamp position, rim diameter 11 – 24,5″, new reinforced frame, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G7641.201089
GTIN (EAN): 5063084201089
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

  • Chucking table with double adjustable clamp position 10″ – 24″.
  • The frame is large and reinforced, to grant utmost rigidity to the structure and chucking table.
  • The gear box is installed between two steel plates, to avoid flexion during operation.
  • The extra height of the vertical post and tool shaft allow operation on tyres up to 15″ (381 mm) width.
  • New standard high adherence clamp with renewable spikes
  • Fine setting
  • Fast bead-breaking with 2 position adjustment
  • Aluminium cylinder with double operation

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7641IV.22Tyre changer G7641IV.22Tyre changer G7641D.24PLUSTyre changer G7641D.24PLUSTyre changer G7641D.24Tyre changer G7641D.24Tyre changer G7641ID.24Tyre changer G7641ID.24Tyre changer G7641V.22Tyre changer G7641V.22Tyre changer G7441V.22Tyre changer G7441V.22Tyre changer G1065.NTyre changer G1065.N
Mounting head designwith tire leverwith tire leverwith tire leverwith tire leverwith tire leverautomaticwith tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltabletiltabletiltablerigid
Colour5005RAL5005RAL5005RAL5005RAL5005RAL5005RAL
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Clamping device designClamping plateClamping plateClamping plateClamping plateClamping plateClamping platecentral
Min. clamping capacity11″10″10″10″11″10″12″
Max. clamping capacity22″24″24″24″22″22″24″
Min. inner clamping range13″12″12″12″13″12″
Max. inner clamping range24,5″26,5″26,5″26,5″24,5″24,5″
Min. outer clamping range11″10″10″10″11″10″12″
Max. outer clamping range22″24″24″24″22″22″24″
Max. rim width15″15″15″15″15″14,1″15″
Min. rim diameter11″10″10″10″11″10″
Max. rim diameter24,5″26,5″26,5″26,5″24,5″24,5″
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width381mm381mm381mm381mm381mm381mm
Max. wheel diameter1050mm1050mm1050mm1050mm1050mm1050mm1143mm
Max. wheel weight80kg80kg80kg80kg80kg80kg
Min. working range of the mounting head8″8″8″8″8″8″
Max. working range of the mounting head24″24″24″24″24″24″
Automatic bead-breaking movementNoNoNoNoNoNoNo
Bead breaker force10,7kN10,7kN10,7kN10,7kN10,7kN10,7kN10,7kN
Number of mounting speeds2111221
Rotation speed6,5 / 13rpm16rpm16rpm16rpm6,5 / 13rpm6,5 / 13rpm15rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW
Driving power0,8 / 1,1kW0,75kW0,75kW0,75kW0,8 / 1,1kW0,8 / 1,1kW0,75kW
Power supply400 V | 50 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz230/400 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz
Phases3111331
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow
Air supply8bar8bar8bar8bar8bar8bar
Max. air supply10bar10bar10bar10bar10bar10bar10bar
Width1472mm1533mm1533mm1533mm1472mm1304mm1540mm
Weight238kg330kg238kg253kg213kg214kg307kg
Depth1458mm1520mm1520mm1520mm1458mm1449mm900mm
Height2091mm2091mm2091mm2091mm2091mm1950mm1980mm
