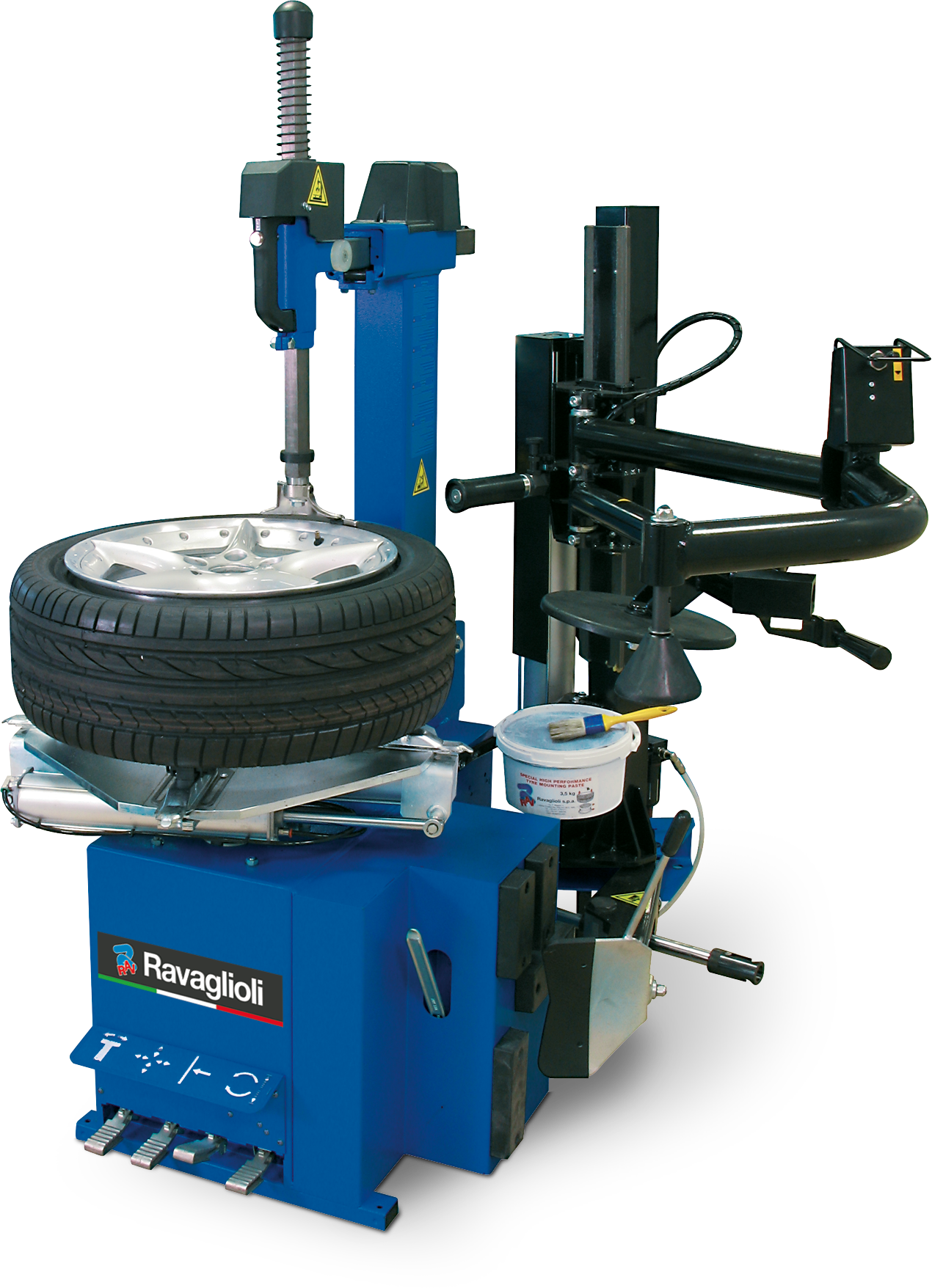

Tyre changer G7641ID.24

Tyre changer G7641ID.24

Mounting head and mounting lever, automatic, max. speed 16 rpm, passenger car, chucking table with double adjustable clamp position, rim diameter 10 – 26,5″, new reinforced frame, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G7641.201041
GTIN (EAN): 5063084201041
Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

  • Chucking table with double adjustable clamp position 10″ – 24″.
  • The frame is large and reinforced, to grant utmost rigidity to the structure and chucking table.
  • The gear box is installed between two steel plates, to avoid flexion during operation.
  • The extra height of the vertical post and tool shaft allow operation on tyres up to 15″ (381 mm) width.
  • New standard high adherence clamp with renewable spikes
  • Fine setting
  • Fast bead-breaking with 2 position adjustment
  • Aluminium cylinder with double operation

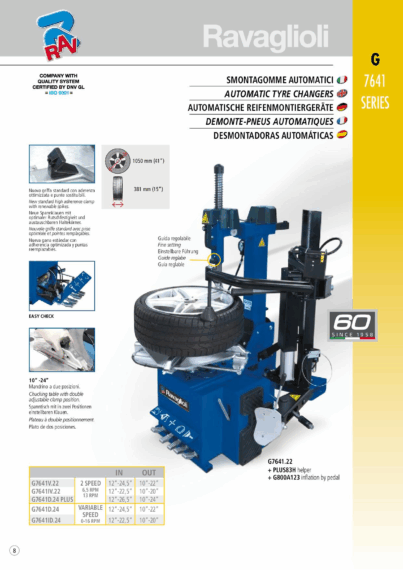

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7641ID.24Tyre changer G7641ID.24Tyre changer G7641D.24PLUSTyre changer G7641D.24PLUSTyre changer G7641D.24Tyre changer G7641D.24Tyre changer G7441IV.22Tyre changer G7441IV.22Tyre changer G7441V.22Tyre changer G7441V.22Tyre changer G7641V.22Tyre changer G7641V.22Tyre changer G7641IV.22Tyre changer G7641IV.22Tyre changer G1065.NTyre changer G1065.NAutomatic tyre changer G7645D.26Automatic tyre changer G7645D.26Automatic tyre changer G1001.24ELXAutomatic tyre changer G1001.24ELX
Mounting head designwith tire leverwith tire leverwith tire leverautomaticautomaticwith tire leverwith tire leverwith tire leverautomaticwith tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltabletiltabletiltabletiltablerigidtiltablerigid
Colour5005RAL5005RAL5005RAL5005RAL5005RAL5005RAL5005RAL———
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible———
Clamping device designClamping plateClamping plateClamping plateClamping plateClamping plateClamping plateClamping platecentralClamping platecentral
Min. clamping capacity10″10″10″10″10″11″11″12″8″12″
Max. clamping capacity24″24″24″22″22″22″22″24″32″24″
Min. inner clamping range12″12″12″12″12″13″13″—10″—
Max. inner clamping range26,5″26,5″26,5″24,5″24,5″24,5″24,5″—26″—
Min. outer clamping range10″10″10″10″10″11″11″12″12″—
Max. outer clamping range24″24″24″22″22″22″22″24″28,5″—
Max. rim width15″15″15″14,1″14,1″15″15″15″17″15″
Min. rim diameter10″10″10″10″10″11″11″———
Max. rim diameter26,5″26,5″26,5″24,5″24,5″24,5″24,5″———
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width381mm381mm381mm381mm381mm381mm381mm———
Max. wheel diameter1050mm1050mm1050mm1050mm1050mm1050mm1050mm1143mm1143mm1200mm
Max. wheel weight80kg80kg80kg80kg80kg80kg80kg———
Min. working range of the mounting head8″8″8″8″8″8″8″—8″—
Max. working range of the mounting head24″24″24″24″24″24″24″—24″—
Automatic bead-breaking movementNoNoNoNoNoNoNoNoNoNo
Bead breaker force10,7kN10,7kN10,7kN10,7kN10,7kN10,7kN10,7kN10,7kN11,9kN30kN
Number of mounting speeds1112222111
Rotation speed16rpm16rpm16rpm6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm15rpm16rpm15rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm1200Nm—
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW
Driving power0,75kW0,75kW0,75kW0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,75kW0,75kW0,75kW
Power supply230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz400 V | 50 Hz220 – 240 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz200/265 V | 50 – 60 Hz
Phases1113333111
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow
Air supply8bar8bar8bar8bar8bar8bar8bar———
Max. air supply10bar10bar10bar10bar10bar10bar10bar10bar10bar—
Width1533mm1533mm1533mm1304mm1304mm1472mm1472mm1540mm1630mm1003mm
Weight253kg330kg238kg234kg214kg213kg238kg307kg280kg208kg
Depth1520mm1520mm1520mm1449mm1449mm1458mm1458mm900mm1990mm1186mm
Height2091mm2091mm2091mm1950mm1950mm2091mm2091mm1980mm1973mm1606mm
