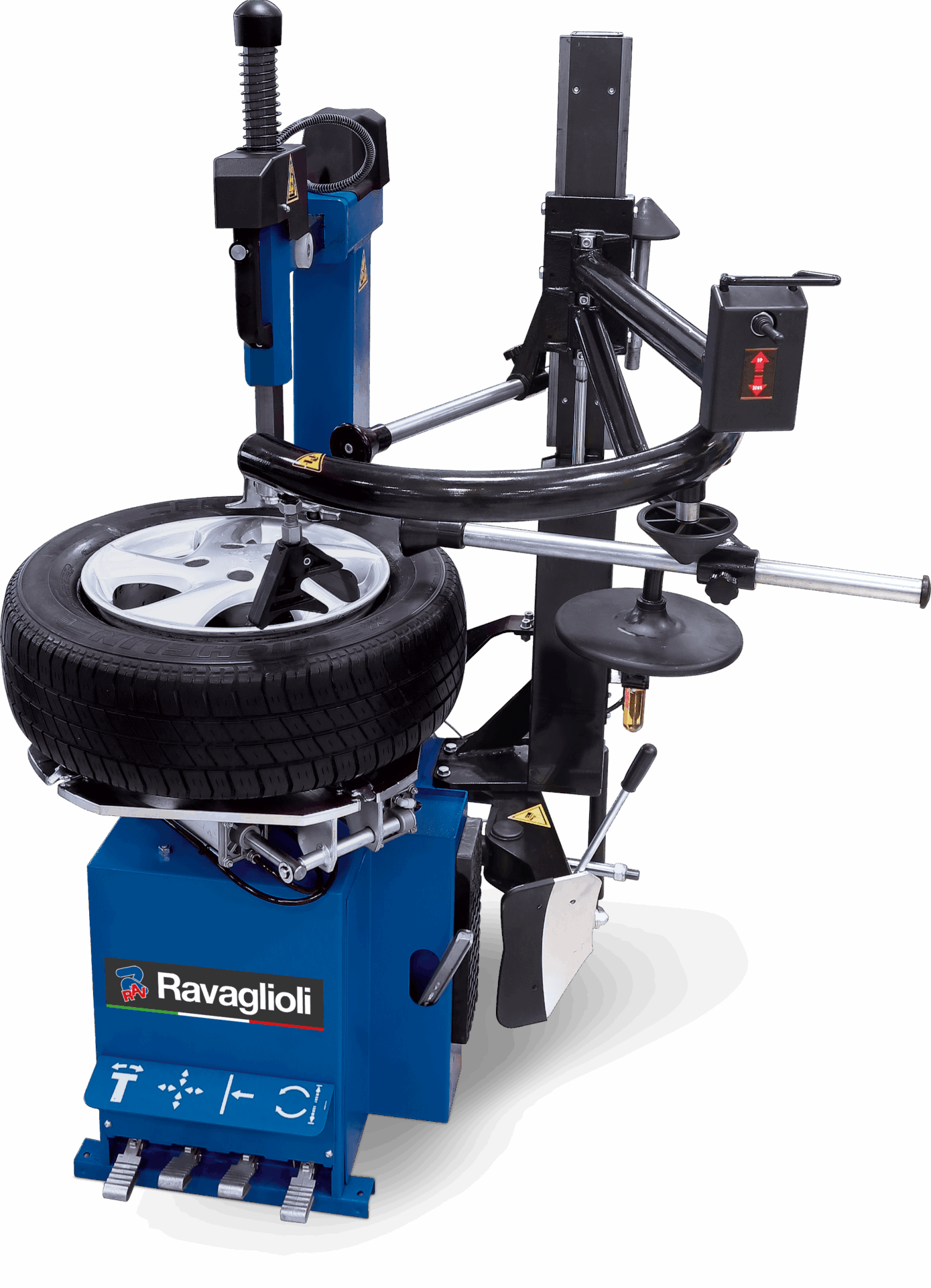

Tyre changer G7441V.22PLUS

Tyre changer G7441V.22PLUS

Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24,5″, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G7441.200921
GTIN (EAN): 5063084200921
Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

  • Heavy duty structure to guarantee proper working conditions at all times
  • Bead lifting lever
  • Tool locking with automatic setting of appropriate distance from the rim
  • Fine setting
  • New standard high adherence clamp with renewable spikes
  • Tool with integrated protection for alloy rims
  • Jointed and shaped blade to facilitate bead breaking without damaging the rim or tyre
  • Double acting light alloy bead breaker

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7441V.22PLUSTyre changer G7441V.22PLUSTyre changer G7441V.22Tyre changer G7441V.22Tyre changer G7441IV.22Tyre changer G7441IV.22Tyre changer G7441.22Tyre changer G7441.22Tyre changer G7441.20Tyre changer G7441.20Automatic tyre changer G1001.24ELXAutomatic tyre changer G1001.24ELXTyre changer G7641D.24PLUSTyre changer G7641D.24PLUSTyre changer G7641IV.22Tyre changer G7641IV.22
Mounting head designautomaticautomaticautomaticautomaticautomaticwith tire leverwith tire leverwith tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltabletiltablerigidtiltabletiltable
Colour5005RAL5005RAL5005RAL5005RAL5005RAL—5005RAL5005RAL
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possible—not possiblenot possible
Clamping device designClamping plateClamping plateClamping plateClamping plateClamping platecentralClamping plateClamping plate
Min. clamping capacity10″10″10″10″10″12″10″11″
Max. clamping capacity22″22″22″22″22″24″24″22″
Min. inner clamping range12″12″12″12″12″—12″13″
Max. inner clamping range24,5″24,5″24,5″24,5″24,5″—26,5″24,5″
Min. outer clamping range10″10″10″10″10″—10″11″
Max. outer clamping range22″22″22″22″22″—24″22″
Max. rim width14,1″14,1″14,1″14,1″14,1″15″15″15″
Min. rim diameter10″10″10″10″10″—10″11″
Max. rim diameter24,5″24,5″24,5″24,5″24,5″—26,5″24,5″
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width381mm381mm381mm381mm381mm—381mm381mm
Max. wheel diameter1050mm1050mm1050mm1050mm1050mm1200mm1050mm1050mm
Max. wheel weight80kg80kg80kg80kg80kg—80kg80kg
Min. working range of the mounting head8″8″8″8″8″—8″8″
Max. working range of the mounting head24″24″24″24″24″—24″24″
Automatic bead-breaking movementNoNoNoNoNoNoNoNo
Bead breaker force10,7kN10,7kN10,7kN10,7kN10,7kN30kN10,7kN10,7kN
Number of mounting speeds22221112
Rotation speed6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm7,3rpm15rpm16rpm6,5 / 13rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm—1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW
Driving power0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,75kW0,75kW0,75kW0,8 / 1,1kW
Power supply230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz200/265 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz
Phases33333113
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow
Air supply8bar8bar8bar8bar8bar—8bar8bar
Max. air supply10bar10bar10bar10bar10bar—10bar10bar
Width1596mm1304mm1304mm1304mm1280mm1003mm1533mm1472mm
Weight244kg214kg234kg214kg202kg208kg330kg238kg
Depth1823mm1449mm1449mm1449mm1421mm1186mm1520mm1458mm
Height1999mm1950mm1950mm1950mm1950mm1606mm2091mm2091mm
