Tyre changer G7441V.22

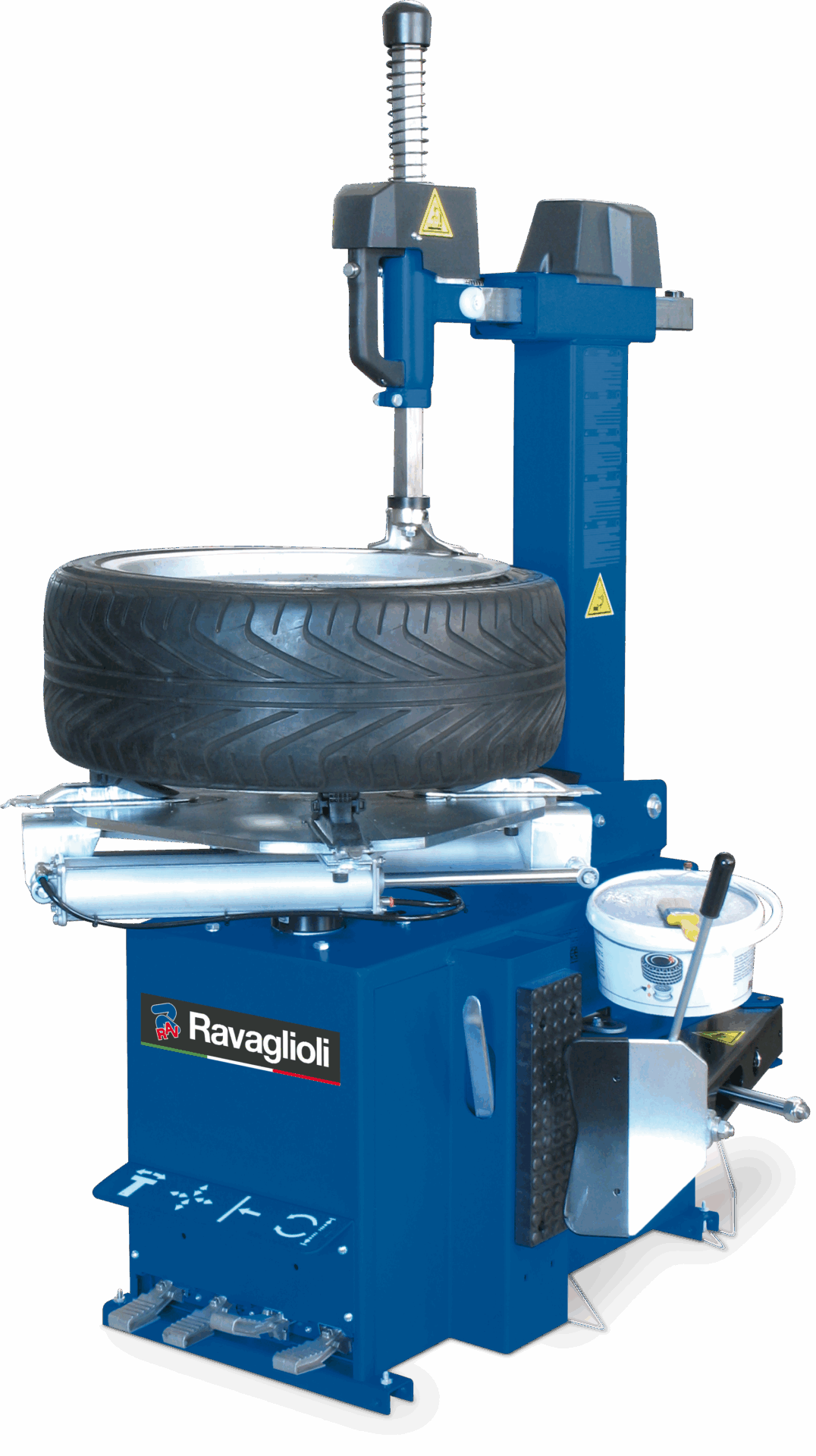

Tyre changer G7441V22 MI 02

Tyre changer G7441V.22

Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24,5″, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G7441.201119
GTIN (EAN): 5063084201119
Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

  • Heavy duty structure to guarantee proper working conditions at all times
  • Bead lifting lever
  • Tool locking with automatic setting of appropriate distance from the rim
  • Fine setting
  • New standard high adherence clamp with renewable spikes
  • Tool with integrated protection for alloy rims
  • Jointed and shaped blade to facilitate bead breaking without damaging the rim or tyre
  • Double acting light alloy bead breaker

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7441V.22Tyre changer G7441V.22Tyre changer G7441V.22PLUSTyre changer G7441V.22PLUSTyre changer G7441IV.22Tyre changer G7441IV.22Tyre changer G7441.22Tyre changer G7441.22Tyre changer G7441.20Tyre changer G7441.20Automatic tyre changer G1001.24ELXAutomatic tyre changer G1001.24ELXTyre changer G7641ID.24Tyre changer G7641ID.24Tyre changer G7641IV.22Tyre changer G7641IV.22Automatic tyre changer G5440I.22MAutomatic tyre changer G5440I.22M
Mounting head designautomaticautomaticautomaticautomaticautomaticwith tire leverwith tire leverwith tire leversemi-automatic
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltabletiltablerigidtiltabletiltabletiltable
Colour5005RAL5005RAL5005RAL5005RAL5005RAL—5005RAL5005RAL—
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possible—not possiblenot possible—
Clamping device designClamping plateClamping plateClamping plateClamping plateClamping platecentralClamping plateClamping plateClamping plate
Min. clamping capacity10″10″10″10″10″12″10″11″10″
Max. clamping capacity22″22″22″22″22″24″24″22″24″
Min. inner clamping range12″12″12″12″12″—12″13″—
Max. inner clamping range24,5″24,5″24,5″24,5″24,5″—26,5″24,5″—
Min. outer clamping range10″10″10″10″10″—10″11″—
Max. outer clamping range22″22″22″22″22″—24″22″—
Max. rim width14,1″14,1″14,1″14,1″14,1″15″15″15″13″
Min. rim diameter10″10″10″10″10″—10″11″—
Max. rim diameter24,5″24,5″24,5″24,5″24,5″—26,5″24,5″—
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width381mm381mm381mm381mm381mm—381mm381mm—
Max. wheel diameter1050mm1050mm1050mm1050mm1050mm1200mm1050mm1050mm1000mm
Max. wheel weight80kg80kg80kg80kg80kg—80kg80kg—
Min. working range of the mounting head8″8″8″8″8″—8″8″—
Max. working range of the mounting head24″24″24″24″24″—24″24″—
Automatic bead-breaking movementNoNoNoNoNoNoNoNoNo
Bead breaker force10,7kN10,7kN10,7kN10,7kN10,7kN30kN10,7kN10,7kN12kN
Number of mounting speeds222211121
Rotation speed6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm7,3rpm15rpm16rpm6,5 / 13rpm7 / 14rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm—1200Nm1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW—
Driving power0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,75kW0,75kW0,75kW0,8 / 1,1kW0,75kW
Power supply230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz200/265 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz230 V | 50 Hz
Phases333331131
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow—
Air supply8bar8bar8bar8bar8bar—8bar8bar—
Max. air supply10bar10bar10bar10bar10bar—10bar10bar10bar
Width1304mm1596mm1304mm1304mm1280mm1003mm1533mm1472mm1110mm
Weight214kg244kg234kg214kg202kg208kg253kg238kg233kg
Depth1449mm1823mm1449mm1449mm1421mm1186mm1520mm1458mm1650mm
Height1950mm1999mm1950mm1950mm1950mm1606mm2091mm2091mm1850mm
