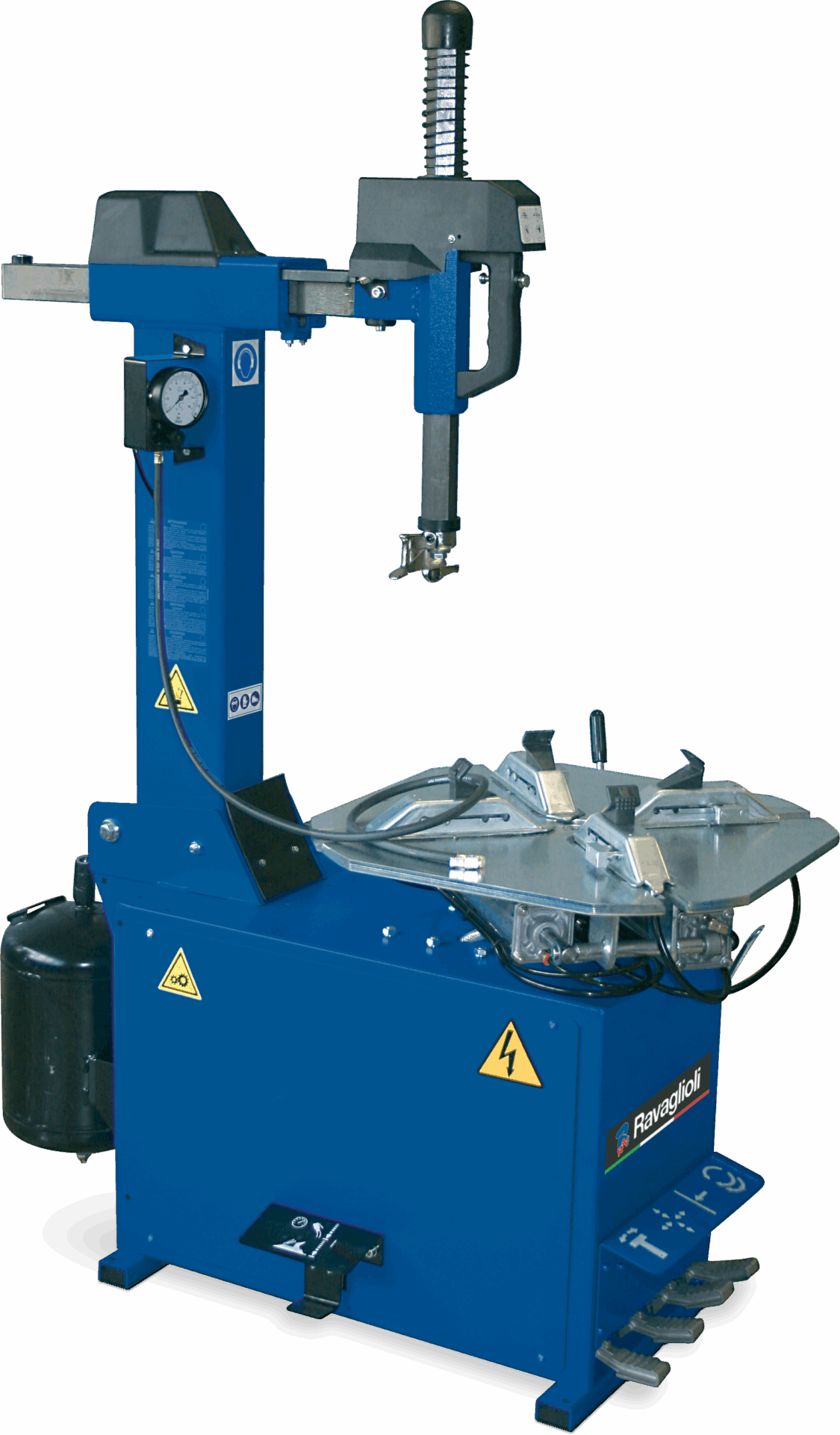

Tyre changer G7441IV.22

Tyre changer G7441IV.22

Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24,5″, max. rim width 381 mm | Blue (RAL 5005)

MPN: RAV.G7441.200877
GTIN (EAN): 5063084200877
Category:
Tags: , ,
Request Information

Share on:

dashicons-media-document

Description

  • Heavy duty structure to guarantee proper working conditions at all times
  • Bead lifting lever
  • Tool locking with automatic setting of appropriate distance from the rim
  • Fine setting
  • New standard high adherence clamp with renewable spikes
  • Tool with integrated protection for alloy rims
  • Jointed and shaped blade to facilitate bead breaking without damaging the rim or tyre
  • Double acting light alloy bead breaker

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G7441IV.22Tyre changer G7441IV.22Tyre changer G7441V.22PLUSTyre changer G7441V.22PLUSTyre changer G7441V.22Tyre changer G7441V.22Tyre changer G7441.22Tyre changer G7441.22Tyre changer G7441.20Tyre changer G7441.20Automatic tyre changer G1001.24ELXAutomatic tyre changer G1001.24ELXTyre changer G7641V.22Tyre changer G7641V.22Automatic tyre changer G5440V.22GAutomatic tyre changer G5440V.22G
Mounting head designautomaticautomaticautomaticautomaticautomaticwith tire leverwith tire leversemi-automatic
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designtiltabletiltabletiltabletiltabletiltablerigidtiltabletiltable
Colour5005RAL5005RAL5005RAL5005RAL5005RAL—5005RAL—
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Workshop-Netnot possiblenot possiblenot possiblenot possiblenot possible—not possible—
Clamping device designClamping plateClamping plateClamping plateClamping plateClamping platecentralClamping plateClamping plate
Min. clamping capacity10″10″10″10″10″12″11″10″
Max. clamping capacity22″22″22″22″22″24″22″24″
Min. inner clamping range12″12″12″12″12″—13″—
Max. inner clamping range24,5″24,5″24,5″24,5″24,5″—24,5″—
Min. outer clamping range10″10″10″10″10″—11″—
Max. outer clamping range22″22″22″22″22″—22″—
Max. rim width14,1″14,1″14,1″14,1″14,1″15″15″13″
Min. rim diameter10″10″10″10″10″—11″—
Max. rim diameter24,5″24,5″24,5″24,5″24,5″—24,5″—
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Max. wheel width381mm381mm381mm381mm381mm—381mm—
Max. wheel diameter1050mm1050mm1050mm1050mm1050mm1200mm1050mm1000mm
Max. wheel weight80kg80kg80kg80kg80kg—80kg—
Min. working range of the mounting head8″8″8″8″8″—8″—
Max. working range of the mounting head24″24″24″24″24″—24″—
Automatic bead-breaking movementNoNoNoNoNoNoNoNo
Bead breaker force10,7kN10,7kN10,7kN10,7kN10,7kN30kN10,7kN12kN
Number of mounting speeds22221122
Rotation speed6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm6,5 / 13rpm7,3rpm15rpm6,5 / 13rpm7 / 14rpm
Max. torque1200Nm1200Nm1200Nm1200Nm1200Nm—1200Nm1200Nm
Power inverter motor1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW1,5kW—
Driving power0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,8 / 1,1kW0,75kW0,75kW0,8 / 1,1kW0,8 / 1,1kW
Power supply230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz230/400 V | 50 – 60 Hz400 V | 50 Hz200/265 V | 50 – 60 Hz400 V | 50 Hz380 V | 50 Hz
Phases33333133
Fuse protection16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow16A slow-blow—
Air supply8bar8bar8bar8bar8bar—8bar—
Max. air supply10bar10bar10bar10bar10bar—10bar10bar
Width1304mm1596mm1304mm1304mm1280mm1003mm1472mm1110mm
Weight234kg244kg214kg214kg202kg208kg213kg233kg
Depth1449mm1823mm1449mm1449mm1421mm1186mm1458mm1650mm
Height1950mm1999mm1950mm1950mm1950mm1606mm2091mm1850mm
