Description
- Swing arm
- Operating arm with pneumatic locking
- Air operated bead breaker
- Oversized body
- Extractable pedal unit
- Equipped with:
- Tyre inflator
- Clamps protection package
- Tool protection
- Bead lever
- Plastic brush

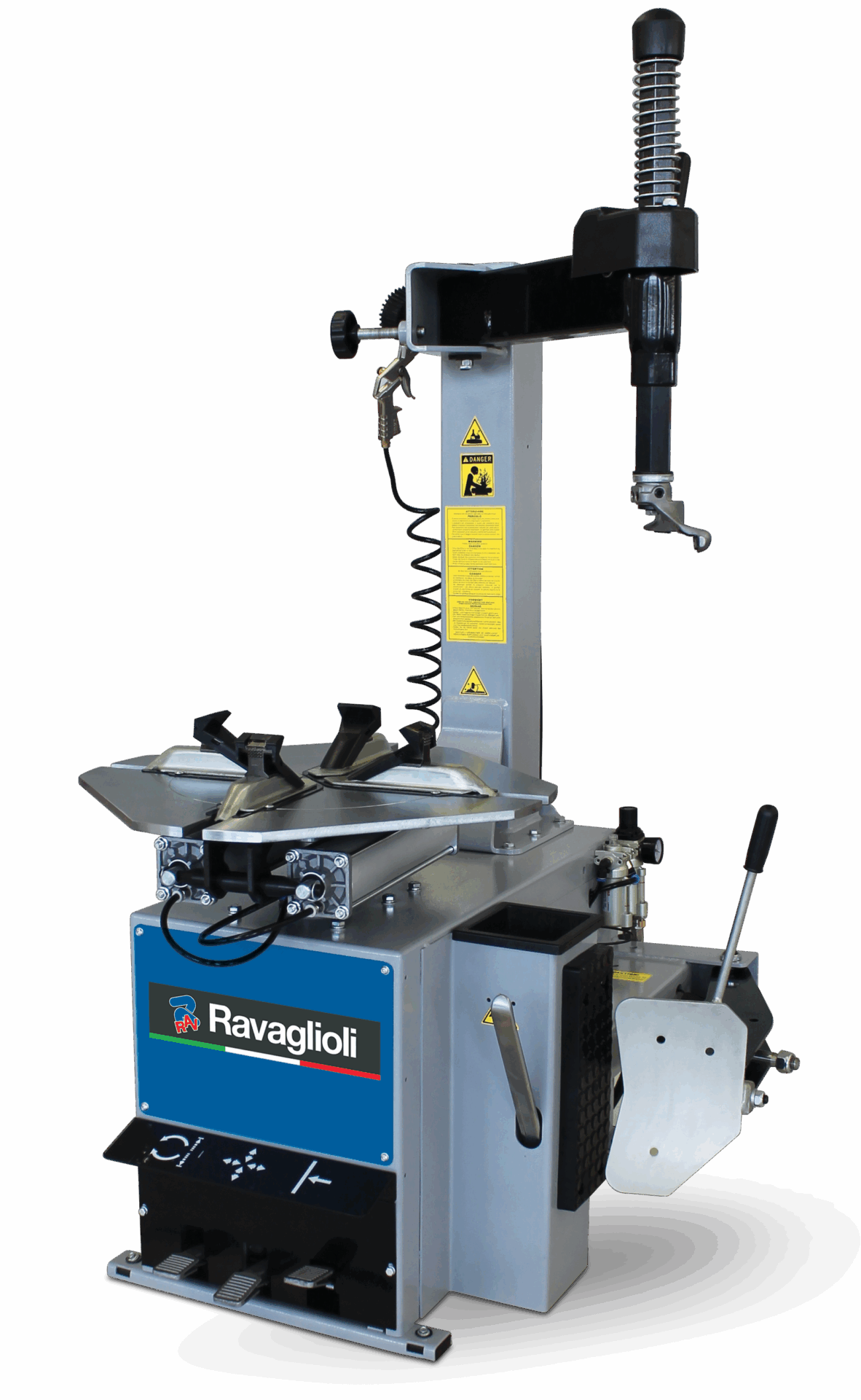

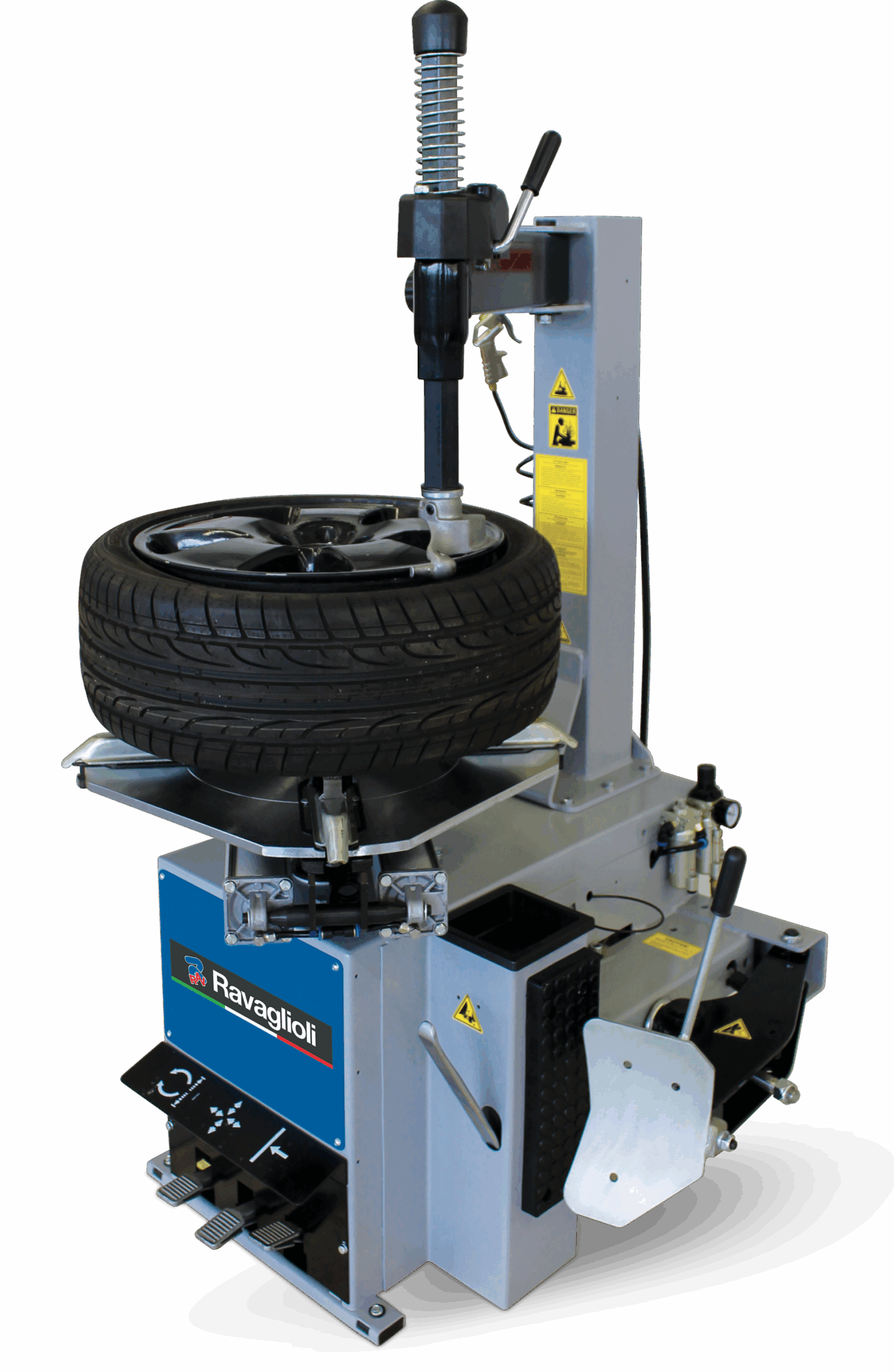

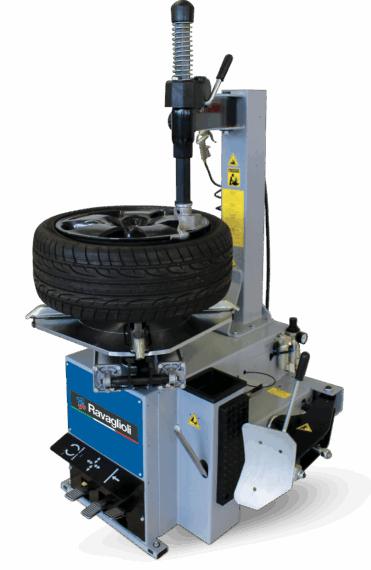

Tyre changer G5140.22M
Mounting head and mounting lever, semiautomatic, incl. tire inflator, max. speed 7/14 rpm, passenger car, rim diameter 10 – 24″, max. rim width 420 mm | Blue (RAL 5005)

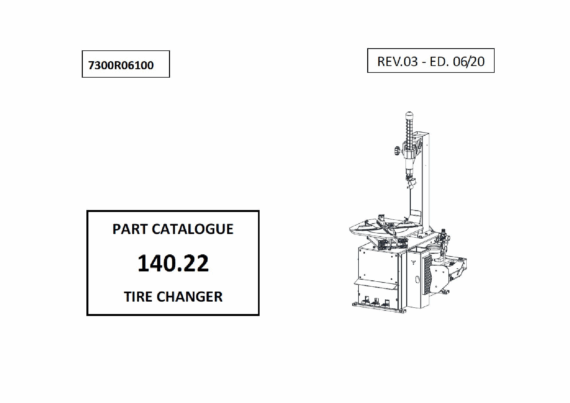

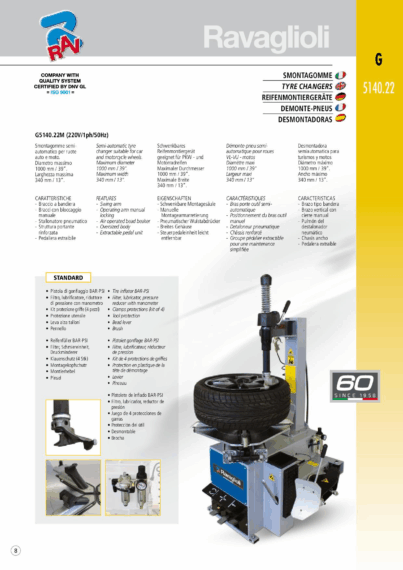

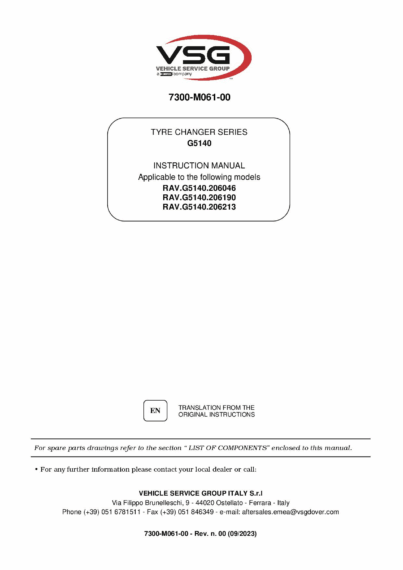

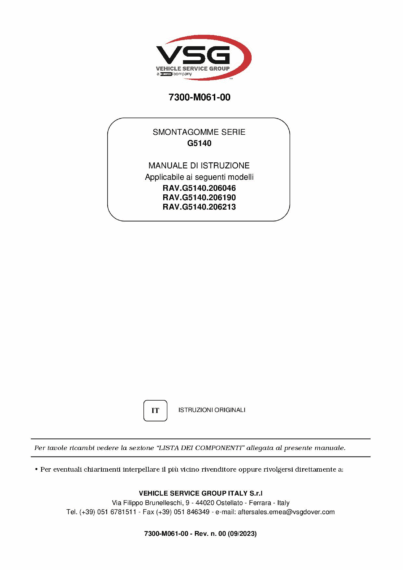

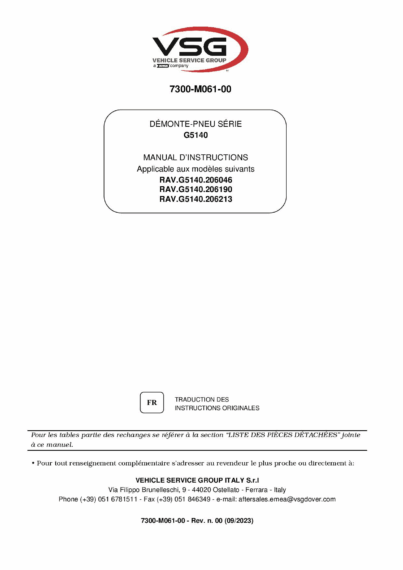

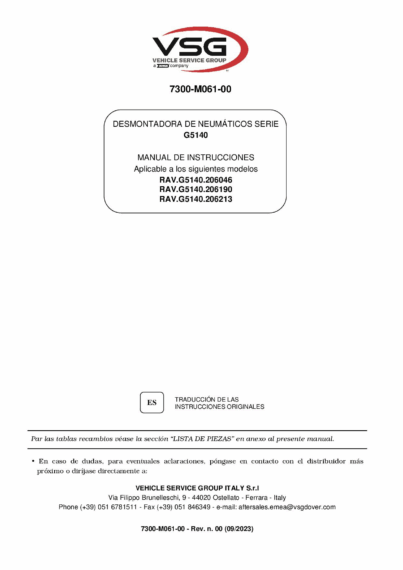

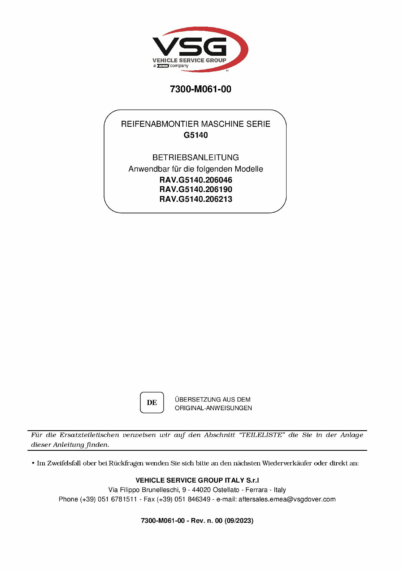

Media
Similar Products
-
Tyre changers
Tyre changer G5440.22M
MPN: RAV.G5440.206169Mounting head and mounting lever, semiautomatic, incl. tire inflator, max. speed 7/14 rpm, passenger car, rim diameter 10 – 24″,…
-
Tyre changers
Tyre changer G7441.22
MPN: RAV.G7441.200969Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue…
-
Tyre changers
Tyre changer G7240.20
MPN: RAV.G7240.201157Semiautomatic, Swing series, max. speed 7.3 rpm, passenger car, rim diameter 10 – 22.5″ (chucking table 20″), max. rim width…
-
Tyre changers
Tyre changer G5140IH.22U
MPN: RAV.G5140.206213Mounting head and mounting lever, semiautomatic, incl. tubeless tyre inflation device, max. speed 7/14 rpm, passenger car, rim diameter 10…
Accessories
-
Accessories tyre changers
Plastic protection
MPN: G800A6For movable clamping jaws 24 – 26 – 28″ | 1 set / 4 pieces
-
Accessories tyre changers
Plastic protection for mounting head
MPN: G108A91 piece
-
Accessories tyre changers
Mounting lever Standard
MPN: G1000A52Passenger cars
-
Accessories tyre changers
Brush Plastic
MPN: G800A38 -
Accessories tyre changers
Reduction adapter
MPN: G800A111For motorcycle clamping jaws | reducing clamping capacity to 8″ wheel diameter | 800A99, G800A107 necessary | 1 set /…
-
Accessories tyre changers
Motorcycle clamping jaws for chucking table 24 – 26″
MPN: G800A107Fast-fit, extend the clamping range by +5″ from outside | 1 set / 4 pieces
| Features |  Tyre changer G5140.22M | Tyre changer G5440.22M | Tyre changer G7441.22 | Tyre changer G7240.20 | Tyre changer G5140IH.22U |
|---|---|---|---|---|---|
| Mounting head design | semi-automatic | semi-automatic | automatic | semi-automatic | semi-automatic |
| Mounting arm design | swiveling | moveable | moveable | swiveling | swiveling |
| Mounting column design | rigid | tiltable | tiltable | rigid | rigid |
| Colour | 5005RAL | 5005RAL | 5005RAL | 5005RAL | 5005RAL |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| Workshop-Net | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | Clamping plate | Clamping plate | Clamping plate | Clamping plate | Clamping plate |
| Min. clamping capacity | 10″ | 10″ | 10″ | 10″ | 10″ |
| Max. clamping capacity | 24″ | 24″ | 24,5″ | 20″ | 24″ |
| Max. rim width | 17″ | 13″ | 14″ | 12″ | 17″ |
| Min. rim diameter | 10″ | 10″ | 10″ | 10″ | 10″ |
| Max. rim diameter | 24″ | 24″ | 24,5″ | 22,5″ | 24″ |
| Tire type passenger car | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Run-Flat |
| Max. wheel width | 420mm | 330mm | 381mm | 305mm | 420mm |
| Max. wheel diameter | 1000mm | 1000mm | 1050mm | 1030mm | 1000mm |
| Automatic bead-breaking movement | No | No | No | No | No |
| Bead breaker force | 12kN | 12kN | 10,7kN | 10,7kN | 12kN |
| Number of mounting speeds | 1 | 1 | 2 | 1 | 1 |
| Rotation speed | 7 / 14rpm | 7 / 14rpm | 6,5 / 13rpm | 7,3rpm | 7 / 14rpm |
| Max. torque | 1200Nm | 1200Nm | 1200Nm | 1200Nm | 1200Nm |
| Driving power | 0,75kW | 0,75kW | 0,8 / 1,1kW | 0,55kW | 0,75kW |
| Electrical connection | 220 V | 50 Hz | 230 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 110 V | 60 Hz |
| Phases | 1 | 1 | 3 | 3 | 1 |
| Air supply | 8bar | 8bar | 8bar | 8bar | 8bar |
| Max. air supply | 10bar | 10bar | 10bar | 10bar | 10bar |
| Width | 1110mm | 1110mm | 1304mm | 1272mm | 1110mm |
| Depth | 930mm | 1650mm | 1449mm | 1073mm | 930mm |
| Height | 1720mm | 1850mm | 1950mm | 1834mm | 1720mm |
| Weight | 213kg | 233kg | 214kg | 183kg | 213kg |
