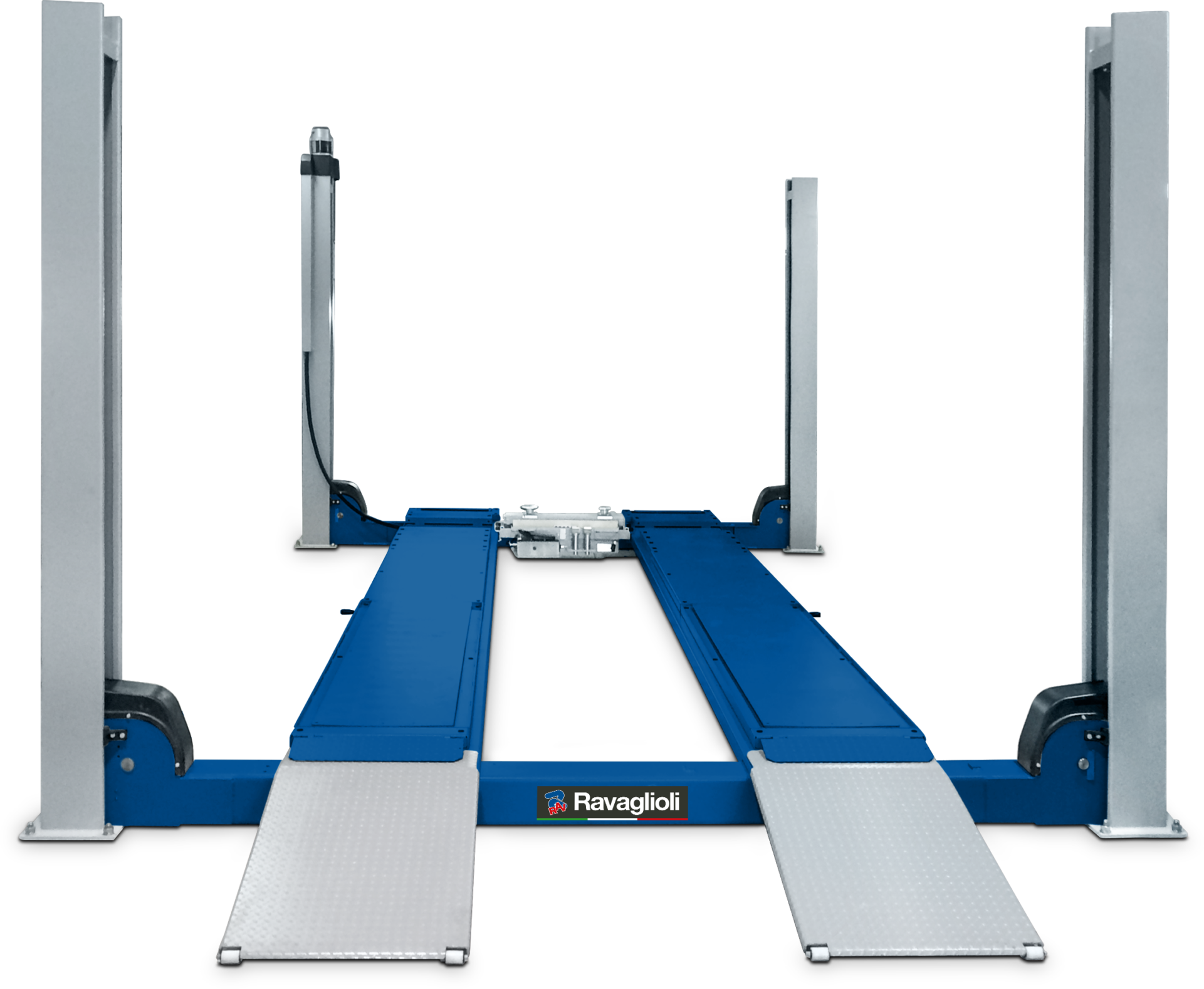

4-Post lift RAV4652L

4-Post lift RAV4652L

6.5 t, electrohydraulic, symmetrical, track length 5700 mm, with wheel alignment, above ground

MPN: RAV.4652L.194299
Category:
Tags: ,
Request Information

Share on:

dashicons-media-document

Description

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
  • High-resistant, galvanised and pre-stretched metal cables
  • Large-diameter pulleys with self-lubricating and maintenance-free bushes
  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
  • Immediate-triggering safety stud devices in case a cable slackens or fails
  • Automatic anti-toe trap alarm during final stages of lift descent
  • Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
  • Low-voltage (24 V) electrical system with control circuit
  • Extra-long platforms for total wheel alignment with front turning plates locations and rear slip plates

Media

Similar Products

Accessories

Tech Data

Features4-Post lift RAV4652L4-Post lift RAV4652L4-Post lift RAV44024-Post lift RAV44024-Post lift RAV4406L4-Post lift RAV4406L4-Post lift RAV4402 | 3 x 230/400 V / 60 Hz4-Post lift RAV4402 | 3 x 230/400 V / 60 Hz4-Post lift RAV4502L4-Post lift RAV4502L
Number of columns44444
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Controlelectricelectricelectricelectricelectric
Type of installationfloor mountedfloor mountedfloor mountedfloor mountedfloor mounted
Rated load capacity6500kg4000kg4000kg4000kg5000kg
Max. lifting height2000mm1915mm1965mm1915mm1965mm
Drive-on-height250mm160mm210mm160mm210mm
Clear span between3300mm2800mm3000mm2800mm3000mm
Clear span between (out)3780mm3155mm3355mm3155mm3355mm
Column height2560mm2614mm2300mm2614mm2300mm
Drive-through width2810mm2470mm2670mm2470mm2645mm
Length of platforms5700mm4460mm5100mm4460mm5700mm
Width of platforms650mm530mm650mm530mm650mm
Space of platforms725 – 1025mm860 – 1210mm900mm860 – 1210mm776 – 940mm
Drive-on ramp length6962 – 7278mm———6767mm
Driving power2,6kW2,6kW2,6kW2,6kW2,6kW
