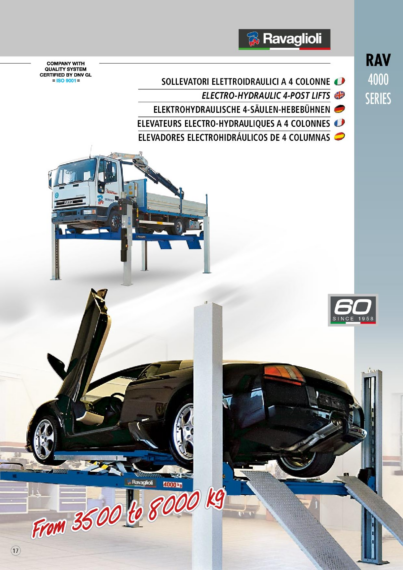

4 post lift RAV4000 MI

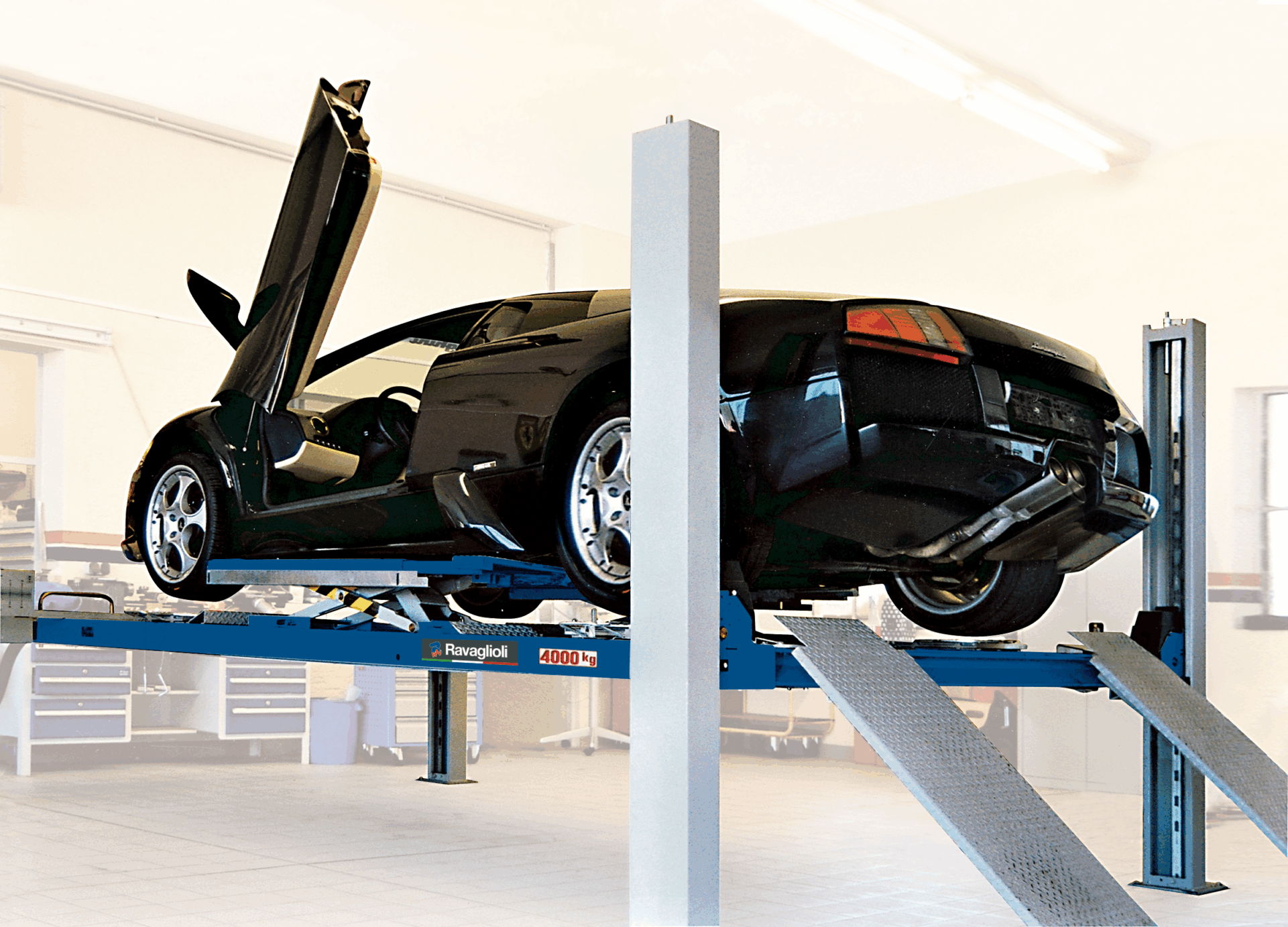

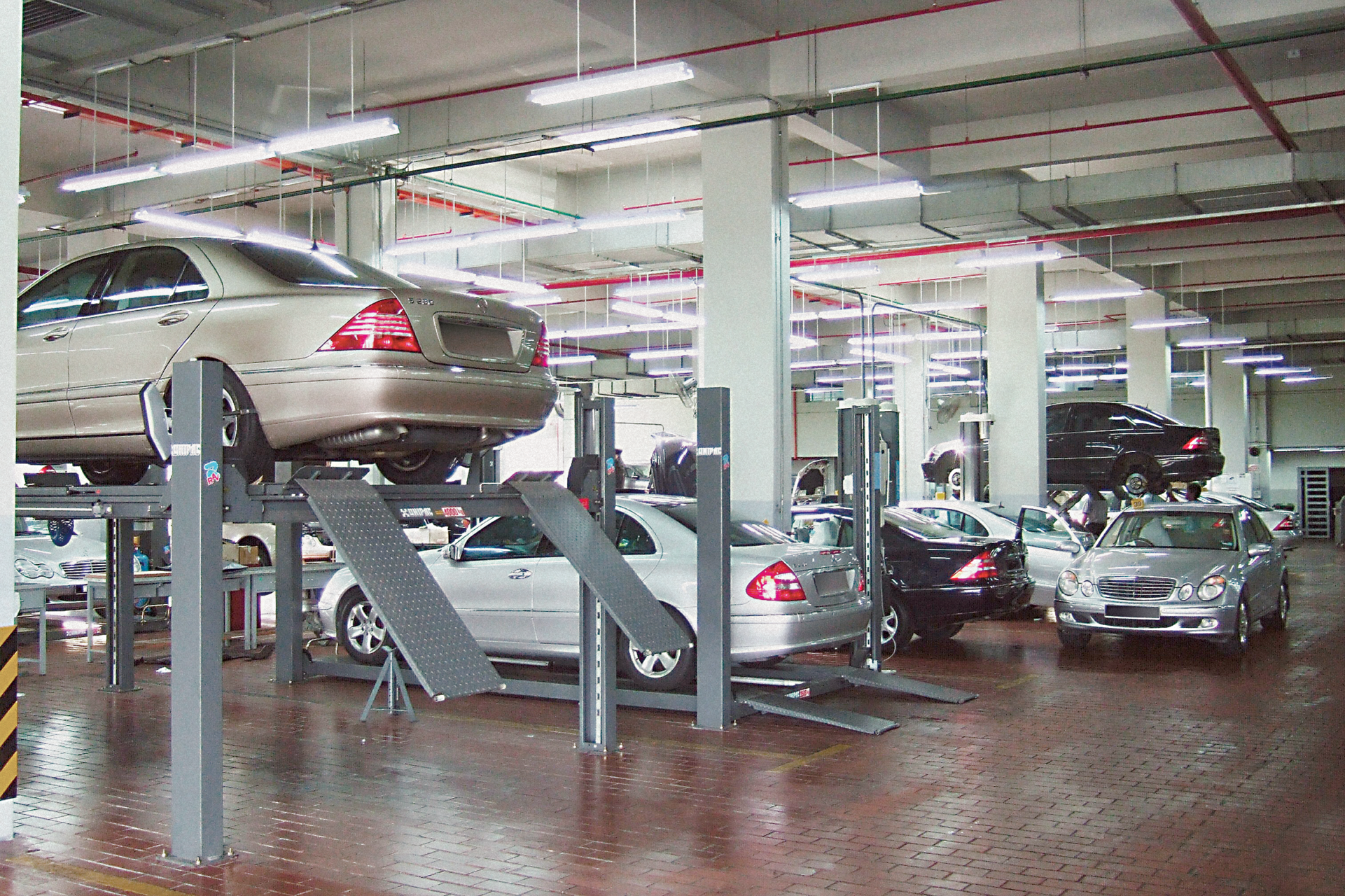

4 post lift 4000 Series MI 01
4 post lift 4000 Series jacking beam DI 01
4 post lift 4000 Series wheel alignment DI 01
4 post lift 4000 Series wheel alignment DI 02

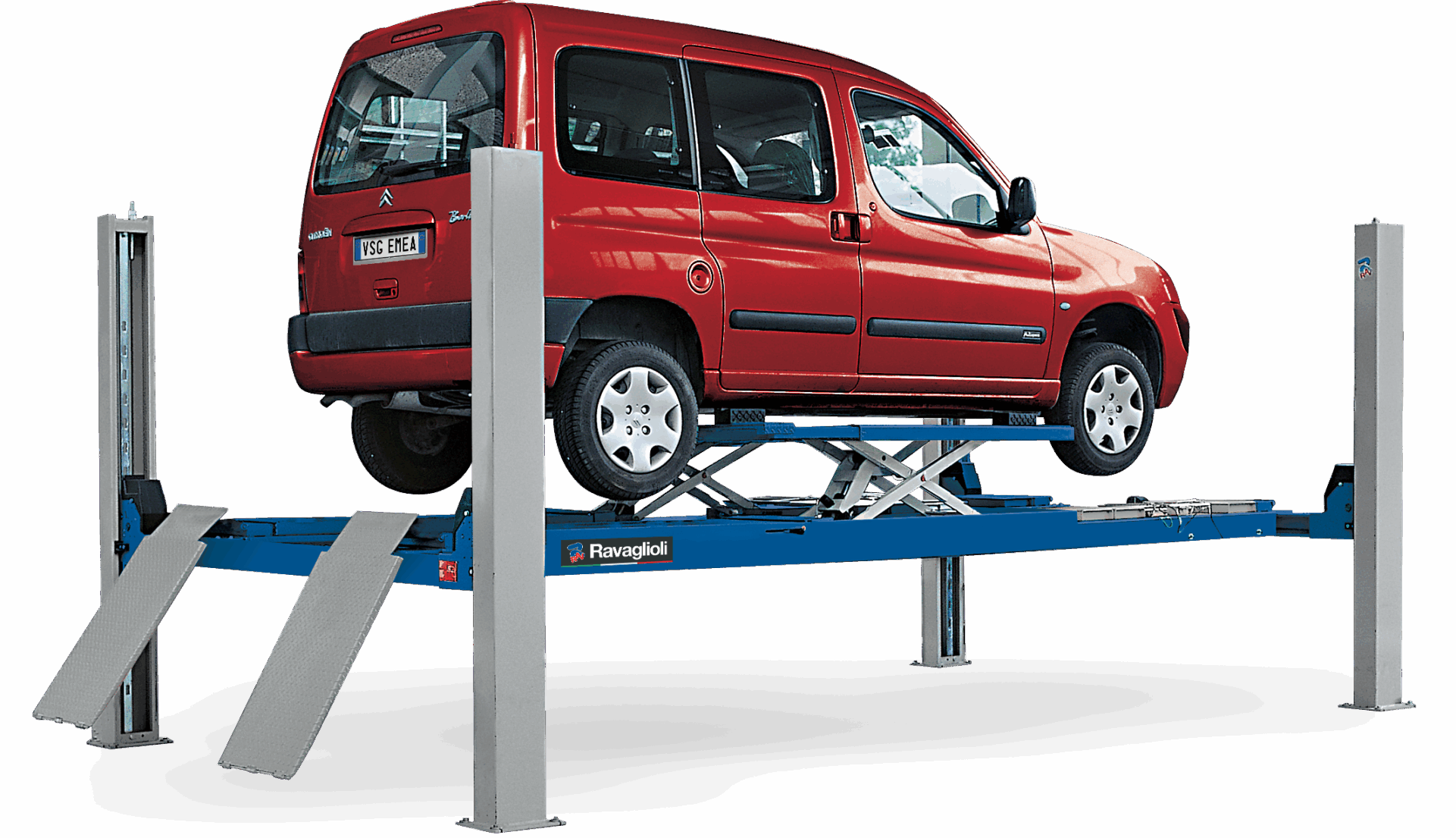

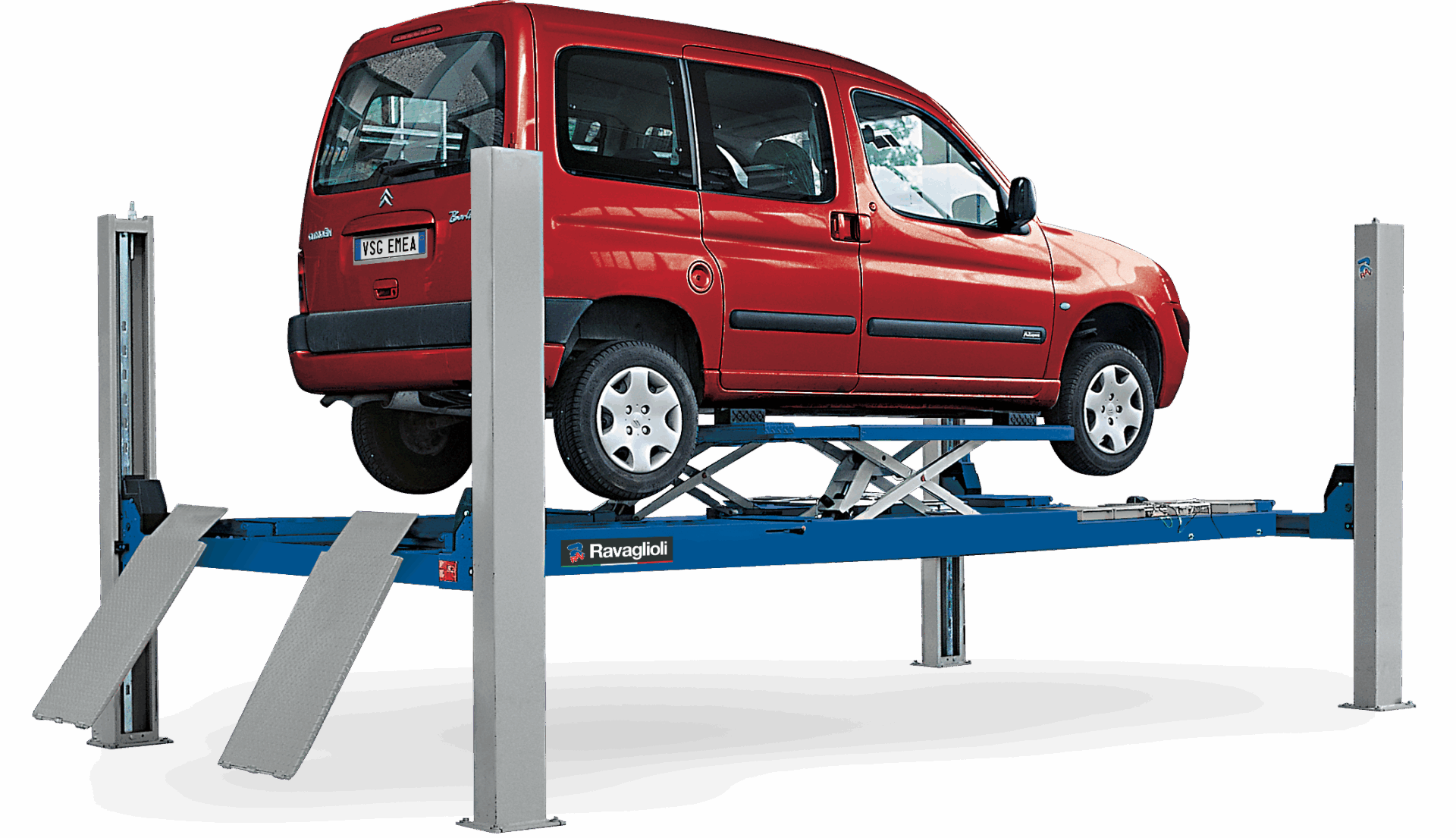

4-Post lift RAV4502LSI

5.0 t, electrohydraulic, symmetrical, track length 5700 mm, with wheel-free jack and wheel alignment, above ground

MPN: RAV.4502L.194640
Category:
Tags: ,
Request Information

Share on:

dashicons-media-document

Description

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
  • High-resistant, galvanised and pre-stretched metal cables
  • Large-diameter pulleys with self-lubricating and maintenance-free bushes
  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
  • Immediate-triggering safety stud devices in case a cable slackens or fails
  • Automatic anti-toe trap alarm during final stages of lift descent
  • Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
  • Low-voltage (24 V) electrical system with control circuit

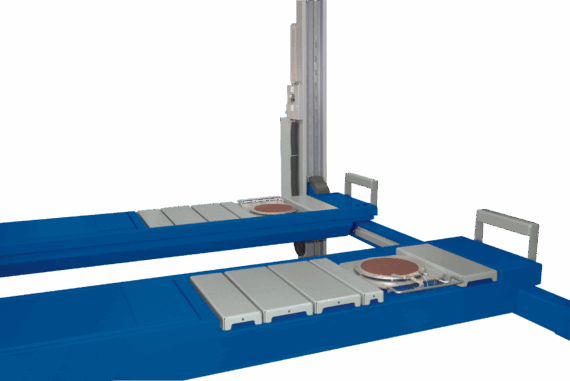

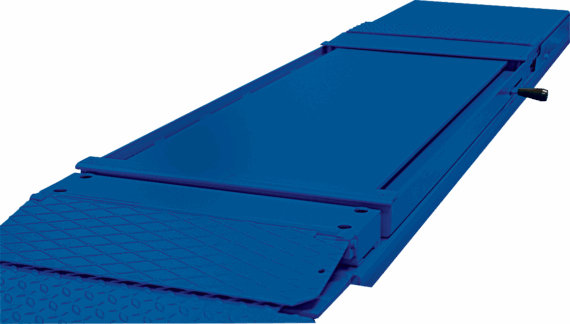

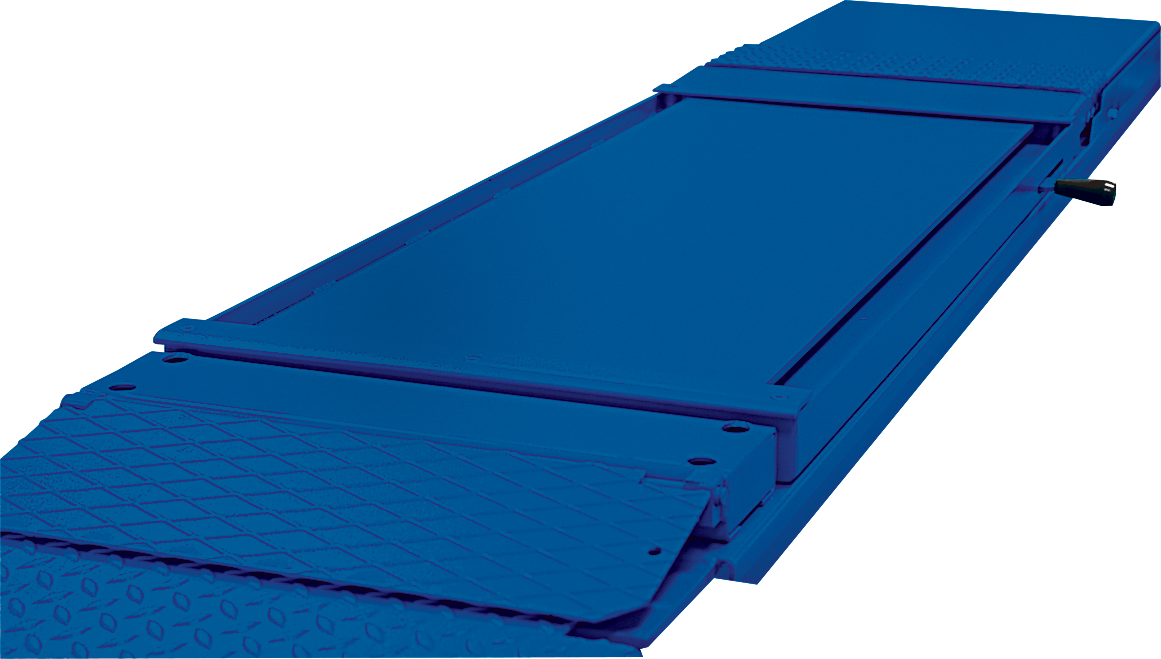

  • Extra-long platforms for total wheel alignment with front turning plates locations and rear slip plates

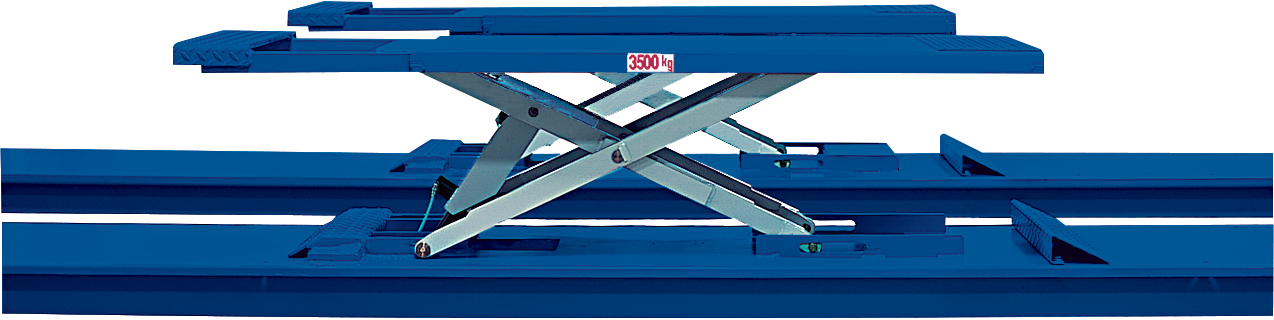

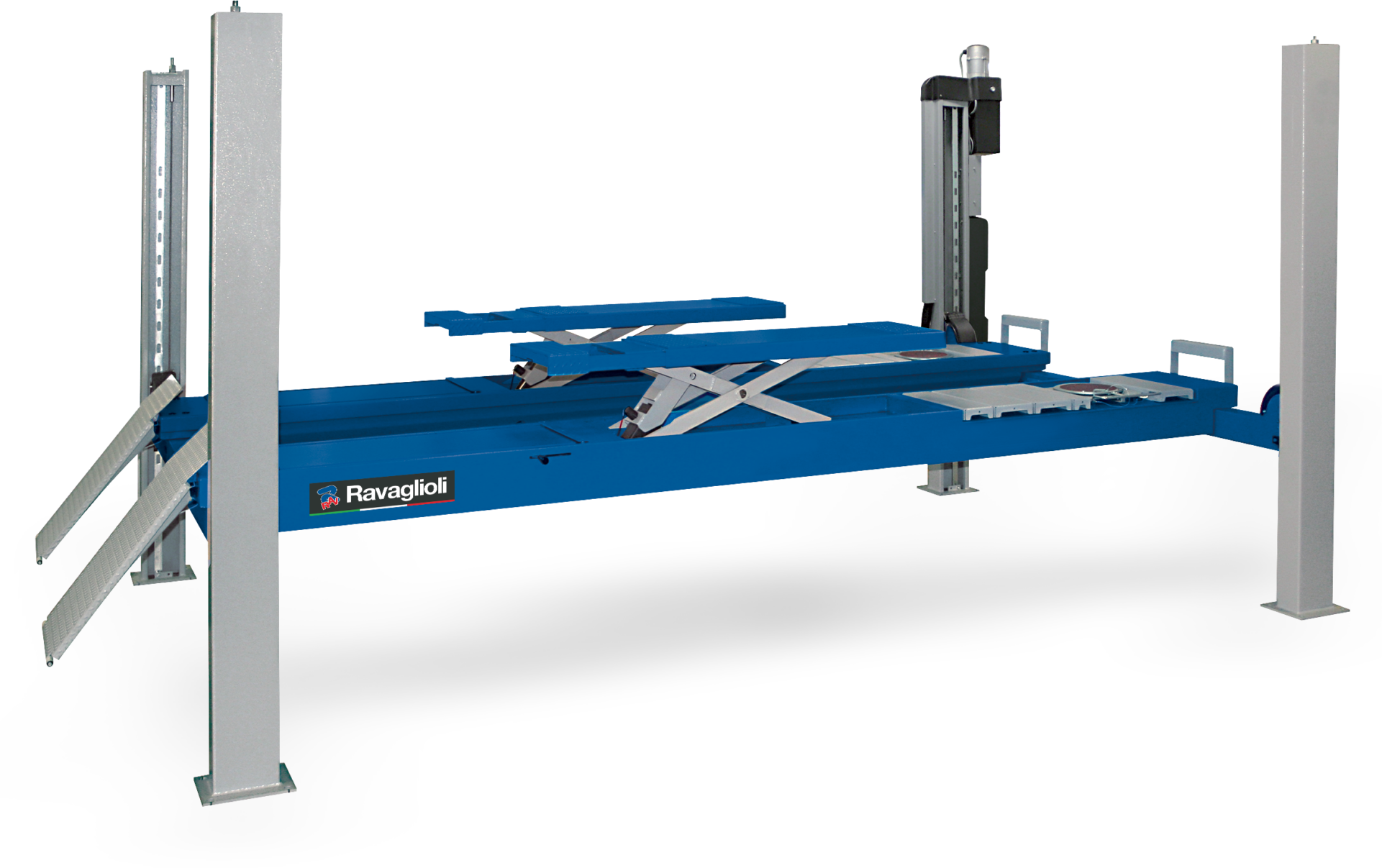

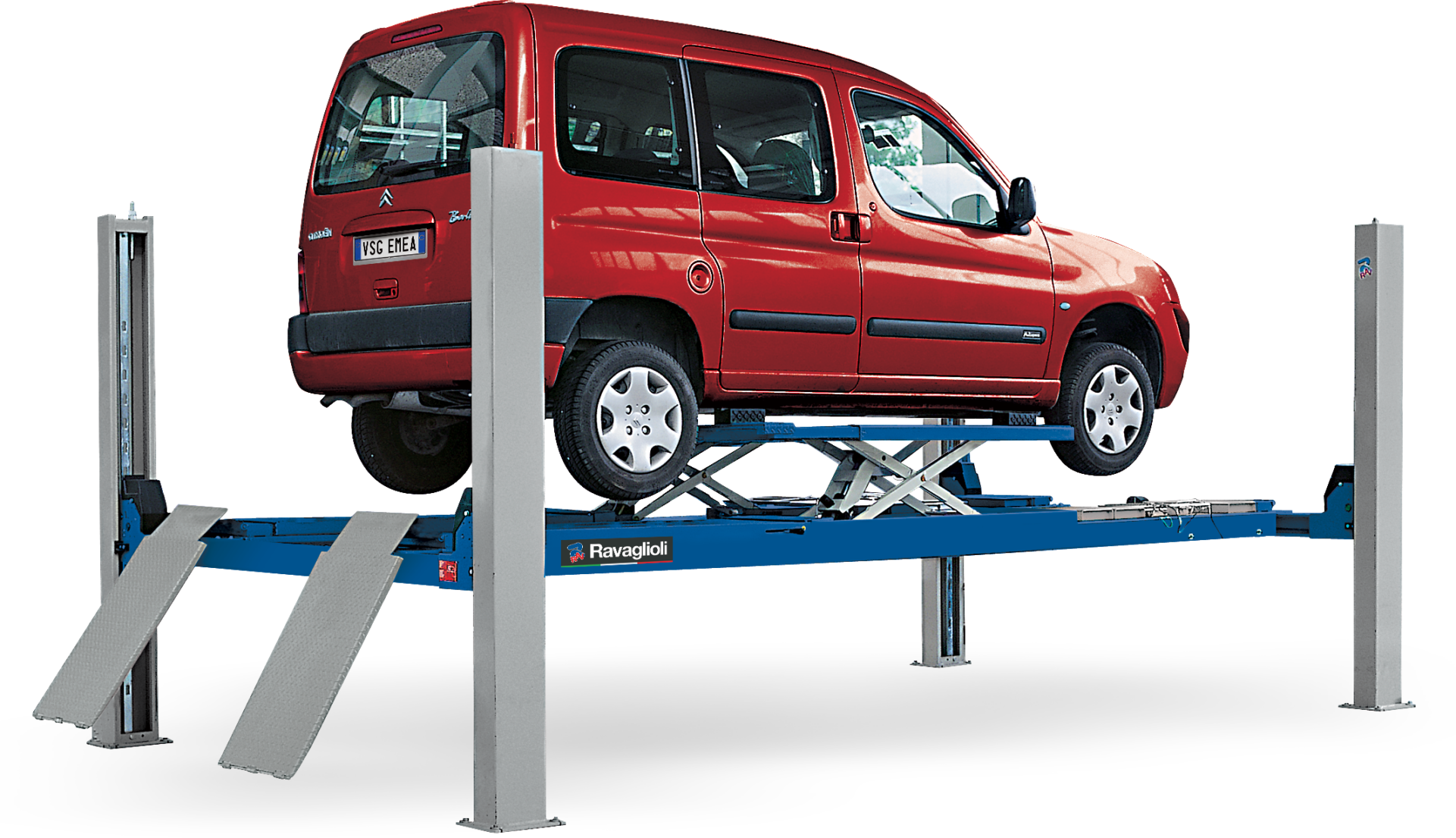

  • Electro-hydraulic wheel free lift featuring adjustable platforms and up/down movements hydraulically synchronised
  • Wheel-alignment lifts complete with wheel free lift are the perfect solution for the vehicle total wheel alignment check

Media

Similar Products

Accessories

Tech Data

Features4-Post lift RAV4502LSI4-Post lift RAV4502LSI4-Post lift RAV4506OFSI4-Post lift RAV4506OFSI4-Post lift RAV4402SI4-Post lift RAV4402SI4-Post lift RAV4406LSI4-Post lift RAV4406LSI
Number of columns4444
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Controlelectricelectricelectricelectric
Type of installationfloor mountedfloor mountedfloor mountedfloor mounted
Rated load capacity5000kg5000kg4000kg4000kg
Max. lifting height1965mm1990mm1915mm1965mm
Drive-on-height210mm230mm160mm210mm
Clear span between3000mm3000mm2800mm3000mm
Clear span between (out)3355mm3490mm3155mm3355mm
Column height2300mm2828mm2614mm2300mm
Drive-through width2645mm2645mm2470mm2670mm
Wheel alignmentstandardstandardstandardstandard
Length of platforms5700mm5700mm4460mm5100mm
Width of platforms650mm550mm530mm650mm
Space of platforms776 – 940mm950 – 1100mm860 – 1210mm900mm
Drive-on ramp length6767mm———
Wheel free liftstandardstandardstandardstandard
Driving power2,6kW2,6kW2,6kW2,6kW
